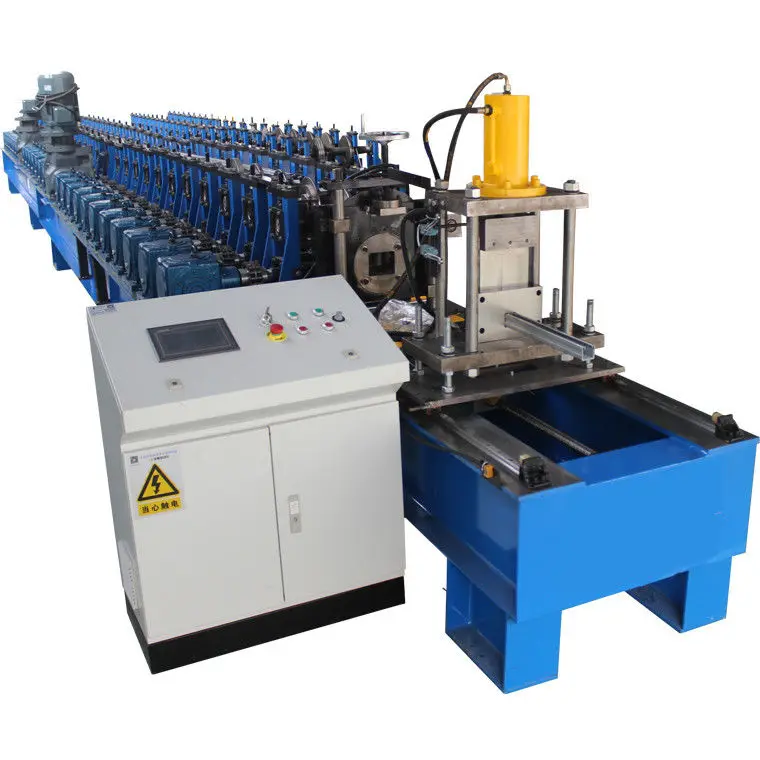

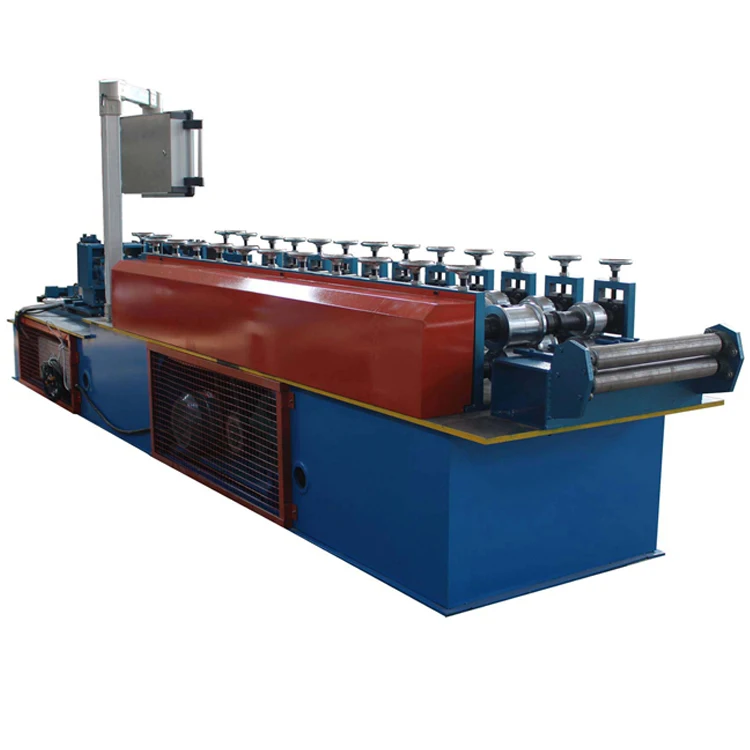

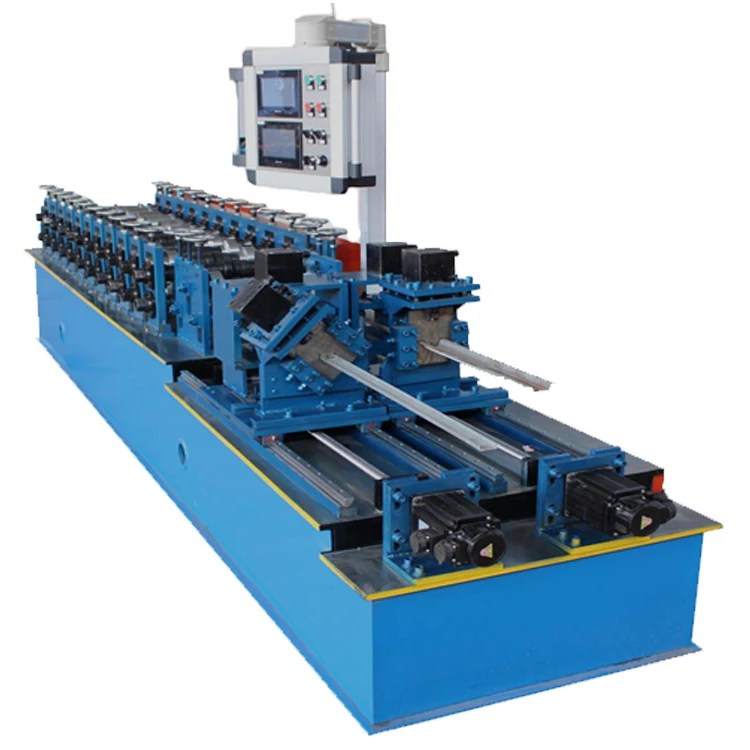

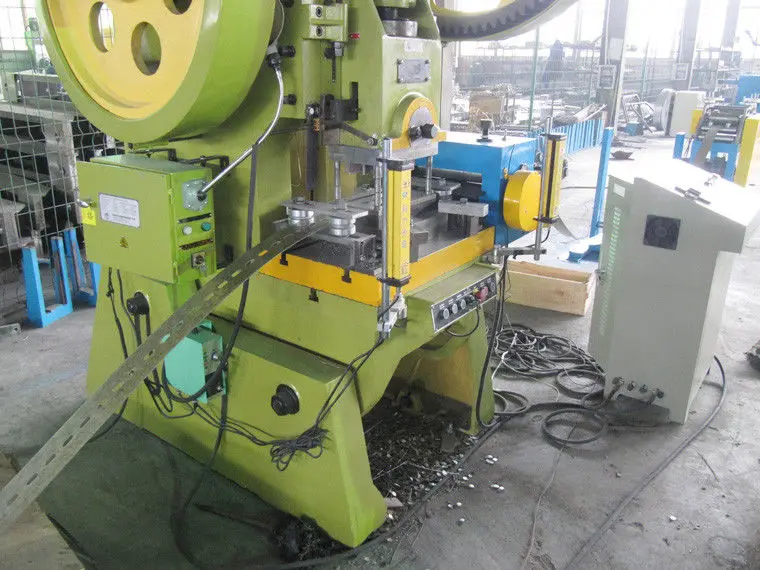

Solar Panel Stand Punching Galvanized Sheet Stud And Track Roll Forming Machine

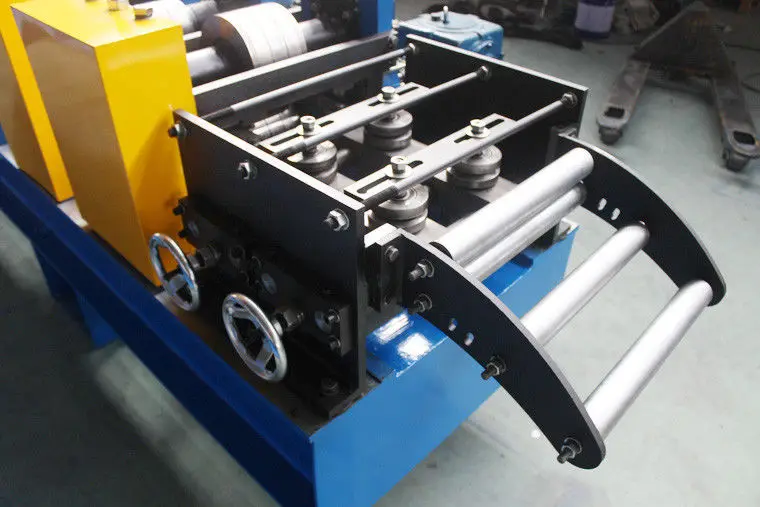

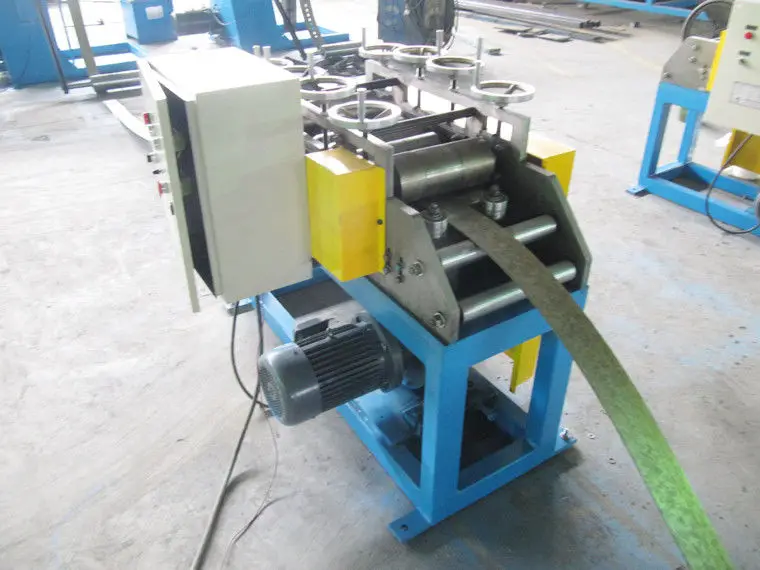

The solar photovoltaic support equipment is a special machine for cold-formed profile forming. It is designed and customized according to the requirements of users and is a non-standard equipment. This equipment first installs the raw materials on the uncoiler and manually feeds them into the main machine. Then, the main machine's mold and some special forming auxiliary devices are gradually deformed to form a certain geometric shape, and then the cutting mechanism is cut to a fixed length to reach the user. According to the requirements of the use, the materials are finally moved away from the receiving table manually. The mechanical, electrical and hydraulic parts of the equipment have sufficient rigidity and toughness, accurate and reliable control, sufficient power, convenient maintenance and long service life.



No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3mm-0.8mm
3	Working Speed	10-15/min
4	Roller Station	12 Raws
5	Dimension (L*W*H)	4500 mm*1200 mm*1200 mm
6	Machine Weight	3800 KG
7	Electrical Control System	PLC
8	Drive Motor Power	3 KW
9	Hydraulic Station Power	3 KW
10	Power Supply	380V/60HZ/3 PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard



Application



The new solar photovoltaic support is a new type of photovoltaic solar cell, which belongs to the support of photovoltaic solar technology, including concrete column, installed on the concrete column hoop, installed on the steel column on the concrete column, inclined special-shaped beam installed on the steel column, supporting the front connecting beam bottom and hoop, connecting the upper beam and hoop rear support, and purlin is installed on the beam through purlin. The utility model has the advantages of simple structure, convenient installation and transportation, certain seismic and wind resistance, and has popularization and practical value. The solar scaffold production equipment provided by us can complete the production of new solar scaffold. It has been produced and operated in many enterprises and achieved good benefits.



Advantage



  Cangzhou Willing roll forming machine co., Ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated nterprises, concerning with the design, development and production of cold roll forming machines,material of building.

It is located in northwest of CangZhou, as a long history of cold roll forming machine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
