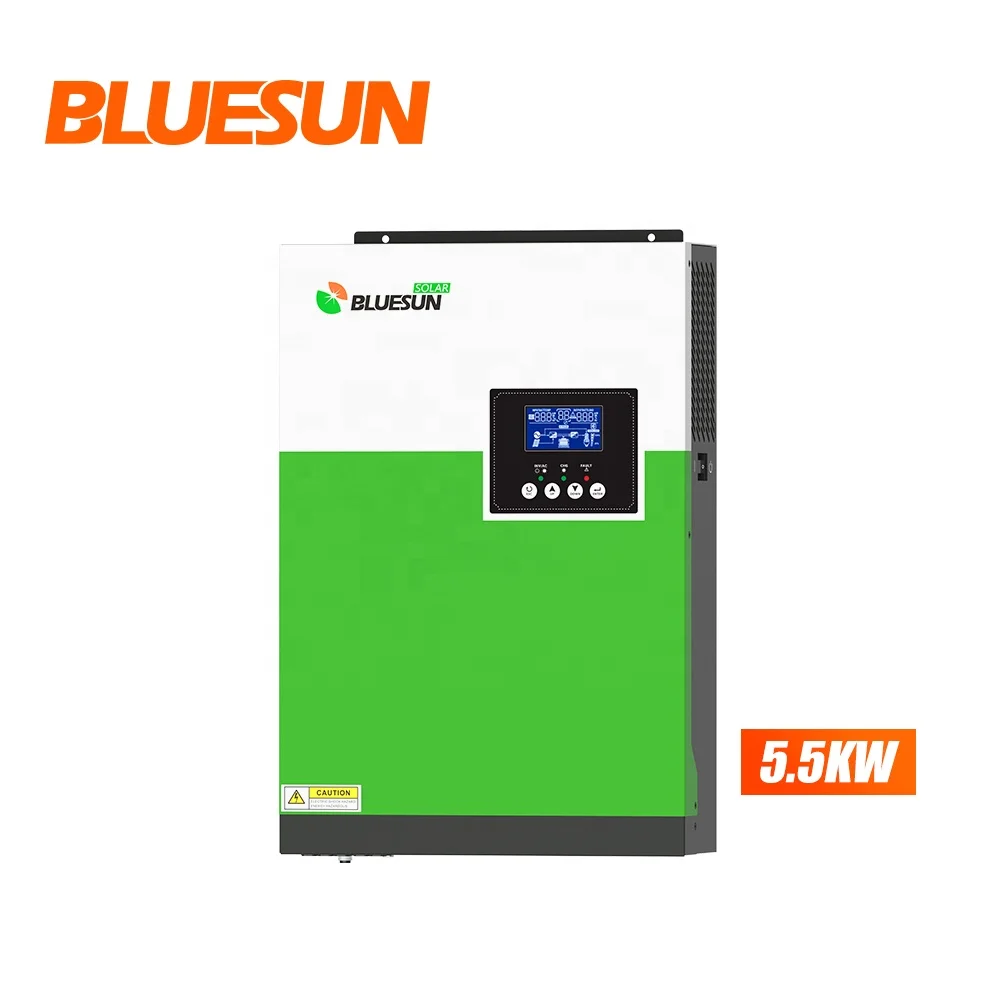

BLUESUN 5500W неэлектрифицированный солнечный инвертор Гибридный 3.5KW 5.5KW с немодулированным синусоидальным сигналом со слежением за максимальной точкой мощности Встроенный 100A солнечное зарядное
- Категория: Solar Energy Products >>>
- Поставщик: Bluesun,Ess,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 48583.45 $* | 51012.99 $* |
| Aug-18-2025 | 48175.44 $* | 50584.90 $* |
| Jul-18-2025 | 40418.37 $* | 42439.54 $* |
| Jun-18-2025 | 47358.59 $* | 49726.29 $* |
| May-18-2025 | 41234.63 $* | 43296.54 $* |
| Apr-18-2025 | 46542.12 $* | 48869.90 $* |
| Mar-18-2025 | 46133.94 $* | 48440.43 $* |
| Feb-18-2025 | 45725.42 $* | 48011.13 $* |
| Jan-18-2025 | 45317.81 $* | 47583.71 $* |
Характеристики
Product Description
MODEL | BSM-3500LV-24 | BSM-5500LV-48 | ||
Rated Power | 3500VA/3500W | 5500VA/5500W | ||
INPUT | ||||
Voltage | 230VAC | |||
Selectable Voltage Range | 170-280VAC(for personal computers) 90-280VAC(for home appliances) | |||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||
OUTPUT | ||||
AC Voltage Regulation (Batt.Mode) | 230VAC±5% | |||
Surge power | 7000VA | 11000VA | ||
Efficiency(Peak) PV to INV | 97% | |||
Efficiency(Peak) BAT to INV | 94% | |||
Transfer Time | 10ms (for personal computers) 20ms (for home appliances) | |||
Wave form | Pure Sine Wave | |||
BATTERY & AC CHARGER | ||||
Battery Voltage | 24VDC | 48VDC | ||
Floating Charge Voltage | 27VDC | 54VDC | ||
Overcharge Protection | 33VDC | 63VDC | ||
Maximum charge current | 80A | 80A | ||
SOLAR CHARGER | ||||
MAX.PV Array Power | 5000W | 6000W | ||
MPPT Range@ Operating Voltage | 120-450VDC | |||
Maximum PV Array Open Circuit Voltage | 500VDC | |||
Maximum Charging Current | 100A | |||
Maximum Efficiency | 98% | |||
PHYSICAL | ||||
Dimension.D*W*H(mm) | 440*300*100 | |||
Net Weight (kgs) | 11kg | 12kg | ||
Communication Interface | USB/RS232(Standard) GPRS/WIFI(Optional) | |||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
Operating Temperature Storage | 0°C to 55°C | |||
Temperature | -15°C to 60°C | |||
Key Features
Packing & Delivery
Payment
Payment Term | EXW | 30% T/T in advance, paid the balance before shipment | |||||
FOB | |||||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||||
CIF | |||||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||||
Paypal | Amount lower than 5000usd | ||||||
Western Union | |||||||
Delivery Time | 7~10 days after receiving payment for one container | ||||||
