Сверление отверстий DD703 с диаметром перфорации от 0 3 до
- Категория: Drilling Machines >>>
- Поставщик: Taizhou,Terui,CNC,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 4760.68 $* | 4998.33 $* |
| Aug-19-2025 | 4720.82 $* | 4956.21 $* |
| Jul-19-2025 | 3960.92 $* | 4158.25 $* |
| Jun-19-2025 | 4640.99 $* | 4872.25 $* |
| May-19-2025 | 4040.42 $* | 4242.68 $* |
| Apr-19-2025 | 4560.59 $* | 4788.27 $* |
| Mar-19-2025 | 4520.2 $* | 4746.59 $* |
| Feb-19-2025 | 4480.85 $* | 4704.93 $* |
| Jan-19-2025 | 4440.11 $* | 4662.69 $* |
Характеристики
Perforation diameter 0.3 to 3 mm edm machine hole drilling DD703
Product Description
| Model Number | DD703.30 | DD703.50 |
| X-Y travel(mm) | 300*400 | 500*630 |
| Workbench size(mm) | 260*380 | 700*1000 |
| Spindle servo travel(mm) | 300 | 600 |
| Spindle head travel(mm) | 200 | 500 |
| Spindle head speed | 20-120rpm | 20-120rpm |
| Electrode wire diameter(mm) | 0.3-3 | 0.3-3 |
| Maximum distance between the director and the table(mm) | 300 | 500 |
| Input power(KW) | 3 | 3 |
| Dimension(mm) | 1260*1160*1900 | 2000*1500*1900 |
Company & Partner
Certificate&Package
FAQ
Q:Could you print the logo or company name on the products or package?
A:Yes. Customer's logo or company name can be printed on products or package,we will do what you want.
Q:What payment terms do you accept?
A:We are flexible on payment terms,please contact us for details!
Q: Could I visit your factory ?
A:Yes.Welcome to our factory.
Q: How to solve the failure problems after-sales?
A: Please send us photos or video of the problems.After we confirm the problems,we will provide corresponding solution.

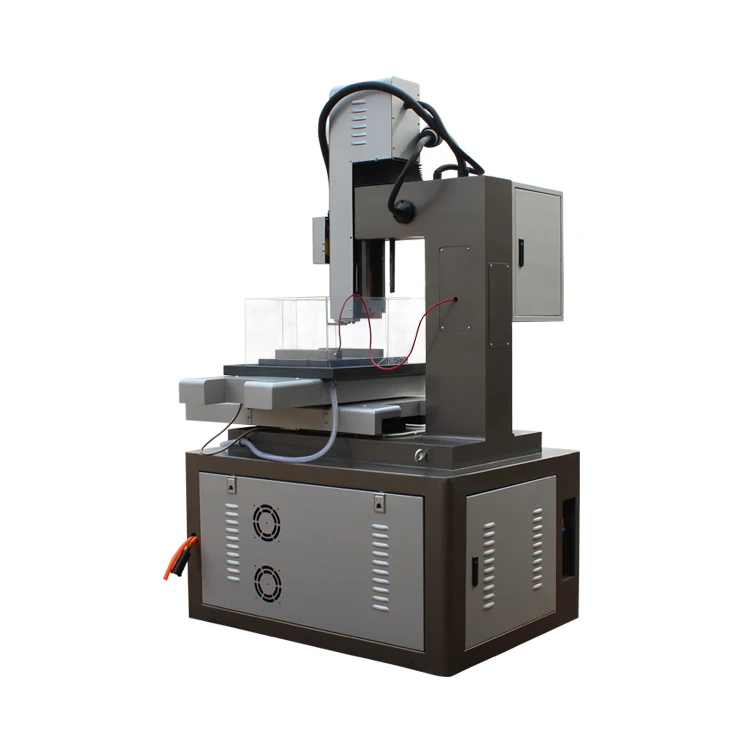

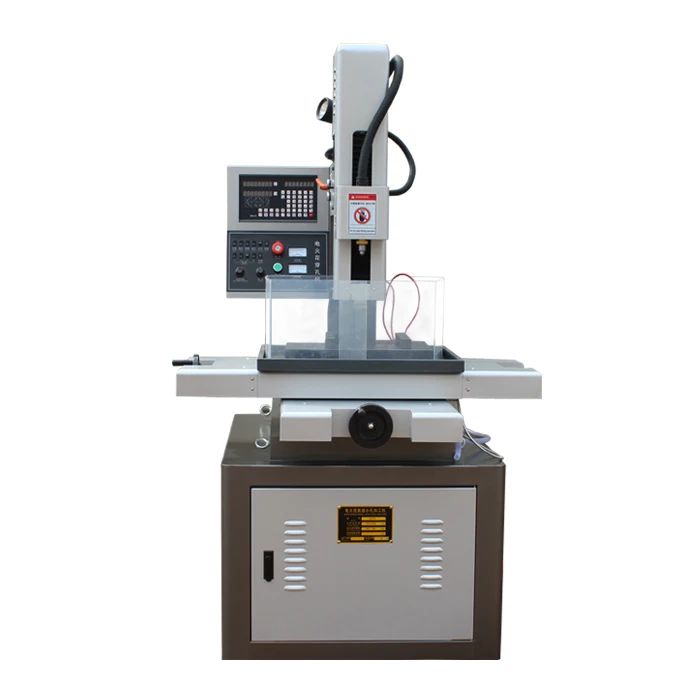

DD703.30 spindle head speed 20-120 rpm small hole edm drill
