Сварочный аппарат для электросварки труб HDPE
- Категория: Plastic Welders >>>
- Поставщик: Qingdao,Polyfusion,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 702.60 $* | 737.70 $* |
| Aug-20-2025 | 696.29 $* | 731.49 $* |
| Jul-20-2025 | 584.16 $* | 613.76 $* |
| Jun-20-2025 | 684.4 $* | 718.36 $* |
| May-20-2025 | 596.91 $* | 626.68 $* |
| Apr-20-2025 | 673.29 $* | 707.56 $* |
| Mar-20-2025 | 667.51 $* | 700.54 $* |
| Feb-20-2025 | 661.59 $* | 694.37 $* |
| Jan-20-2025 | 655.32 $* | 688.16 $* |
Характеристики

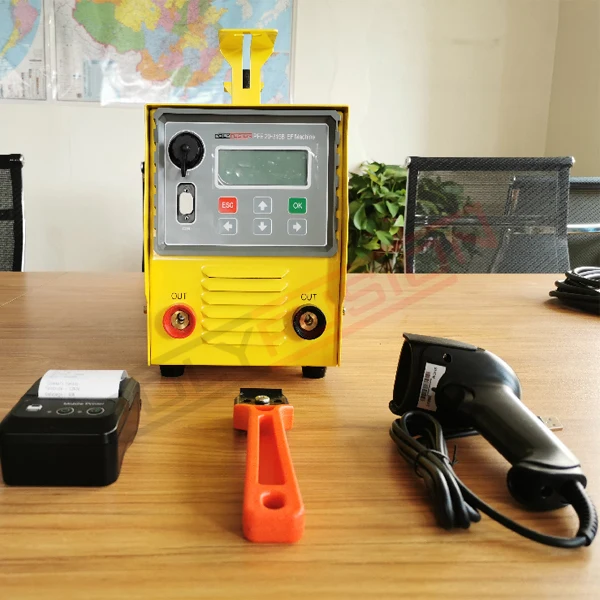

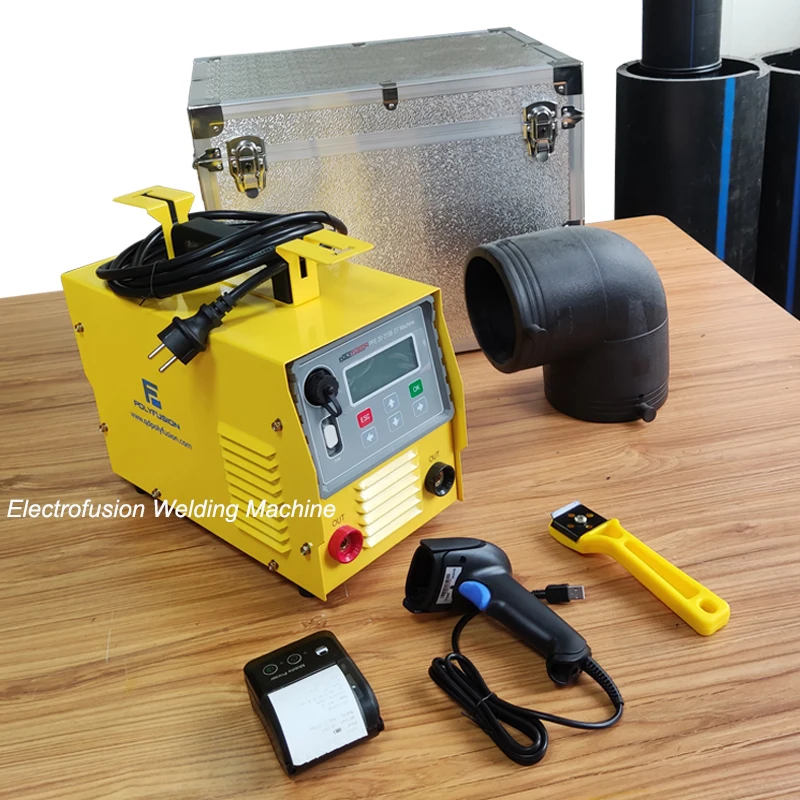

PFE315B Polyethylene Welding Machine Electrofusion Machine Price Hdpe Electrofusion Welding Machine Plastic Butt Welders
Product Description
1. Advanced digital MCU as control core, with abundant parameter setting, detection and perfect protection functions.
2. High brightness LCD, multi language operation, friendly human-machine interface.
3. 20% wide supply voltage input, fully adapted to complex construction site specific power environment.
4. Swiftly output response time when power supply breaks, high stability.
5. 0.5% high precision power, time control, ensure welding quality.
6. USB read, import welding records storage function.
7. Keyboard manual input or bar code scan input.
8. Automatic retrieval of pipe fittings for welding.
9.Good doubling protection function.
10. English, Spanish, Russian, Polish and Chinese languages inside.
Model | PFE315B | PFE500B | PFE630B | PFE1000B | |||
Welding Range(mm) | DN20~315MM | DN20~500MM | DN20~630MM | DN20~1000MM | |||
Rated Power(Kw) | 3.5KW | 12KW | 15KW | 18KW | |||
Input Voltage(V) | AC220V±20% | AC380V±20% | |||||
Input Frequency(Hz) | 40~65Hz | ||||||
Rated Current(A) | 55A | 60A | 80A | 80A | |||
Output Voltage(V) | 75V | 150V | 170V | 280V | |||
Ambient Temperature | ﹣20℃~50℃ | ||||||
Control Mode | Constant Voltage/Constant Current | ||||||
Store Data Number | 270 Times | ||||||
Constant Accuracy | ≤±0.5% | ||||||
Data Output Port | USB Port &Scanner | ||||||
Package Weight (KG) | 18kg | 21kg | 25kg | 35kg | |||
Package Size(MM) | 460X300X430mm | 467x204x335mm | 515x204x386mm | 515x204x386mm | |||
Packing and delivery

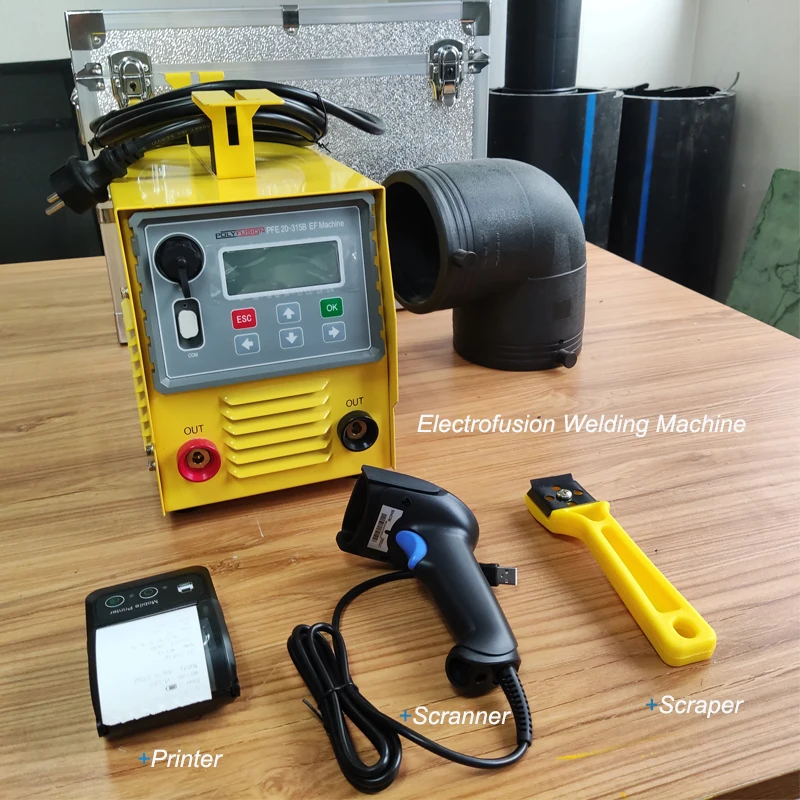

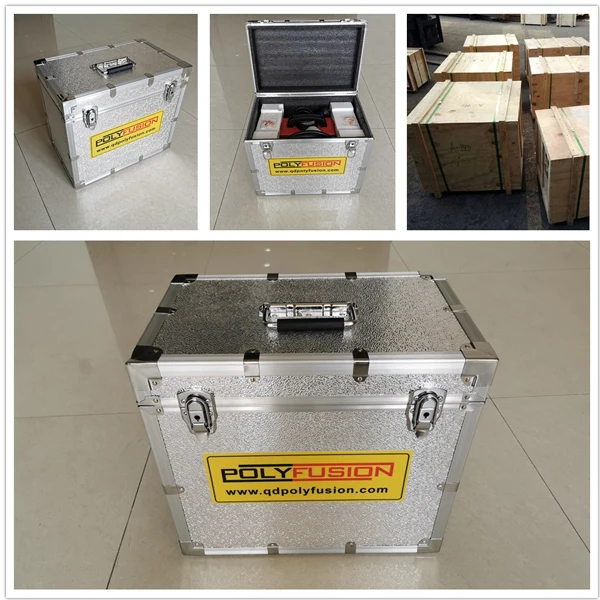

Standard Configuration: electrofusion machine body 1set, Cable 1pc, Scraper 1pc, Scanner 1pc, Pins 3 sets-4.0mm,4.7mm and 5.0mm. By cartons package. Of course, you also can choose the Aluminum box and cartons to package and easy to storage.
If package by carton, package weight is 13kg, easy to transport by DHL,FEDEX,TNT and other Express.
Application
scrape off the oxide layer on the surface of the pipe
scrape off the oxide layer on the surface of the pipe
Socket the pipe(scrape off the oxide layer) to the electrofusion coupler
Connect the electrofusion coupler to machine
Scan the bar code on the EF coupler surface
Start to weld after read the data by scan
Recommend Products
By adjusting the telescopic fixture, it can effectively adapt to the scraping of different pipe diameters by the scraper. The scraping is continuous, even if the pipe is deformed, the scraping effect can still meet the desired needs. At the same time, the position of the surface to be scraped can be adjusted according to the welding depth of the electrofusion coupler.
Model | Working Range (out Diameter) | Working Range (inner Diameter) | Maximum scraping depth(mm) | Diamension(mm) | Weight(kg) |
PF-TC200 | 63~200MM | 55~192MM | 129MM | 425x305x125MM | 3.8kg |
PF-TC400 | 63~400MM | 55~365MM | 150MM | 425x305x125MM | 3.8kg |
PF-TC800 | 200~800MM | 182~728MM | 225MM | 430x340x130MM | 5.2kg |
PFS Series ScraperProfessional rotary scrapers, essential to prepare the plastic pipes and fittings before electrofusion welding.The tools has an
adjustable chuck covering all the diameter of the working range, and a blade holders orbital arm.The PFS series guarantees a
constant and regular removal of the shaving. The scrapers blade holder permits the scraping of the entire electrical sleeve's
lenght, most useful when doing on site repairs.
adjustable chuck covering all the diameter of the working range, and a blade holders orbital arm.The PFS series guarantees a
constant and regular removal of the shaving. The scrapers blade holder permits the scraping of the entire electrical sleeve's
lenght, most useful when doing on site repairs.
Our Company
QINGDAO POLYFUSION MACHINERY CO. LTD. is a professional manufacture for 10 years in China. In 10 years' manufacturer and exporting, we have much professional technicians and agents in many foreign countries. Our products including Butt Fusion Welding Machines, Workshop Fitting Machines, Multi-Angle Pipe Saw, Electrofusion Machines, HDPE Fittings, Electrofusion Fittings, Plastic Sheet Welding, Bending and Rolling Machines. ISO and CE certificates can supply, be produce strcictly and quality managment, makes our machines have high quality, best feedback and markets. We do hope more business and chance with all of you, let's work together and success together
Certifications
Exhibitions
FAQ
1. who are we?
We are based in Shandong, China, start from 2019,sell to Southeast Asia(00.00%),South Asia(00.00%),Eastern Europe(00.00%),Africa(00.00%),South America(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Butt Fusion Machine,Electrofusion Welding Machine,PPR Welding Machine,Automatic Plastic Welding Machine,Workshop Fitting Welding Machine,HDPE Fitting,Plastic Pipe Tools
4. why should you buy from us not from other suppliers?
1. Welding equipment has CE,ISO,BV, SGS certification, as well as domestic welding industry laboratory CNAS certification.
2. 11 years of experience in welding machine export sales
3. Welder supply range from 40mm to 3000mm
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian
We are based in Shandong, China, start from 2019,sell to Southeast Asia(00.00%),South Asia(00.00%),Eastern Europe(00.00%),Africa(00.00%),South America(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Butt Fusion Machine,Electrofusion Welding Machine,PPR Welding Machine,Automatic Plastic Welding Machine,Workshop Fitting Welding Machine,HDPE Fitting,Plastic Pipe Tools
4. why should you buy from us not from other suppliers?
1. Welding equipment has CE,ISO,BV, SGS certification, as well as domestic welding industry laboratory CNAS certification.
2. 11 years of experience in welding machine export sales
3. Welder supply range from 40mm to 3000mm
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian
The shipping rate is negotiable，please contact us for accurate shipping price~
