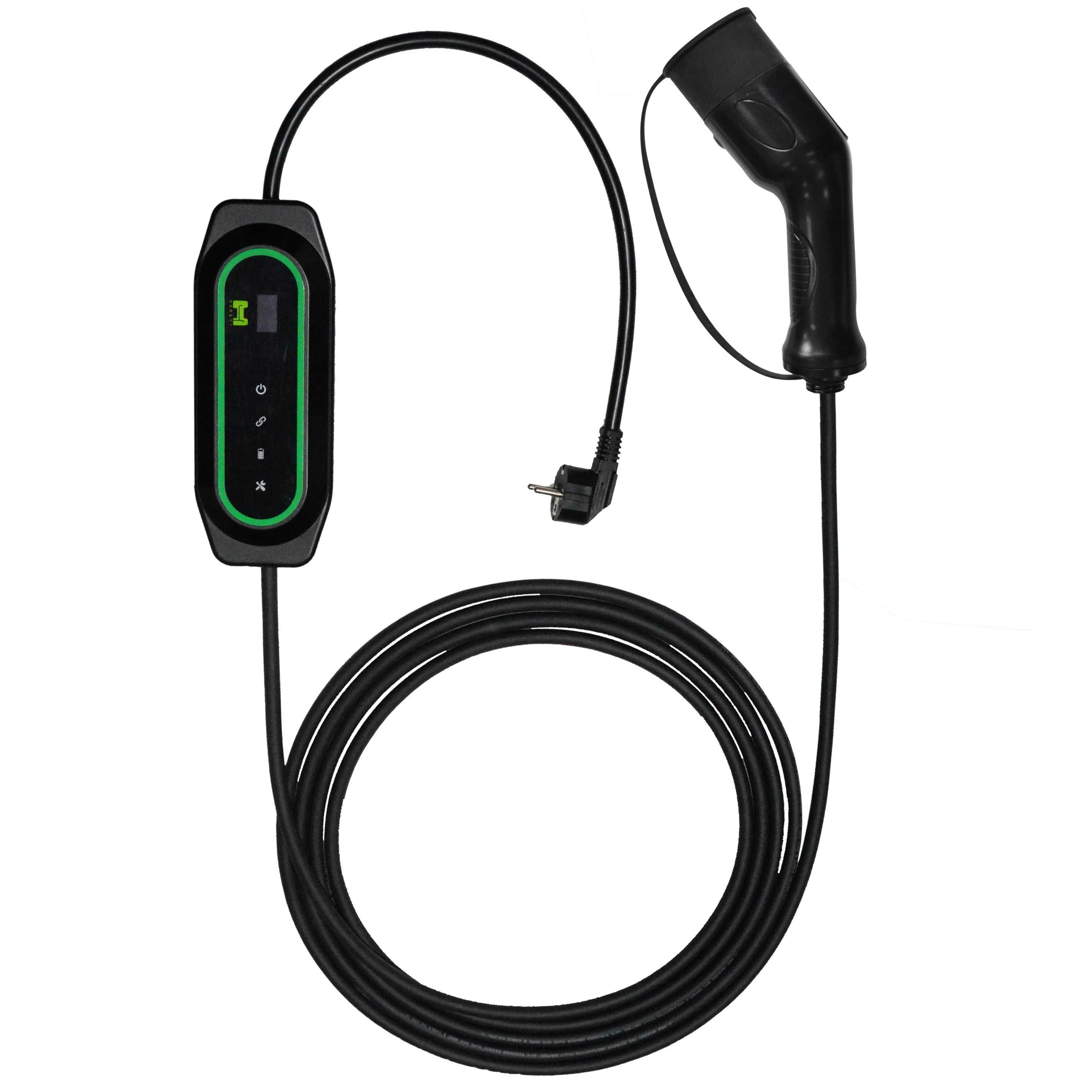

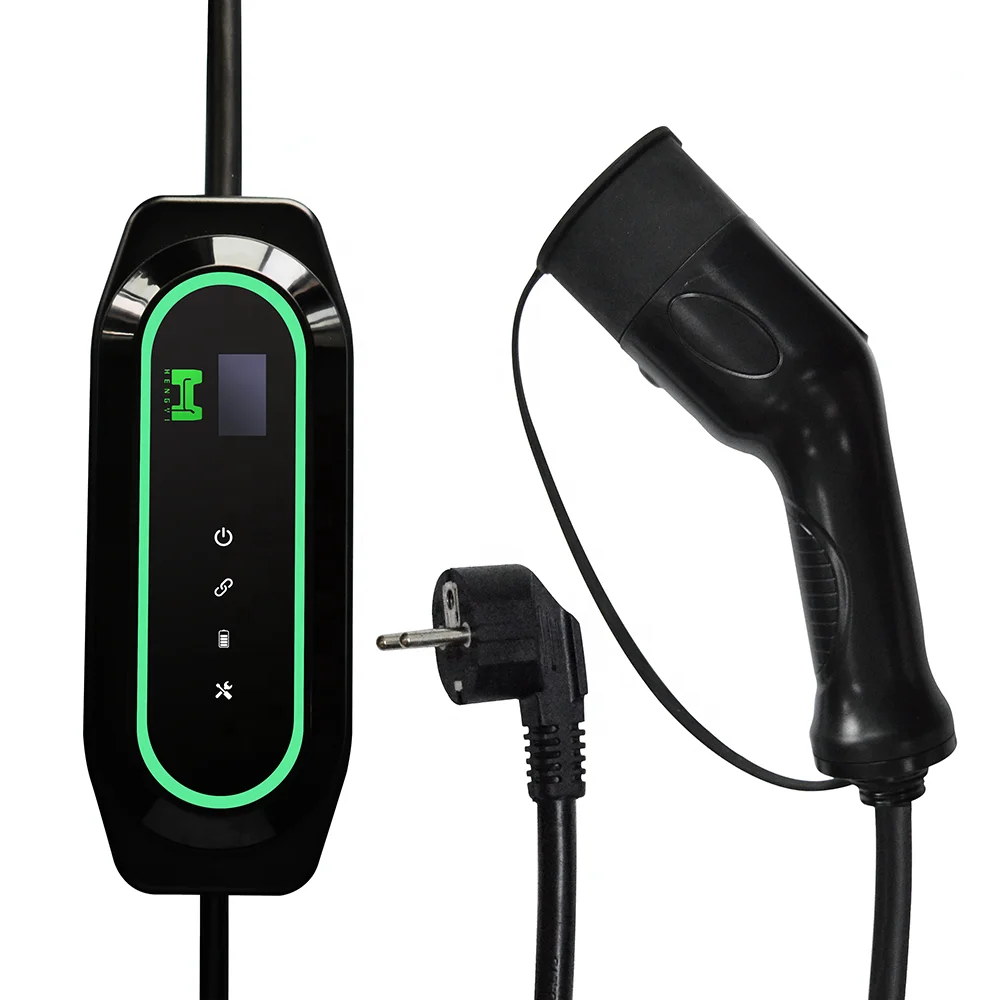

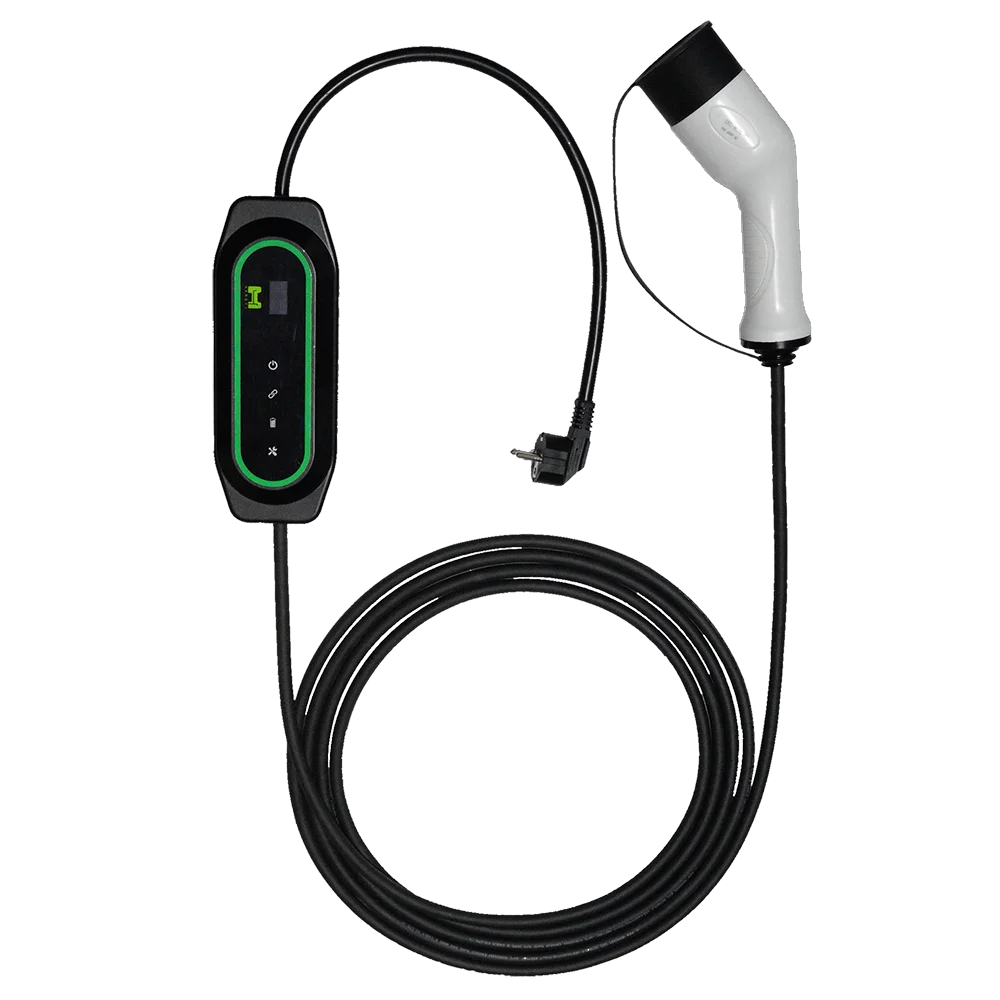

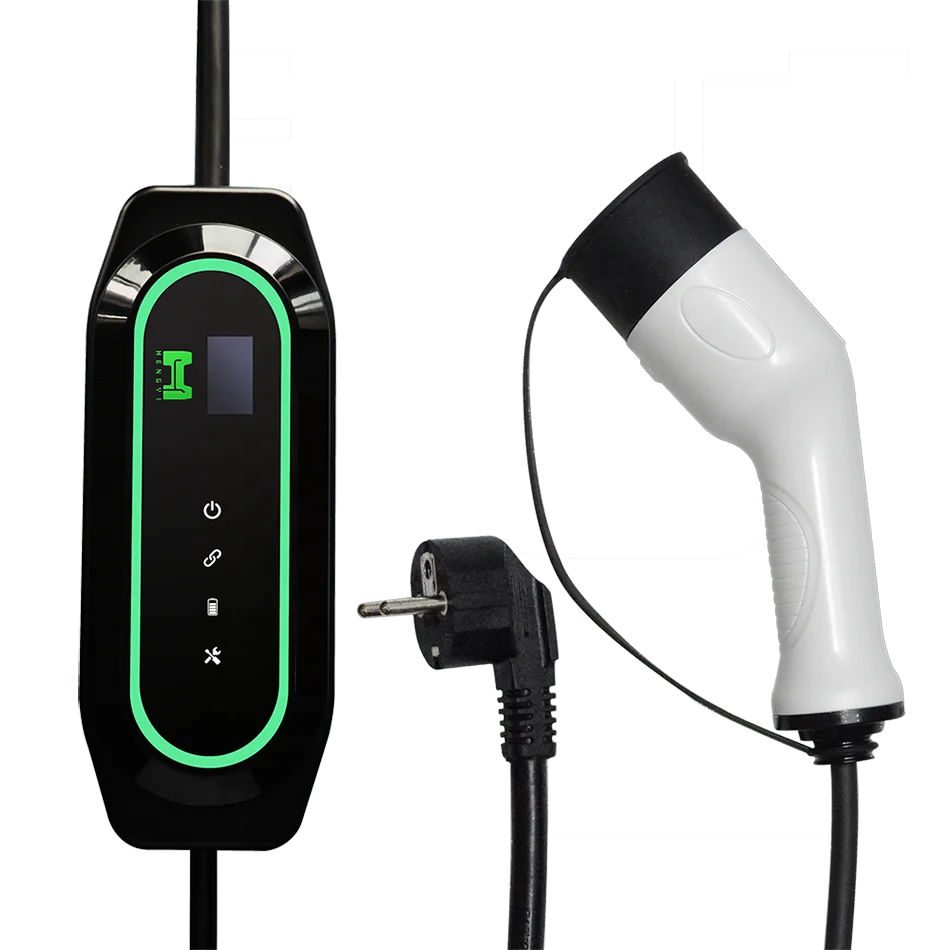

New version level 2 3.5KW 16A adjustable current ev charger with 2inch display
- Категория: New Energy Vehicle Parts & Accessories >>>
- Поставщик: Star,Charger,New,Energy,Technology,(shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 117.26 $* | 123.50 $* |
| Aug-15-2025 | 116.28 $* | 122.93 $* |
| Jul-15-2025 | 97.77 $* | 102.21 $* |
| Jun-15-2025 | 114.95 $* | 120.53 $* |
| May-15-2025 | 99.36 $* | 104.4 $* |
| Apr-15-2025 | 112.81 $* | 118.83 $* |
| Mar-15-2025 | 111.53 $* | 117.82 $* |
| Feb-15-2025 | 110.80 $* | 116.92 $* |
| Jan-15-2025 | 109.7 $* | 114.40 $* |
Характеристики
Products Description
Power regulation & charging reservation_function definition V2.0

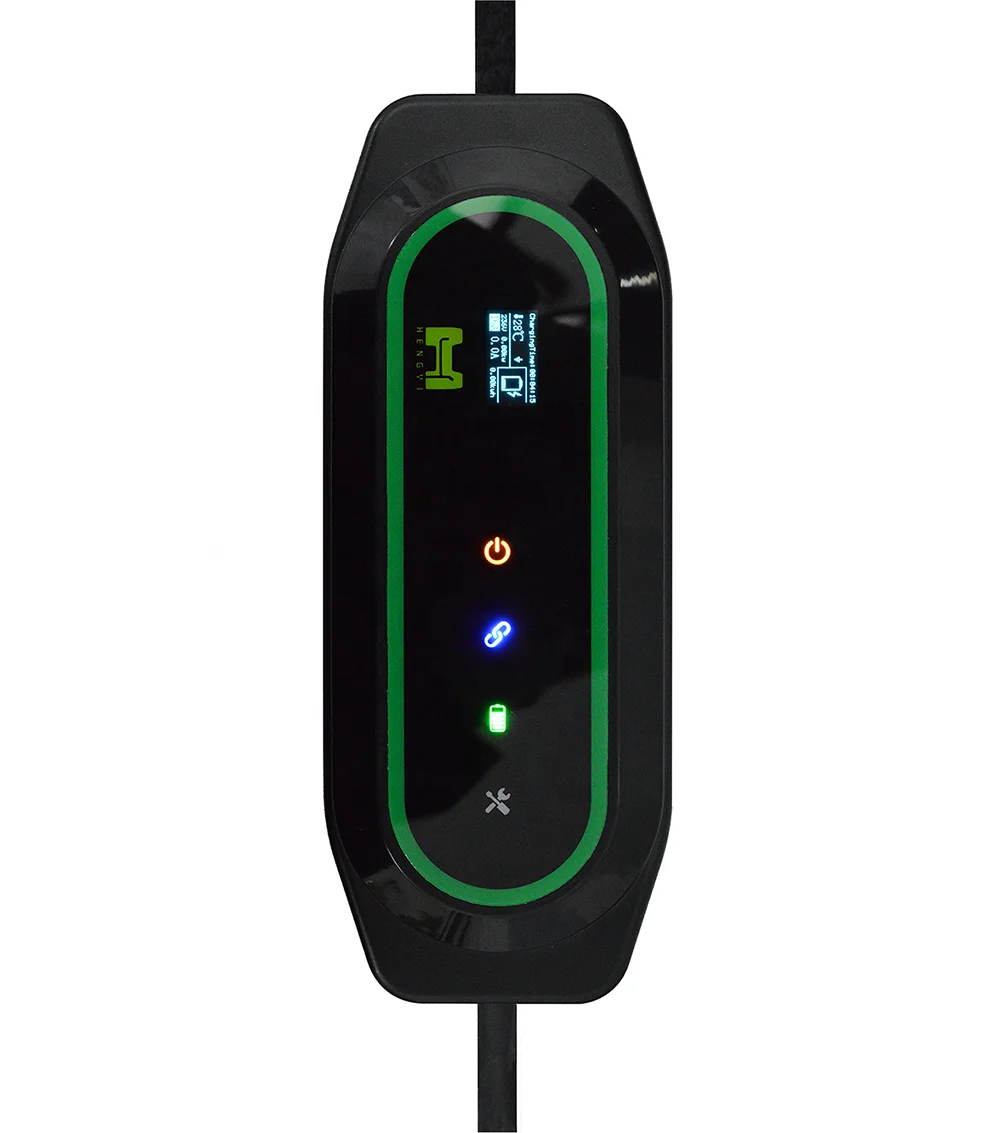

Power adjustment-through the capacitive touch button at the bottom of the screen (add buzzer interaction)
Power adjustment-through the capacitive touch button at the bottom of the screen (add buzzer interaction)
1) Keep pressing the touch button at the bottom of the screen for more than 2S (less than 5S), the buzzer will sound once, then release the touch button to enter the power regulation mode, and charging cannot be started in the power regulation mode
2) In the power adjustment mode, press the touch button again to switch the rated current of the device cyclically, and the buzzer will sound once every time it is switched. ——The defined standard value is: 32A/25A/20A/16A/13A/10A/8A, the upper limit of the current must not exceed the maximum current carrying capacity calibrated by the device itself (the maximum charging current sent by the main control board)
Charging appointment-through the capacitive touch button at the bottom of the screen (add buzzer interaction)
1) Keep pressing the touch button at the bottom of the screen for more than 5 seconds (when the button is pressed for more than 2 seconds, the buzzer will beep first, at this time, keep pressing and not let go, otherwise it will enter the power adjustment mode) to enter the charging appointment adjustment Mode, the buzzer will beep twice, and charging cannot be started in the charging schedule adjustment mode
2) In the charge scheduling adjustment mode, press the touch button again to cycle the time for the device to delay the start of charging, and the buzzer will sound every time it is switched. ——The defined standard value is: 1H/2H/4H/6H/8H/10H and then start charging
Note: The power adjustment/charge reservation function can only be entered in the
idle/standby state
idle/standby state
Parameter | Product model | SE12235AC05EU | ||
Structure | Product Series | Pony Ⅰ | ||
Size(mm) | 225(H)*88(W)*50(D)mm | |||
Charging cable | 5m Standard Support Custom Length | |||
Weight | 2kg(with plug) | |||
Electrical Specifications | Input voltage | AC220V±20% | ||
Frequency rating | 45~65HZ | |||
Power rating | 3.5 KW | |||
Measuring accuracy | 1.0 grade | |||
Output voltage | AC220V±20% | |||
Current rating | 8A , 10A , 13A , 16A Adjustable | |||
Delay charging | 1H , 2H , 4H , 6H , 8H , 10H Adjustable | |||
Function | LED | Y | ||
Display | Y | |||
RFID | N | |||
Operating conditions | Working temperature | -40~+65℃ | ||
Relative humidity permission | 5%~95%(non-condensation) | |||
Maximum altitude permission | ≤3000m | |||
IP grade | IP67 | |||
Cooling way | Natural cooling | |||
Applicable ambient | Indoor/outdoor | |||
ECT | UV resistance | |||
MTBF | ≥100000H | |||
FAQ
How AC ev charger works?
The output of the AC charging post is AC, which requires the OBC to rectify the voltage itself, and is limited by the power of theOBC, which is generally small, with 3.3 and 7kw being the majority.
What ev charger do I need?
The output of the AC charging post is AC, which requires the OBC to rectify the voltage itself, and is limited by the power of theOBC, which is generally small, with 3.3 and 7kw being the majority.
What ev charger do I need?
It is best to choose according to the OBC of your vehicle, e.g. if the OBC of your vehicle is 3.3KW then you can only charge your vehicle at 3.3KW even if you buy 7KW or 22KW
How to use ev charger?
You need to connect the ev charger to the power supply and then insert the charging plug into your car. If you have selected the RFID card, it will only start charging after you have swiped the RFID card. app version you can control the start or stop of charging on your mobile phone, and you can also make appointments to charge at certain times.
what's the MOQ?
If you are ordering just one product, we can also customise the logo or change the colour of the panel for you, but these
customisations are available at an additional cost. Please contact us for more information
Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
What is your terms of delivery?
EXW, FOB, CIF.
What is your terms of payment?
We accept all methods of payment: paypal, T/T, credit card, Alibaba assurance, West Union... Please contact us for more details.
How to use ev charger?
You need to connect the ev charger to the power supply and then insert the charging plug into your car. If you have selected the RFID card, it will only start charging after you have swiped the RFID card. app version you can control the start or stop of charging on your mobile phone, and you can also make appointments to charge at certain times.
what's the MOQ?
If you are ordering just one product, we can also customise the logo or change the colour of the panel for you, but these
customisations are available at an additional cost. Please contact us for more information
Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
What is your terms of delivery?
EXW, FOB, CIF.
What is your terms of payment?
We accept all methods of payment: paypal, T/T, credit card, Alibaba assurance, West Union... Please contact us for more details.
