Дешевый копировальный фрезерный станок для алюминиевых профилей
- Категория: Building Material Machinery >>>
- Поставщик: Jinan,Mag,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 105103.50 $* | 110358.88 $* |
| Aug-18-2025 | 104220.2 $* | 109431.77 $* |
| Jul-18-2025 | 87439.79 $* | 91811.14 $* |
| Jun-18-2025 | 102454.89 $* | 107577.63 $* |
| May-18-2025 | 89205.64 $* | 93665.96 $* |
| Apr-18-2025 | 100687.5 $* | 105721.88 $* |
| Mar-18-2025 | 99804.99 $* | 104794.58 $* |
| Feb-18-2025 | 98921.69 $* | 103867.26 $* |
| Jan-18-2025 | 98037.92 $* | 102939.89 $* |
Характеристики

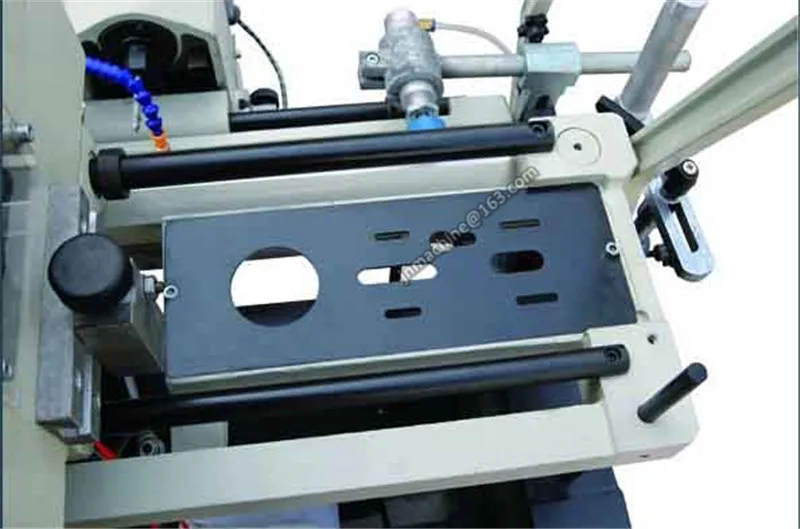

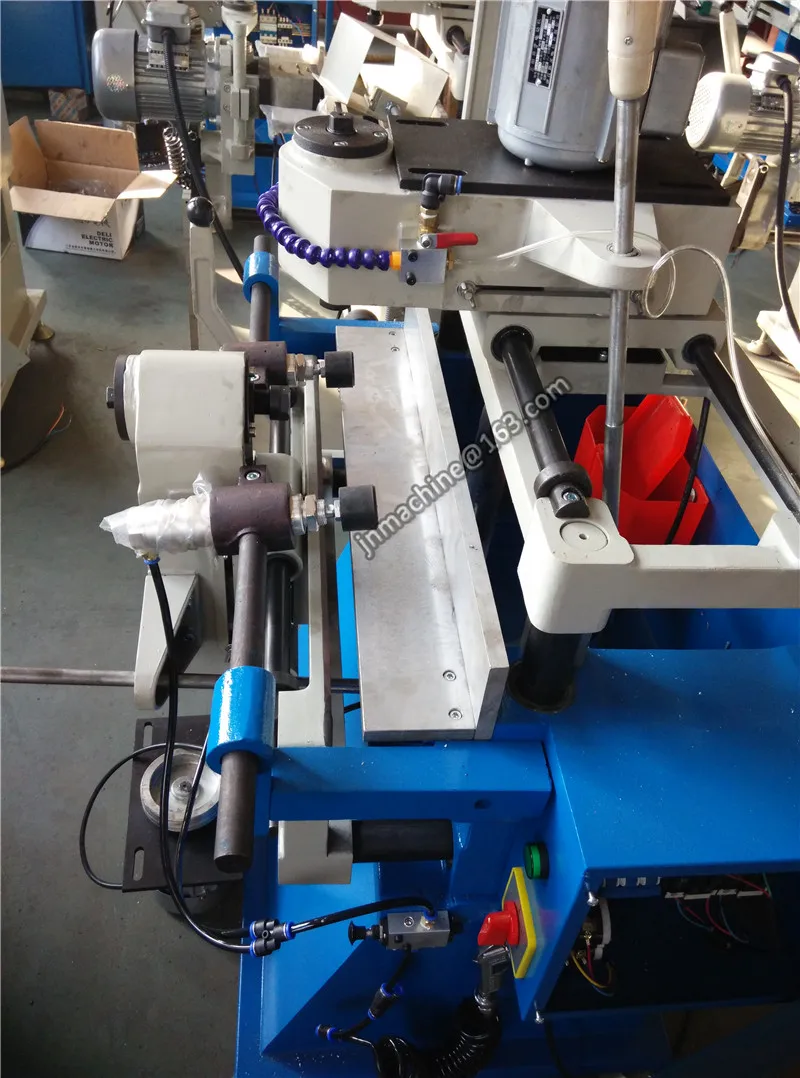

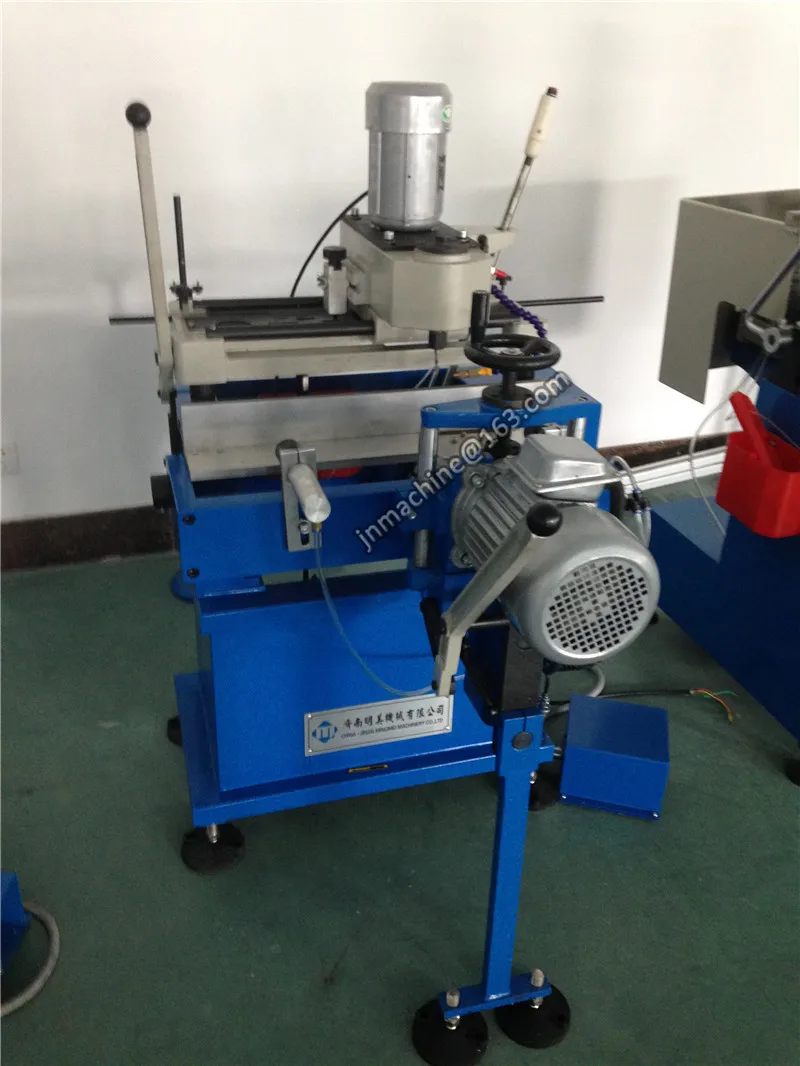

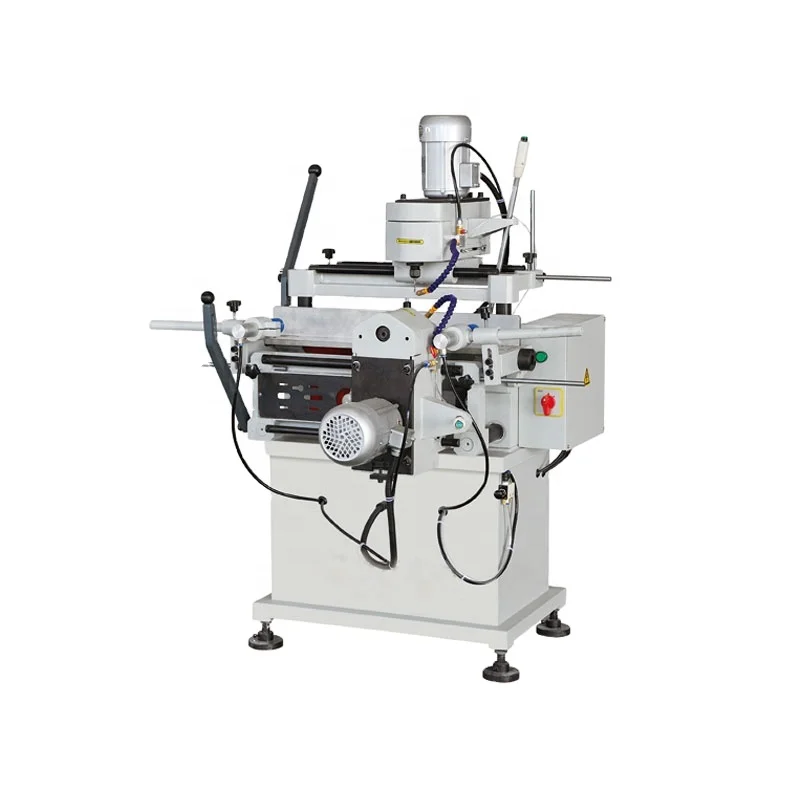

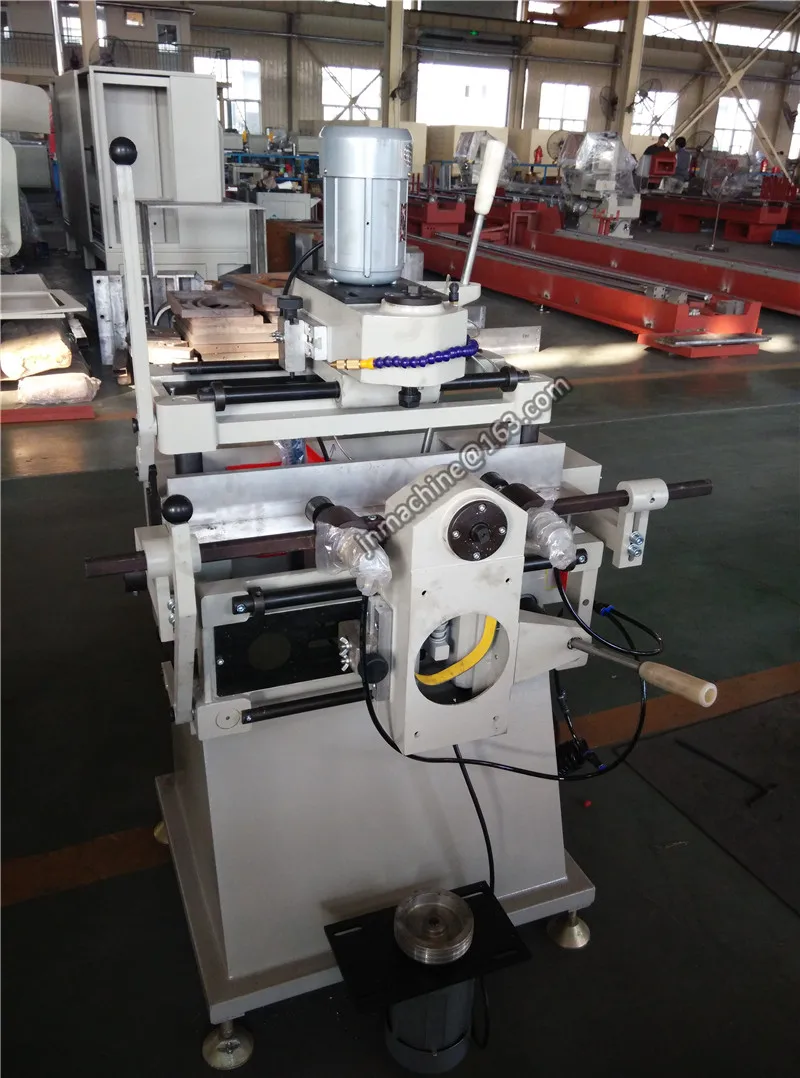

Aluminum Window Copy Router / Copy Routing Drilling Machine
Product Description
Main features
1). Used for processing all kinds of holes of the aluminum and PVC profiles.
2). Vertical and horizontal direction can be adjusted continuously.
3). Changeable template for different copy routing.
Technical Parameters
Mingmei | |
Model | LXF2-290*100 |
Power Supply | 380V 50Hz(or customized) |
Input Power | 2*0.75KW |
Over all dimension | 1000*1150*1600mm |
Weight | 280Kg |
Air Pressure | 0.6-0.8MPa |
Processing hole size error | ±0.2mm |
Processing deviation from straightness | ±0.1mm |
Milling cutter diameter | Φ5, Φ8 |
Copy routing range | 290*100mm |
Roughness of cutting surface | Ra 12.5 µm |
Relative drilling bits supply
Click here:
Packaging & Shipping
Certifications
Company profile
Exhibition
Customers
