Products Description
Metal switch geat caninet cold roll forming line steel strip partition wall frame stud and track machine
Roller shutter door roll forming machine is used for producing shutter door panel ,which will be used together with guide rail and bottom rail .Raw material for shutter door machine is galvanized steel coil or pre painted steel coil ,coil thickness is 0.7-1.2mm ,this kind of machine have been sent to many countries such as India ,Oman ,Pakistan ,Dominica etc
Main parameter
No | Item | Specification | ||||
Raw material | GI or PPGI | |||||
Material thickness | 0.7-1.2MM | |||||
Roller material | High grade 45# steel with Cr12 quenched | |||||
Shaft material | High grade 45# steel with Cr12 quenched | |||||
Shaft diameter | 50mm | |||||
Roller stations | 14 | |||||
Middle plate thickness | 16mm | |||||
Machine size | 5*0.8*1.2m | |||||
Productivity | 8-15m/min | |||||
Material | GCR12 | |||||
Method | Hydraulic cutting | |||||
Driving way | Chain 1 inch | |||||
Motor | 4KW | |||||
Hydraulic oil pump | 3KW | |||||
Voltage | 380V,50HZ ,3 phase or customized as your need | |||||
PLC ,invertor | Delta from Taiwan | |||||
Screen | Delta ,touch screen | |||||
Encoder | Omron from Japan | |||||
Language | Chinese & English or as your request | |||||
Working flow
Working flow
Uncoiler --Feeding table --Roll forming system --Hydraulic cutting --Finished product--Receiving table
Details Images
If you want more machine pics and videos ,pls contact
Other related machines for you to choose

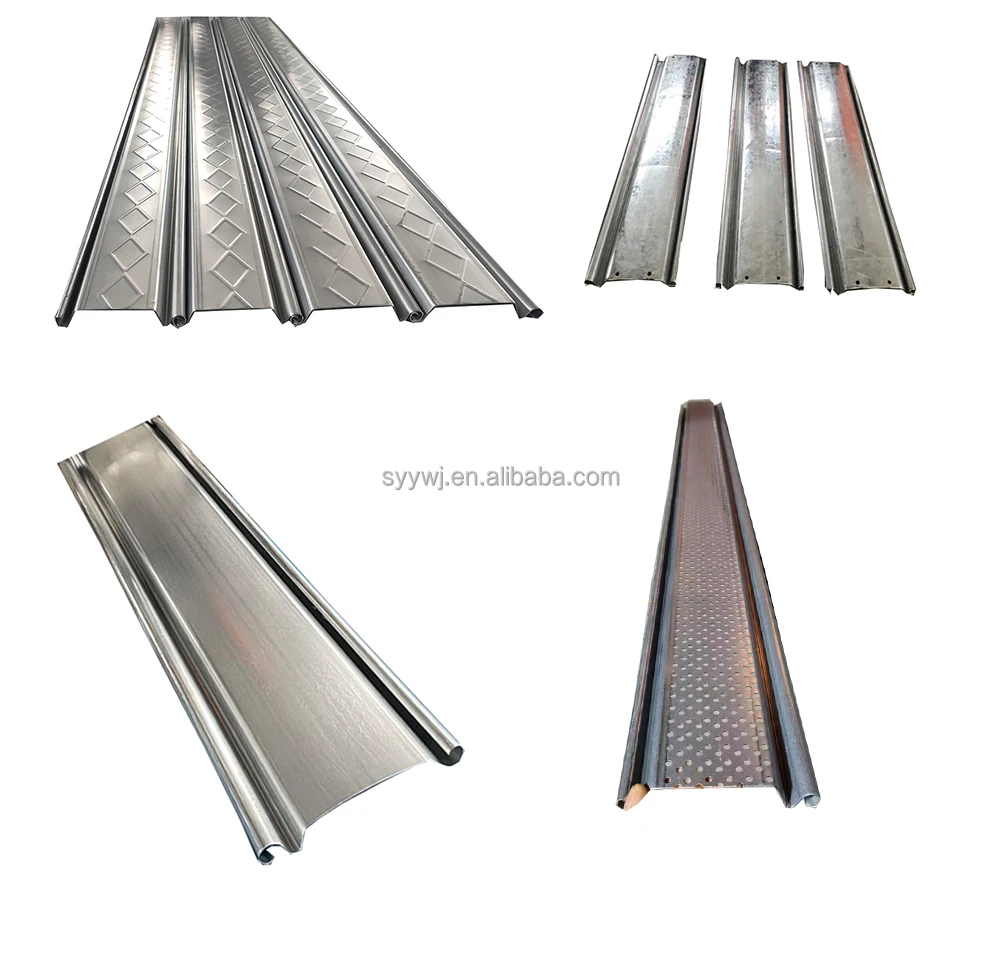

1. Slat shutter door roll forming machine
Slat shutter door machine is the most common style ,it is used fro making flat shutter door panels ,simple but strong and cost effective ,many custoners choose this style
2. Shutter door machine with printing designs
Nowdays ,more and more customers prefer to choose the shutter door machine with printing designs ,as the styles make the view very beautiful and attract more and more customers for them ,one machine can make many designs by changing printing rollers ,we are very professional at this
3. Shutter door machines with punching holes
1) Machine with 2 round holes
2) Machine with many holes on the surface
If you prefer the panel with two round holes ,then a online punching mould is enough ,if you want it with many holes on the surface ,then need a 25T punching machine ,with a servo feeding motor ,which can higher the speed and enlarge the production
4. Australia shutter door roll forming machine
This is Australia shutter door roll forming machine ,material thickness 0.3-0.6mm ,size is customized as client's need
5. Shutter door bottom rail forming machine
Shutter door bottom rail roll forming machine is used for making bottom rails which will be used together with side guide rail as well as shutter door panels ,material thickness is 1.5-2.0mm ,galvanized steel strip
6. Shutter door side guide rail roll forming machine / U guide rail machine /C channel guide rail machine
Shutter door guide rail roll forming machine is used for making side guide rails which will be used together with bottom rail as well as shutter door panels ,material thickness is 1.5-2.0mm ,galvanized steel strip ,we make many sets of these machines every year ,we are surely your professional cooperator in this field
Company Profile
Botou Sanyangtongtai Machinery Co.,ltd is a leading manufacturer for steel plate coiling
machinery,cold-bending & rolling steel plate shaping machineries and automatic production lines.The products are mainly used in steel structure industry for producing C&Z type purlin,colored wall and floor protecting steel plate, thermal insulating plate and
load-bearing plate of buildings, and other complementary thin wall cold-bending shaped steelplates,expresswayrailings,colorfuldecorating and protecting steel plates for high-grade steel stucture residendces.
machinery,cold-bending & rolling steel plate shaping machineries and automatic production lines.The products are mainly used in steel structure industry for producing C&Z type purlin,colored wall and floor protecting steel plate, thermal insulating plate and
load-bearing plate of buildings, and other complementary thin wall cold-bending shaped steelplates,expresswayrailings,colorfuldecorating and protecting steel plates for high-grade steel stucture residendces.
