Модульная 4 вида цветов флексографическая печатная машина с ламинирования для алюминиевой фольги крафт-бумаги оригинальные этикетки в


Поделиться:


Цена:14 800,00 $ - 15 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 17612.2 $* 18493.66 $*
Aug-15-2025 17464.69 $* 18337.43 $*
Jul-15-2025 14652.83 $* 15385.94 $*
Jun-15-2025 17168.12 $* 18026.85 $*
May-15-2025 14948.15 $* 15695.34 $*
Apr-15-2025 16872.90 $* 17716.47 $*
Mar-15-2025 16724.78 $* 17560.84 $*
Feb-15-2025 16576.36 $* 17405.58 $*
Jan-15-2025 16428.30 $* 17249.72 $*

Характеристики

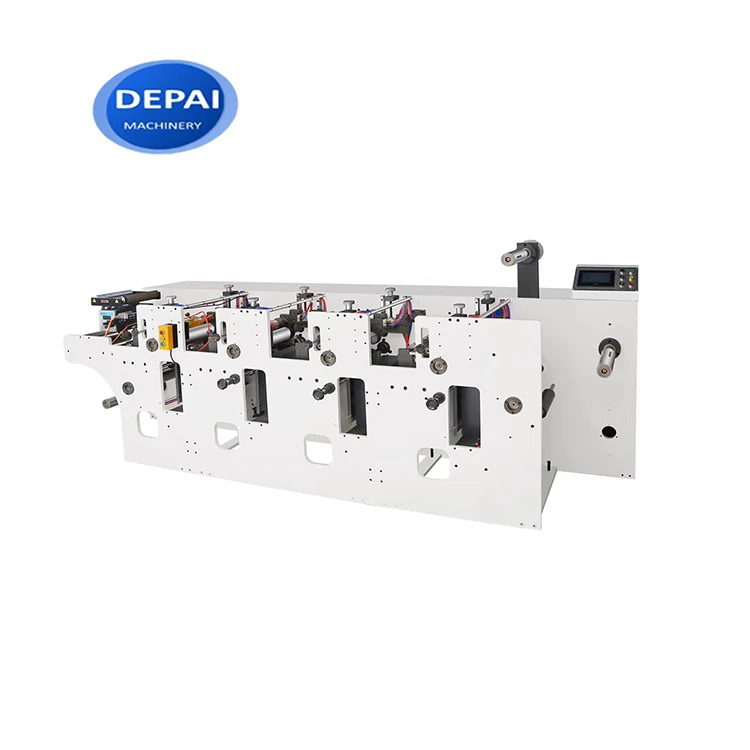

Modular 4 colors flexo printing press machine with laminating for Aluminium foil craft paper couche labels rolls


Product Overview




Description




The printing unit has the same structure, simple and reliable transmission, simple operation and maintenance, wide adaptability, convenient color group combination, easy online post-printing process, high overprint accuracy, suitable for short-run printing,and the running route of the material belt is changed by the guide roller. It can realize double-sided printing at one time.

Characteristics
1.From the discharge to the receipt of the short distance.
2.The ceramic stick is equipped with a scraper,which is printed and moist,and had a clear color.
3.Repeatedly printing the circumference of 190.5-635mm,filling the blank of the cascading flexographic printing machine,the slanting trademark printing machine,the petal printing machine and the printing length.
4.The use of gear color to solve the 360 degree coloring device gap,assembly,wear,etc,affecting the color accuracy and printing instability.
5.From left to right:coil feeding,printing,automatic infrared drying winding a coherent completion.
6.Water-based ink (UV ink)printing,pollution-free,environmentally friendly,printing speed caries according to the network cable,the speed is also different,the fastest speed of printing labels is 90 meters per minute.
7.Printing bills,labels,cardboard,high-grade stickers,clothing tags,etc.
8.Printing materials:paper 20-250gsm self adhesive soft coil and other materials.



PRODUCT SPECIFICATIONS


Model
DP-HPM4-210
DP-HPM4-320
Printed Form
Flexo
Flexo
Printing Speed
10-80m/min
10-80m/min
Mechanical Speed
10-100m/min
10-100m/min
Maximum Width of Substrate
230mm
340mm
Printing Width
50-210mm
50-320mm
Printing Circumference
190.5-635mm
190.5-635mm
Plate Thickness
1.7/2.28mm
1.7/2.28mm
Anilox Roller Specifications
Φ85*250*4
Φ85*350*4
Aluminum Guide Roller Specifications
Φ70*250
Φ70*350
Printing Bottom Roller
Φ85*250
Φ85*350
Unwinding Maximum Diameter
Φ500mm
Φ500mm
Maximum Winding Diameter
Φ500mm
Φ500mm
Oven Maximum Temperature
80℃
80℃
Substrate Core Diameter
74mm
74mm
Total Power
8.5KW
10 KW
Drying Heat Source
Electric heating
Electric heating
Machine Weight
2000kg
2500kg
Dimensions
2900*900*1200mm
3500*900*1200mm
Body Color
White (Customized)
White (Customized)


Standard Configuration


Unwinding
Rewinding


Automatic Web Guiding System
Tension Control


Printing Unit
IR Drying


Control Panel
Electric Box


Optional parts


Lamination Unit
Die Cutting Unit



Slitting Unit
UV Dryer


LED UV
Video Monitor



Corona
Turnbar


Finished Product


Suitable Material:All kinds of sticker labels, paper,aluminum foils,plastic film (PVC,PET,OPP......)






Certification




OUR FACTORY




Hangzhou Depai Machinery Co., Ltd has several production lines in different workshops from printing machines,bag making machine,label sticker die cutting & slitting machines, paper /PP/PLA straw machines,disposable products making machines ,to different plastic&paper and packaging machines.
We have a professional after-sales service team to provide you with high quality service. Engineers who can speak English can come to your factories or workshop to help you debug your machine and provide free training by video call .Our factory also cooperated with some famous French and German companies.Every year, our production director and technical director will go to the European cooperation technology companies or large factories for technical study.By communicating and learning from each other, it ensures the high quality of each machine and our technology is always far ahead in China.


Our Advantages
Raw Material Machining Center




Our Sales Team




Our Workshops








Packing




Interior: Wraping Film to keep dry and prevent from rusty
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.


FAQ


1. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
2. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
3. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
