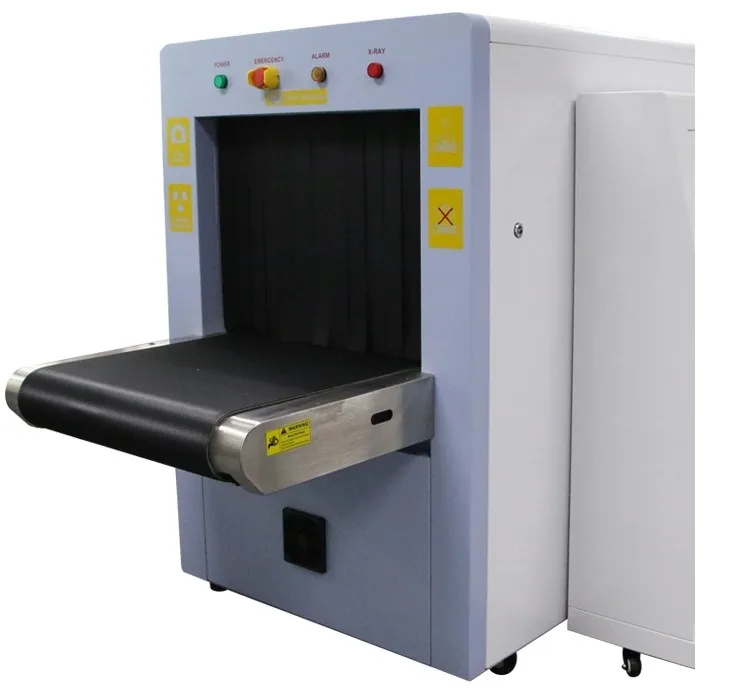

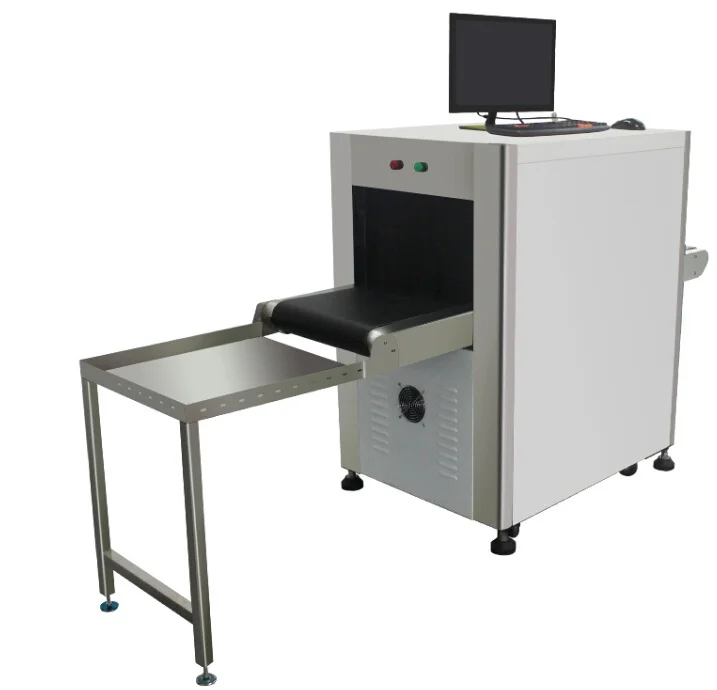

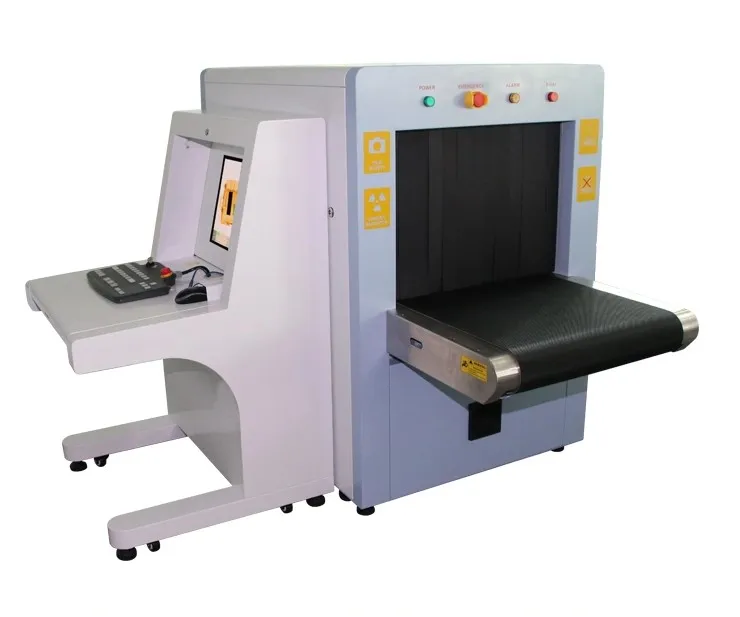

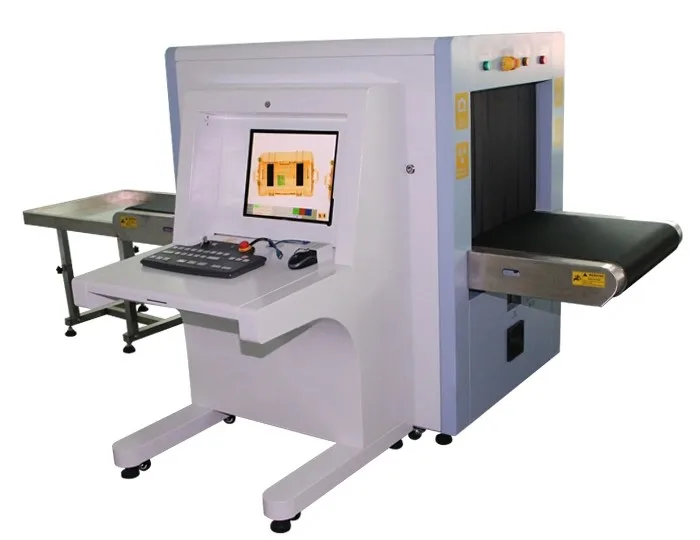

X Ray Baggage Scanner Baggage Scanner Machine X Ray Baggage inspection Scanner Detector Machine



Description:

This 50 cm x 30 cm.kind of X-ray machines are specially designed for documents or small package objects security screening. They are also a kind
of security checking solution for hand held bags and parcels used in offices. This kind of conveyor mail and parcel x-ray scanners are much more efficient than the traditional cabinet x-ray scanners (Post and mail x-ray scanners box). Small size with caster,the mail and parcel X-ray scanners are smart x-ray security solution.5030 x-ray baggage machine offers highly efficient solid state detectors, digital image processing and smart algorithms to provide the user with a reliable, high resolution image with superior image processing functions and excellent detection capabilities.

Specification:

Model	CD-5030C
Channel size	505*300mm(W*H)
Belt speed	0.22 M / S
Belt load	170 kg
Penetration	12 mm steel plate
Line resolution	> 38 AWG
Spatial resolution	Horizontal / vertical 1.0mm
Noise level	< 55 dB (A)
Weight	350KG
Power consumption	< 1KW
Power supply	AC220V ± 10%, 60Hz ± 5Hz
Size	1600 mm(L) * 800mm(W)*1200mm(H)
Control interface	Analog interface
Tube voltage	80 KV(adjustable)
Tube current	0.4~0.5 MA(adjustable)
Cooling mode	Sealed oil cooling, industrial fan heat dissipation
Duty cycle	100%, without preheating
Protection function	Over voltage, over current and over temperature protection



Features&Functions:

l Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time

l Safety ray: Ray is transmitted under automatic control, avoiding the error

l One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient

l Eagle eye: Capable of expediently observing the magnifying area

l Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

l TIP and training software , free programmable keys , real time diagnostic

l Display date/time , baggage counter , User ID number

l Review feature , recall previously image , zoom overview , step less zoom



Image Performance System:

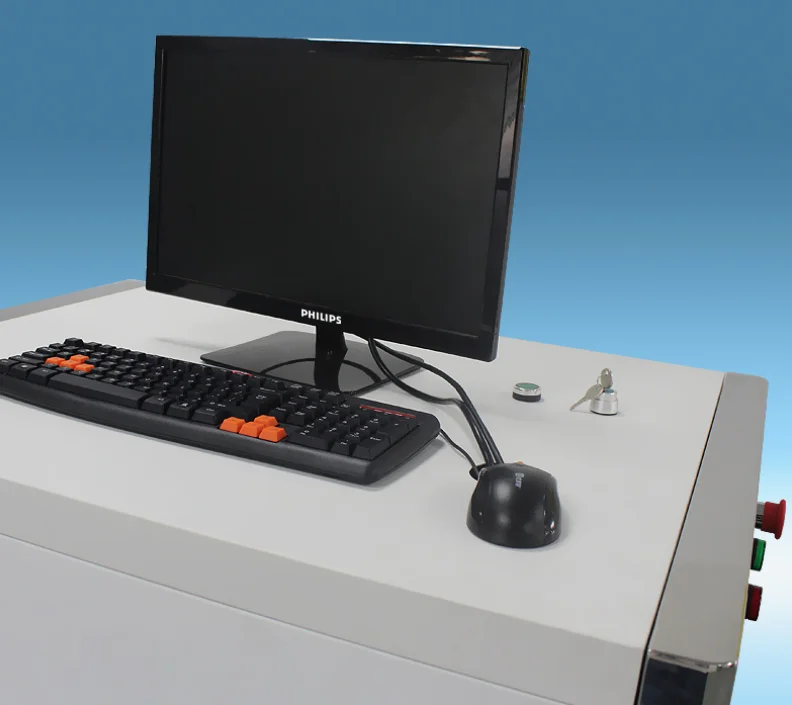

lDisplay : High-resolution 19 inch color LCD screen , 1280*1024 color display resolution; 24 bit/pixel color display resolution

lZoom:64 Times Enlarge,Whole screen continuous observation

lColor quality: 24-Bit real colors based on materials , 24 Visible Levels , 4096 Gray Level

lImage Storage: 200,000 pictures in real time (can be customized)

lEdge enhancement: Object contour edge is more distinct

lSuper image enhancement: Image detail is more distinct

lHigh penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly

lLow penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly

lMagnifier:Partial magnifying function

lBrightening/dimming: Increase/Decrease brightness of image

lImage recurrence: Display the previous twenty images and process any one of them

lImage restoration :Restore image to initial status

Machine Including:

lX-ray baggage scanner machine body *1

lHigh resolution monitor *1

lMulti function key board*1



Passed Certifications:

lISO9001 quality management system certification

lISO14001 environmental management system certification

lOccupational health and safety management system certification

lInternational CE certification

lRadiation certification

lNational ministry of public security and police electronic product quality testing certification



FAQ:

 1. What is your company's strength in this field?

 We are the one of the greatest head leader in this field.We are ISO approved factory, taking place  of over 8,000 meters square region, with 120+ national patents.We have strong R&D team with 20+ professional R&D staff, and over 300 well-trained assembly workers. So far, we have more than 50 distributors in China.



2. How do you guarantee your quality of product / quality control?

We have ISO9001 and CE certificate among our products, all details can be found in our website. We commit to provide the best product quality possible to our customers.



3. Do you provide OEM service?

Yes, we can offer OEM services as follows:

1) We can customize barrier gate according to your needs.

2) We can print your logo on barrier gate, and customize retail box packing and other things you need.



4. Lead time For standard item

1-50 sets: 5 working days; 50-100 sets: 7 working days; 100-500sets: 15 working days For custom-made package or logo, 3-10 working days longer



5. Do you provide quality guarantee/warranty and after sale service?

We have 1 year quality guarantee. Our well-trained and passionate sales and professional engineers can provide you with timely help.



6. What are your after-sale services?

1) For all your inquiries, response can be made within 18 hours.

2) Our company is equipped with excellent engineers and sales. We can provide you with first quality products and the best price.

3) Our experienced engineers can guide you about how to use our products.Call our after-sales team at any time.
