Высококачественная Автоматическая Этикетировочная машина с термоусадочными рукавами Подходит для всех видов
- Категория: >>>
- Поставщик: Zhangjiagang,New,Peak,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5355.64 $* | 5623.50 $* |
| Aug-16-2025 | 5310.89 $* | 5576.24 $* |
| Jul-16-2025 | 4455.84 $* | 4678.85 $* |
| Jun-16-2025 | 5220.36 $* | 5481.32 $* |
| May-16-2025 | 4545.45 $* | 4772.2 $* |
| Apr-16-2025 | 5130.98 $* | 5387.51 $* |
| Mar-16-2025 | 5085.61 $* | 5339.81 $* |
| Feb-16-2025 | 5040.26 $* | 5292.87 $* |
| Jan-16-2025 | 4995.0 $* | 5245.17 $* |
Характеристики
GOOD QUALITY COMES FROM DETAILS
We are confident about our product quality because of the Quality Assurance System backed by technical capabilities and productioncapacity. We believe “all steps in production are quality control processes”.
Products Description

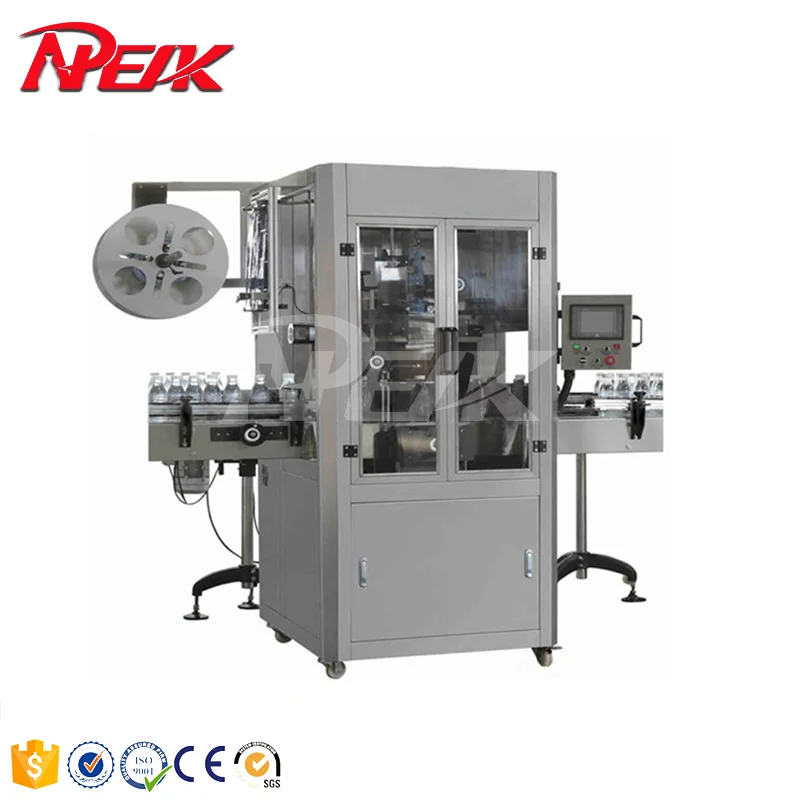

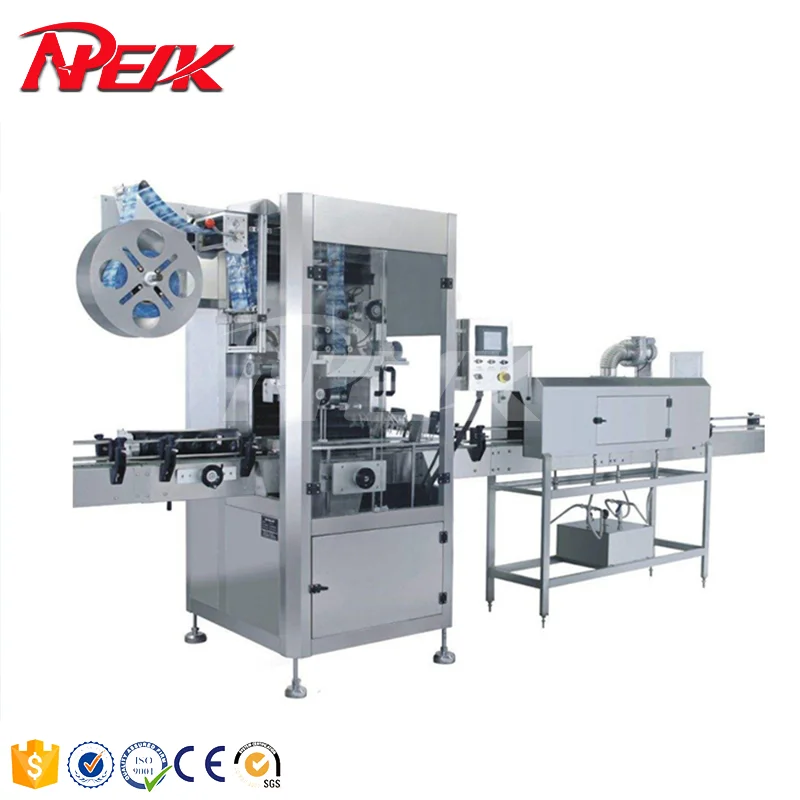

Full Automatic Sleeve Labeling Machine.
1. Suitable for various bottle types of juice, tea beverage, dairy products, purified water, condiments, beer, sports drinks and other food and beverage industries. Not only does the sleeve label position have high accuracy, but it also highlights the bottle shape after shrinking.
2. Highly stable mechanical structure: The whole machine adopts stainless steel protective frame cover
and aluminum alloy rigid frame, which is stable and does not rust.
and aluminum alloy rigid frame, which is stable and does not rust.
3. Flexible choice of multiple bottle types: round bottles, square bottles, oval bottles, etc. can be set, and the mouth or body of the bottle can also be selected.
4. Unique synchronous cutter seat, within the specification range, no need to change the cutter seat. If you need to change the specifications, it can be completed quickly in 5 minutes.
5. Wide range of application: suitable for all kinds of plastic bottles, glass bottles, PVC, PET, PS, iron cans and other containers such as food, beverages, cleaning supplies, medicines, wine bottles, etc.
6. High-quality positioning accuracy: Fully mechanical transmission design, using forced sleeve labeling, all kinds of film materials above 0.030MM film thickness are applicable, the film material inner diameter can be adjusted in the range of 5-10. 7. Low maintenance cost of consumables: This machine adopts low-cost disposable blades, which are easy to replace and low cost burden.
Details Images

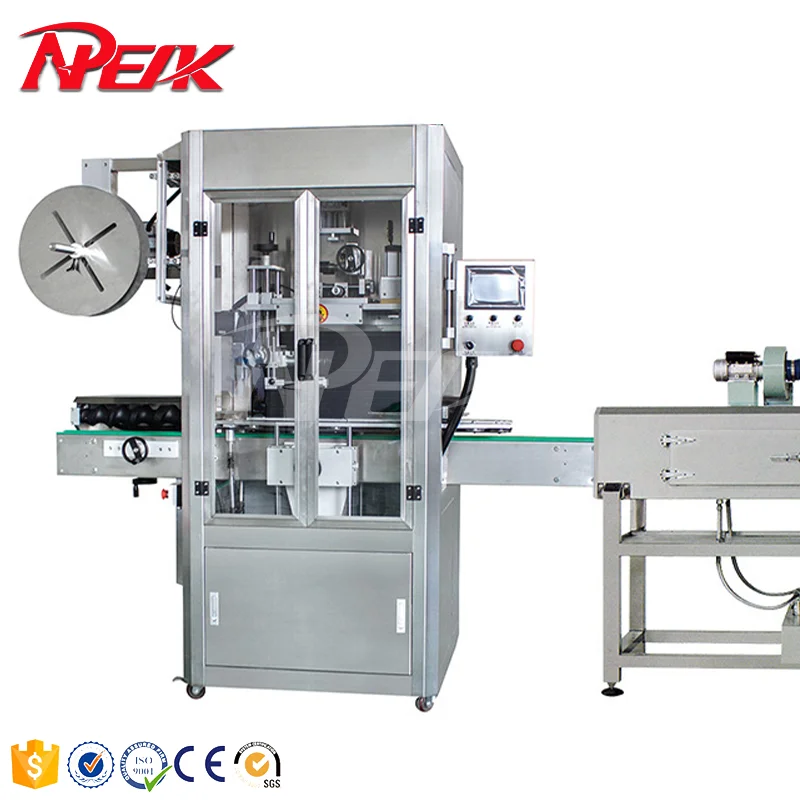

Sleeve Labeling Machine - Main Machine.
Machine group: The whole machine adopts a stainless steel body to support the main machine and fix the conveyor belt.
Sleeve Labeling Machine - Shrinking Furnace.
Use electric heat or steam heat to shrink and evenly attach the label to the bottle.

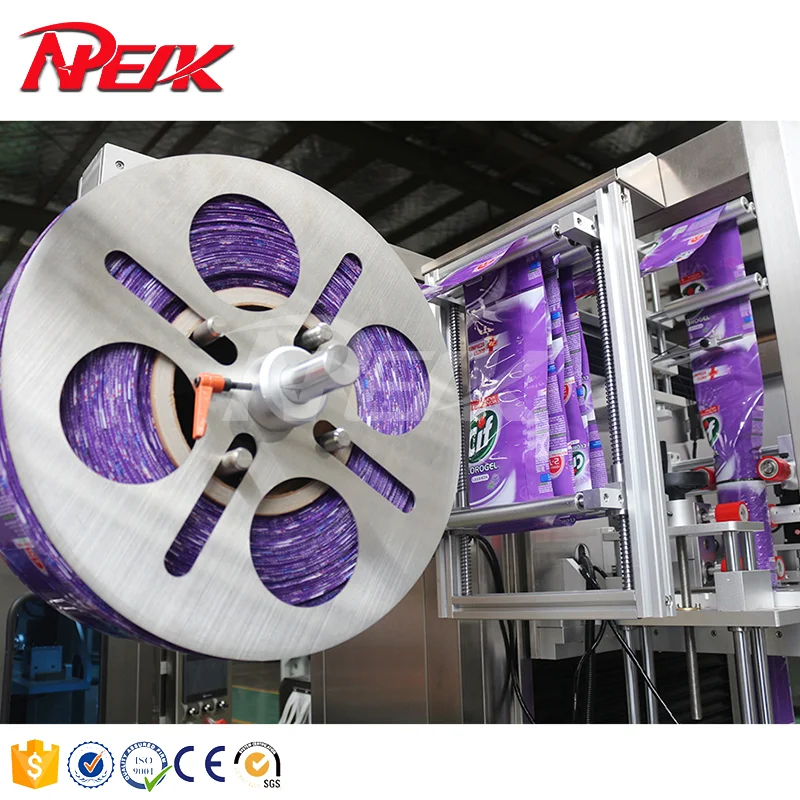

Material rack group:
Save the time of changing materials, the discharge is fed by a set of conveying roller reduction motors.
Bottle-separating screw:
Separate the bottles to be set at equal intervals and enter the bottle group.
Cutter set:
It adopts an eccentric linkage mechanism and is driven by a stepping motor. There is no rotation under the induction of no incoming bottles, which increases the service life and safety. At the same time, its cutter adopts ordinary paper cutting blades to replace easily and economically.
Center column: The label film material is sleeved and opened, so that the film material can be conveyed and cut.
Brush set:
Use a strap or rubber band to drive the bottle label brush into position.
Brush-down group:
Using a synchronous adjustment mechanism, adjust the brush-down two sets of transfer wheels to slightly touch the rollers under the center column. When the label passes, the label is inserted into the bottle at a higher speed.
Using a synchronous adjustment mechanism, adjust the brush-down two sets of transfer wheels to slightly touch the rollers under the center column. When the label passes, the label is inserted into the bottle at a higher speed.
Product Paramenters
NLM-150 | NLM-250 | |
Input power | 3.0KW | 3.3KW |
Input voltage | 3-phase, 380V/220V AC | 3-phase, 380V/220V AC |
Productivity | 150 bottles/min | 250 bottles/min |
Host size | 2100L*850W*2000H | 2100L*1100W*2000H |
Applicable bottle diameter | 28mm~120mm | 28mm~120mm |
Applicable label length | 30mm~250mm | 30mm~250mm |
Applicable label thickness | 0.03mm~0.13mm | 0.03mm~0.13mm |
Applicable paper tube inner diameter | 5”~10” freely adjustable | 5”~10” freely adjustable |
Recommend Products
Why Choose Us
Zhangjiagang New Peak Machinery Co., Ltd.
Zhangjiagang New Peak Machinery Co., Ltd. is a professional manufacturer of beverage machinery and Plastic Machinery. We are located in Zhangjiagang City, near Shanghai City.Best technical support, superior products and perfect after-sales services are our specific advantages in the market competitions. With scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas markets.
Our Manufacturer Factory.
At present, we manufacture and provide the following lines to our customers:Beverage Filling Complete Line -water treatment plants-water filling machine-beverage filling machine-beverage preration system-pckages equipments -coding machine-labeling machine-Pe Film Shrink Wrapping ,Machine -Injection machine -Blow Moulding Machine We welcome distributors and factory owners from around the world to cooperate with us and look forward to receiving your inquiries in the near future.
Cooperation Partners.
We have many cooperation partners over the world,such as Mitsubishi,NSK,SIEMENS,SEW,DEMARK,OMRON,FESTO and so on.Product quality assurance is our biggest pursuit
Certificates.
We have been producing our goods with mature technique and first-class quality. Our products are not only marketed inland, but also exported to all over the world, Such as: Africa, Mid East, South Asia, South America. We believe truthfulness,conscientiousness, enterprising spirit, continuous improvement and creativeness in running business, which helps our finest products enter the market.
Exhibitions.
