BESCO машина для изготовления контейнеров из алюминиевой фольги производственная линия одноразовых рисовых
- Категория: Punching Machines >>>
- Поставщик: Dongying,Besco,Machine,Tool,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 7140.44 $* | 7497.28 $* |
| Aug-15-2025 | 7080.37 $* | 7434.3 $* |
| Jul-15-2025 | 5940.53 $* | 6237.61 $* |
| Jun-15-2025 | 6960.86 $* | 7308.91 $* |
| May-15-2025 | 6060.66 $* | 6363.8 $* |
| Apr-15-2025 | 6840.90 $* | 7182.28 $* |
| Mar-15-2025 | 6780.68 $* | 7119.57 $* |
| Feb-15-2025 | 6720.41 $* | 7056.46 $* |
| Jan-15-2025 | 6660.4 $* | 6993.80 $* |
Характеристики
Product Description
Automatic Aluminum Foil Container Making Machine Line
Model | JH21-45 | JH21-60 | JH21-80 |
Nominal Pressure (KN) | 450 | 600 | 800 |
Slide Block Stroke (mm) | 240mm (10.24”) | 240mm (10.24”) | 240mm (10.24”) |
Slide stroke per minutes (time/minute) | 70-50 | 70-50 | 70-50 |
Maximum Die Set Height (mm) | 400 (15.74”) | 450 (17.71”) | 450 (17.71”) |
Die set height adjustment (mm) | 60mm (2.36”) | 70mm (2.76”) | 80mm (3.15”) |
Slide Bottom Size (mm) | 410*340mm (16.14”*13.39”) | 480*400mm (18.90”*15.75”) | 560*460mm (22.05”*18.11”) |
Stemhole size (mm) | 60*60mm (2.36”*2.36”) | 60*65mm (2.36”*2.56”) | 60*75mm (2.36”*2.95”) |
Bolster surface size （mm） | 990*750mm (38.98”*29.53”) | 1000*800mm (39.37”*31.50”) | 1200*800mm (47.24”*31.50”) |
Total power (KW) | 5.5 | 7.5 | 8.5 |
Weight (kg) | 4500 | 6300 | 8000 |
Dimension (mm) | 1550*1150*2500mm (61.02”*45.28”98.43”) | 1800*1300*2700mm (70.87”*51.18”106.30”) | 2200*1450*3100mm (86.61”*57.09”122.05”) |

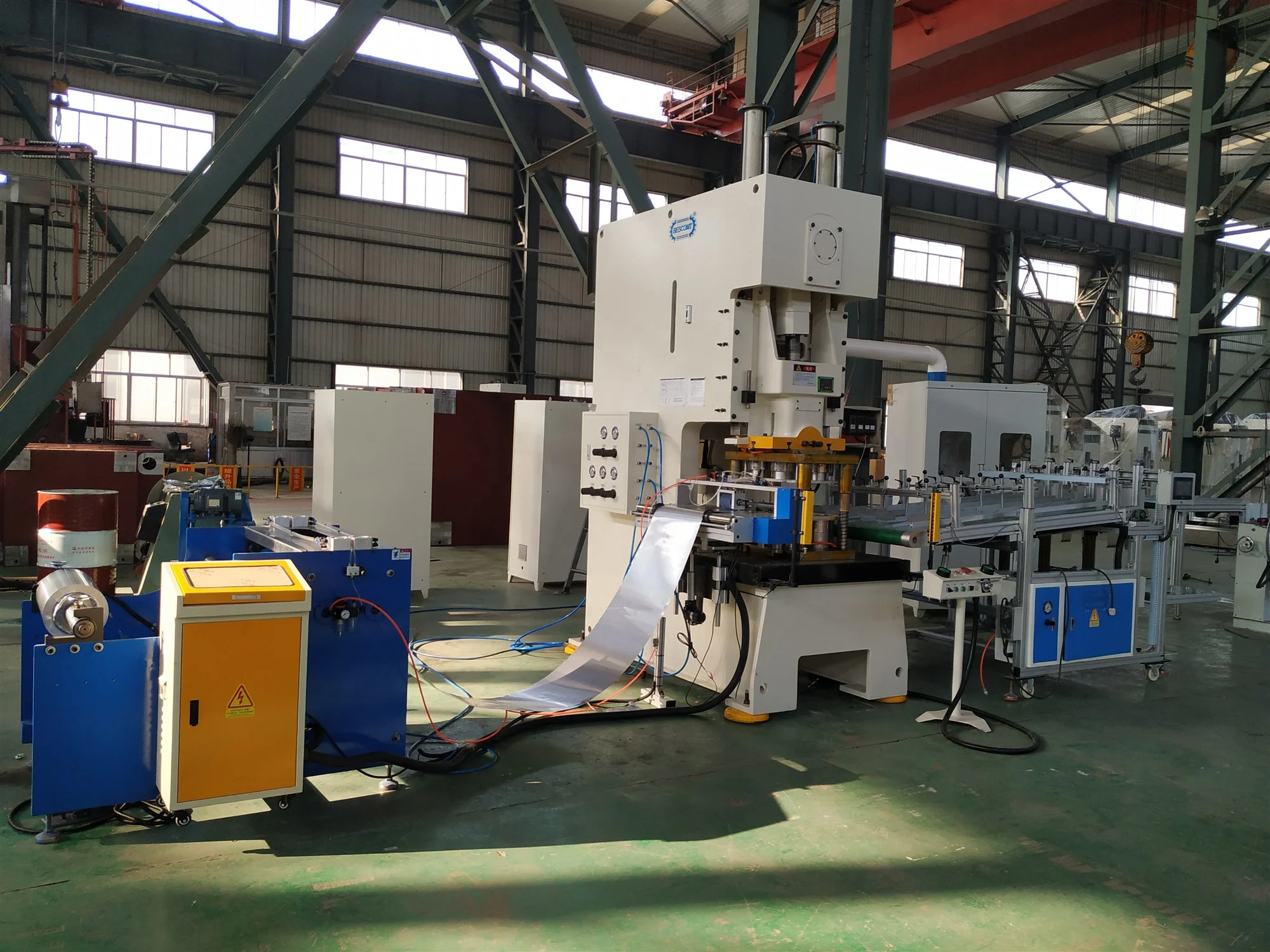

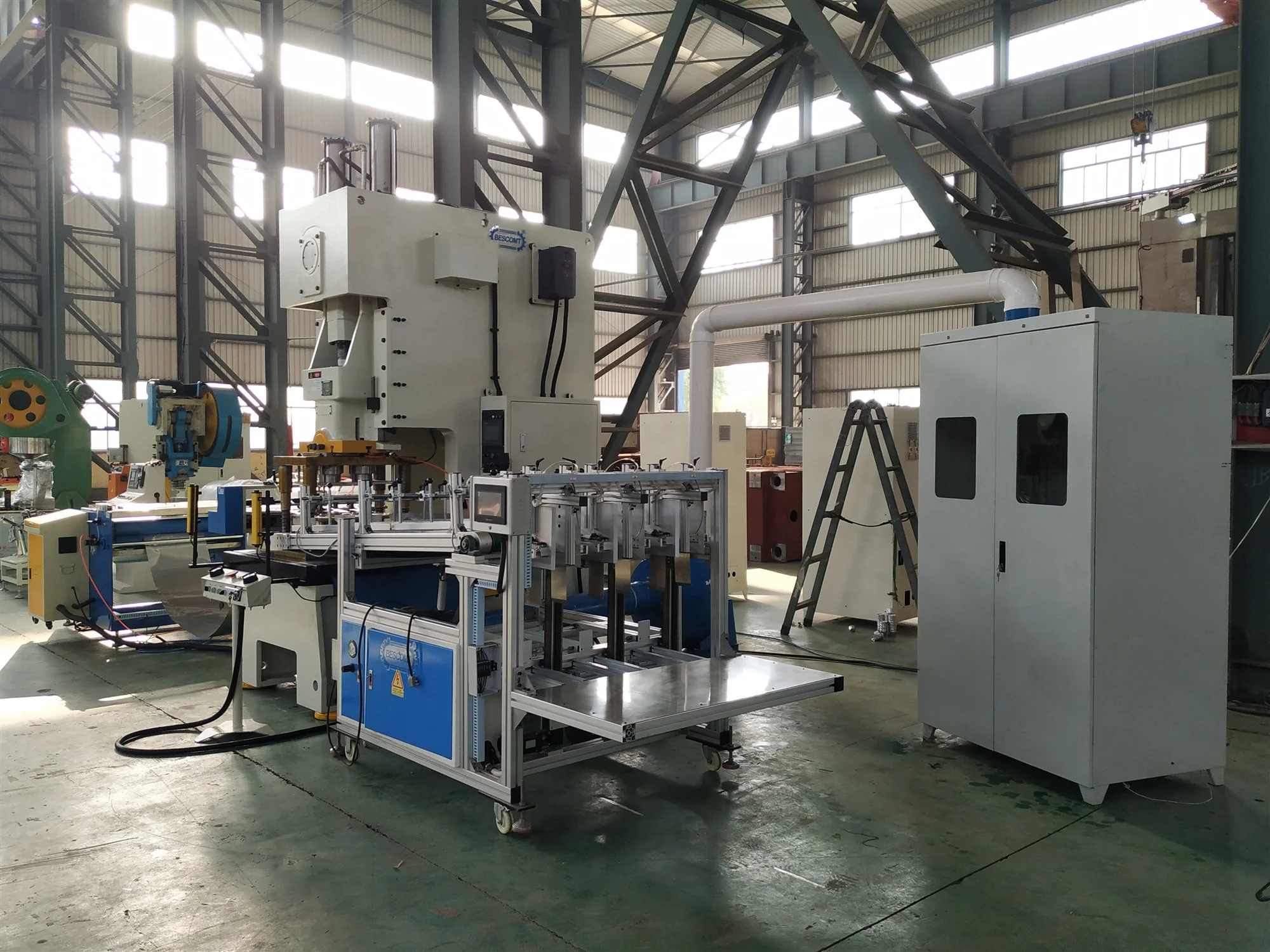

Components of this production line:
1. Auto-feeder with lubrication system
2. Punching machine 3. Auto-stacker
4.Auto-scrap collector
5. Electrical control system

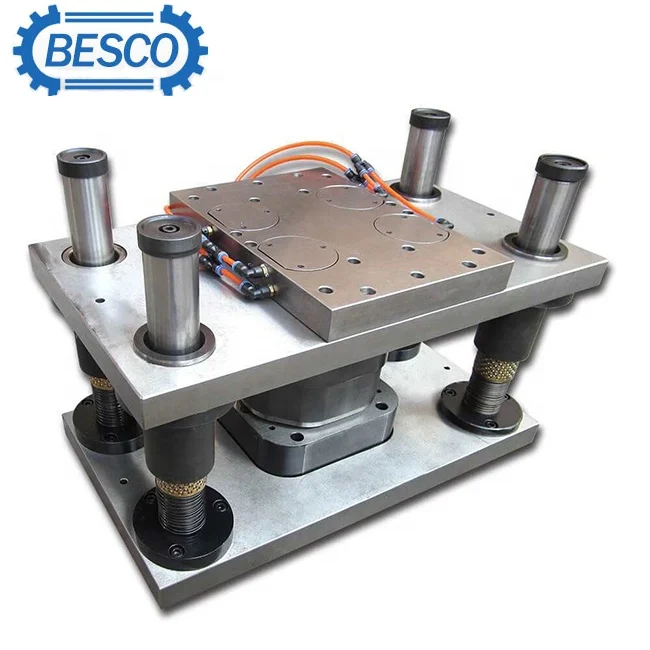

6. Stamping mold
1. Auto-feeder with lubrication system
2. Punching machine 3. Auto-stacker
4.Auto-scrap collector
5. Electrical control system
6. Stamping mold
Production Steps:
Lubricating material------Feeding material------Punching by the press------Collecting product by the stacker------Collecting scrap by the scrap collector
Lubricating material------Feeding material------Punching by the press------Collecting product by the stacker------Collecting scrap by the scrap collector
Main Features:
1.This production line can work automatically.Worker control and regulate this production line through electric
control equipment.There is an auto-lubricator on the feeder, which can lubricate aluminium foil automatically.The foil feeder provides the supply of right quantity and length of aluminium foil, and it is controlled by servo system in SEIMENS, which assure a high-precision step.
control equipment.There is an auto-lubricator on the feeder, which can lubricate aluminium foil automatically.The foil feeder provides the supply of right quantity and length of aluminium foil, and it is controlled by servo system in SEIMENS, which assure a high-precision step.
2.We can also design and manufacture according to customer’s requirment and customer's target price.

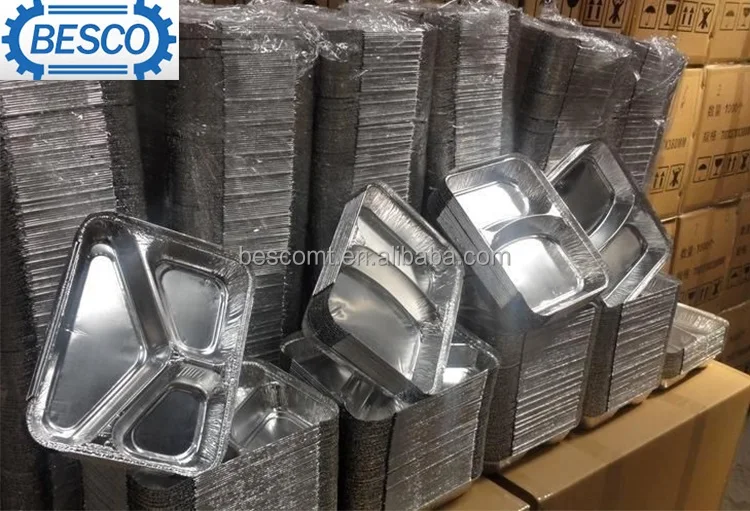

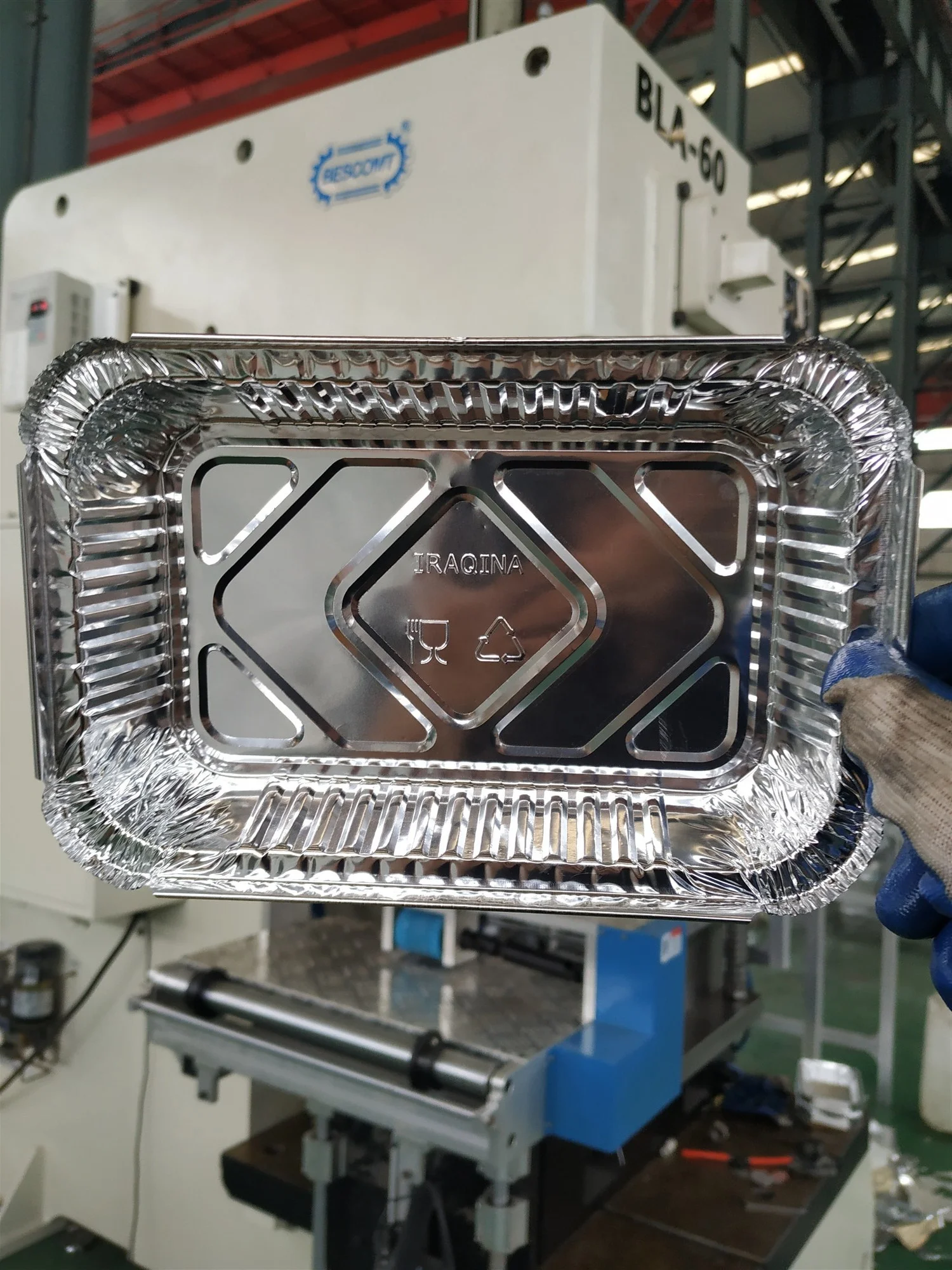

Product photo
Our Advantages
1. Our guarantee time is one year, if any component is damaged during guarantee time, we can send the component to the customer by DHL, TNT freely.
2. Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
3. Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service. Our factory also will make DVD to show the operation steps for the customer.
2. Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
3. Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service. Our factory also will make DVD to show the operation steps for the customer.
Certifications
Our Company
BESCO company has specialized in the punching press working line machines and other metal sheet fabrication machines making field nearly 30 years, We have lots of experience on the aluminum foil food container machines making,we export our machines to all the worldwide market and have the best response from customers.We can provide you different capacity machine. etc:45ton,63ton,80ton,100ton.And different molds for various food container,which can made with one cavity,two cavities,and more.
We can also customize the machine by requirement and offer you our best quality machine and the after-sale service.
Our Customers
FAQ
☆How much is the deposit？
30% deposit, the remaining 70% paid before shipment。
☆How long can it be shipped?
About 45-60 days.
☆ Who are we?
We are based in Shandong, China, start from 2019,sell to Eastern Europe(15.00%),South America(15.00%),Southeast
Asia(15.00%),Northern Europe(10.00%),North America(10.00%),Western Europe(10.00%),Southern Europe(10.00%),Africa(10.00%),Mid
East(5.00%). There are total about 51-100 people in our office.
☆ How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
☆What can you buy from us?
PUNCHING MACHINE,POWER PRESS,PRESS BRAKE,SHEARING MACHINE,HYDRAULIC PRESS
☆ Why should you buy from us not from other suppliers?
machine in stock. lowest price. best service. fast delivery time. full production line design.
☆ What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,German,Arabic,French,Russian,Korean
☆How long can it be shipped?
About 45-60 days.
☆ Who are we?
We are based in Shandong, China, start from 2019,sell to Eastern Europe(15.00%),South America(15.00%),Southeast
Asia(15.00%),Northern Europe(10.00%),North America(10.00%),Western Europe(10.00%),Southern Europe(10.00%),Africa(10.00%),Mid
East(5.00%). There are total about 51-100 people in our office.
☆ How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
☆What can you buy from us?
PUNCHING MACHINE,POWER PRESS,PRESS BRAKE,SHEARING MACHINE,HYDRAULIC PRESS
☆ Why should you buy from us not from other suppliers?
machine in stock. lowest price. best service. fast delivery time. full production line design.
☆ What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,German,Arabic,French,Russian,Korean
