Характеристики

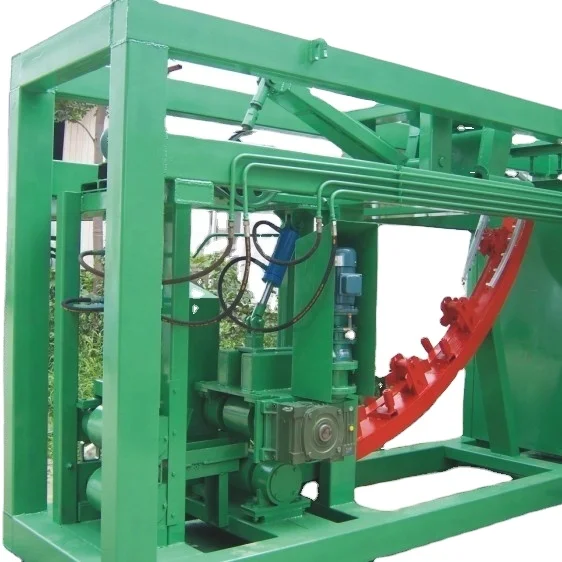

Continuous casting machine CCM for steel billet production line
Product Description
1, This equipment is using to casting billet continuously, Suitable for the production line over 5T per hour.
2, Billet size: 60*60mm-220*220mm(According to customer’s requirement)
3, The running speed of the continuous casting machine is adjustable
4, Integrated machine，Small occupation area, and the worktable is not limited in height, don’t need foundation
2, Billet size: 60*60mm-220*220mm(According to customer’s requirement)
3, The running speed of the continuous casting machine is adjustable
4, Integrated machine，Small occupation area, and the worktable is not limited in height, don’t need foundation

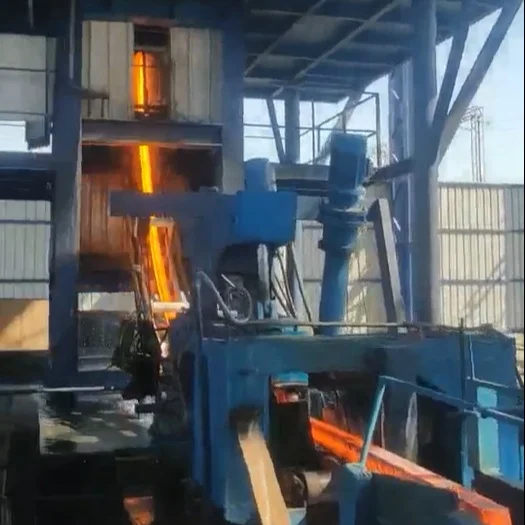

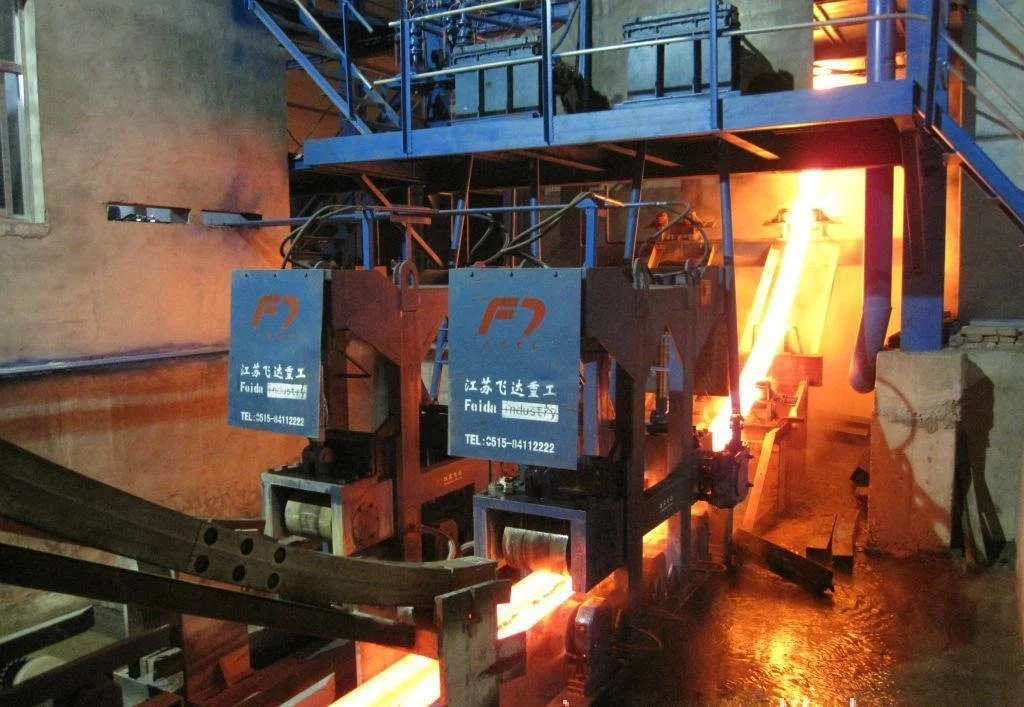

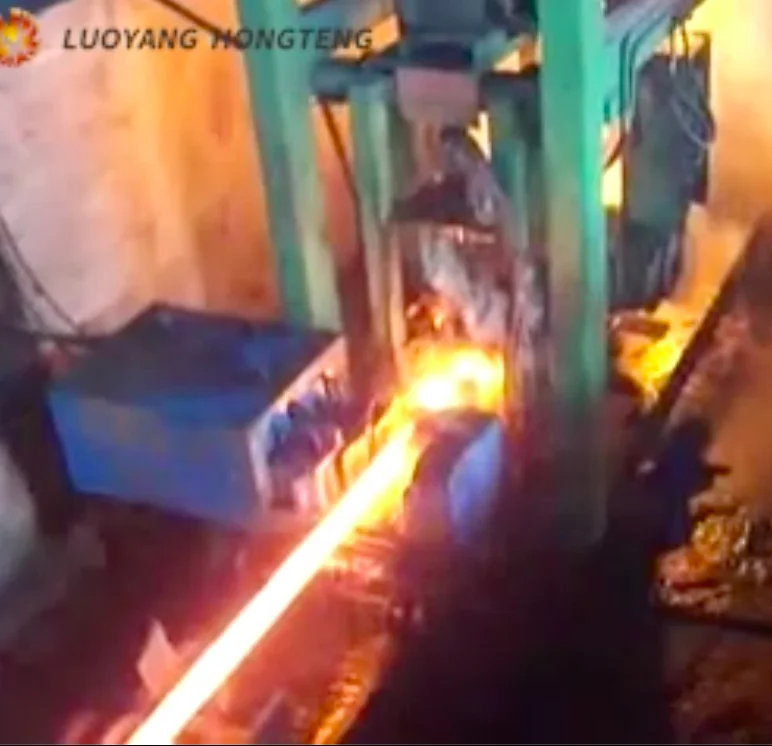

Customer site
Continuous billet casting machine with simple operation and reliable running, speed adjustable;
1. CCM has a single flow and a double flow working method can choose according to the customer’s production capacity.
2. Simple design structure which can reduce the maintenance and ensure the normal running of the machine.
1. CCM has a single flow and a double flow working method can choose according to the customer’s production capacity.
2. Simple design structure which can reduce the maintenance and ensure the normal running of the machine.
Product Advantages
1. Casting method：Using traveling crane lifting a steel ladle casting.
2. Height of CCM is below 3.5M, most houses can meet the demand. Meanwhile the casting machine can be under the ground of 1M to use an electric furnace for casting.
3. Compact structure can be installed through hanging the whole machine, very convenient. CCM can start work when water and electricity is connected.
4. The start-up preparation time is short,and it can be completed to start the work within 10 minutes.
5. The operator can work in skillful by a short term training.
6. No requirement on the cooling water, such as water quality,acidity and alkalinity.Any water can be used.
2. Height of CCM is below 3.5M, most houses can meet the demand. Meanwhile the casting machine can be under the ground of 1M to use an electric furnace for casting.
3. Compact structure can be installed through hanging the whole machine, very convenient. CCM can start work when water and electricity is connected.
4. The start-up preparation time is short,and it can be completed to start the work within 10 minutes.
5. The operator can work in skillful by a short term training.
6. No requirement on the cooling water, such as water quality,acidity and alkalinity.Any water can be used.
Specification and Technical Parameter | ||||||||
Main Parameter | R2.25M | R4M | R5.25M | R6M | ||||
Power | 95KW | 5MW | 60*60mm | Φ8-16mm | ||||
Billet Size | 60-80 square | 90-150 square | 90-180 square | 90-220 square | ||||
Flow | One flow or multi-flow according to customer’s requirements | 9.5MW | 90*90mm | Φ8-32mm | ||||
Working Speed | Adjustable. Normal working: 4-4.7M/min | 10MW | 120*120mm | Φ8-32mm | ||||
Cutting Method | Manual / Mechanical / Flame cutting | 15MW | 120*120mm | Φ6.5-32mm | ||||
Production Capacity | 4-8T/Hour/ Flow | 8-20T/Hour/Flow | 8-30T/Hour/Flow | 8-50T/Hour/Flow | ||||
Workshop Lifting height | 6M | 9M | 9-12M | 9-12M | ||||
The mainly final steel billets are square billets and round billets. Our continuous casting machine has different production capacity to meet different demands of the customers.
Square Billets:
60mm x 60mm, 3T - 5T per hour
70mm x 70mm, 5T - 8T per hour
80mm x 80mm, 7T - 10T per hour
90mm x 90mm, 8T - 12T per hour
100mm x 100mm, 10T - 15T per hour
120mm x 120mm, 12T - 20T per hour
130mm x 130mm, 15T - 22T per hour
150mm x 150mm, 22T - 30T per hour
Round Billets:
Dia 80mm, 5T - 8T per hour
Dia 90mm, 5T - 10T per hour
Dia 100mm, 8T - 12T per hour
Dia 120mm, 8T - 15T per hour
You can send us inquirys for more detailed specifications according to your requested billet sizes and production capacity.
