cnc channel letter bending machine/Steel and Stainless Steel Coil Strip Rounded Corner Bender Bending Tools

(Model: PEL-700)





Unique Advantage:

1>3-in-1 cnc bending machine, can bend flat aluminum, wrap-edge aluminum, stainless

steel, galvanized iron.



2>Two working systems and different bending axis,one for stainless steel and iron, the other for aluminum.



3>No need exchange the cutter knife. Just need to convert into another system.



4>Automatic control instead of manpower control.



5>No need of air pump, low voice and environment-friendly.



6>A unique 3-dimensional process simulation technology, two-dimensional design file to be

able to display three-dimensional effects.



7>The original double-bent knife parallel bending technology to save time and greatly improve

the processing efficiency, the maximum bending angle reached 150°.



8>High precision machining, feeding precision can reach 0.01mm, bending accuracy up to 0.4°.



9>It can work in 0.05 precision, and work together with laser engraving machine, plasma cutting

machine to realize the advertisement processing.





Application:

Applicable Industries: advertising industry, such as logos, signs, neon signs, billboards, light boxes

production, outdoor advertising and other advertising production.

Applicable Materials: Aluminum strip bending, stainless steel strip bending, iron bending, galvanized steel bending etc.



Remark:Two working systems, one for stainless steel or iron, the other for aluminum, no need to change the cutter knife



Technical parameter



Mode	PEL-700 channel letter bending machine
Function	Automatic feeding,slotting and bending
Available material	Aluminum,stainless steel,galvanized iron
Slot angle	45°-135°(just for aluminum)
Bending radius	≥10mm
Material width	≤128mm
Material thickness	Aluminum 0.3-1.2mm, stainless steel≤1mm
Power	≤1800W
Machine size	1850mm*880mm*1300mm
Machine weight	400kg
Voltage	220V
Working Air pressure	0.6Mpa

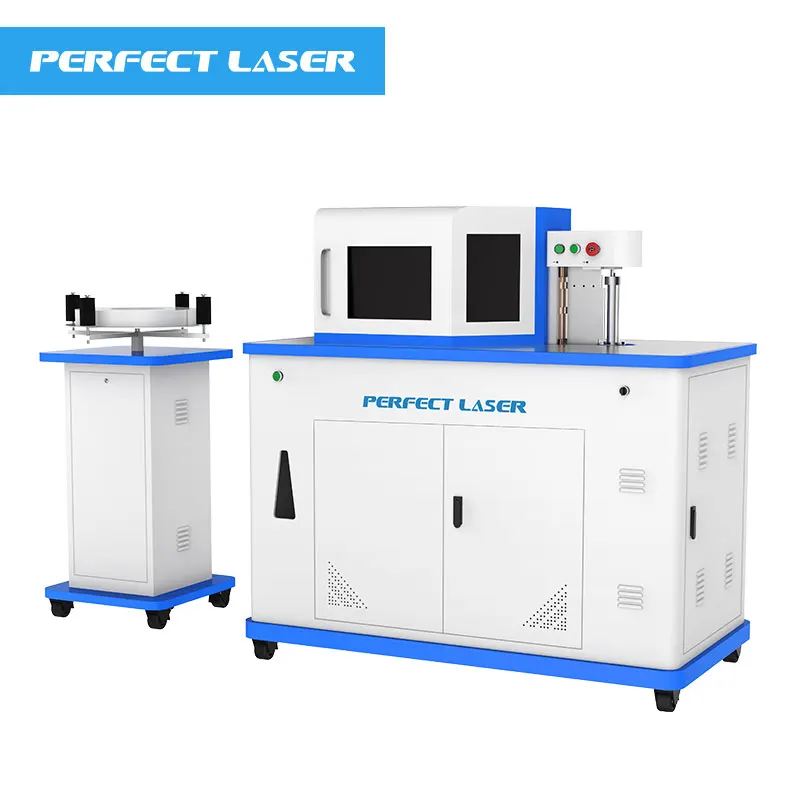

Machine description







Company information:







Advertisting letter making machine series:







FAQ:



Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.



After- Sale Service:

1> All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers

will be get good products from us. and all of our machine with a 12 months quality guarantee period.

2> We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the

customer.

3> We will offer plenty of online supports,  by email, video, telephone and fax.

4> Our engineer can make a door-to-door instruction training service.





Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact –China Perfect Laser !

1. The exact material you want to cut? (Stainless steel, carbon steel, mild steel, aluminum, folded aluminum etc.)


2.  The depth on above materials?(max thickness, 0.5 mm, 0.6mm, 0.8 mm,1mm....)


3.  In order to recommend suitable machine to you, may i know are you enduser or reseller?
