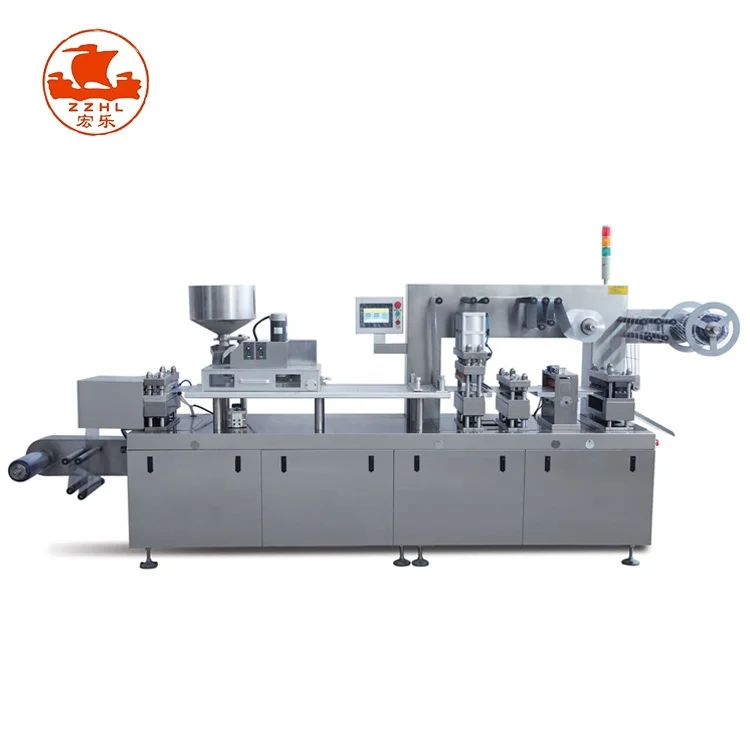

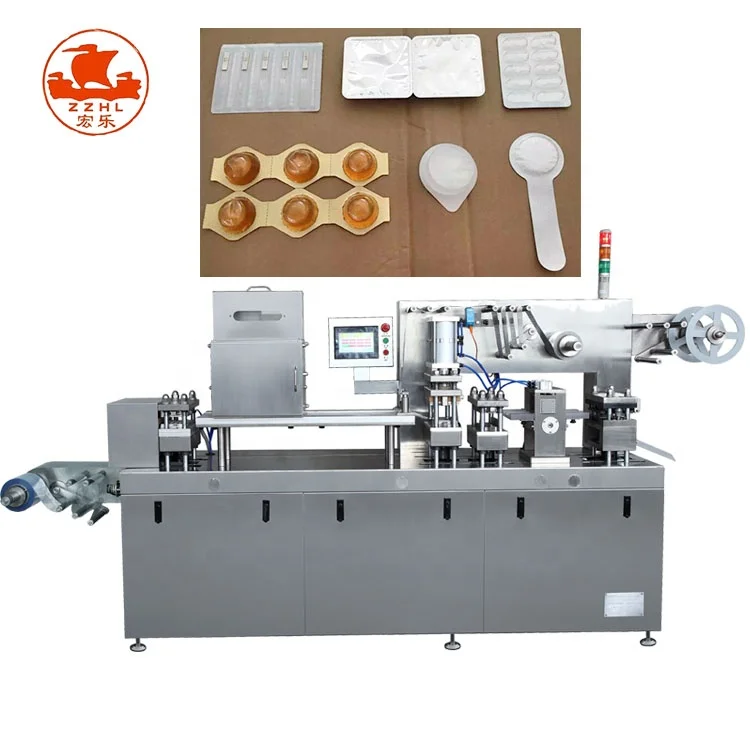

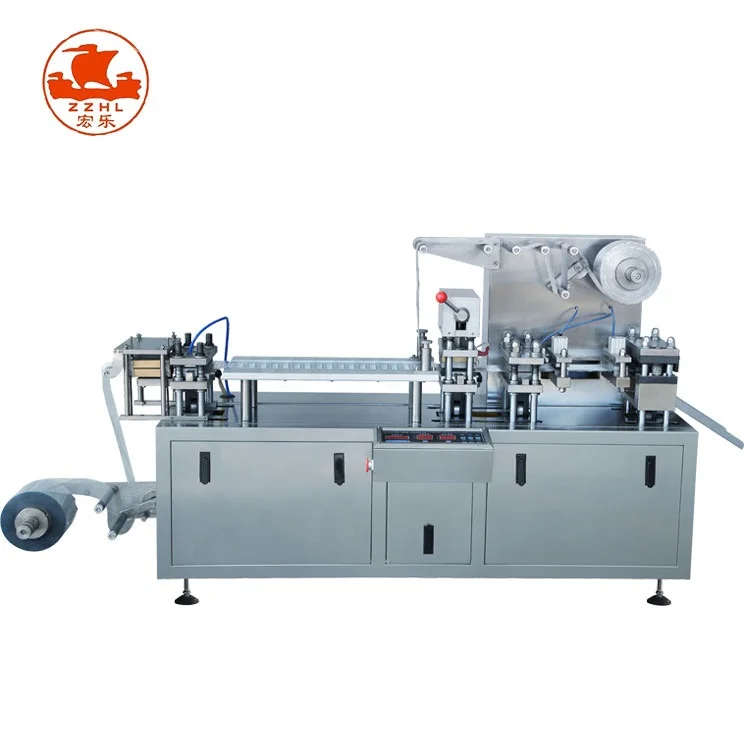

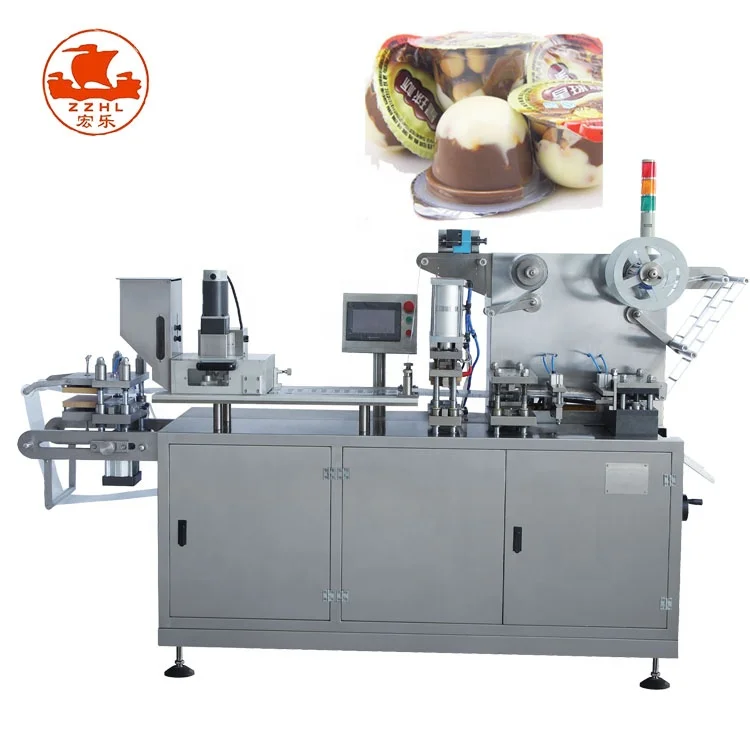

Pharmaceutical Medicine Large 10800 Plates/H Capsule Pill Blister Pack Packing Machine
Product Description
Introductions:
120H type multi-functional automatic aluminum-plastic (aluminum-plastic) blister packaging machine, this machine is the
company's comprehensive domestic and foreign advantages of aluminum-plastic packaging machine for innovative design,
and the contact part of the drug is made of stainless steel and high-grade aluminum alloy material, applicable In the
pharmaceutical, food, health products industry packaging plain tablets, sugar-coated tablets, capsules, can also be packaged
tomato sauce, chocolate sauce, honey and so on.
This machine is the equipment for China's pharmaceutical packaging technology improvement and the implementation of
GMP production. The products have been sold to major pharmaceutical companies at home and abroad, large and
medium-sized hospitals, and exported to more than 20 countries and regions. They are favored and praised by customers.
Features：
1. Frequency conversion stepless speed regulation, mechanical traction;
2. The stroke is adjustable, the adjustment range is 30-95mm, convenient adjustment, accurate synchronization;
3. The standard is equipped with four stations (forming, heat sealing, creasing, punching) and four posts are installed at each station to make adjustment more convenient and stable;
4. The use of plate mold, positive pressure molding, batch number, indentation tangent, aluminum foil / aluminum aluminum automatic release;
5. Configure a Universal Feeder with a filling rate of 99.5% or more;
6. This machine has the advantages of small size, light weight, adjustment and maintenance space.
120H type multi-functional automatic aluminum-plastic (aluminum-plastic) blister packaging machine, this machine is the
company's comprehensive domestic and foreign advantages of aluminum-plastic packaging machine for innovative design,
and the contact part of the drug is made of stainless steel and high-grade aluminum alloy material, applicable In the
pharmaceutical, food, health products industry packaging plain tablets, sugar-coated tablets, capsules, can also be packaged
tomato sauce, chocolate sauce, honey and so on.
This machine is the equipment for China's pharmaceutical packaging technology improvement and the implementation of
GMP production. The products have been sold to major pharmaceutical companies at home and abroad, large and
medium-sized hospitals, and exported to more than 20 countries and regions. They are favored and praised by customers.
Features：
1. Frequency conversion stepless speed regulation, mechanical traction;
2. The stroke is adjustable, the adjustment range is 30-95mm, convenient adjustment, accurate synchronization;
3. The standard is equipped with four stations (forming, heat sealing, creasing, punching) and four posts are installed at each station to make adjustment more convenient and stable;
4. The use of plate mold, positive pressure molding, batch number, indentation tangent, aluminum foil / aluminum aluminum automatic release;
5. Configure a Universal Feeder with a filling rate of 99.5% or more;
6. This machine has the advantages of small size, light weight, adjustment and maintenance space.
Main technical parameters
Model | HLAP-120 | HLAP-120B | HLAA-120 | HLAA-120B |
Punch Frequency | 10-40times/min | 10-40times/min | 10-30times/min | 10-30times/min |
Max. Formed Depth | 16mm | 16mm | 16mm | 16mm |
Travel Range | 30-95 mm (adjustable) | 30-95 mm (adjustable) | 30-95 mm (adjustable) | 30-95 mm (adjustable) |
Max. Formed area | 120*90mm | 120*90mm | 120*90mm | 120*90mm |
Air Pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
Total Power | 380V/220V 50Hz 3.2KW | 380V/220V 50Hz 3.2KW | 380V/220V 50Hz 3.2KW | 380V/220V 50Hz 3.2KW |
Main Motor Power | 0.75Kw | 0.75Kw | 0.75Kw | 0.75Kw |
PVC Hard Pieces | 0.15-0.5*130 (mm) | 0.15-0.5*130 (mm) | 0.15-0.5*130 (mm) | 0.15-0.5*130 (mm) |
PTP Aluminum Foil | 0.02-0.035*130 (mm) | 0.02-0.035*130 (mm) | 0.02-0.035*130 (mm) | 0.02-0.035*130 (mm) |
Dialyzing paper | 50-100g*130mm | 50-100g*130mm | 50-100g*130mm | 50-100g*130mm |
Air pump volume flow | ≥0.2²/min | ≥0.2²/min | ≥0.2²/min | ≥0.2²/min |
Heat seal power | 0.5kw | 0.5kw | 0.5kw | 0.5kw |
Up and down side heat power | 0.5+0.5kw | 0.5+0.5kw | 0.5+0.5kw | 0.5+0.5kw |
Functions | Forming, heat sealing, punching | Forming, heat sealing, creasing, punching | Forming, heat sealing, punching | Forming, heat sealing, creasing, punching |
Size | 2070*650*1060 mm 560kg | 2070*650*1060 mm 560kg | 2070*650*1060 mm 560kg | 2070*650*1060 mm 560kg |

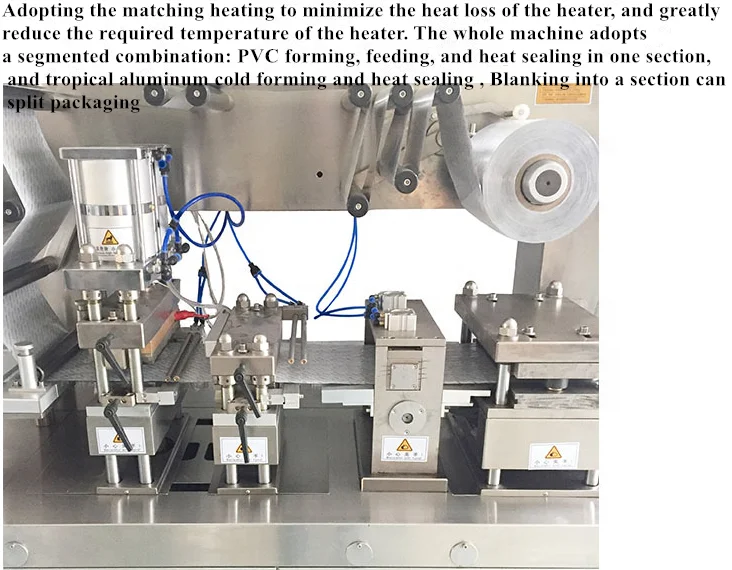

Detailed Images
Related Products
Model | HLT-187 capsule filling machine |
Power | 0.37KW |
Qualified rate: | ≥ 99.8% |
Filling precision | W ± 5% |
Size(mm) | 960x550x1080mm |
Lock limit pressure | 130KG |
Model | HLT-400 |
Power | 0.55kw |
Qualified rate: | ≥ 99.8% |
Filling precision | W ± 5% |
Size(mm) | Pressing machine:650*580*850(1set) Arrange machine:1050*550*980(2sets) |
Lock limit pressure | 275KG |
Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
