Product Description
Automatic 3/5/7 ply Corrugated Cardboard Production Line Machine

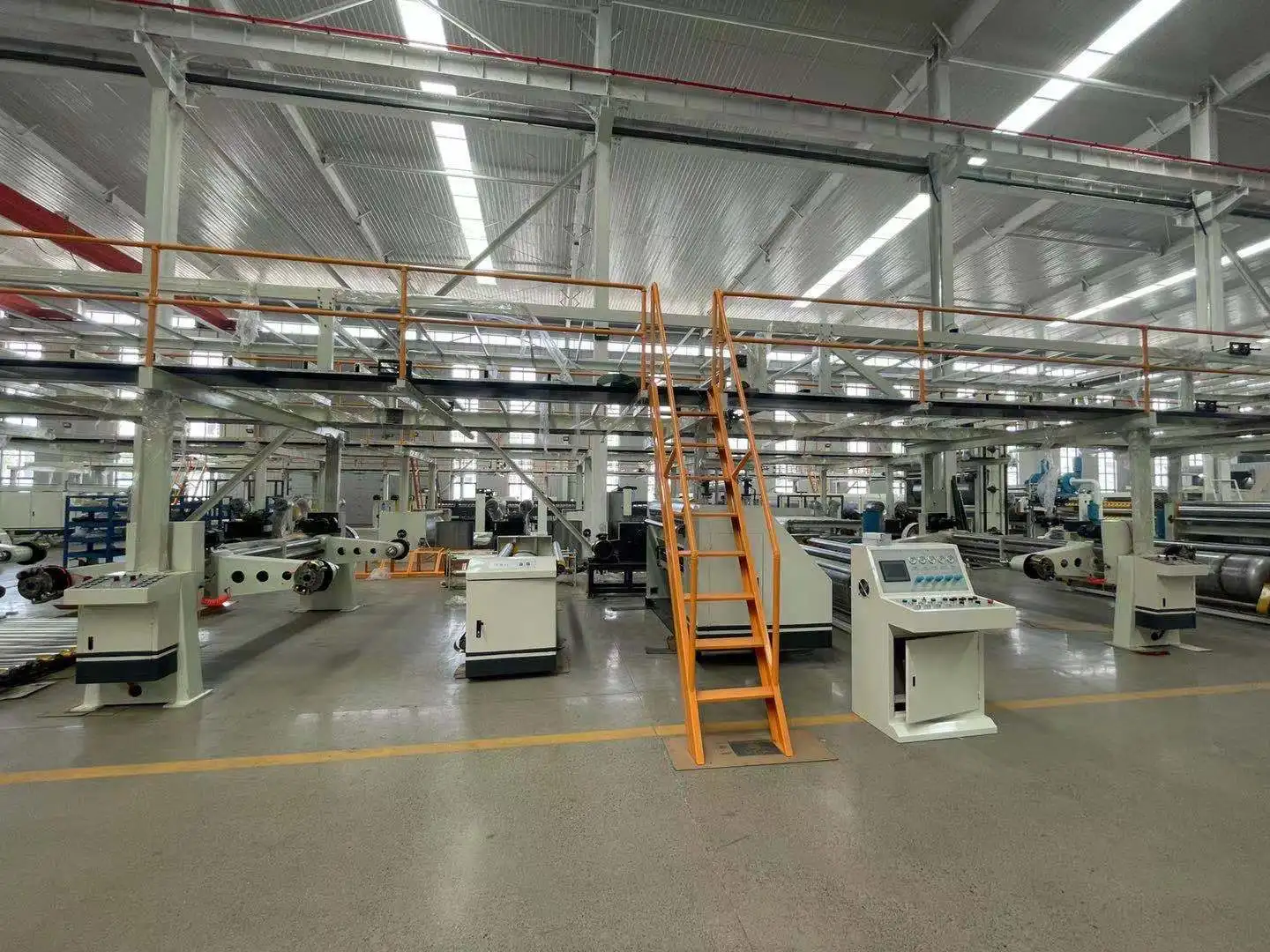

Corrugated paperboard production line includes mill roll stand,single facer,pre-heater jar,conveyor bridge,gluing machine,thin blade slitter scorer,NC cut off machine and auto-stacker, then produce high quality board,which can reach high speed and high performance.
We can produce the 3ply,5ply and 7ply corrugated cardboard production line,width ranges from 1400mm to 2500mm,production speed ranges from 60 to 300 meter/min.
Customer can choose production capacity according to his own needs.steam heating /electrical heating /oil heating
Flute: A / B / C / E / F Flute Optional ( Flute height from 0.7mm to 4.2mm Custom-made )
We can produce the 3ply,5ply and 7ply corrugated cardboard production line,width ranges from 1400mm to 2500mm,production speed ranges from 60 to 300 meter/min.
Customer can choose production capacity according to his own needs.steam heating /electrical heating /oil heating
Flute: A / B / C / E / F Flute Optional ( Flute height from 0.7mm to 4.2mm Custom-made )
Suitable for | 3 / 5 / 7 layer corrugated cardboard |
Max.Production speed | 60-300mpm |
Effective Width | 1400mm-2500mm |
Corrugator roll type | A,C,B,E,F |
Cutting accuracy | ±1mm |
Slitting accuracy | ±1mm |

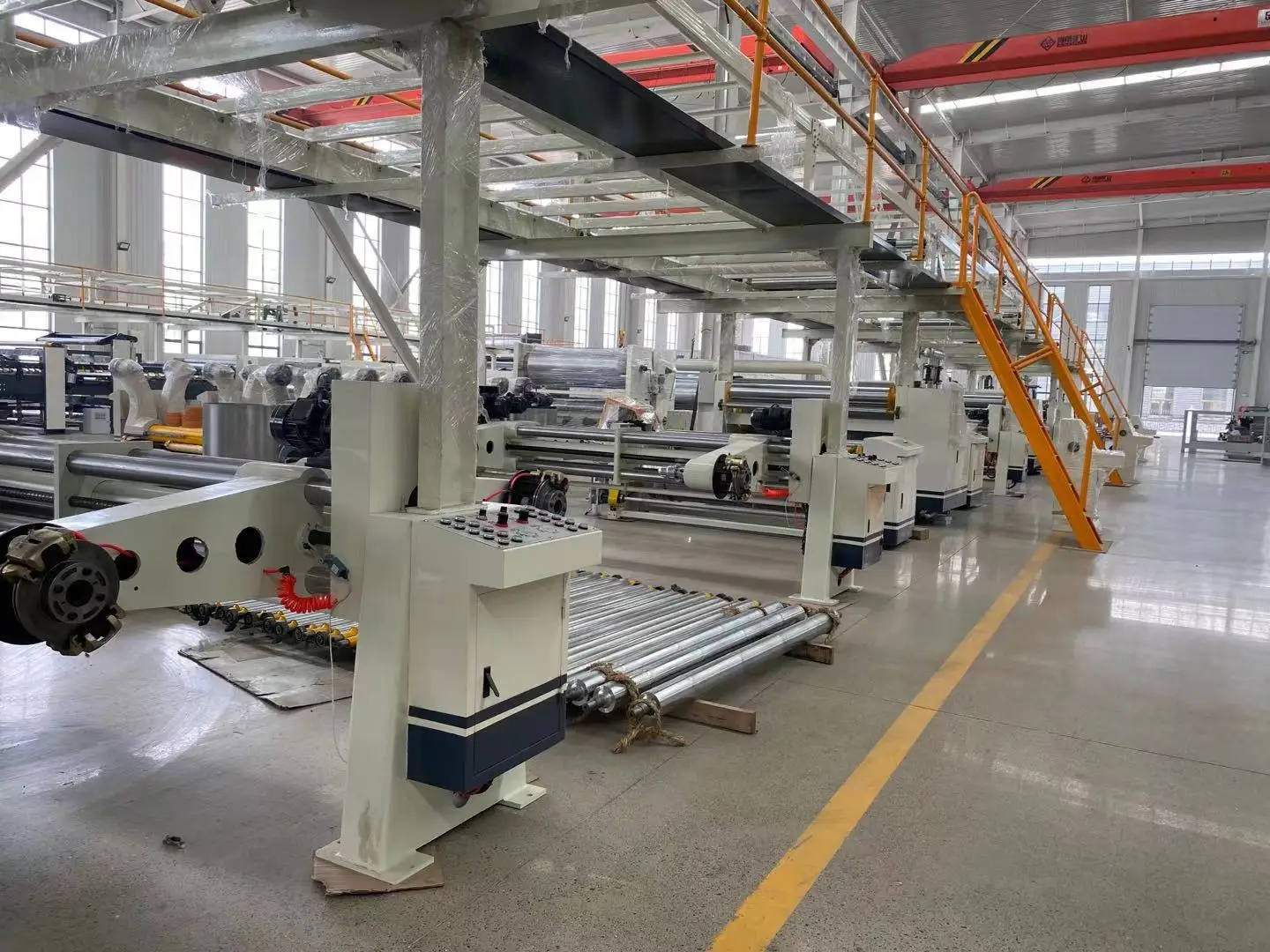

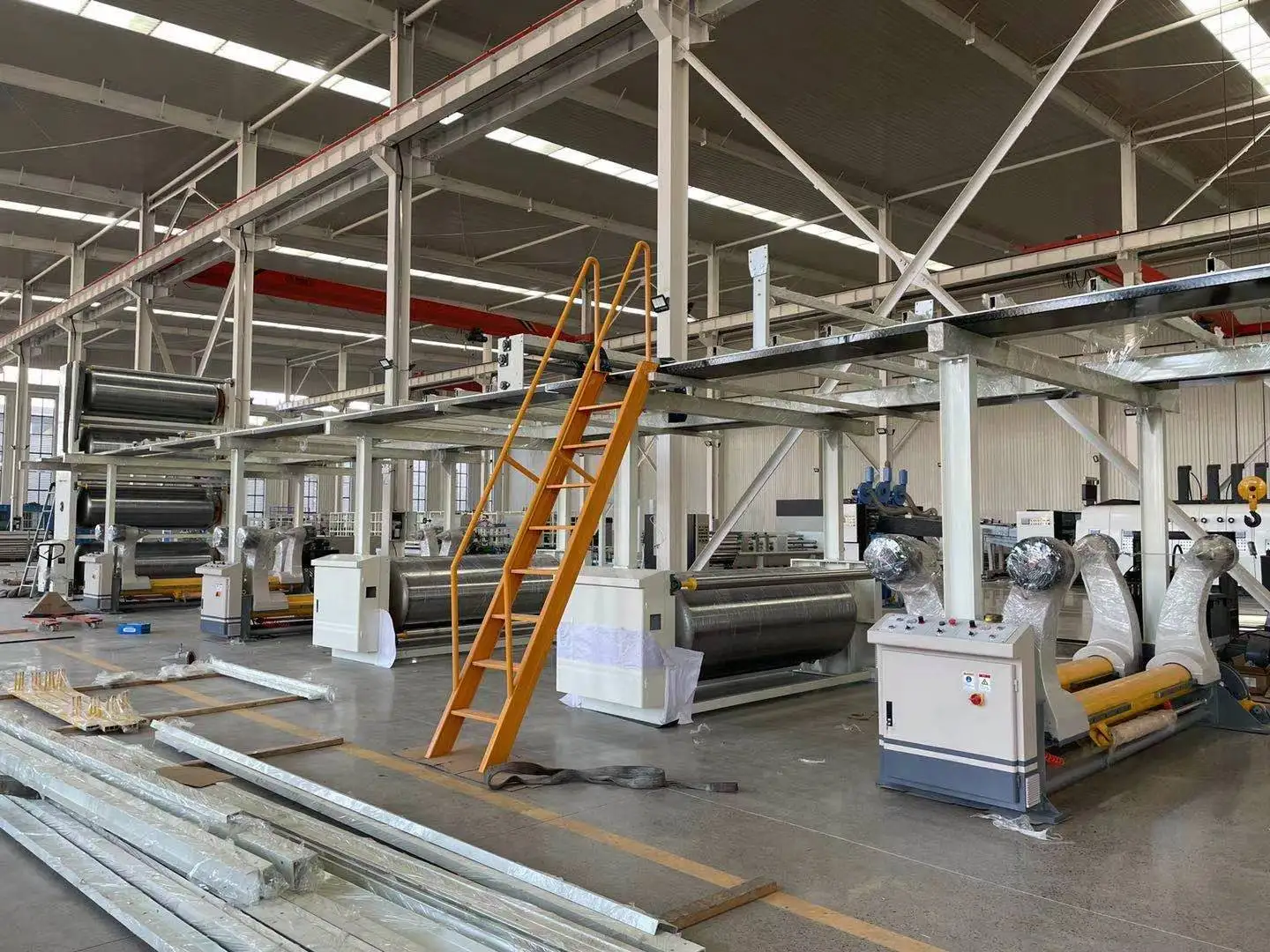

Hydraulic shaftless mill roll stand
Spindle ¢ 240mm, hyperbolic heavy rocker, expand chuck , multi-point brake, hydraulic drive lifting, panning left and right on the middle

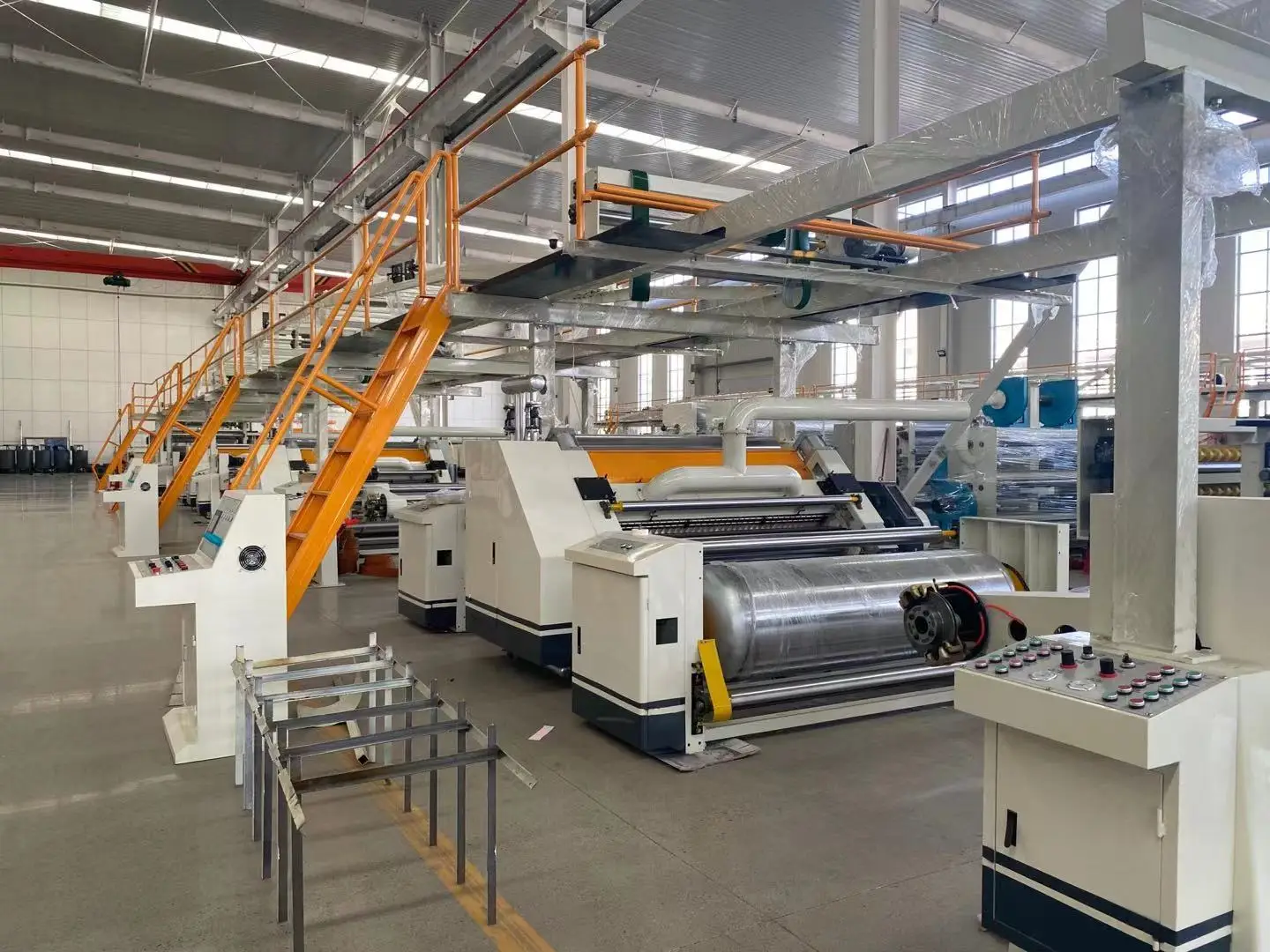

SF-320C fingerless single facer
Corrugated main roller ￠320mm，material with 48CrMo alloy steel,tungsten carbide dealing,Tile roll modular group lifting
transfer.Airbag ballasting structure，import main bearing，PLC automatic control glue，HMI touch screen，Breaks automatic parking
relief，steam heating way.
transfer.Airbag ballasting structure，import main bearing，PLC automatic control glue，HMI touch screen，Breaks automatic parking
relief，steam heating way.

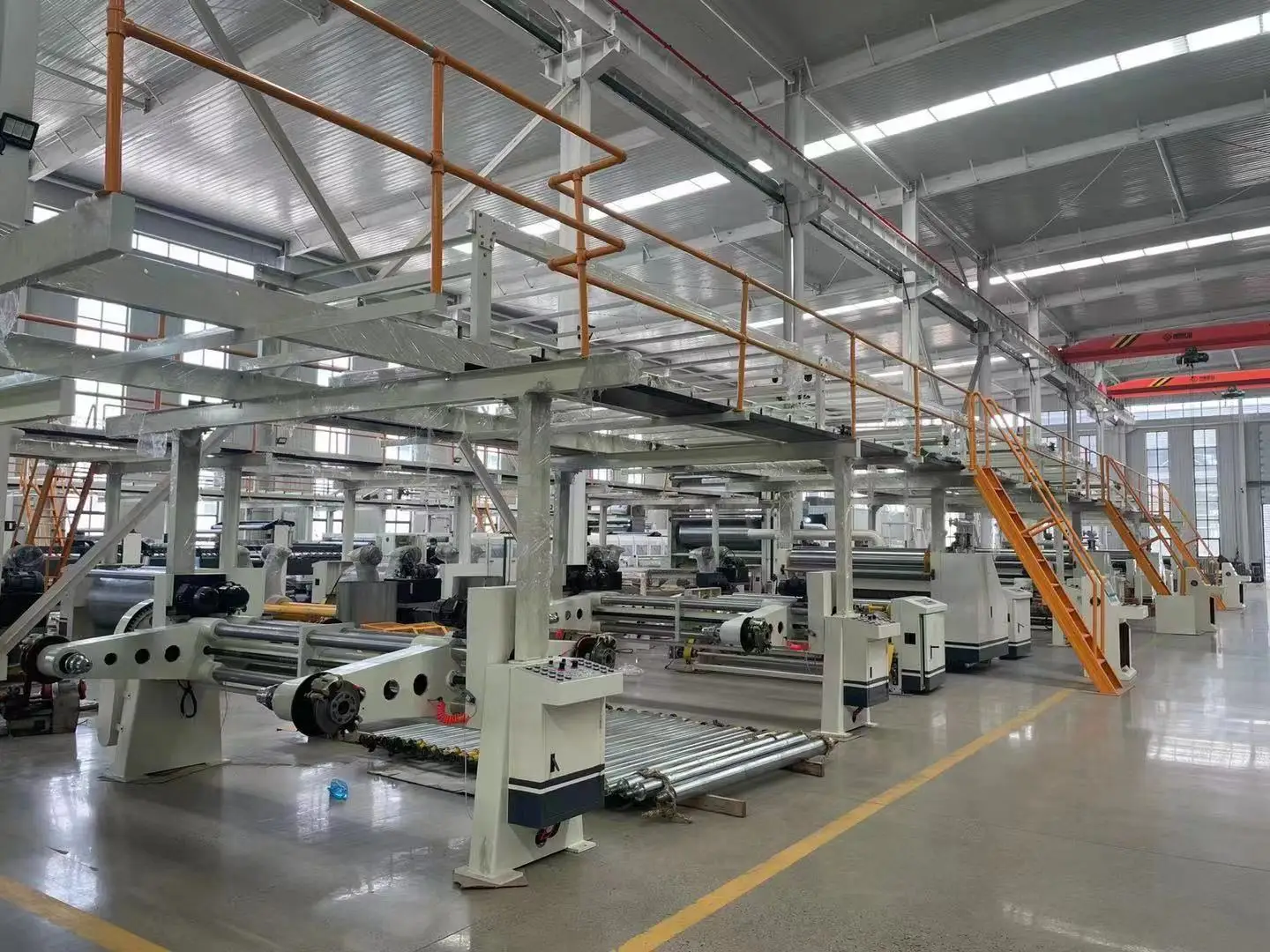

Conveyor bridge
Adopt independent variable frequency motor drive, pull paper adsorption tensioning device
GM-20 double glue machine
Glue roller diameter 269mm.Each independent frequency motor drive, glue roller diameter 269mm.Each independent frequency motor
drive,PLC adjust glue gap and HMI.
drive,PLC adjust glue gap and HMI.
SM-F type double facer
Rack 360 mm GB channel，Chrome hot plate 600 mm *16 pieces，The whole structure of the hot plate design.PLC automatic control press plate. Temperature display, frequency motor.
Thin blade slitter scorer (Zero Pressure Line）
Tungsten alloy steel, five knives eight lines，zero-pressure line type. Schneider servo computer automatically discharge knife,
suction outlet width automatically adjusted.
suction outlet width automatically adjusted.
NC cutter helical knives
Full AC servo control, energy storage brake, helical blade structure, oil-immersed gears,10.4-inch touch screen display.
Computer gantry automatic stacking machine
Servo drive platform lifting, three section of frequency transport，automatic points stack discharge,Imported high-strength belt
output, out paper side standard transport aircraft.
output, out paper side standard transport aircraft.
ZJZ glue station system
Customers -owned pipeline。Glue configuration is composed by carrier tank、main tank、storage tank、and send plastic pump、back plastic pump.
Optional
Electric mill roll stand
Automatic splicer
Automatic glue kitchen system
Bridge correction machine control system
Multi-cassette positive pressure single facer
