6 мм-10 мм стальной стержень сварная проволочная сетка армированная бетонная панели сварочные
- Категория: Wire Mesh Making Machines >>>
- Поставщик: Anping,County,Laien,Wire,Mesh,Machine,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 66640.27 $* | 69972.39 $* |
| Aug-16-2025 | 66080.20 $* | 69384.59 $* |
| Jul-16-2025 | 55440.41 $* | 58212.12 $* |
| Jun-16-2025 | 64960.16 $* | 68208.92 $* |
| May-16-2025 | 56560.10 $* | 59388.32 $* |
| Apr-16-2025 | 63840.90 $* | 67032.54 $* |
| Mar-16-2025 | 63280.67 $* | 66444.8 $* |
| Feb-16-2025 | 62720.89 $* | 65856.46 $* |
| Jan-16-2025 | 62160.58 $* | 65268.70 $* |
Характеристики
Product Description

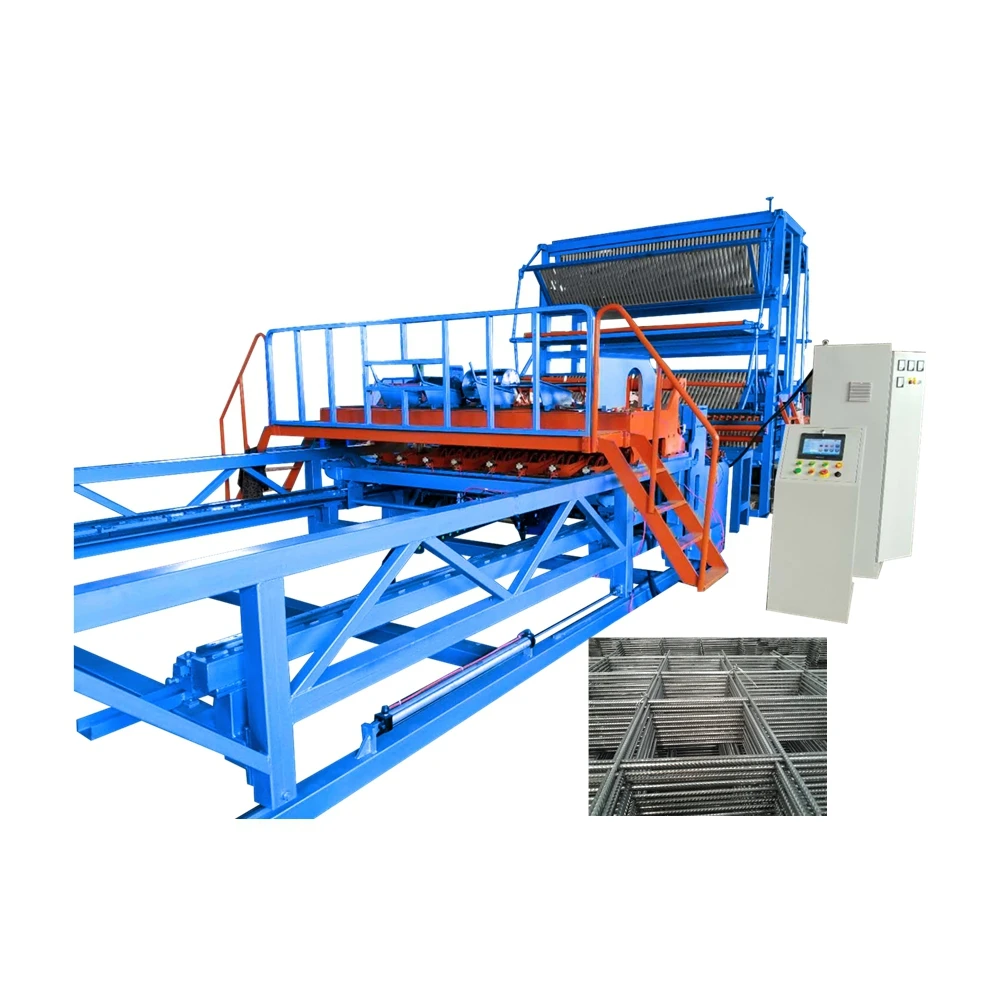

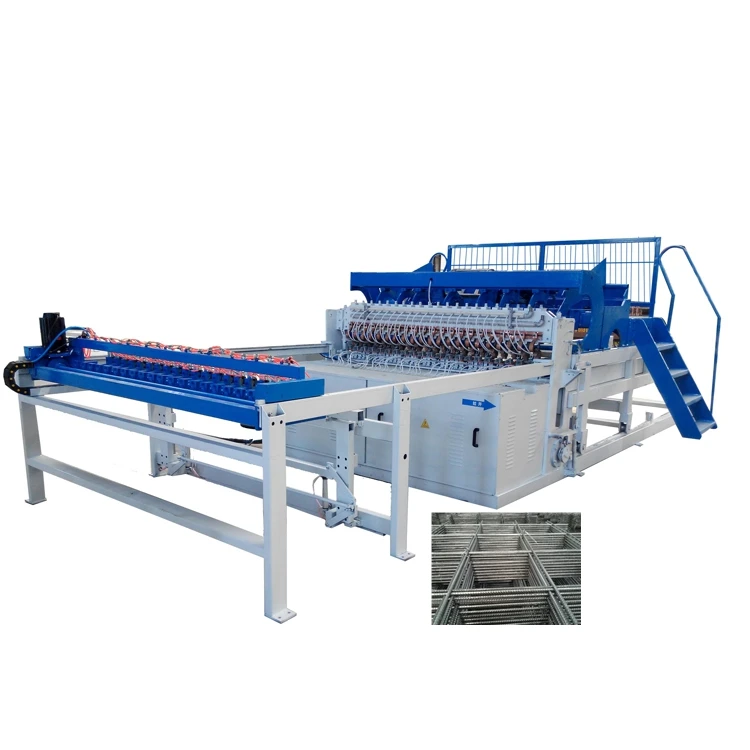

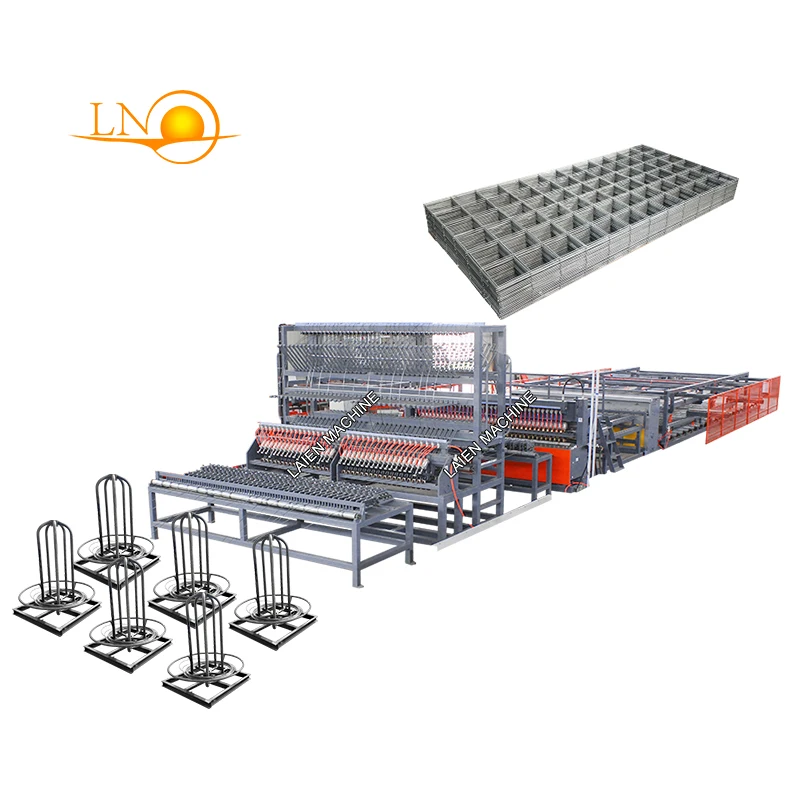

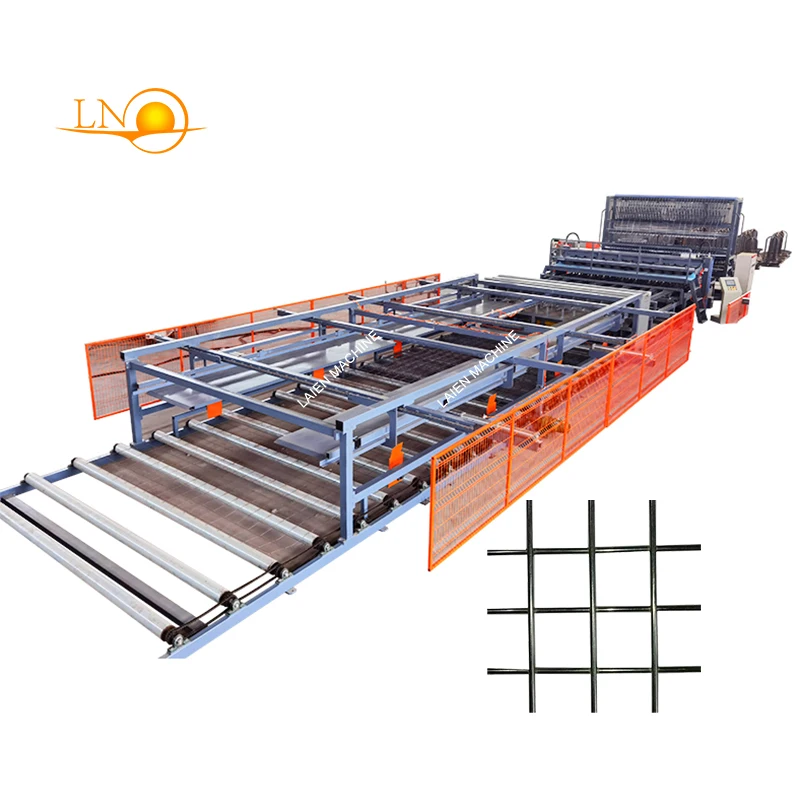

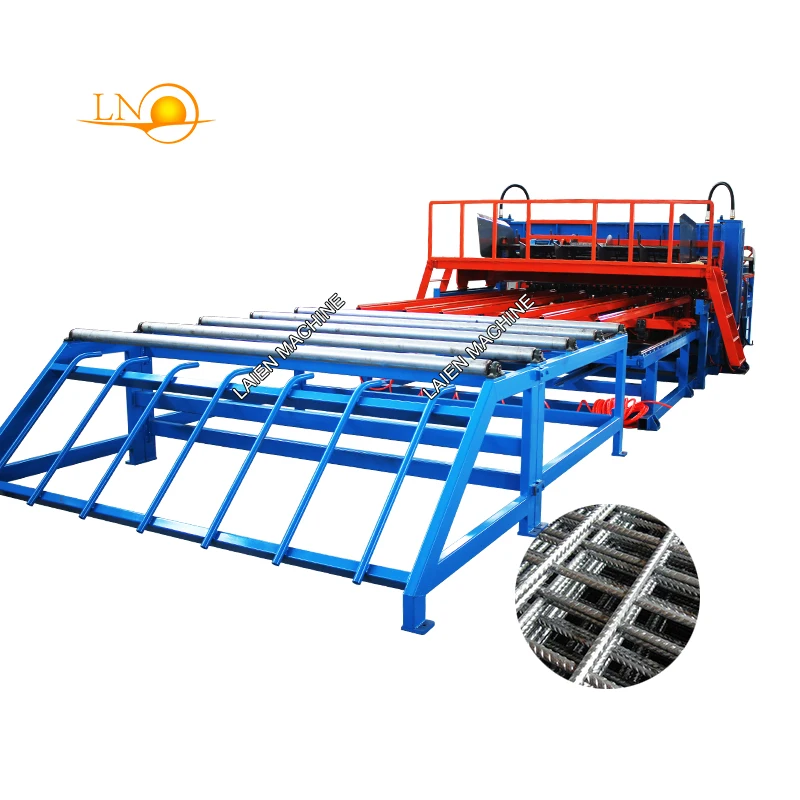

Per cut wire feeding Wire Mesh Welding Machine
cross wire and line wire all feeding by per cutting wires
Coil Wire and per cut wire feeding Wire Mesh Welding Machine
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Product Paramenters
Raw material:Low carbon steel wire, stainless steel wire and rebar wire.
Advantage:
1.Taiwan Delta PLC control and touch screen more stable.More technical parameters (such as speed,mesh size)can be set and adjusted on the touch screen.Very convenient for workers to operate.
2.Good CuCrZr of electrodes,transformer cooled by water.
3.Both wires are pre-cut and finished mesh panel more nice.
4.Longtitude wire fed automatically by raw material feeding device.Finished mesh pulled automatically by pnematic device.More loading capacity for the cross wires.Save more manual labor and time.
5.Working speed more fast and production capacity more improved.
Program | HWJX2000 | HWJX2500 | HWJX3000 |
Number of electrodes | 20 | 24 | 30 |
Max.mesh width | ≤2000mm | ≤2500mm | ≤3000mm |
Wire diameter | 5-12/3-8mm | 5-12/3-8mm | 5-12/3-8mm |
Product length | 3-12m | 3-12m | 3-12m |
Cross wire space | 100-300mm | 100-300mm | 100-300mm |
Line wire space | 100-300mm | 100-300mm | 100-300mm |
Electric capacity | 1500KVA | 1700KVA | 2100KVA |
Working speed | 40-60times/min | 40-60times/min | 40-60times/min |
Auxiliary Machines
Wire Straightening and cutting machine
Ribbed wire making machine
Wire drawing machine
Finished product
Usage:
Products are widely used in the floor &wall reinforcing mesh in the building,reinforcing mesh in the tunnel,bridge and road.
Loading
After Sales Service
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
