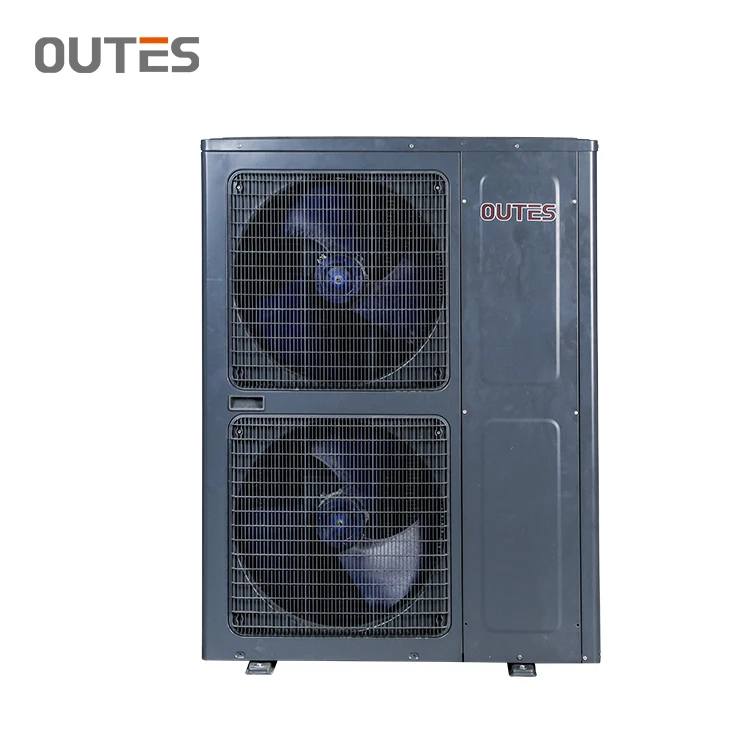

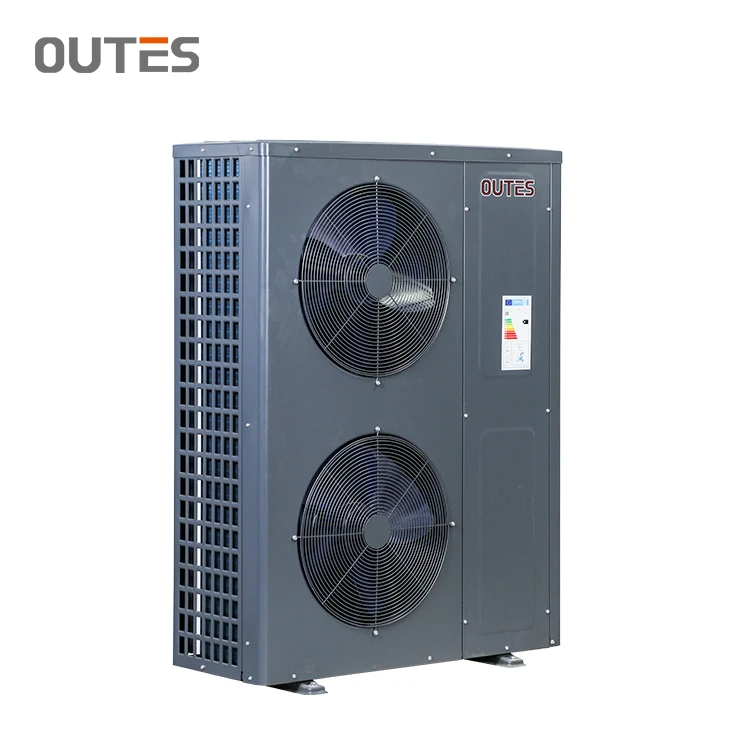

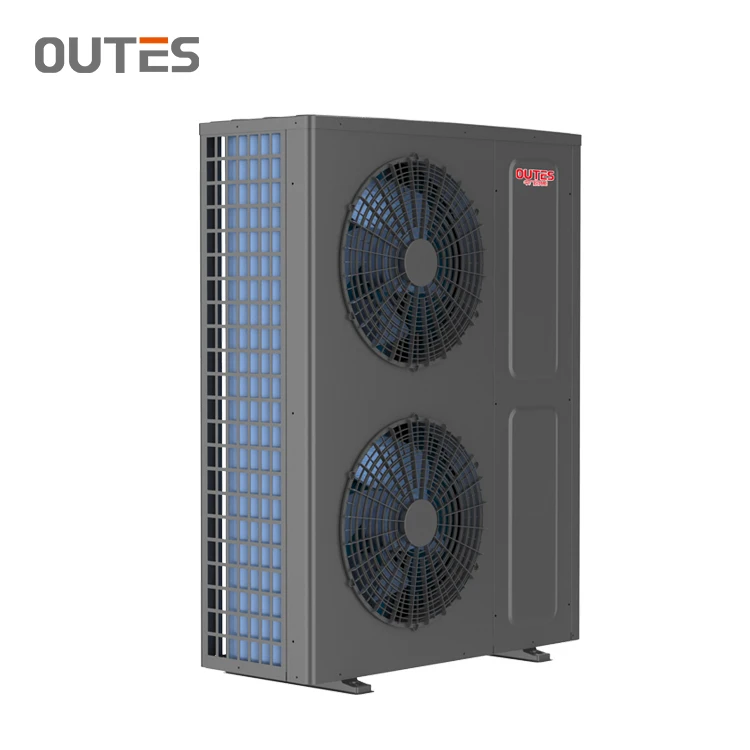

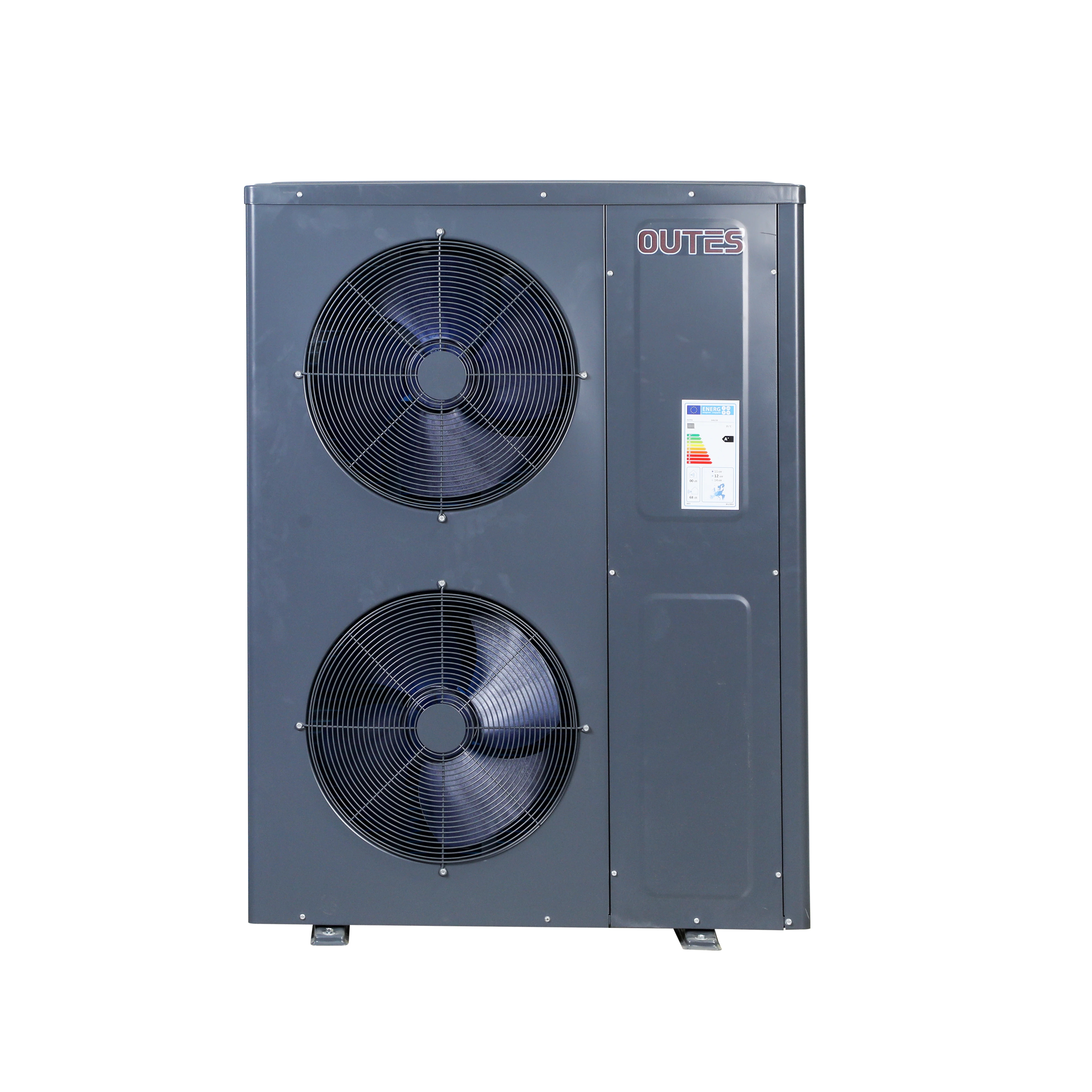

Встроенный водяной тепловой насос R410A EVI водонагреватель высокоэффективный

Встроенный водяной тепловой насос R410A EVI водонагреватель высокоэффективный

Категория: Heat Pump Water Heaters >>>
Поставщик: Zhejiang,Zhongguang,Electrical,Co.,Ltd.,Ningbo,Branch

Цена:3 500,00 $ - 3 600,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	4165.2 $*	4373.64 $*
Aug-18-2025	4130.78 $*	4337.34 $*
Jul-18-2025	3465.63 $*	3638.6 $*
Jun-18-2025	4060.48 $*	4263.44 $*
May-18-2025	3535.44 $*	3712.95 $*
Apr-18-2025	3990.88 $*	4190.49 $*
Mar-18-2025	3955.0 $*	4153.81 $*
Feb-18-2025	3920.86 $*	4116.92 $*
Jan-18-2025	3885.63 $*	4079.46 $*

Характеристики

Product Overview

House Heating Heat Pump

Modes: AUTO/ECO/FAST/MULT

PRODUCT SPECIFICATIONS

Model			/	AHb09E	AHb15E	AHb19E
Horse Power			/	3HP	5HP	6HP
Power Supply			/	220~240V/ 1N/50Hz	220~240V/ 1N/50Hz	220~240V/ 1N/50Hz
Heating- A7℃W35℃	Rated Heating Capacity(1)	kW	8.5	14.5	18.5
		Heating Input Power(1)	kW	2.15	16.0	4.64
		Input Current(1)	A	9.3	20.2	20.2
		COP(1)	W/W	3.95	3.93	3.99
Heating- A7℃W45℃	Rated Heating Capacity(2)	kW	8.2	13.9	17.8
		Heating Input Power(2)	kW	2.66	4.19	5.31
		Input Current(2)	A	11.6	18.2	23.1
		COP(2)	W/W	3.08	3.32	3.35
Cooling	Rated Cooling Capacity	kW	6.7	10	13.4
		Cooling Input Power	kW	2.6	4.1	5.2
		Cooling Input Current	A	11.3	17.8	22.6
		EER	W/W	2.58	2.44	2.58
Outdoor Unit	Rated Input Power	kW	3.4	5.9	6.9
		Rated Input Current	A	15.6	21.9	31.2
		Working Condition-Heating	℃	-25~28	-25~28	-25~28
		Working Condition-Cooling	℃	20~49	20~49	20~49
		Refrigerant Type	/	R410A	R410A	R410A
		Compressor Brand	/	Copland/scroll	Copland/scroll	Copland/scroll
		Compressor Type	/	ON/OFF	ON/OFF	ON/OFF
		Water side Heat Exchange	/	Plate	Plate	Plate
		Water Connection Size	/	RC3/4	RC1	RC1
		Rated Water Flow	m3/h	1.46	2.49	3.18
		Water Pressure Drop	kPa	23	26	28
		Max.Water Pressure	MPa	1.0	1.0	1.0
		Noise Level	dB(A)	≤60	≤62	≤63
		Electrical Shock Proof	/	Class I	Class I	Class I
		Outdoor Unit Water Proof Class	/	IPX4	IPX4	IPX4
		Net Weight	kg	100	150	160
		Net Dimension ( LWH)	mm	1036×406×740	1036×406×1410	10364061410
		Packing Dimension ( LWH)	mm	1086×446×820	1086×446×1490	10864461490
		ContainerLoading20'/40'/40'HC	pcs	54/108/162	27/54/54	27/54/54

PRODUCT SPEC.

Successful Project

Projects

SIMILAR PRODUCTS

About us

Zhejiang Zhongguang Electrical Co., Ltd. (OUTES) is a national high-tech factory manufacturing/Researching & Developing/Sales & Service 5C Comfort Home products including Central floor heating Heat Pump, Central Air Conditioning, Central Hot Water Heat Pump, Central Water Purification, Central Air Ventilation Units.
OUTES provides safe, healthy, comfortable and intelligent products for global users with high quality and considerate service!

Testing Central

2007,we set up the 1st testing room, until now, we have 15 testing rooms and 30 test station. The Testing Center is covered 5400㎡(six thousand four hundred square meters) and the total investment reach to 50,000,000(fifty million) RMB. We have 40 engineers working here now.

2019, we got the approval from CNAS, TUV and BV. So it’s more easy for us to test the products exporting to different countries now!

We can test the performance, safety, life, noises, stress, transportation and all the other test we need for our products.
The products we can test including Hot Water Heat Pump, Chillers, gas system Central Air conditioners, water system Central Air Conditioners, Swimming Pool Heat Pump, Dryers, Air Ventilation Unit and Water Purification Unit.

The test capacity from 1 Horse Power to 200 Horse Power for a single Module Machine.
The ambient test condition can be from -35℃ to 60℃。

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

FAQ

Q1: How about your delivery time ?
A1: Generally, it will take 35 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q2: How about your delivery time ?
A2: EXW, FOB,...etc.

Q3: How about your delivery time ?
A3: Generally, we pack the heat pump in brown cartons or plywood. If you have legally registered patent, we can pack the heat pump in your branded boxes after getting your authorization letters.

Q4: What is your sample policy?
A4: We accept the sample order, but the customers have to pay the sample cost and the courier cost.

Q5: Do you test all your goods before delivery?
A5: Yes, we have 100% test before we pack the goods for delivery.

Q6: How about your delivery time ?
A6: 2 years warranty on the whole unit. The spare parts must be non-humanly damaged, usually we give to customer 1% spare parts free of charge for maintenance according to order cost during the warranty period.
