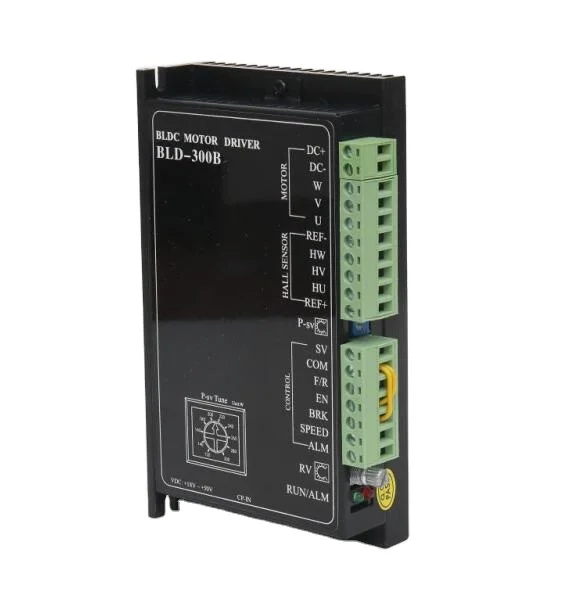

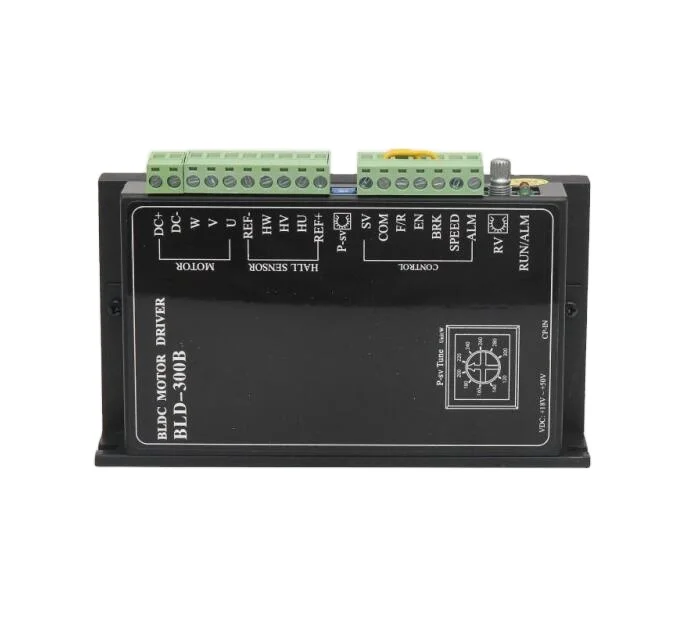

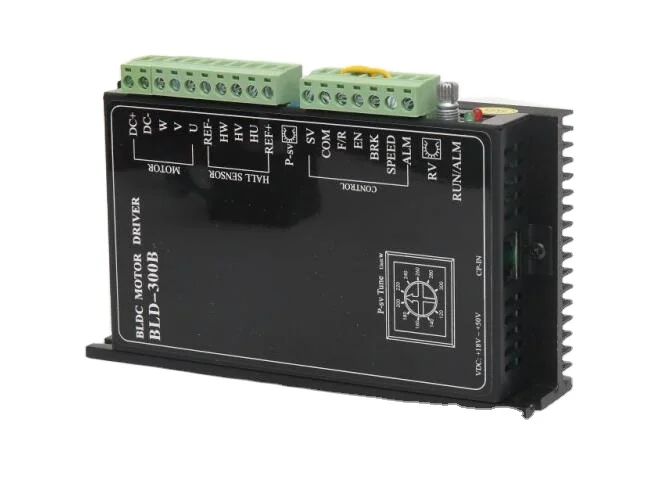

24V 48V меньше чем 300W BLDC мотор драйвер
- Категория: Motor Driver >>>
- Поставщик: Changzhou,Zhongzhi,Electric,Motor,&,Appliance,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 26.65 $* | 27.83 $* |
| Aug-18-2025 | 26.44 $* | 27.49 $* |
| Jul-18-2025 | 22.41 $* | 23.33 $* |
| Jun-18-2025 | 26.15 $* | 27.47 $* |
| May-18-2025 | 22.26 $* | 23.37 $* |
| Apr-18-2025 | 25.64 $* | 26.3 $* |
| Mar-18-2025 | 25.43 $* | 26.76 $* |
| Feb-18-2025 | 25.48 $* | 26.25 $* |
| Jan-18-2025 | 24.51 $* | 25.17 $* |
Характеристики
Product Description
This drive is suitable for power 48V 440W, 24V 300W three-phase sinusoidal brushless DC motor speed control, It can supply external potentiometer speed control, external analog voltage control, PC (PLC, microcontrollers, etc.) PWM frequency control and other functions . Meanwhile, the drive has high torque start, fast start-up and braking, reversing switch, manual and automatic speed control combined with abnormal alarm signal output characteristics.
Features
* can be applied to the host computer (PLC or microcontroller) PWM frequency or analog speed
* can be manual speed control mode (own potential, but also external potentiometer manual speed) PID speed loop, current loop control
* start stop control
* reversing control
* Overload Setting: Psv can set different parameters of the different power of the motor protection
* High-speed torque output stable, speed stable
* Hall angle of 60 ° / 300 ° 120 ° / 240 ° electrical angle selection
* pole set: 4-pole 8-pole optional fit different electrical specifications
* overcurrent, overvoltage, undervoltage, stall, Hall signals illegally, temperature protection
* Speed signal output
* Abnormal alarm signal output
* Undervoltage (≤18V), overheat (> 95 ℃) automatic protection
* With the brake function
* communication function, the controller speed, display speed, and other functions (sold separately)
Environmental requirements:

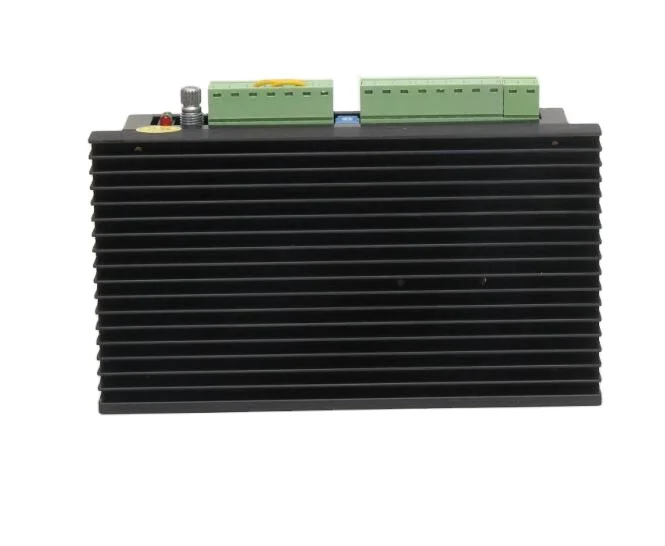

* Cooling: air cooling
* Use: avoid dust oil and corrosive substances
* Operating temperature: -10 °C ~ + 50 °C
* Humidity: <80% RH non-condensing non-frost
* Vibration: not more than 5.7M / S2
* Storage: -20 °C ~ + 125 °C avoid dust, original packing is preferred
* Insulation resistance: under normal temperature and pressure> 500MΩ
Features
* can be applied to the host computer (PLC or microcontroller) PWM frequency or analog speed
* can be manual speed control mode (own potential, but also external potentiometer manual speed) PID speed loop, current loop control
* start stop control
* reversing control
* Overload Setting: Psv can set different parameters of the different power of the motor protection
* High-speed torque output stable, speed stable
* Hall angle of 60 ° / 300 ° 120 ° / 240 ° electrical angle selection
* pole set: 4-pole 8-pole optional fit different electrical specifications
* overcurrent, overvoltage, undervoltage, stall, Hall signals illegally, temperature protection
* Speed signal output
* Abnormal alarm signal output
* Undervoltage (≤18V), overheat (> 95 ℃) automatic protection
* With the brake function
* communication function, the controller speed, display speed, and other functions (sold separately)
Environmental requirements:
* Cooling: air cooling
* Use: avoid dust oil and corrosive substances
* Operating temperature: -10 °C ~ + 50 °C
* Humidity: <80% RH non-condensing non-frost
* Vibration: not more than 5.7M / S2
* Storage: -20 °C ~ + 125 °C avoid dust, original packing is preferred
* Insulation resistance: under normal temperature and pressure> 500MΩ

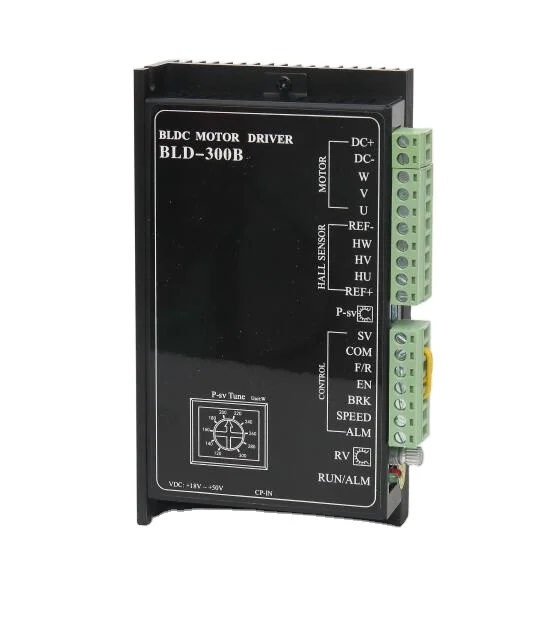

① Support for external 10K potentiometer or analog voltage speed control. When connecting the external potentiometer, the internal potentiometer RV switched off; when connecting the external analog voltage, COM is reference position, SV is analog voltage input signal.
② This signal needs more than 5mA drive absorption capacity, BRK is the enable brake control, connecting for operating state, disconnecting for a standby state. EN is the enable control, closed operating state, a standby state when disconnected, F / R is motor directional control, when disconnecting the motor is forward, disconnecting for motor reversal.
② This signal needs more than 5mA drive absorption capacity, BRK is the enable brake control, connecting for operating state, disconnecting for a standby state. EN is the enable control, closed operating state, a standby state when disconnected, F / R is motor directional control, when disconnecting the motor is forward, disconnecting for motor reversal.
Packing&Shipping
Packing
Packaging Details: Cartons and pallets
Port:ShangHai
Lead Time :20 days
Delivery
1.Carton box with foam
2.Box can be customized as you require
3.Usually 15-30days.
Packaging Details: Cartons and pallets
Port:ShangHai
Lead Time :20 days
Delivery
1.Carton box with foam
2.Box can be customized as you require
3.Usually 15-30days.
Company Introduction
Chang zhou zhongzhi electric Motor and Electric Appliance CO LTD is a leading manufacturer of electric motors and control systems. Our core products include brushless dc motors,stepper motors,brushless DC servo motors, closed-loop hybrid stepper motors,linear motor and drivers. The products are mainly used in :laboratory equipments. Medical instruments,advertising equipments, subway equipments.,surveillance products,textile industry and other automation equipments
Changzhou zhongzhi motor has become one of the majopr solution provider for domestic and overseas motor and control system market due to its accurate market positioning,highly efficient and professional R&D team as well as high –quality products.
We insist on product innovation and strictly following the iSO9001 procedure and Rohs standard,our six series core products have been certified by CE and widely exported to Europe and many other countries.
Thanks to our high-quality products and excellent customer service. We have obtained great reputation among our domestic and foreign customers.
Changzhou zhongzhi motor has become one of the majopr solution provider for domestic and overseas motor and control system market due to its accurate market positioning,highly efficient and professional R&D team as well as high –quality products.
We insist on product innovation and strictly following the iSO9001 procedure and Rohs standard,our six series core products have been certified by CE and widely exported to Europe and many other countries.
Thanks to our high-quality products and excellent customer service. We have obtained great reputation among our domestic and foreign customers.
our Certification
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% T/T in advance
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% T/T in advance
