Система контроля давления в шинах с дистанционной платформой для грузового парка интеграцией GPS управлением через приложение RS232
- Категория: Vehicle Tools >>>
- Поставщик: Shenzhen,Changxiao,Automobile,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 75.79 $* | 77.24 $* |
| Jul-19-2025 | 61.22 $* | 62.99 $* |
| Jun-19-2025 | 74.71 $* | 75.74 $* |
| May-19-2025 | 73.1 $* | 74.73 $* |
| Apr-19-2025 | 58.23 $* | 59.24 $* |
| Mar-19-2025 | 72.84 $* | 73.89 $* |
| Feb-19-2025 | 71.55 $* | 72.68 $* |
| Jan-19-2025 | 71.99 $* | 72.19 $* |
Характеристики
Remote Tyre Pressure Management System for Truck Fleets with GPS tracker, with RS232 485 TPMS App Control iler

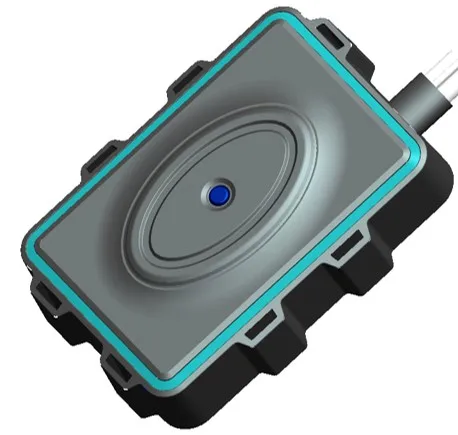

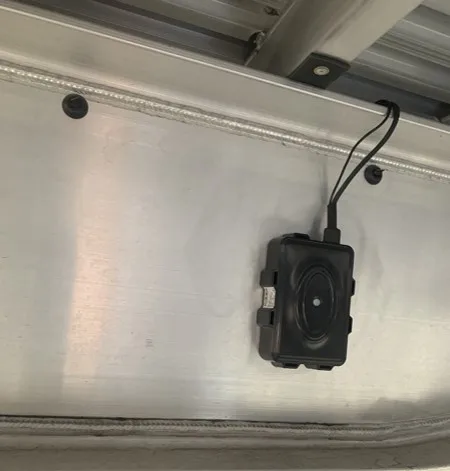

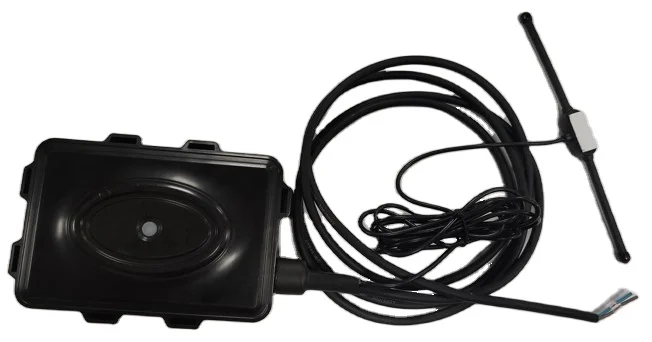

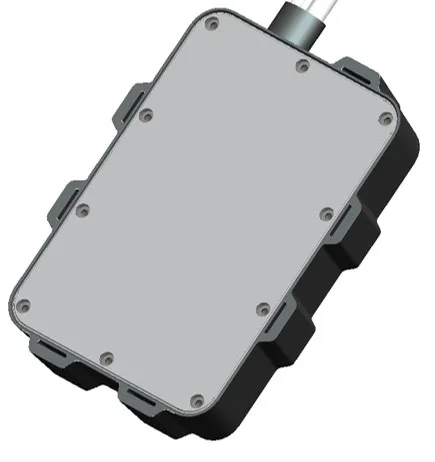

Host GPS box receiver (built-in receiver module); A. The GPS box of the host computer is powered by 2 core wires, which are 2 meters long (as shown in the figure below) and connected to the power supply of the car. Blue is negative; Working voltage in 9-36V, working current 1A; B. GPS box receiver, built-in GPS, GSM antenna 433 external antenna, antenna length of 2 meters;
Product Description

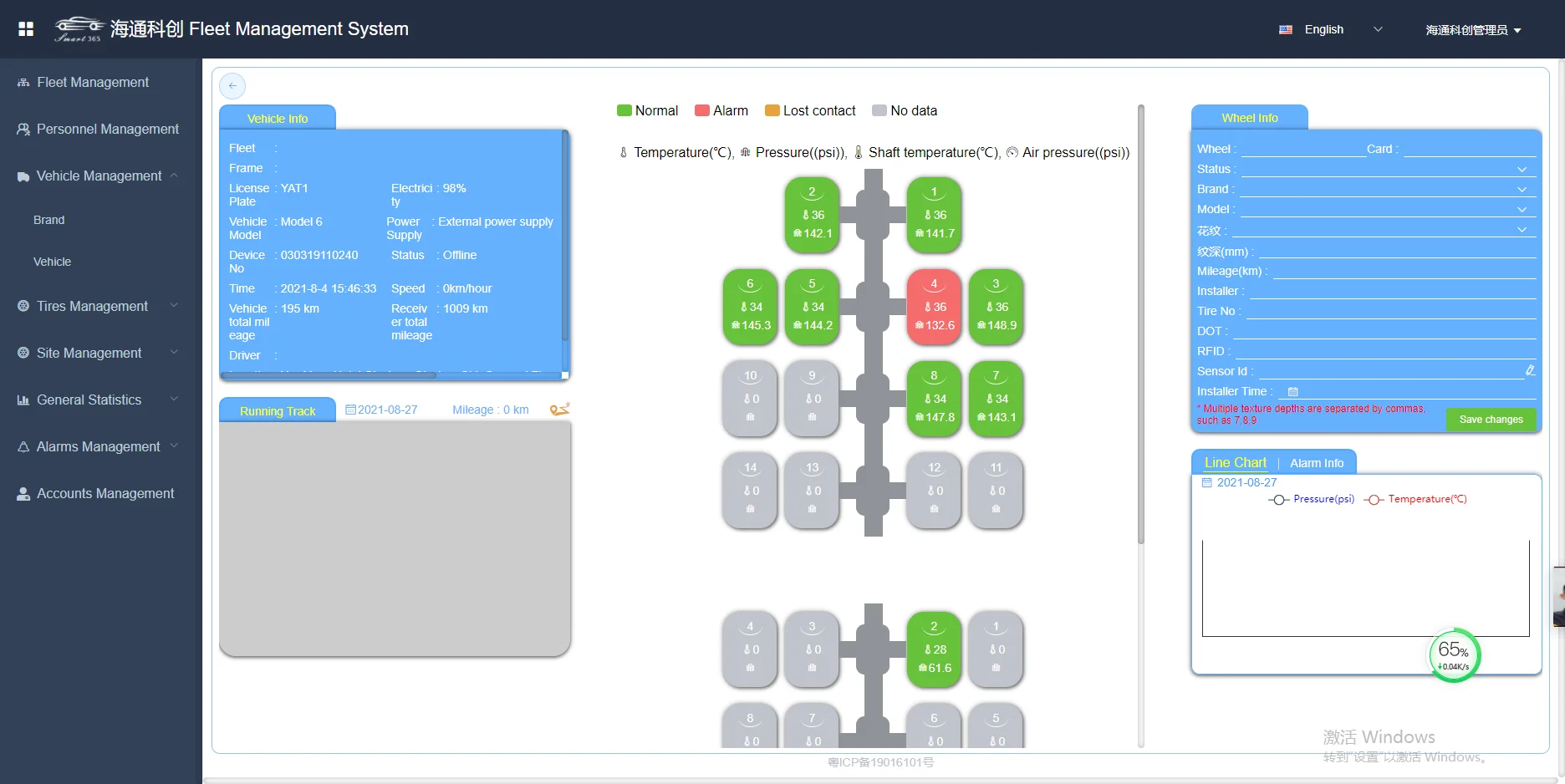

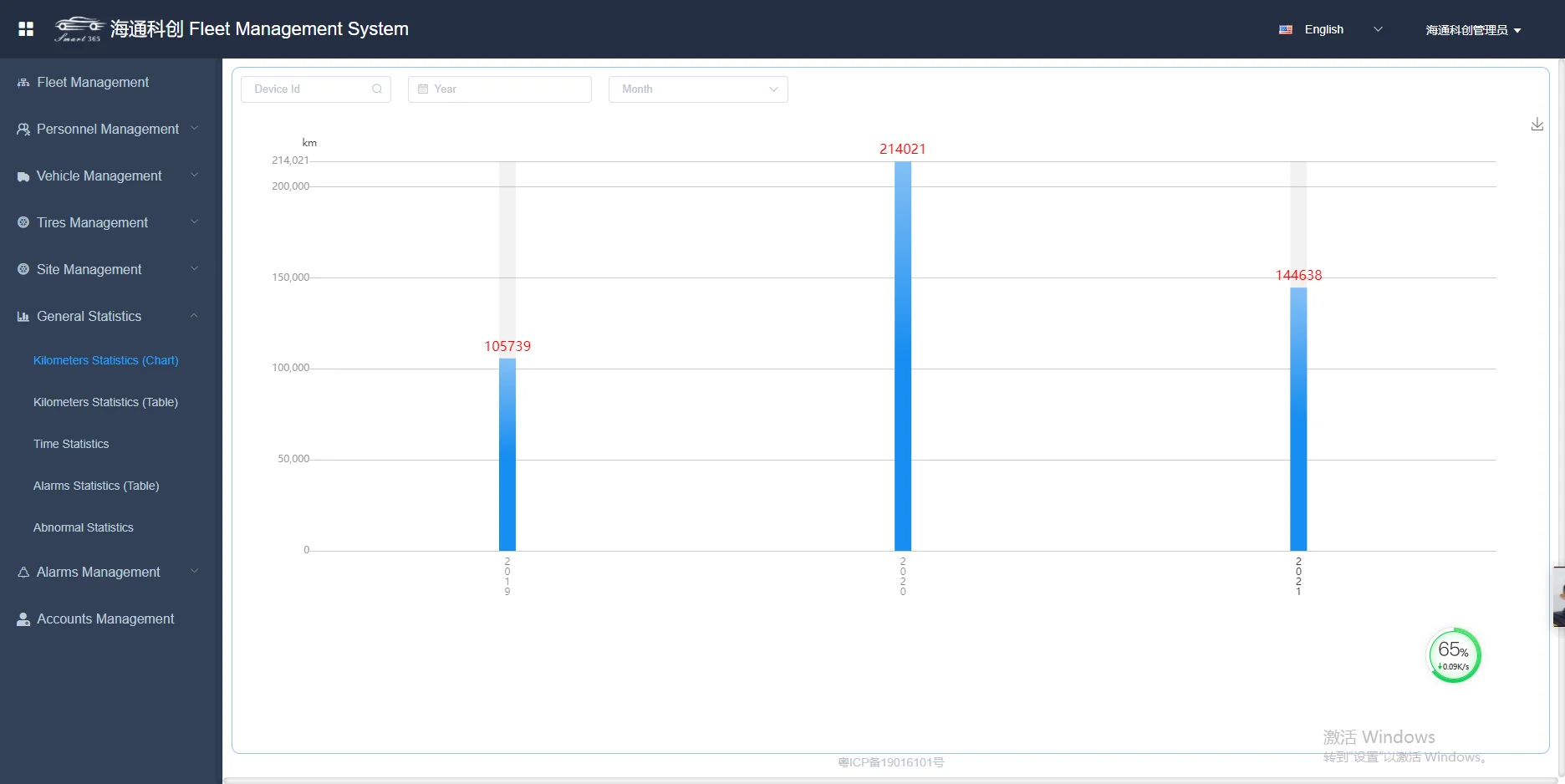

Fleet Management System
The system is composed of bundled sensors, receivers, hosts with GPS positioning and GPRS data transmission. This product is suitable for buses, buses, freight vehicles and other commercial models, used for real-time monitoring of vehicle tire pressure, temperature, prevent tire burst
Host Specification | ||||||
Item Name | Remote Control TPMS with GPS | Voltage | DC 8~30V | |||
Model Number | TPMS-G206 | Warranty | 1 years | |||
Sensor tyre | external sensor | Working temperature | - 20 ° C ~ 80 ° C | |||
Sensor color | black | Storage temperature | -30 ° C ~ 85 ° C | |||
Compatible with the module | External 232/485 port | SIM card | Built-in MICRO - SIM card | |||
GSM operating band | 2G:850/900/1800/1900MHz Capacity of 4G band (optional) Built-in antenna | GPS positioning mode | The GPS module antenna is a built-in ceramic antenna | |||
Built-in receiver module | TTL receiver module antenna is an external lead antenna | Button/button light | Equipped with power button/button light | |||
MOQ | 1 set | Size | 152*108*33 mm | |||
service | Custom packaging | Weight | 560g | |||
Certificate | CE,FCC, Emark, IP67 | Frequency | 433.92 MHz | |||
Application | Truck Bus | Port | Shenzhen | |||
Main Feature
Host Features
1. Network background data management, mobile APP real-time monitoring
2. GPS car background positioning system
1. Network background data management, mobile APP real-time monitoring
2. GPS car background positioning system
3. The device is connected to the power line and automatically starts up. The device has a power button, (long press the "button" to turn on/off); Equipment will appear Bi sound
4. 10000 mah battery, long standby
5. Low pressure alarm
6. Emergency leakage alarm
7. High temperature alarm
8. Sensor low electric alarm
9. Independent ID code for each sensor
10. Handheld reader can be used to upload ID location data, simple and convenient operation
Sensor Features
1.Brass, reliable cap sensors, easy to install
2.Water resistant
3.Replaceable sensor batteries
4.Fast leakage alert
5.Individually coded sensors
6.Anti-theft design
4. 10000 mah battery, long standby
5. Low pressure alarm
6. Emergency leakage alarm
7. High temperature alarm
8. Sensor low electric alarm
9. Independent ID code for each sensor
10. Handheld reader can be used to upload ID location data, simple and convenient operation
Sensor Features
1.Brass, reliable cap sensors, easy to install
2.Water resistant
3.Replaceable sensor batteries
4.Fast leakage alert
5.Individually coded sensors
6.Anti-theft design
the number of sensors is based on the actual number of vehicle tires
Transceiver Features (Optional parts)
1.Maintains signal stability
2.Records sensor ID, trailer ID and tire pressure and temperature limits
3.Supports truck and trailer exchange
4.Transferable trailer sensor data between monitor and transceiver
5.Visible and audible alerts
6.Fixed alert for high temperature (90 degree)
Transceiver Features (Optional parts)
1.Maintains signal stability
2.Records sensor ID, trailer ID and tire pressure and temperature limits
3.Supports truck and trailer exchange
4.Transferable trailer sensor data between monitor and transceiver
5.Visible and audible alerts
6.Fixed alert for high temperature (90 degree)
Details Images
TPMS Function
Company Profile
Packing & Delivery
Certifications
FAQ
1.What are your main products?
Our main products are TPMS & tire pressure sensors.
2. What services and discounts can you offer me?
2. What services and discounts can you offer me?
We can provide various types of auto parts, in addition, we can also provide the most favorable price, including OEM service, shipping service, quality customization service, to ensure you from our one-stop service experience.
3.What is your sample policy?
3.What is your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
4.How about your delivery time?
4.How about your delivery time?
Generally, it will take 7 to 10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. Can you customize products according to our requirements?
5. Can you customize products according to our requirements?
Yes, we do OEM and ODM, we can modify the product according to your design.
6.What is your terms of payment?
6.What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
