Длительный срок службы точность поворотный 360 градусов бесконечное потенциометр 0 5
- Категория: Passive Components >>>
- Поставщик: Tong,Yue,Xin,Commercial,And,Trading,Co.,Ltd.,(Chengdu)
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.39 $* | 0.8 $* |
| Aug-19-2025 | 0.42 $* | 0.24 $* |
| Jul-19-2025 | 0.80 $* | 0.55 $* |
| Jun-19-2025 | 0.66 $* | 0.45 $* |
| May-19-2025 | 0.95 $* | 0.67 $* |
| Apr-19-2025 | 0.68 $* | 0.40 $* |
| Mar-19-2025 | 0.20 $* | 0.48 $* |
| Feb-19-2025 | 0.16 $* | 0.67 $* |
| Jan-19-2025 | 0.24 $* | 0.70 $* |
Характеристики
Product Description

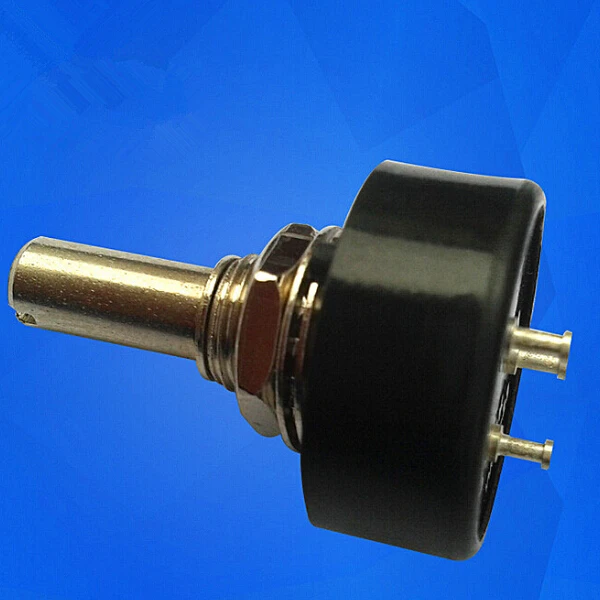

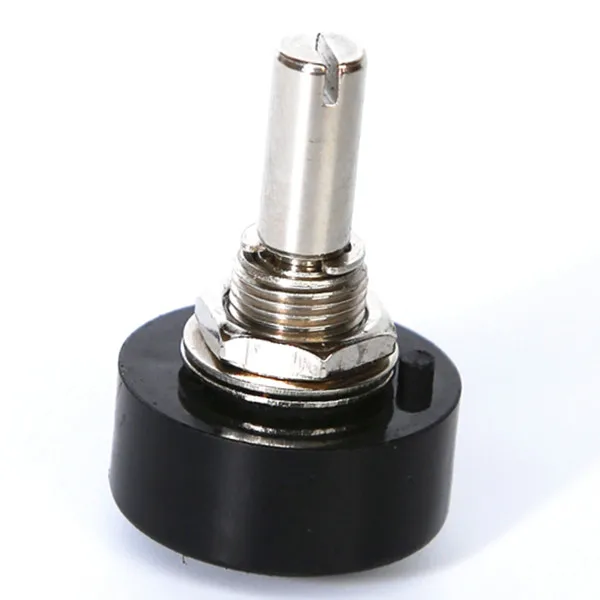

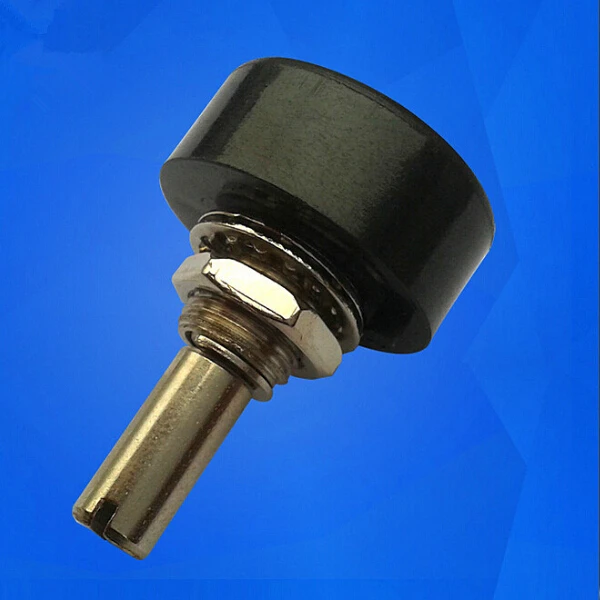

0.5W WDJ22 1k 10k 20k 50k 100k 360 degree endless rotation potentiometer

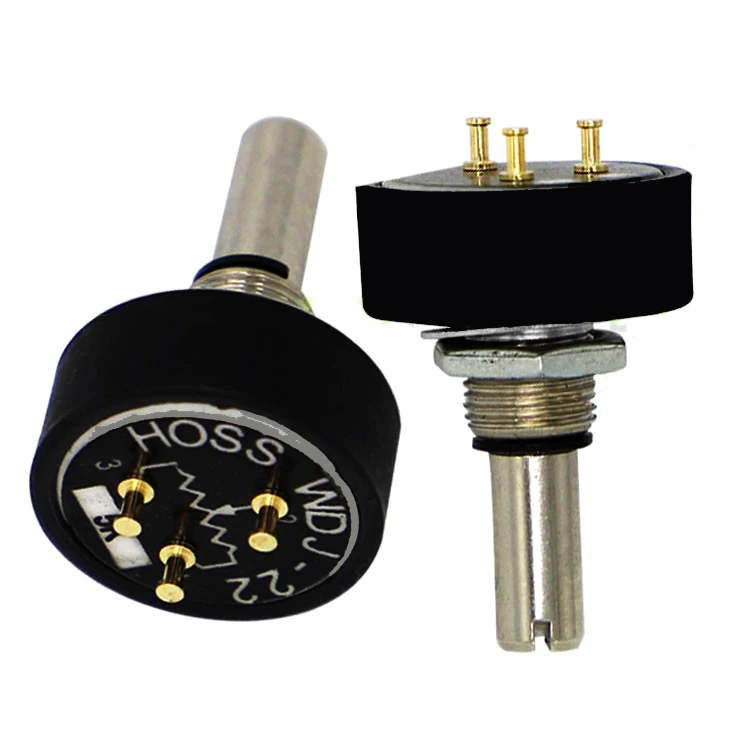

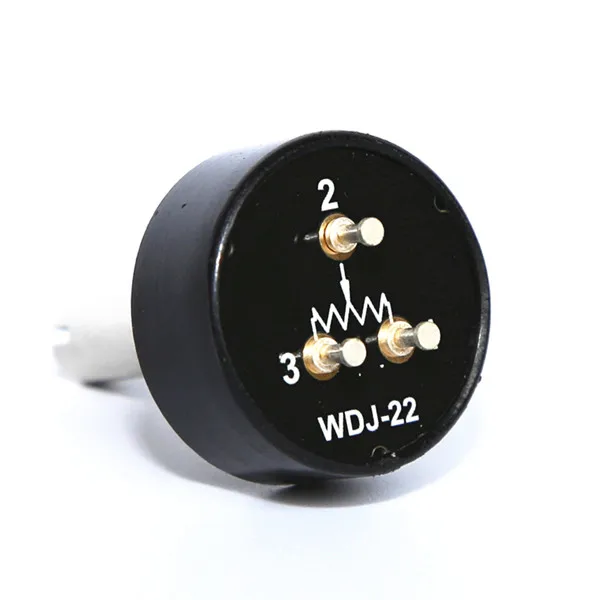

WDJ-22 conductive plastic potentiometer specification
Resistance Range | 1KΩ-10KΩ | |||||
Resistance Tolerance | ±10% Standard | |||||
End Resistance | <3Ω | |||||
Resistance Taper | B(JIS LINEAR) | |||||
Independent Linearity | ±0.5% | |||||
Power Rating | 0.5W(70℃)0W(120℃) | |||||
Peak Noise (C.R.V.) | <2%Rn | |||||
Dielectric Strength | 1000V 1minute | |||||
Adjustment Travel | 90°120°200° 240° 300° 340° | |||||
Insulation Resistance | 10M | |||||
Resolution | Essentially infinite | |||||
Maximum Input Voltage | 200VDC | |||||
Enviromental Specification | Storage Temperature Range | -60℃~+125℃ | ||||
Operating Temperature Range | -60℃~+125℃ | |||||
Temperature coefficient | 500ppm/℃ | |||||
Load Life | 70℃ 1,000h ΔR/R≤±10% | |||||
Rotational Life | 1,000,000, ΔR/R≤±7% | |||||
IP Range | IP25 | |||||
Soldering Heat Resistance | (350℃ 3S)ΔR/R≤±2% | |||||
Temperature Cycle | (-25℃,+85℃ 30min/each,5 cycles) ΔR/R≤±10% | |||||
Vibration | 10-55Hz, 1.5mm amplitude, 3.directions ΔR/R≤±5% | |||||
Mechanical Specification | SIZE | SEE DRAWING | ||||
Mechanical Travel | 220° 320° 360° | |||||
Shaft Torque | 25~35gf·cm | |||||
Stop Strength | …… | |||||
Mounting Nut Torque | 15Kgf·cm | |||||
Shaft Runout | 0.15mm | |||||
Shaft End Play | (shaft length 30 mm)0.15mm | |||||
Shaft Radial Play | 0.15mm | |||||
Shaft Strength (push) | 125 N (12.75 kgf ) min. | |||||
Shaft Strength (tensile) | 125 N (12.75 kgf ) min. | |||||
Marking | …… | |||||
Hardware. | Washer,Lockwasher, Nut | |||||
WDJ-22 conductive plastic potentiometer drawing
