Khons-WB-03SPSW настенная зарядная sation-3.6KW одиночной
- Категория: New Energy Vehicle Parts & Accessories >>>
- Поставщик: Chengdu,Khons,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.94 $* | 0.14 $* |
| Aug-19-2025 | 0.55 $* | 0.12 $* |
| Jul-19-2025 | 0.96 $* | 0.36 $* |
| Jun-19-2025 | 0.92 $* | 0.0 $* |
| May-19-2025 | 0.84 $* | 0.5 $* |
| Apr-19-2025 | 0.33 $* | 0.7 $* |
| Mar-19-2025 | 0.2 $* | 0.87 $* |
| Feb-19-2025 | 0.83 $* | 0.84 $* |
| Jan-19-2025 | 0.57 $* | 0.48 $* |
Характеристики
EV charge station
Product Features

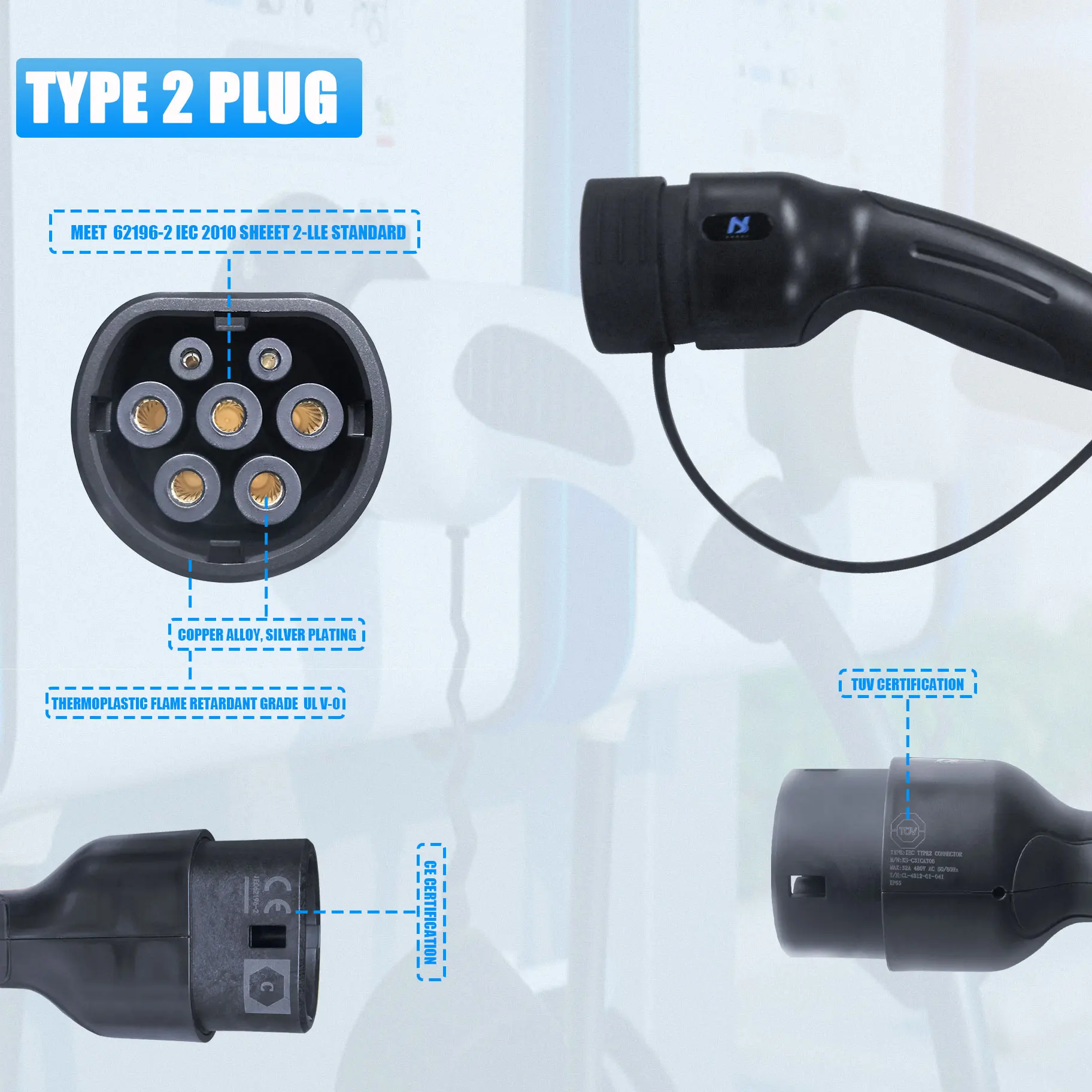

Meet IEC62196 standards;
Nice shape, hand-held ergonomic design, easy to use;
Protection class: IP54(in mated conditions);
Reliability of materials, environmental protection, abrasion resistance, impact resistance, oil resistance and Anti-UV
Electrical Performance
Rated current:16A/32A/63A;
Operating voltage: 250V AC;
Insulation resistance:>1000MΩ(DC500V);
Terminal temperature rise:<50K;
Withstand voltage:2000V;
Contact impedance: 0.5mΩ Max
Vibration resistance:Meet JDQ53.36.1.1-53.36.1.2 requirements.
Mechanical properties
Mechanical life: no-load socket in/pull out >10000 times
Insertion and coupled Force: 45N<F<80N;
Operating temperature: -30°C ~ +50°C
Materials
Shell material: Thermoplastic (Insulator inflammability UL94 V-0);
Contact Pin: Copper alloy, silver or nickel plating;
Sealing gasket: rubber or silicon rubber;
Adapt Socket type :
| Product Parameters | |||
Type | DSIEC2a-G-EV-P |
Plug the power | ≤160N |
| Color | Grey | Patch life | ≥10000 |
| Rated Current | 16A/32A/63A | Fire rating | UL94 V-0 |
| Rated Voltage | 250 | Waterproof rating | Cutoff:IP54,Charge:IP67 |
| Resistance Voltage | 2000V | Operating Temperature | -30°Cto60°C |
| Insulation resistance | >1000M(DC500V) | Cable Specifications | 2.5mm2 -10mm2 |
| The main material | PC/Copper Alloy |
| |
Charging mode | |||||
Mode | Type | Rated voltage | Rated Current | AWG | Number of insert |
1 | DSIEC2a-G-EV-16P | 250V AC | 16A | 3*2.5mm2+2*0.5mm2 | 7 |
| 2 | DSIEC2a-G-EV-32P | 250V AC | 32A | 3*6mm2+2*0.5mm2 | 7 |
| 3 | DSIEC2a-G-EV-63P | 250V AC | 63A | 3*10mm2+2*0.5mm2 | 7 |
| Remark | The length of the cable can be customized | ||||
Detail pictures
