0.9 Second Boom Barrier Access Control System Remote Control Automatic Traffic Advertising Parking Boom Barrier Gate For Parking

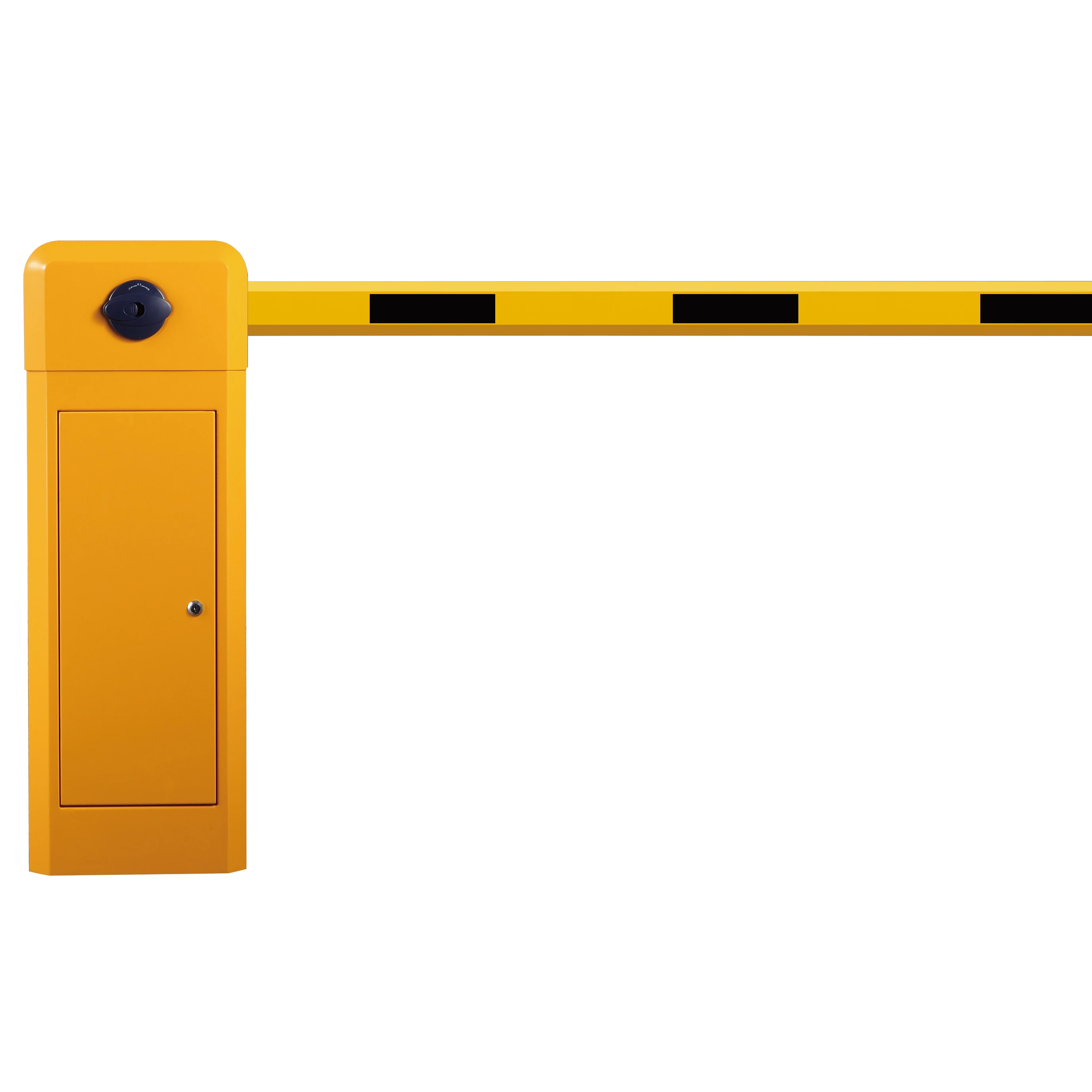

Automatic traffic barrier arm barrier gate system
Standard barrier gate; Up to 6m arm length; Arm Speed 1s- 6s adjustable; Adjustable directions; Multiple interfaces; Outdoor and indoor.
Boom barrier gate offers a reliable and efficient method to ensure only authorized cars are allowed to access each parking area or road. The barrier gate is easy to handle heavy traffic conditions, and suitable for both indoor and outdoor situations, such as parking station, tollgate, railway crossing, shopping mall, hospital, business center and so on. It is also widely used in hotel, school, garden villa, enterprise and public institution, etc...

Main Feature
1) High system integration and powerful function;
2) Third-generation movement controller, precision linear dynamic code, accurate position control;
3) Stable and no noise process of operation, solving the problems of barrier stuck, running disorder, and boom position not in right place;
4) Simple operation for matching remote controller and barrier position adjusting, with fine-tuning, automatic lowering with delay, and intelligent detection functions;
5) Durable box which made by 2MM cold rolled steel sheet;
6) Brand-new humanized design of the hand crank, in the event of a power off or other failure, the hand crank can be operated to manually raise and lower the boom;
7) Five safety protections include functions of intelligent self-test, open priority protection, auto-reverse on obstacle to the car, stall protection, self-locking on extreme position;
8) Multiple interfaces, adapted to infrared sensor, radar, ground sensor, license plate recognition system and toll system;
9) Wiring is simple, wiring to AC220V and can be used;





Technical Parameters



Model No.	JS-WS02
Dimension	L350*W270*H980mm
Motor power consumption	140W
Working voltage	AC 220V±10%, 50/60Hz
Color	Yellow+black(customized)
Remote controller	2 pcs(free)
Remote control distance	≤50m
Boom type	Straight / Folding / Fence optional
Boom length	2-6m
Boom material	aluminum alloy
Boom lifting time	1~6s optional
Ingress protection	IP54
Working temperature	-25ºC~+70ºC
Working humidity	≤90%, no condensation

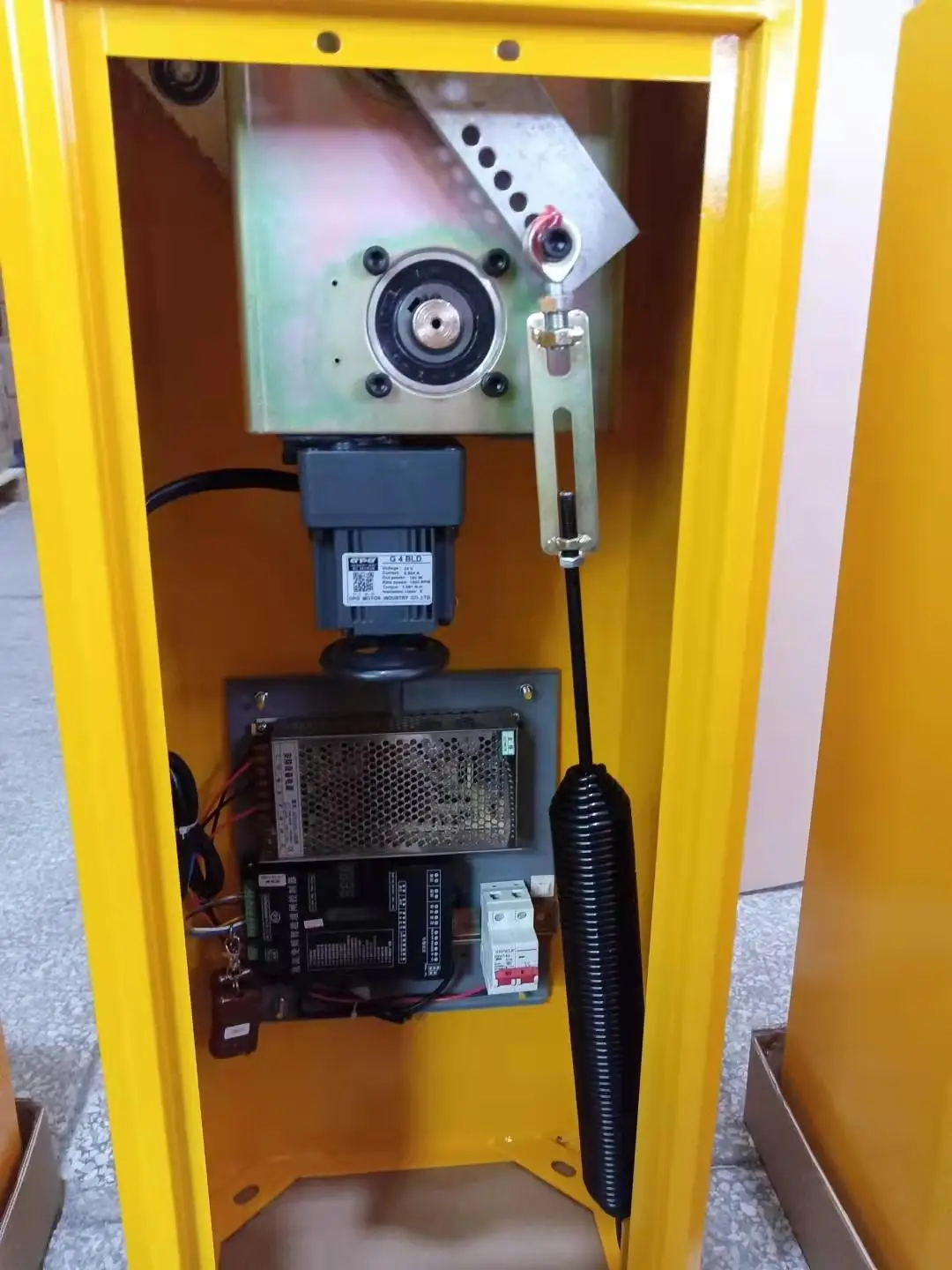

Mechanism	0.9S Servo motor
Working environment	indoor, outdoor
Boom arm direction	leftward / rightward optional
Application	Parking, tollgate, etc.

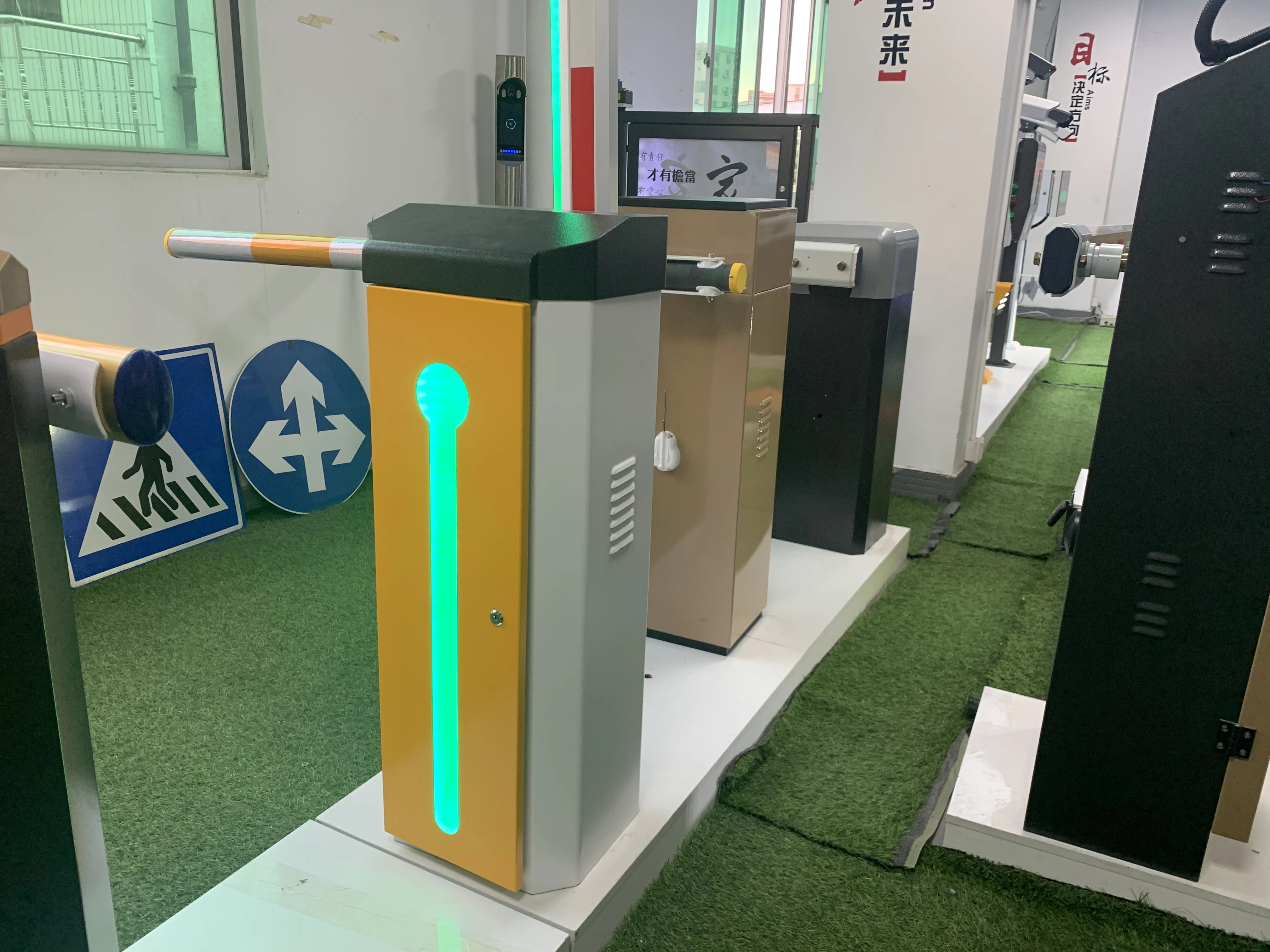

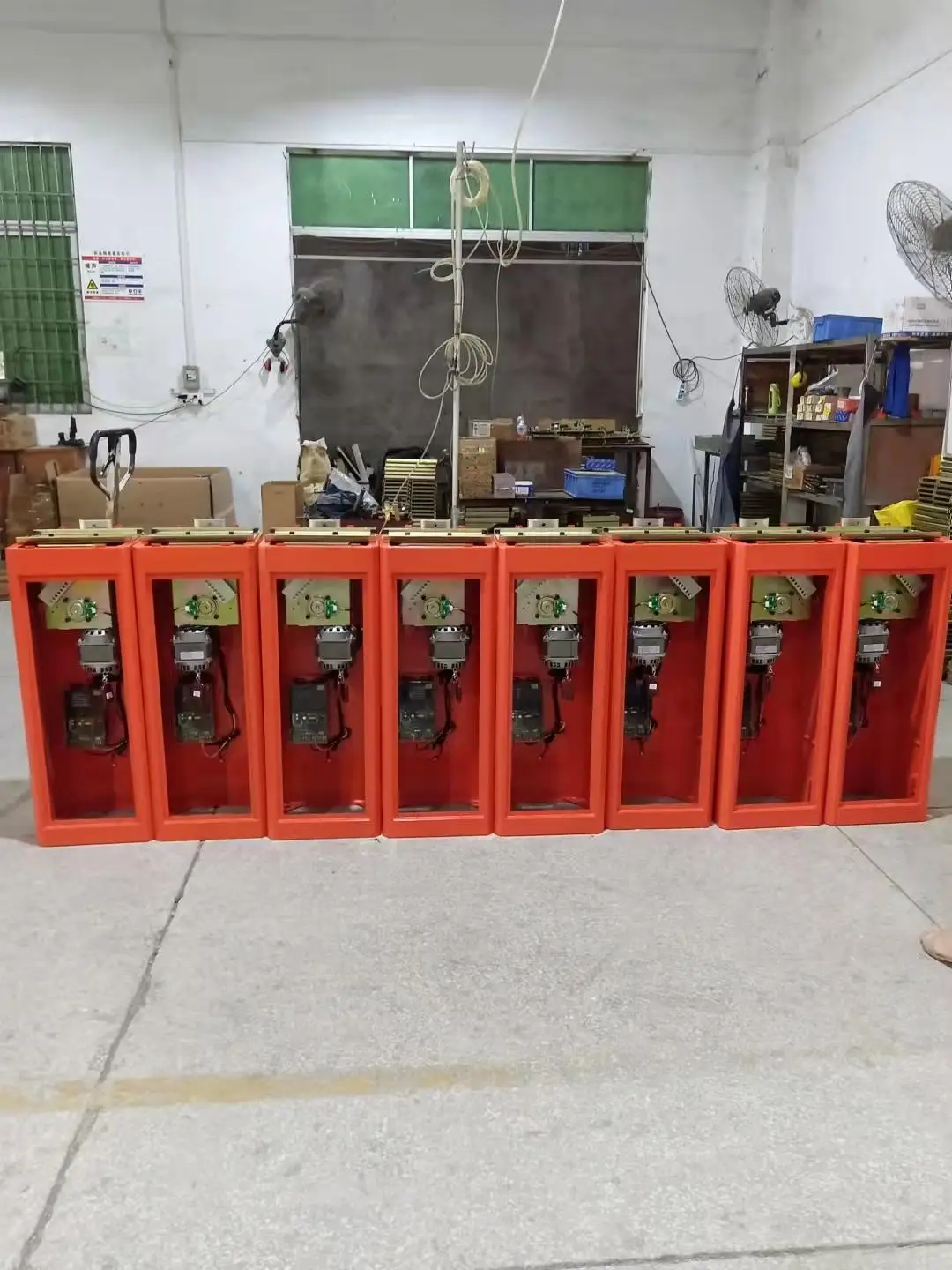

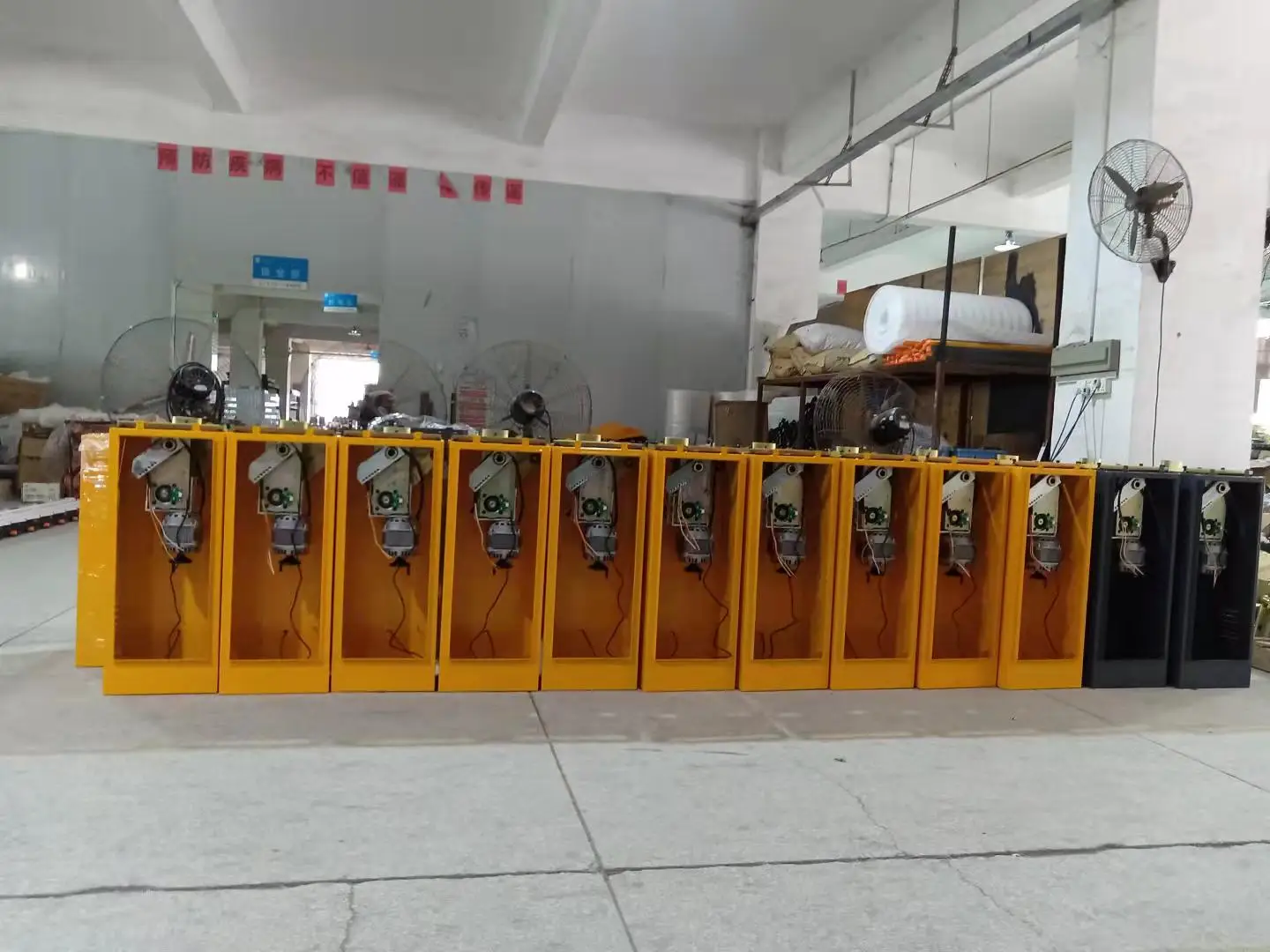

                                 Factory Production Show
