Высокочастотный sпарковка тестер для кабеля и провода тестирование производства экструзионной машины
- Категория: Cable Manufacturing Equipment >>>
- Поставщик: Dongguan,HOOHA,electrical,machinery,company,limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.45 $* | 0.82 $* |
| Aug-17-2025 | 0.17 $* | 0.56 $* |
| Jul-17-2025 | 0.86 $* | 0.23 $* |
| Jun-17-2025 | 0.76 $* | 0.73 $* |
| May-17-2025 | 0.61 $* | 0.28 $* |
| Apr-17-2025 | 0.86 $* | 0.39 $* |
| Mar-17-2025 | 0.60 $* | 0.4 $* |
| Feb-17-2025 | 0.12 $* | 0.36 $* |
| Jan-17-2025 | 0.60 $* | 0.30 $* |
Характеристики
Company Profile
Our aim:
To be a world-class supplier providing wire & cable manufacturing and using solution.
Our vision:
To make wire & cable manufacturing and using more humanized.
Our target:
More professional customer service, struggle for employees' dreams.
We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions
To be a world-class supplier providing wire & cable manufacturing and using solution.
Our vision:
To make wire & cable manufacturing and using more humanized.
Our target:
More professional customer service, struggle for employees' dreams.
We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions
Product Description
Type | HH-15A | HH-25A | HH-25AT | ||
Voltage output | 1.0-15kV | 2.0-15kV | 2.0-15kV | ||
Voltage indication error | <5% | <5% | <5% | ||
Detection sensitivity | <600μA | <600μA | <600μA | ||
Stability | Complying with the requirements of GB3048.9-1994 and JB/T 4728.10 | ||||
Dectection resolution | 0.05s | 0.05s | 0.05s | ||
Transient breakdown current | 100mA | 50mA | 50mA | ||
Steady short-circuit current | <20mA | <20mA | <20mA | ||
Detction Speed, Max | 300m/min | 350m/min | 350m/min | ||
Overall diameter of tested wire or cable, max | ≤30mm | ≤55mm | ≤100mm | ||
The Production Line

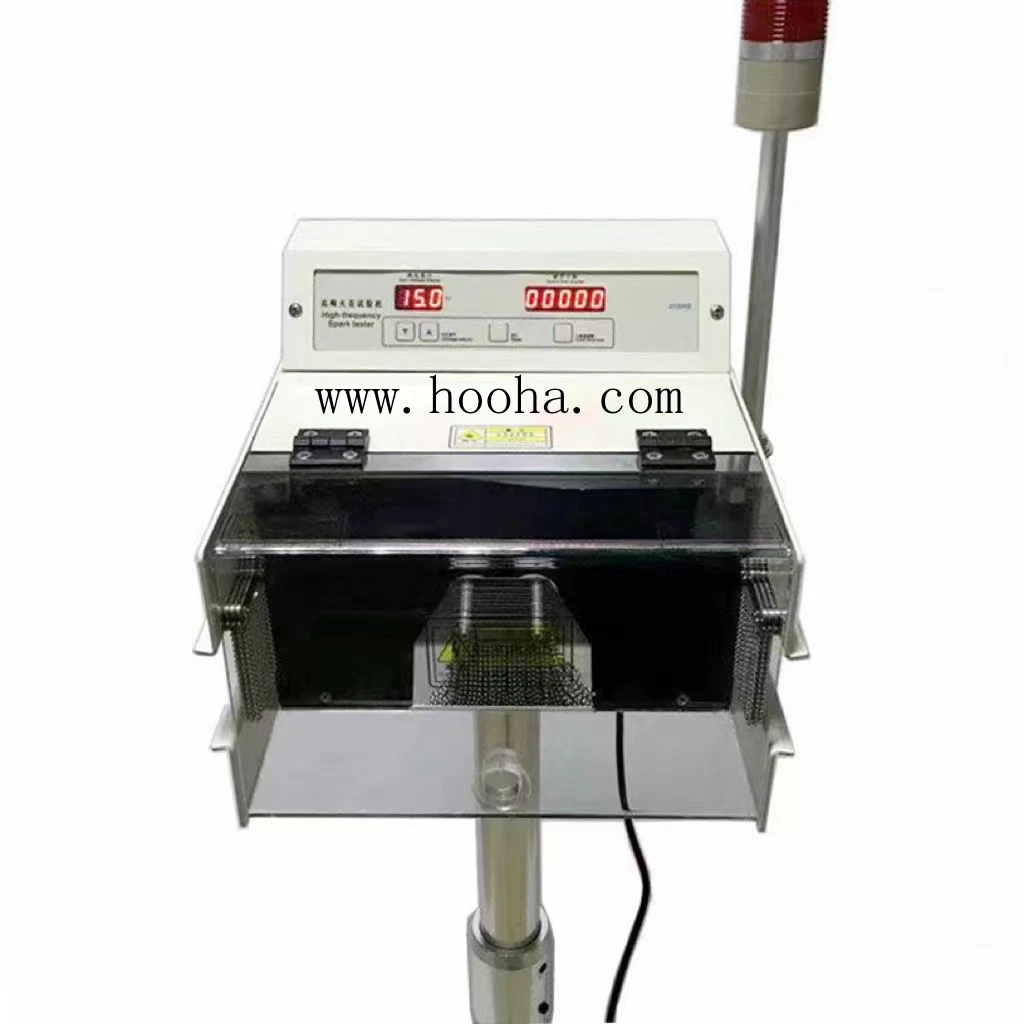

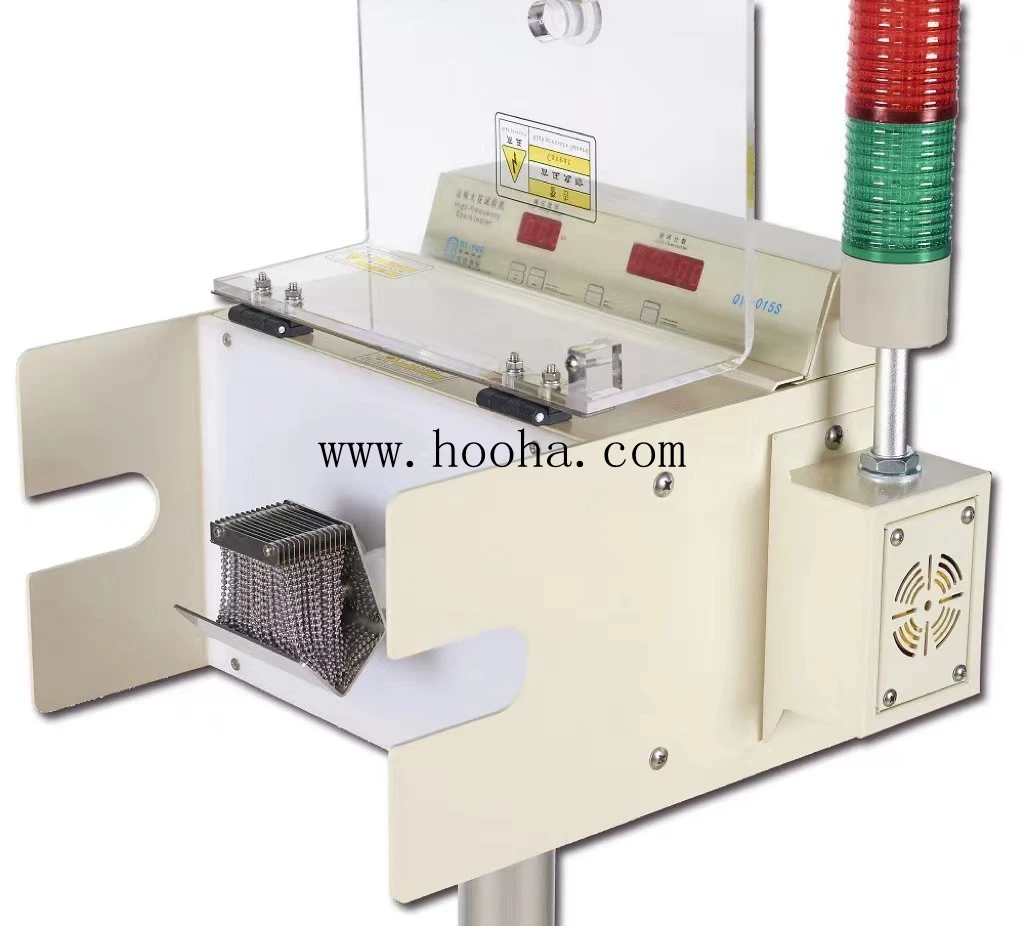

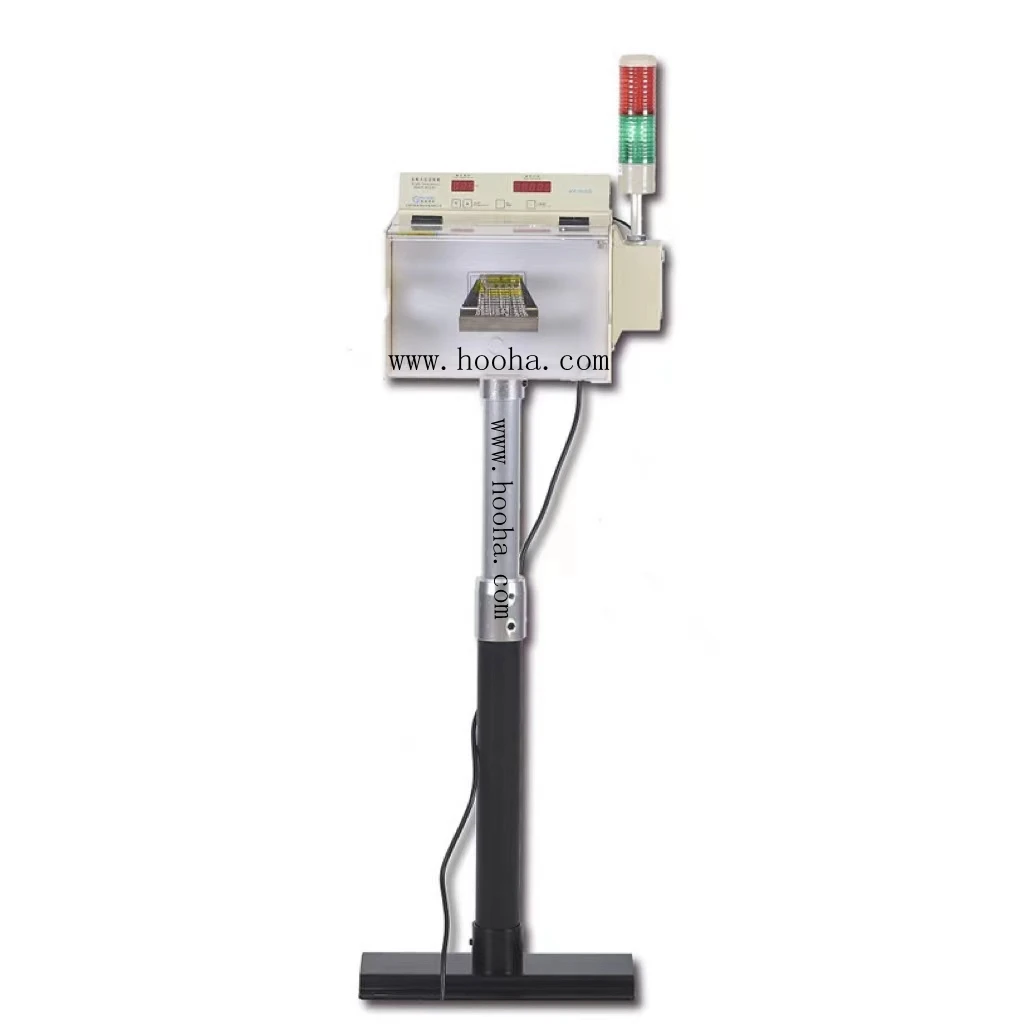

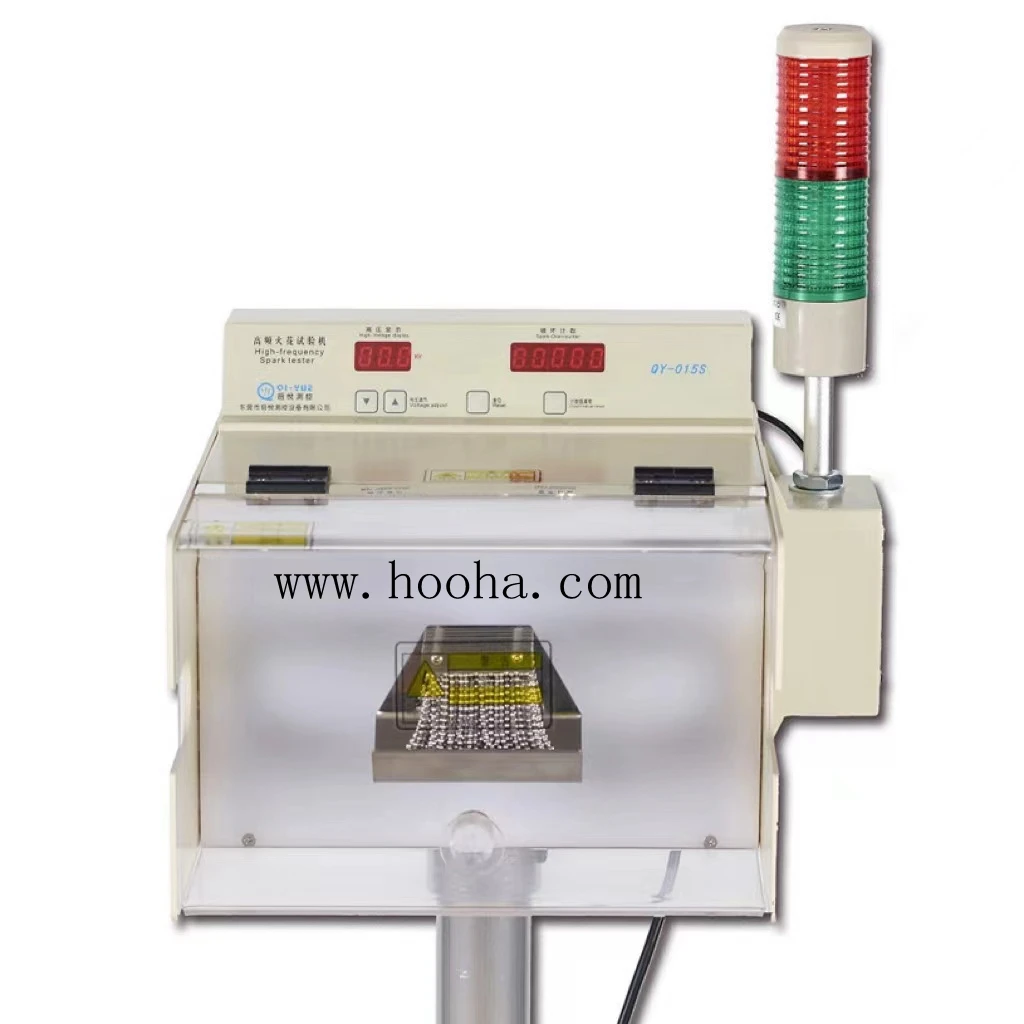

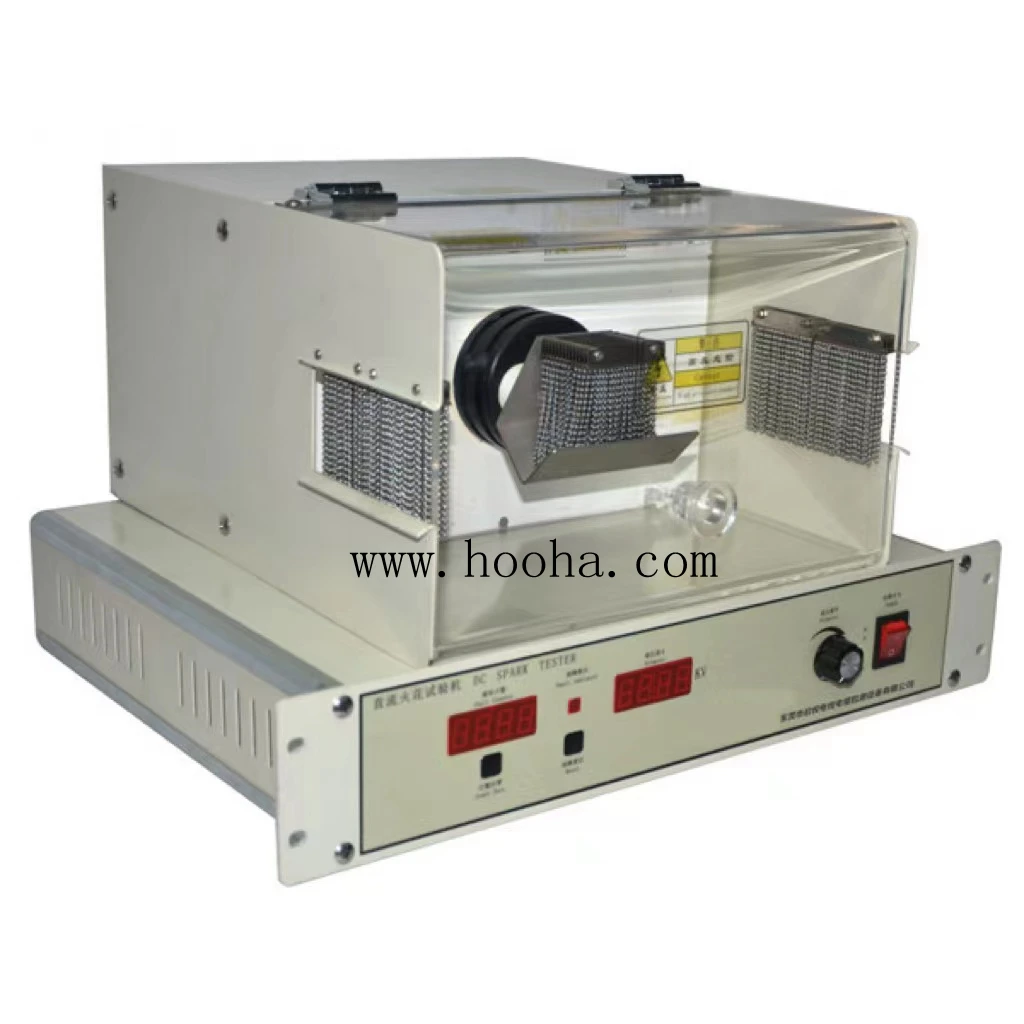

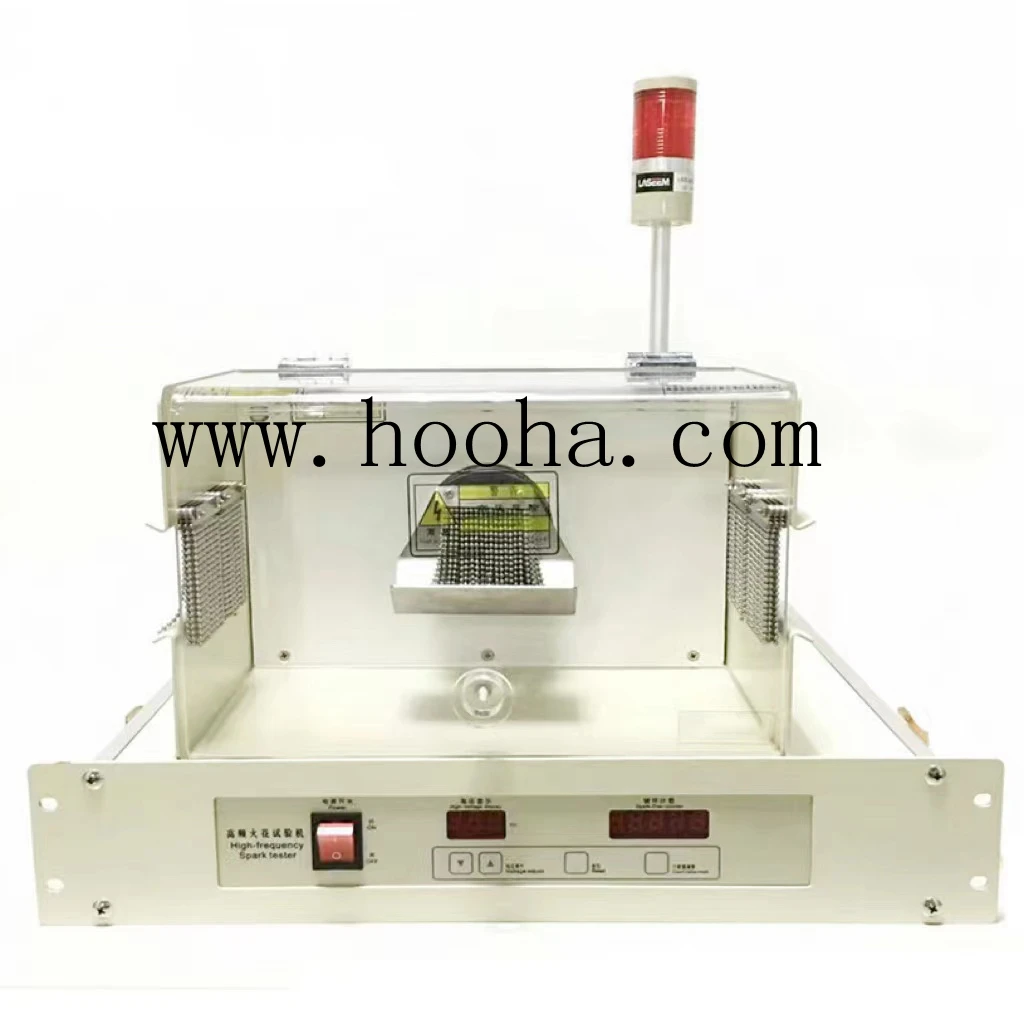

Spark machine obtained on the extrusion line
The work principle of the spark tester is as follows: Make the tested wire pr cable travel through the high voltage bead-chain electrode having test potential supplied by a commercial frequency HV transformer. If the insulation has fault, breakdown will occur, namely the output of the HV transformer will cause a HV spark short-circuit. The short circuit current flows from the output terminal of the HV transformer through insulation fault-conductor of cable-earth-ground-HV transformer to form a circuit.
Therefore both the spark tester and the conductor of cable shall be soundly earth-grounded otherwise the short circuit cannot be formed and the cabinet of the spark tester and conductor of cable may have high voltage.
Therefore both the spark tester and the conductor of cable shall be soundly earth-grounded otherwise the short circuit cannot be formed and the cabinet of the spark tester and conductor of cable may have high voltage.
The Technical Team
Chen Senior Engineer
Machine design for 30 years
Hu Machine Designer
20 years engineering design experience
Bi Head Engineer
Responsible for project engineering
Why choose us?
1. We are the cable equipment manufacturer.
2. Professional engineer, long-term to research and development for to cable equipment .
3. High frequency capacity manufacturer machine is provide. Guarantee the machine all weather running .
4. Our machine use the international qualified brand, like Siemens, Omron, NSK, Lg, etc.
5. Technical support and spare parts service.
6. Well-experienced in overseas to support customer with technical,training,operating.
7. Responsible and Good communication and customer service skills,and save time and human cost for customers.
8. Complete Foreign Trade Team.
9. Working efficiently,quickly response to customer needs.
2. Professional engineer, long-term to research and development for to cable equipment .
3. High frequency capacity manufacturer machine is provide. Guarantee the machine all weather running .
4. Our machine use the international qualified brand, like Siemens, Omron, NSK, Lg, etc.
5. Technical support and spare parts service.
6. Well-experienced in overseas to support customer with technical,training,operating.
7. Responsible and Good communication and customer service skills,and save time and human cost for customers.
8. Complete Foreign Trade Team.
9. Working efficiently,quickly response to customer needs.
Professional Engineers and Experienced Sales Team | ||||||||||
Name | Education | Position | Mainly responsible for project | Specializing in project | Working history ( year ) | |||||
Zanyang Xie | college | General Engineer | The total project design and planning | power cable machine | 15 | |||||
Xiaohua Hu | college | Vis general engineer | The total project design and planning | net cable,data cable machine | 10 | |||||
Changhong Cheng | college | Engineer | Drawings and after-sales service | Teflon,Optical fiber cable machine | 25 | |||||
Xiuwu Chen | college | General Engineer | The total project design and planning | copper drawing machine | 15 | |||||
Lixin Yuan | college | Engineer | The project design and planning | coppwer wire making technical | 16 | |||||
Zhenghai Qiu | college | cable engineer | After service | cable making and cable factory management servie | 15 | |||||
Jinxin Liu | college | Marketing engineer | After service | electrical engineer | 7 | |||||
Xingguo Tang | High school | Electrical engineer | After service | electrical engineer | 10 | |||||
Changqiang Li | High school | Maintain engineer | After service | machina maintain and install service | 10 | |||||
Haipin Li | University | Engineering director | Marketing and sales | project consulting | 8 | |||||
Sen Yang | University | Engineering translator | Marketing and sales | project consulting | 5 | |||||
Our professional sales and engineering team
Customer Cases
HOOHA provides technical support to overseas customer service
Dubai
Algeria
Syria
Egypt
Pre-sale
1.Professional engineer team provide customized design and machine arrangement drawing service 2.Professional engineer team canvisit customers's company in person and provide face-to-face service 3.Professional trading system provide high-efficient communication 4.Professional sales team including pre-sale staffs,after-sale staffs,order supervisor,shipping managers, finance
managers,cable. making engineers would give you more detailed consultant service.
Mid-sale
1.Professional follow-up system ensures high-quality service including live production video shooting,etc. 2.Quality control system with professional engineers ensures project goes smoothly. 3.Quality checking will be provided with professional quality inspection report before machine delivery.
After-sale
1.Overseas on-site installation guidance and technical support including previous testing, operation instruction and talent training. 2.Free online consultance service. 3.Long-time maintenance, reconstruction and upgrade services of the overall equipment.
4.Extend service support, such as raw material or accessory suggestions etc.
Exhibitions ＆ Certifications
2018 Bombay, India Fair
Our company took part in Bombay Exhibition in 2018
Russia Exhibition
The communication of Russia exhibition
2019 Thailand Exhibition
A successful interchange at the Exhibition in Thailand
2020 International Cable & Wire Fair
The Shanghai exhibition is gain a lot
Our Certificate
Packing & Delivery
Streatchable PE film wrapped, wooden frame packed, loaded into container for shipping. Special packaging way as per discussed.
Carton package
wooden package
Wrap in plastic film to prevent wetting
Container transportation
1. film packing
2. wooden package
3.enclosed wooden package
2. wooden package
3.enclosed wooden package
FAQ
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(17.00%),
Mid East(17.00%),
Southeast Asia(16.00%),
Eastern Asia(13.00%),
South Asia(10.00%),
South America(8.00%),
Eastern Europe(4.00%),
North America(3.00%),
Northern Europe(3.00%),
Southern Europe(3.00%),
Oceania(2.00%),
Western Europe(2.00%),
Central America(2.00%),
There are 5-10 professional workers in HOOHA.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine
4. why should you buy from us not from other suppliers?
1.10 year R&D working experience with over sea service
2.5 big LV/MV cable project over 5 million working experience
3.After service team has 30 country working experience
4. HOOHA team focus on the cable making and use solution supply chain.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2017,sell to Africa(17.00%),
Mid East(17.00%),
Southeast Asia(16.00%),
Eastern Asia(13.00%),
South Asia(10.00%),
South America(8.00%),
Eastern Europe(4.00%),
North America(3.00%),
Northern Europe(3.00%),
Southern Europe(3.00%),
Oceania(2.00%),
Western Europe(2.00%),
Central America(2.00%),
There are 5-10 professional workers in HOOHA.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine
4. why should you buy from us not from other suppliers?
1.10 year R&D working experience with over sea service
2.5 big LV/MV cable project over 5 million working experience
3.After service team has 30 country working experience
4. HOOHA team focus on the cable making and use solution supply chain.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
6: Do you have a video to show the machine running ?
A. Yes , we have,our youtube channel :https://www.youtube.com/channel/UCrRUG2MnVoi8rfQ6FK2vYow
A. Yes , we have,our youtube channel :https://www.youtube.com/channel/UCrRUG2MnVoi8rfQ6FK2vYow
