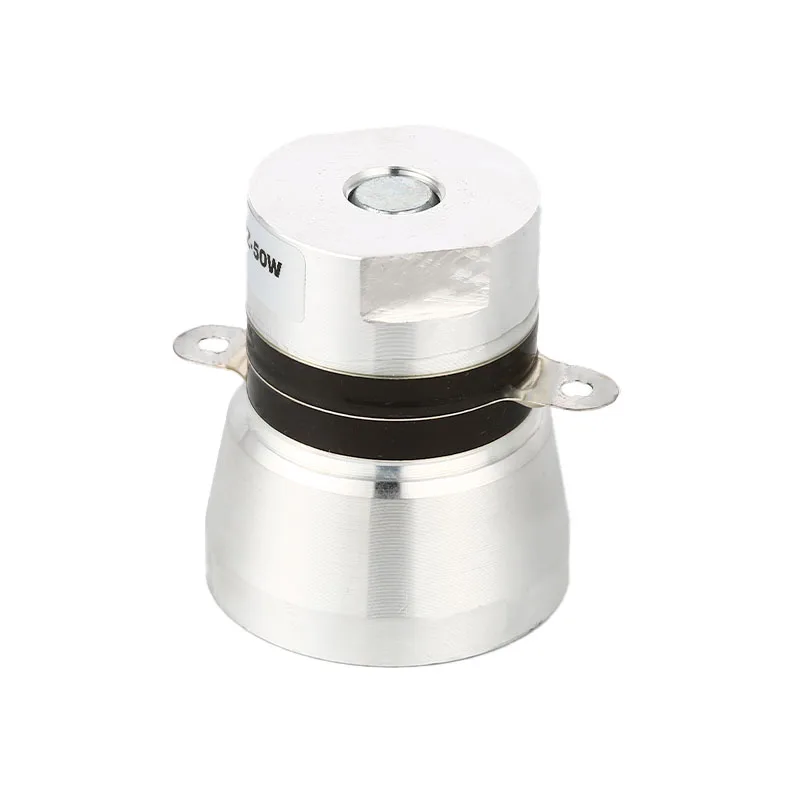

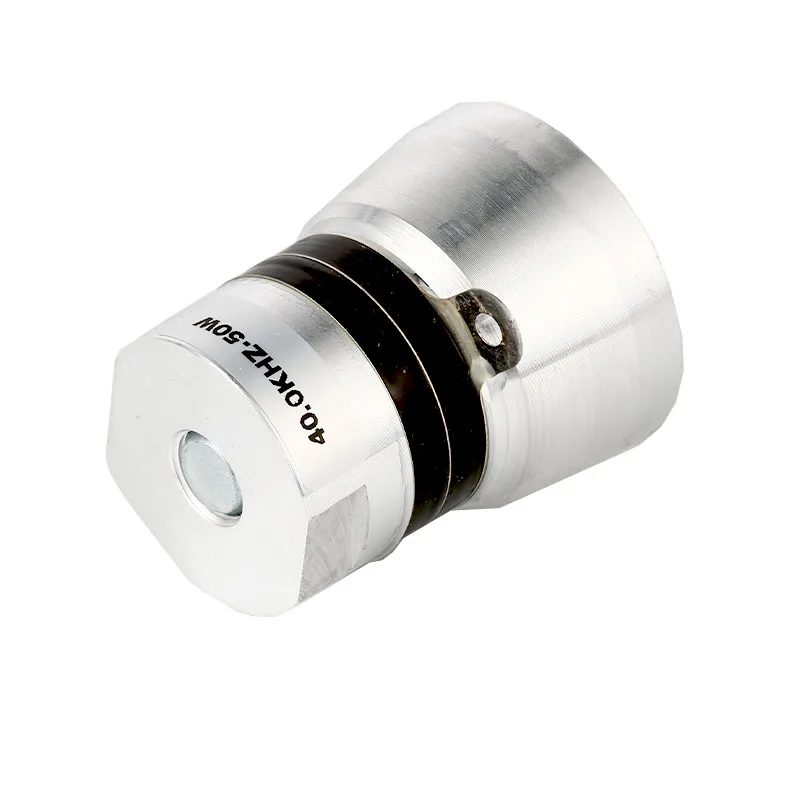

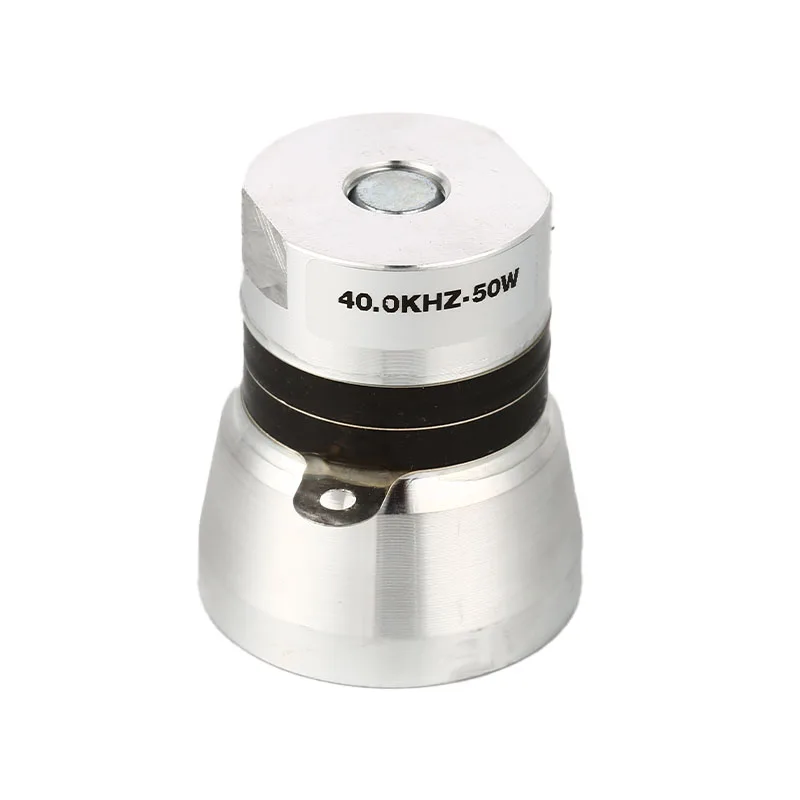

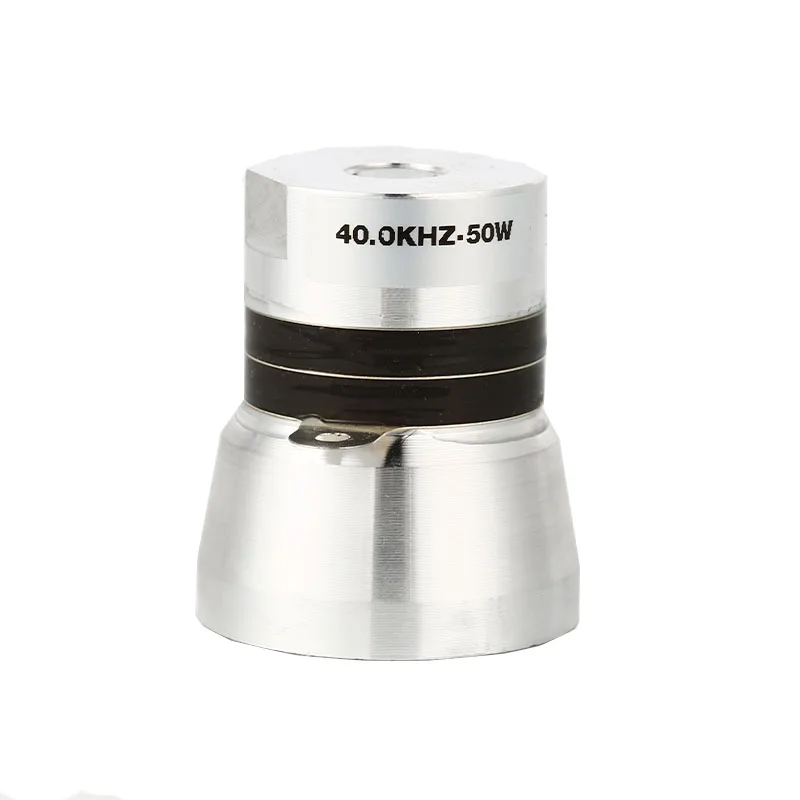

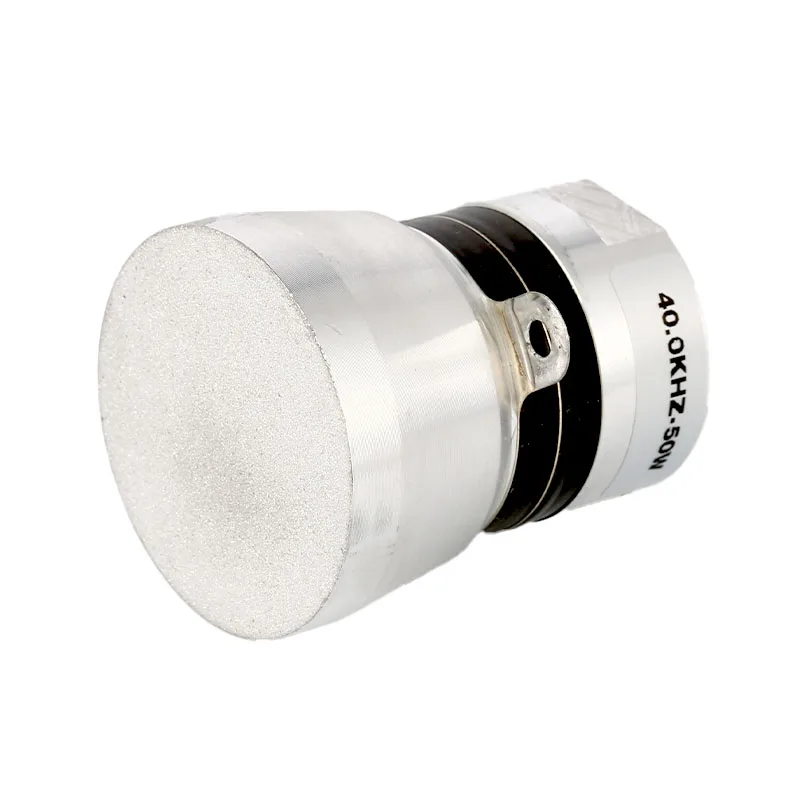

Преобразователь для ультразвуковой очистки внешнего диаметра 40 кГц 50 Вт Лидер продаж гарантированное
- Категория: Cleaning Equipment Parts >>>
- Поставщик: Wuxi,Mereal,Ultrasonic,Electrical,Appliances,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 6.77 $* | 6.97 $* |
| Jul-16-2025 | 5.55 $* | 5.70 $* |
| Jun-16-2025 | 6.10 $* | 6.17 $* |
| May-16-2025 | 6.49 $* | 6.86 $* |
| Apr-16-2025 | 5.96 $* | 5.52 $* |
| Mar-16-2025 | 6.44 $* | 6.60 $* |
| Feb-16-2025 | 6.49 $* | 6.83 $* |
| Jan-16-2025 | 6.51 $* | 6.56 $* |
Характеристики
NO. | Name | Mark | Spec. | Remarks |
1 | Resonance Frequency | Fa | 40±1KHZ | Test voltage 10Vrme ,temperature 25℃ |
2 | Resonance impedance | Zr | Below25Ω | Test voltage 10Vrme ,temperature 25℃ |
3 | Capacity | Ct | 3500±5%pF | Test frequency 1KHz |
4 | Insulation resistance | IR | Over500MΩ | Test voltage DC1000V*minute |
5 | Max.allowable temperature | Tmax | 120℃ | PZT surface temperature |
6 | Storage temperature | Tst | -5℃-40℃ | |
7 | Max.instantaneous power | P(w) | 50W | Momentary power surge strats |
8 | Continuous use of power | P(W) | 50W | Normal continuous power consumption when Cleaning |
28Khz 60W Ultrasonic transducer
Application industry:Automobile industry, machinery and equipment industry.
Applicable Products:Heavy oil mold cleaning, machine equipment parts cleaning, auto parts cleaning.
80Khz 60W Ultrasonic transducer
Application industry: electronics industry, precision instrument industry.
Applicable Products: It can be used for cleaning electronic components, precision instruments, jewelry, etc. It has a good cleaning effect .
Applicable Products: It can be used for cleaning electronic components, precision instruments, jewelry, etc. It has a good cleaning effect .
28K/40Khz Dual frequency transducer
Application industry: Electronics industry, semiconductor industry
Applicable Products: Electronic components, semiconductors are clean, and equipped with a dedicated dual-frequency ultrasonic generator.
Applicable Products: Electronic components, semiconductors are clean, and equipped with a dedicated dual-frequency ultrasonic generator.
Desktop Ultrasonic Cleaner
Application industry: Electronic industry, civil industry, small amount of cleaning.
Applicable Products: Household fruits and vegetables, dishwashing, jewelry, PCB boards, electronic components, glass, surgical utensils, emulsification, dispersion and mixing, etc.
Applicable Products: Household fruits and vegetables, dishwashing, jewelry, PCB boards, electronic components, glass, surgical utensils, emulsification, dispersion and mixing, etc.
MR-760E Ultrasonic generator
Integrated digital display ammeter, frequency, time control and PLC remote control, light bar indicating power and other functions. new functions such as frequency lock, current lock, frequency sweep mode selection, automatic frequency tracking, 485
communication (optional).
communication (optional).
Industrial ultrasonic cleaning machine
Application industry:Machinery and equipment, automobiles, aviation, hardware.
Applicable Products: Heavy oil cleaning of molds and parts in machinery and equipment, automobiles, aviation, and hardware
industries.
Applicable Products: Heavy oil cleaning of molds and parts in machinery and equipment, automobiles, aviation, and hardware
industries.
Model | Frequency(KHZ) | Capacitance (PF) | Impedance（Ω） | Diameter*Height | Power（W） | Insulation Resistance (2500V DC) |
MR3820P4-20KHZ | 20±0.8 | 3800±10% | ≤20 | 59*92MM | 60W Flared | ≥100MΩ |
MR4520P4-20KHZ | 20±0.8 | 6700±10% | ≤20 | 66*92MM | 100W Flared | ≥100MΩ |
MR3825P4-25KHZ | 25±0.8 | 3800±10% | ≤20 | 59*77MM | 60W Flared | ≥100MΩ |
MR4525P4-25KHZ | 25±0.8 | 6700±10% | ≤20 | 66*77MM | 100W Flared | ≥100MΩ |
MR3528P4-28KHZ | 28±0.5 | 4000±10% | ≤20 | 45*80MM | 50W Flared | ≥100MΩ |
MR3528P4-28KHZ | 28±0.5 | 3800±10% | ≤20 | 59*68MM | 60W Flared | ≥100MΩ |
MR4528P4-28KHZ | 28±0.5 | 6700±10% | ≤20 | 67*68MM | 100W Flared | ≥100MΩ |
MR3533P8-33KHZ | 33±0.5 | 3800±10% | ≤20 | 48*61MM | 60W Flared | ≥100MΩ |
MR3540P4-40KHZ | 40±0.5 | 3500±10% | ≤20 | 45*51MM | 50W Black film Aluminum back cover | ≥100MΩ |
MR3840P4-40KHZ | 40±0.5 | 3800±10% | ≤20 | 45*51MM | 60W Black film yellow film | ≥100MΩ |
MR4540P4-40KHZ | 40±0.5 | 6700±10% | ≤20 | 55*47MM | 60W Black film yellow film | ≥100MΩ |
MR3868P4-68KHZ | 68±0.5 | 3800±10% | ≤20 | 45*79MM | 60W Black film yellow film | ≥100MΩ |
MR4080P4-80KHZ | 80±0.5 | 3800±10% | ≤20 | 40*56MM | 60W Black film yellow film | ≥100MΩ |
MR40100P4-100KHZ | 100±0.5 | 3800±10% | ≤20 | 45*51MM | 60W Black film yellow film | ≥100MΩ |
MR40120P4-120KHZ | 120±0.5 | 3800±10% | ≤20 | 40*56MM | 60W Black film yellow film | ≥100MΩ |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample but not free.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample but not free.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
