Упаковочная машина для картонных коробок/полуавтоматическая упаковочная
- Категория: Packaging Forming Machines >>>
- Поставщик: Cangzhou,Lighten,Import,&,Export,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 11781.75 $* | 12370.74 $* |
| Aug-17-2025 | 11682.11 $* | 12266.4 $* |
| Jul-17-2025 | 9801.5 $* | 10291.11 $* |
| Jun-17-2025 | 11484.17 $* | 12058.13 $* |
| May-17-2025 | 9999.85 $* | 10499.61 $* |
| Apr-17-2025 | 11286.45 $* | 11850.95 $* |
| Mar-17-2025 | 11187.59 $* | 11746.56 $* |
| Feb-17-2025 | 11088.20 $* | 11642.0 $* |
| Jan-17-2025 | 10989.75 $* | 11538.62 $* |
Характеристики
Product Description

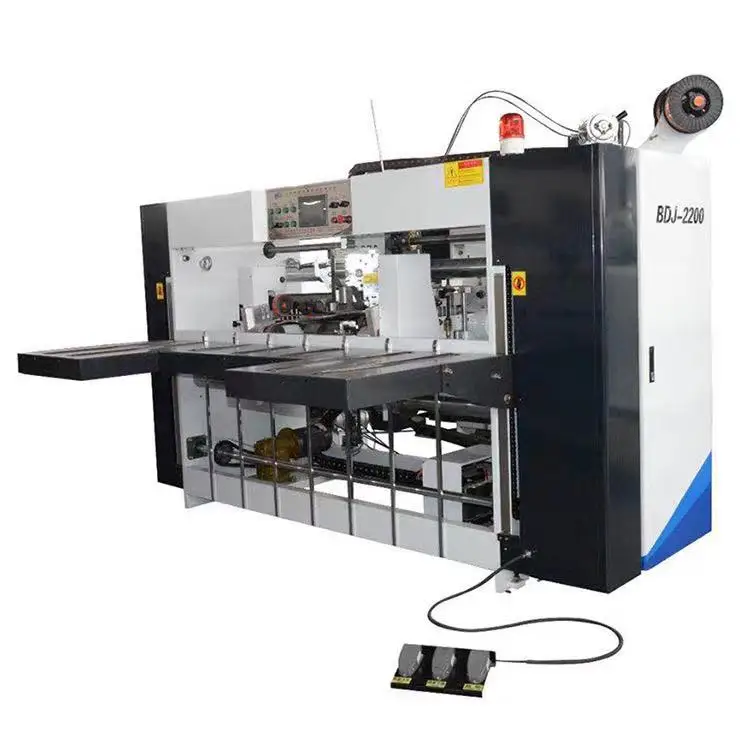

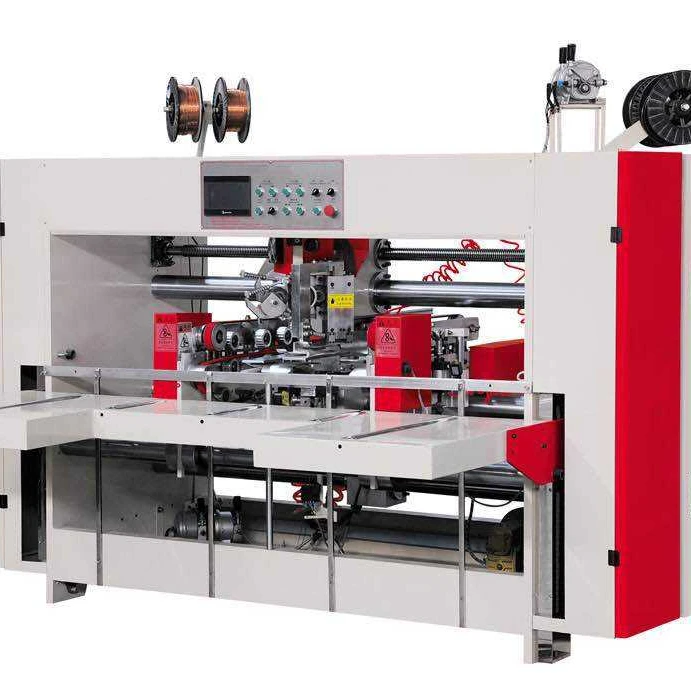

Good quality Semi-automatic corrugated box stitching machine/Carton single piece stitchig machine
1. Yaskawa Japan imported dual-servo-driven,accurately precision, mechanical transmission are decreased, which can effectively reduce the mechanical failure rate
2. Changing carton size and adjusting nails can be completed just one minute, saving time and easy operation

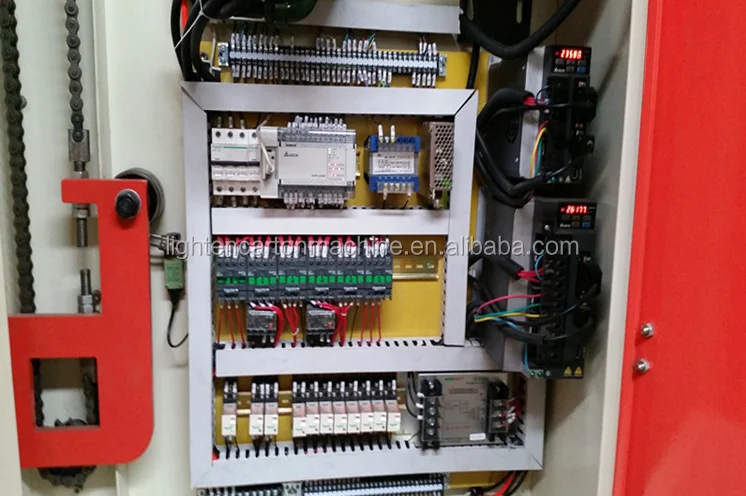

3. The whole control system uses Omron PLC control system.
4. Electric control the tail gate, the use of stepper motor-driven, size accurate , size-changing is more convenient.
5. Keys control box uses the Siemens brand.
6. photoelectric and proximity switches is Schneider brand.
7. Can nail single nail (/)Dual nail(/ /) strengthen nails (/ / / / / / two side are Dual nail, the middle part are single nail)
once completed, can fit different customer requirements of different kinds of nails
once completed, can fit different customer requirements of different kinds of nails
Details Images
Product Paramenters
型号及参数 | SDJ-2000 |
最大纸张尺寸max paper（A+B）＊2 （mm） | 3600 |
最小纸张尺寸min paper（A+B）＊2 （mm） | 740 |
最大纸箱长A mmMax carton length | 1120 |
最小纸箱长A mmMix carton lengt | 250 |
最大纸箱宽B mmMax width | 760 |
最小纸箱宽B mmMin width | 120 |
最大纸张高（C+D+C） （mm）Max paper height | 3000 |
最小纸张高（C+D+C） （mm）Min paper height | 250 |
最大摇盖尺寸C（mm） | 560 |
最小摇盖尺寸C（mm） | 50 |
最大高度D（mm）Max height | 2000 |
最小高度D（mm）Min height | 150 |
最大钉舌宽度(mm)Max tongue width | 40 |
钉 距 mm stitch distance | 30-120 |
钉 数stitch No | 1-99 |
打 钉 速 度 speed （次/mim） | 500 |
机器重量（T）weight | 1.5 |
Company Profile
Exhibition
FAQ
1. Q: Are you a factory or trading company?
A: We are a company owned our factory which is specialized in the production of various kind of carton equipment. (With export license)
2. Q: How can I visit your factory?
A: We can pick you up if you need, welcome to visit our factory.
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, creasing and die cutting machine,folder gluer,flute laminator,stitching&strapping machine and other corrugated cardboard production equipments.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our sole purpose, providing the products with excellent quality, professional technology. Always attach great importance to quality
controlling from the very beginning to the very end.
1. All raw material we used are environmental-friendly.
2. Skillful workers care every detail in handling the producing and packing process.
3. Quality control department especially responsible for quality in each process.
5. Q: How is the evaluation of the products?
A: Products are distributed in Russia, the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country. Product quality and enterprise reputation get the high praise at home and aboard.
6. Q: What is the payment term?
A: 30% deposit will be paid within 3 days after the contract is signed, and the remaining 70% will be paid before shipment.
A: We are a company owned our factory which is specialized in the production of various kind of carton equipment. (With export license)
2. Q: How can I visit your factory?
A: We can pick you up if you need, welcome to visit our factory.
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, creasing and die cutting machine,folder gluer,flute laminator,stitching&strapping machine and other corrugated cardboard production equipments.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our sole purpose, providing the products with excellent quality, professional technology. Always attach great importance to quality
controlling from the very beginning to the very end.
1. All raw material we used are environmental-friendly.
2. Skillful workers care every detail in handling the producing and packing process.
3. Quality control department especially responsible for quality in each process.
5. Q: How is the evaluation of the products?
A: Products are distributed in Russia, the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country. Product quality and enterprise reputation get the high praise at home and aboard.
6. Q: What is the payment term?
A: 30% deposit will be paid within 3 days after the contract is signed, and the remaining 70% will be paid before shipment.
