Силовой трансформатор EE/ EER/ EPC/ PQ с

Описание и отзывы

Трекер стоимости

Характеристики

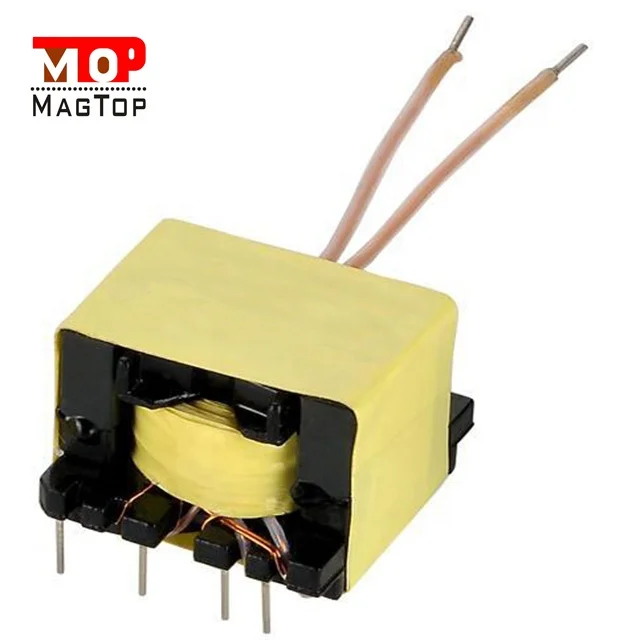

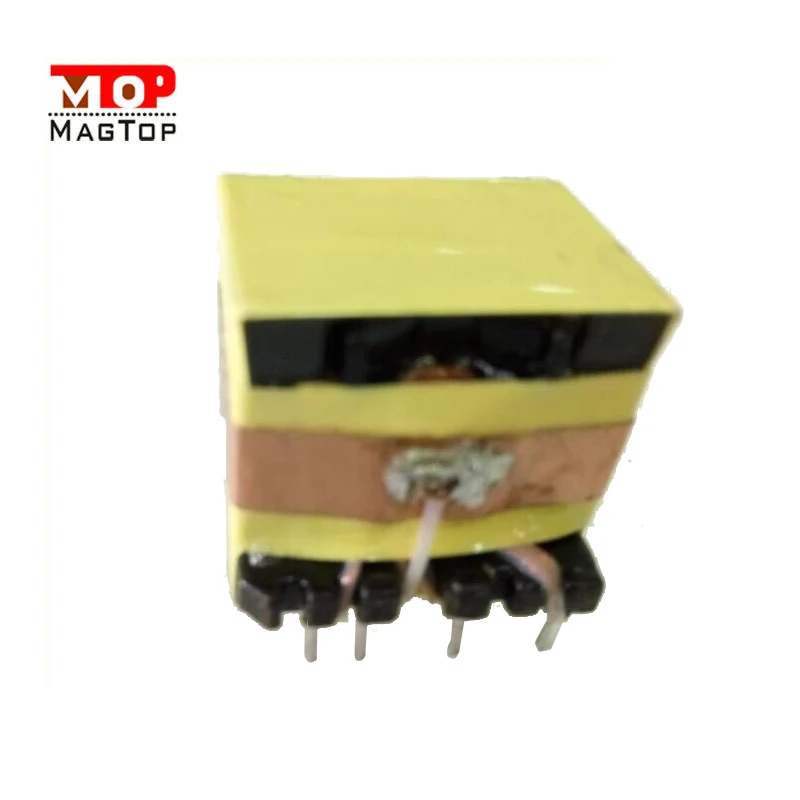

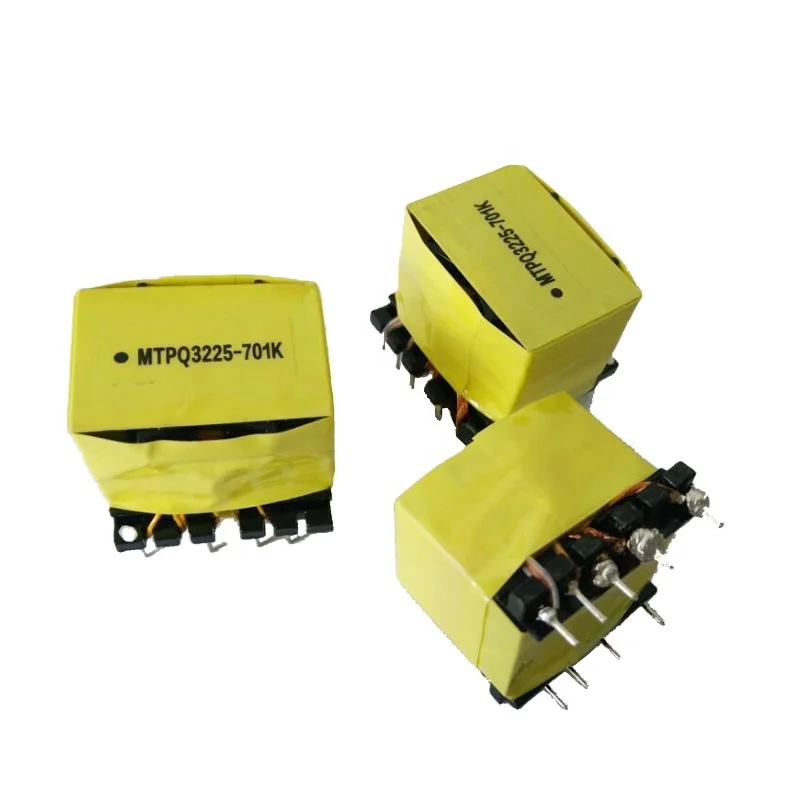

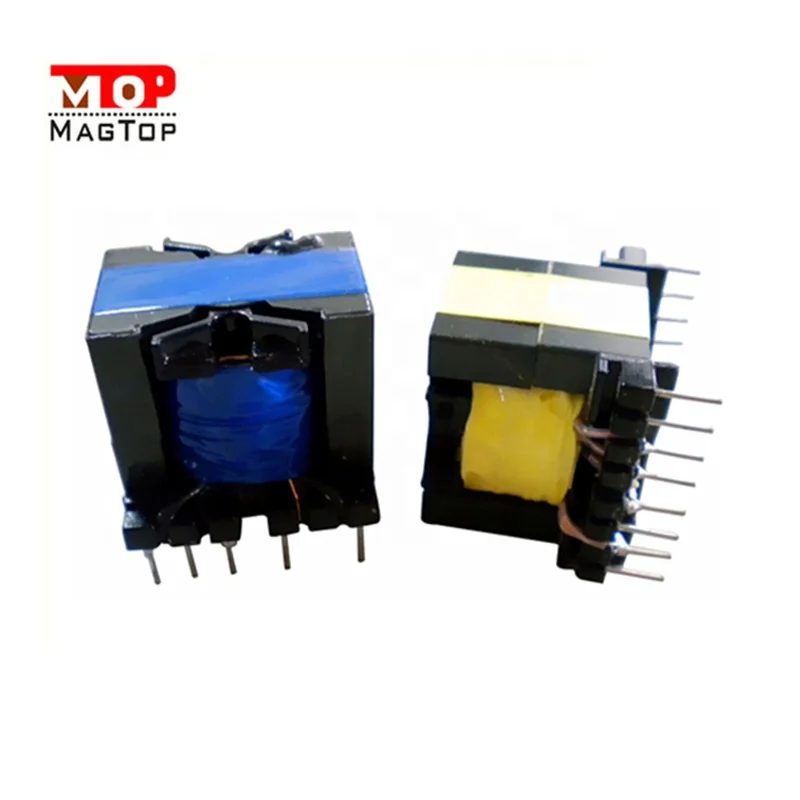

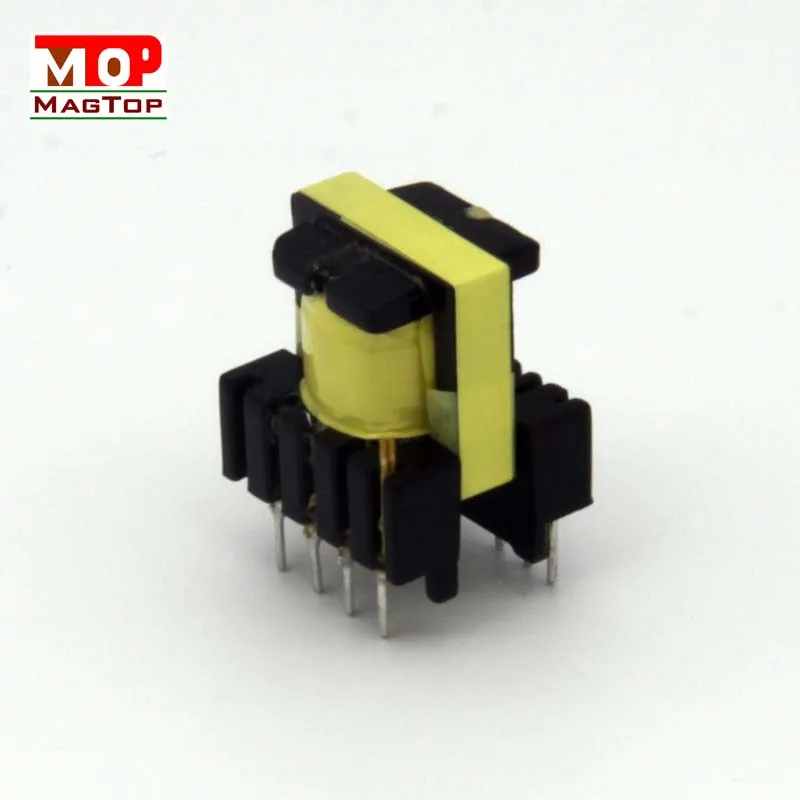

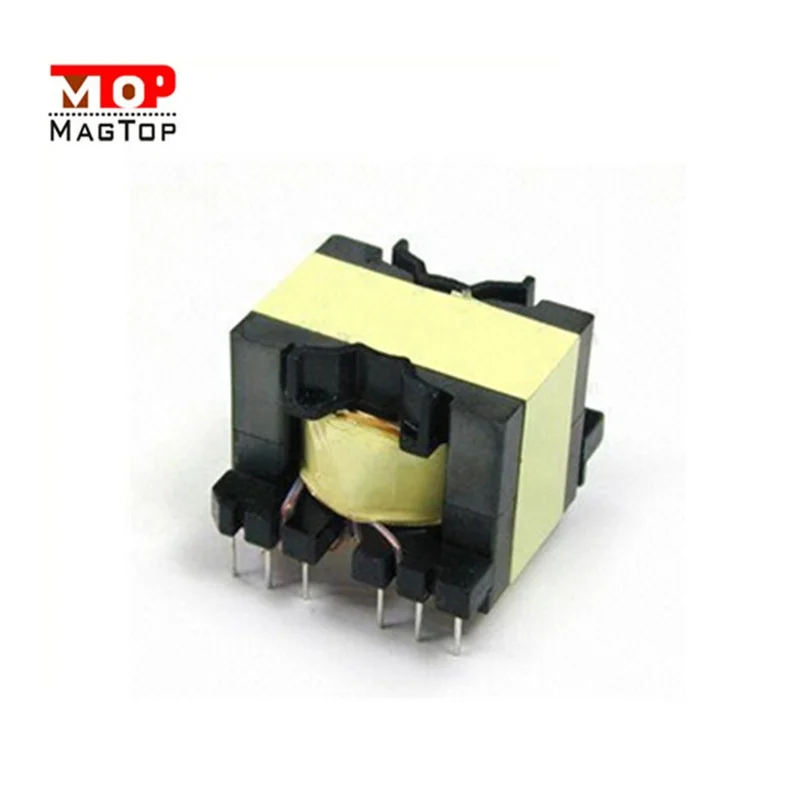

EE/ EER/ EPC/ PQ Power Transformer With ROHS approval









     Features:



1. Custom designs available

2. High efficiency of over 95%

3. High frequency range 10kHz-1MHz

4. High isolation strength

5. Lower profile and weight

6. high power density

7. High-temperature resistant

8. Operating temperature -40°C to +125°C

9. Power range 10w-10kw

10.High Power Electronic Transformer



Applications:



1. VCRS, Copy machine , Audio equipment , Game machines 2. TV sets, Microcomputer equipment, printers, Terminals 3. communications control equipment 4.Switching power supply, chargers, alarm system

5. UPS, VCD/DVD players, audio and visual equipment

6. OA machines, inverters, chargers, alarm system



Specifications:

*Low magnetic leakage,low loss

*Small distributed capacity

*Fine tuning inductance



Electrical Characteristics:

1. Operating Temperature range:-20 to +45

2. Storage temperature: -40 to +70

3. Switching frequency:1KHz to 200KHz

4. Withstanding voltage:1500/3750Vac for 1 minute between primary&secondary

5. Insulation resistance:500Vdc 100MΩ min.between primar&secondary



Company Information:
