Пивное оборудование л пивоваренное для дома ресторана паба
- Категория: >>>
- Поставщик: Shandong,Carry,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 7735.75 $* | 8122.4 $* |
| Aug-15-2025 | 7670.88 $* | 8054.82 $* |
| Jul-15-2025 | 6435.75 $* | 6757.80 $* |
| Jun-15-2025 | 7540.41 $* | 7917.97 $* |
| May-15-2025 | 6565.61 $* | 6893.80 $* |
| Apr-15-2025 | 7410.38 $* | 7781.24 $* |
| Mar-15-2025 | 7345.7 $* | 7712.83 $* |
| Feb-15-2025 | 7280.29 $* | 7644.16 $* |
| Jan-15-2025 | 7215.64 $* | 7576.46 $* |
Характеристики
Related Products
Product Parameters
Brand Name | CARRY |
Product Type | Beer Brewing Equipment |
Voltage | 220-415V, 380V/3PH/50Hz or according |
Size | 2100*720*1660mm, 3100*900*1660mm, customized |
Effective Volume | 100L, 200L, 300L |
Material | SUS 304 Strainless Steel |
Tank thickness | 3mm for Inner-Jacket/2mm for External-Jacket |
Cooling method | Glycol Jacket |
Certification | CE ISO |
Insulation layer | PU 80mm~100mm |
Payment | Trade Assurance, PayPal, Western Union, T/T, L/C and so on |
100L Brewhouswe
*Mash/Lauter Tank*Kettle/Whirlpool Tank
*Hot Liquor Tank
Comments:
- Atmospheric top lid enable a direct inspection & clean of inner space.
- A mini grain raker is optional to be added onto mash/lunter tun.
*Hot Liquor Tank
Comments:
- Atmospheric top lid enable a direct inspection & clean of inner space.
- A mini grain raker is optional to be added onto mash/lunter tun.
Configuration：
- Effective Volume: 100L
- Dimension: 2100mm*770mm*1600mm
- Gross Weight: 450 KG
- Heating Method: Electric
Elements
Elements
- Rated Power: 13.1 KW
- Control System: PID controller
200L Brewhouse
*Mash/Lauter Tank*Kettle/Whirlpool Tank
*Hot Liquor Tank
Comments:
- Provided with installed pipes, including valves and sensors
- Integrated pump system- CIP system: optional, separated CIP for tanks to prevent cross product interference
- Customized PID / PLC( HMI touch
screen,optional) Control System
- Whole Brewhouse system installed on a complete platform, easy moving, loading&unloading, turnkey solution
*Hot Liquor Tank
Comments:
- Provided with installed pipes, including valves and sensors
- Integrated pump system- CIP system: optional, separated CIP for tanks to prevent cross product interference
- Customized PID / PLC( HMI touch
screen,optional) Control System
- Whole Brewhouse system installed on a complete platform, easy moving, loading&unloading, turnkey solution

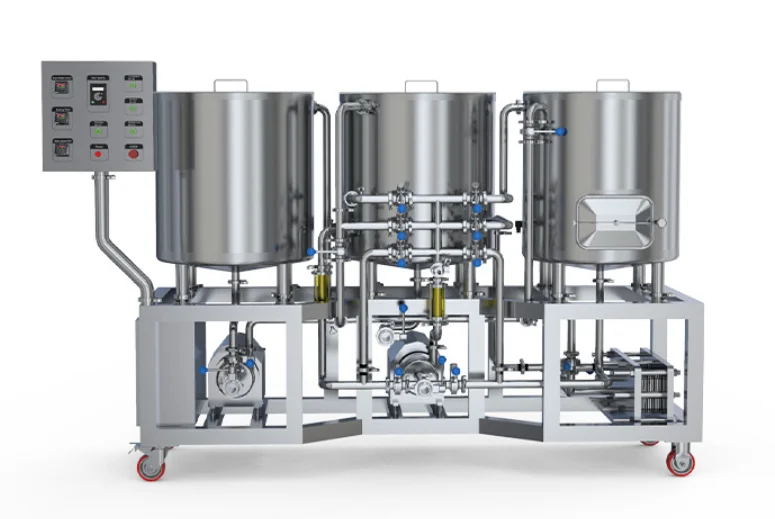

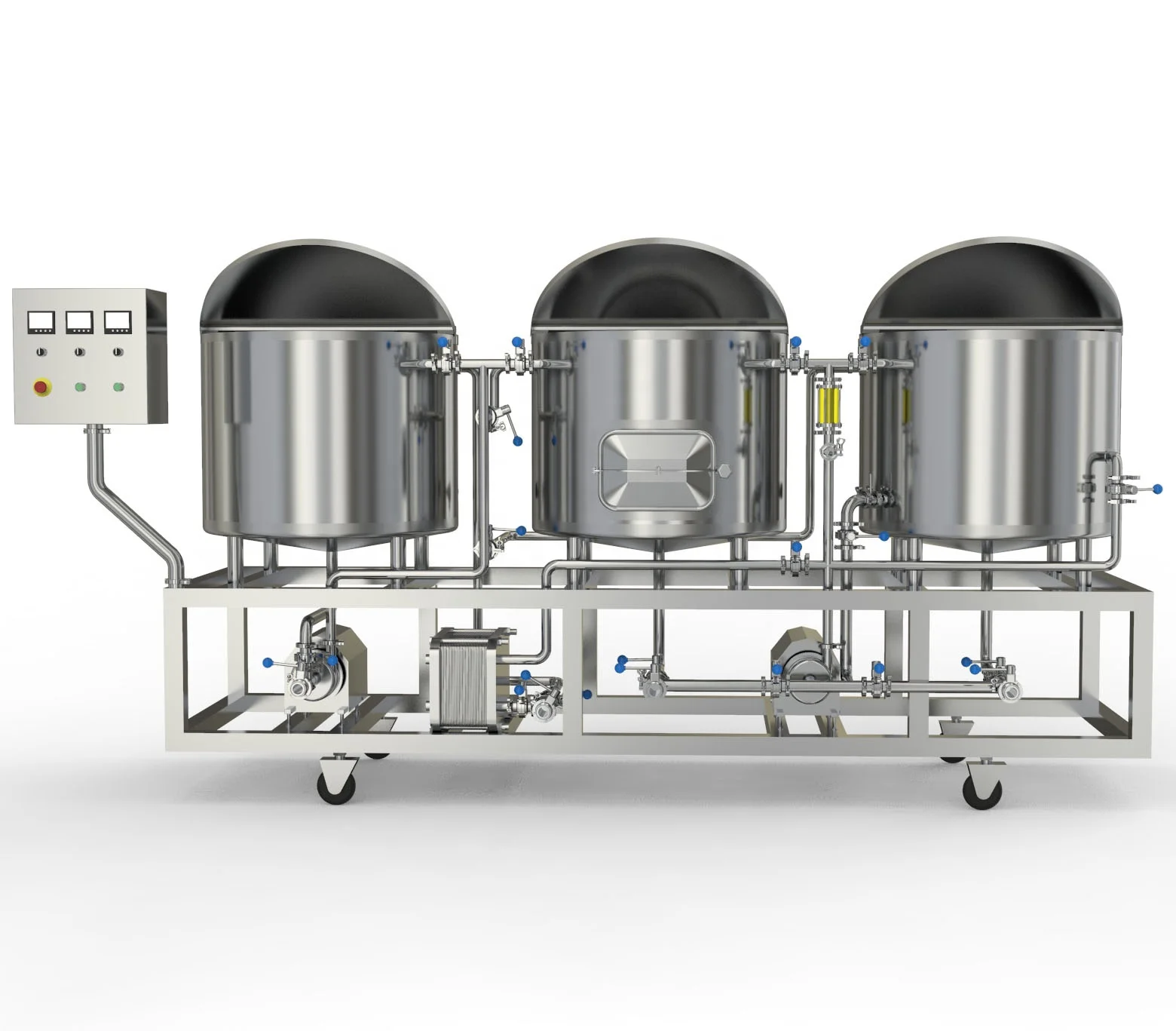

Brewhouse
PID Controller
Sight Glass
Sparging Spray Ring
Atmospheric top lid
Vinasse Door
Electric Element (Heating Method）
Wort Pump
SUS 304 Sanitary Butterfly Valve
Other System
100L 200L Micro Brewery Equipment is specially customized for homebrew hobbies, entry-level Micro Breweries, Pilot Brewing System, or a full-scale Nano-Brewery production.
Beside Brewhouse, there are the whole set of 100L 200L Micro Brewery Equipment.
* Malt Miller (Optional)
The crushing progress is about 30 min by malt miller generally.

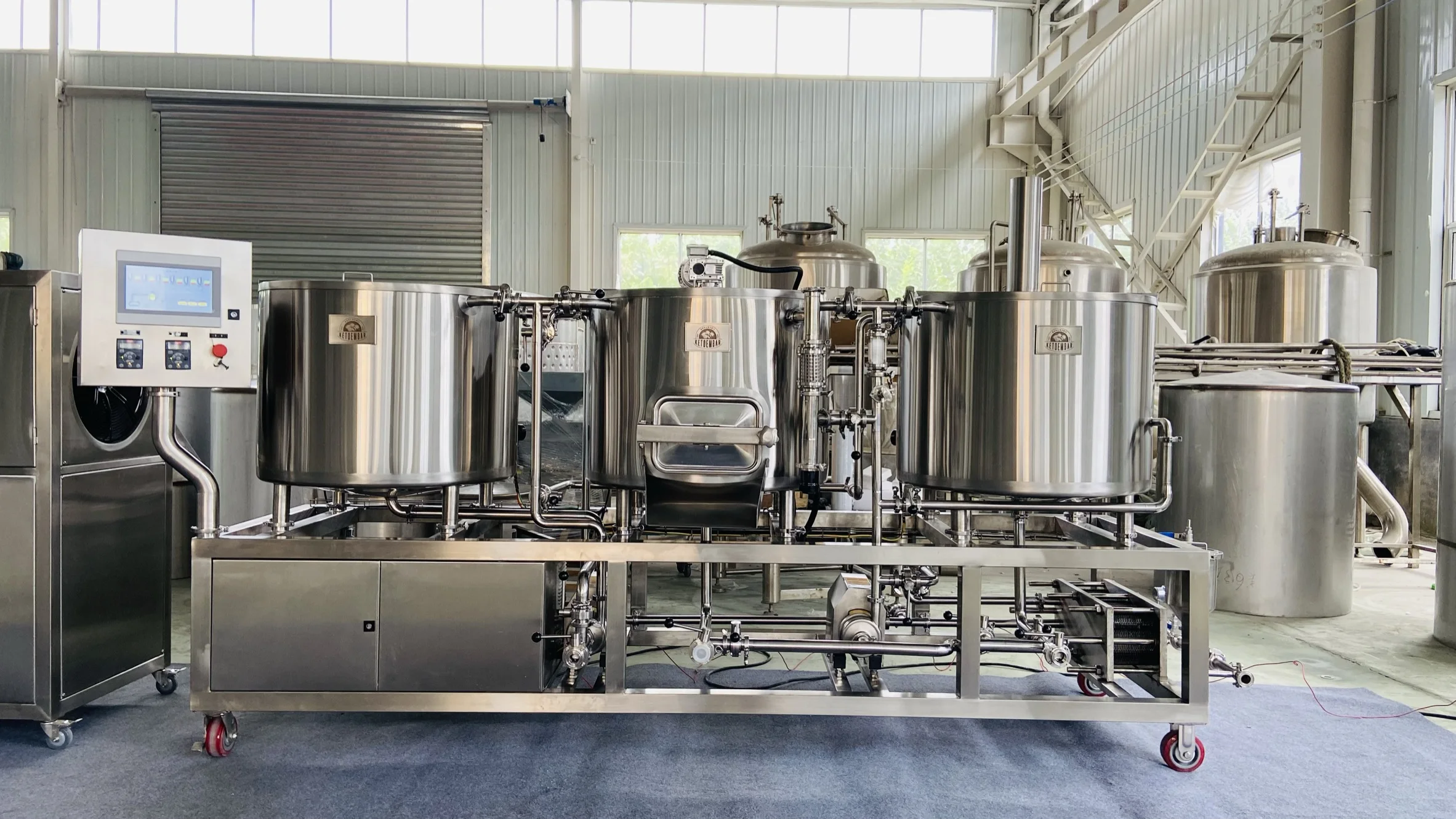

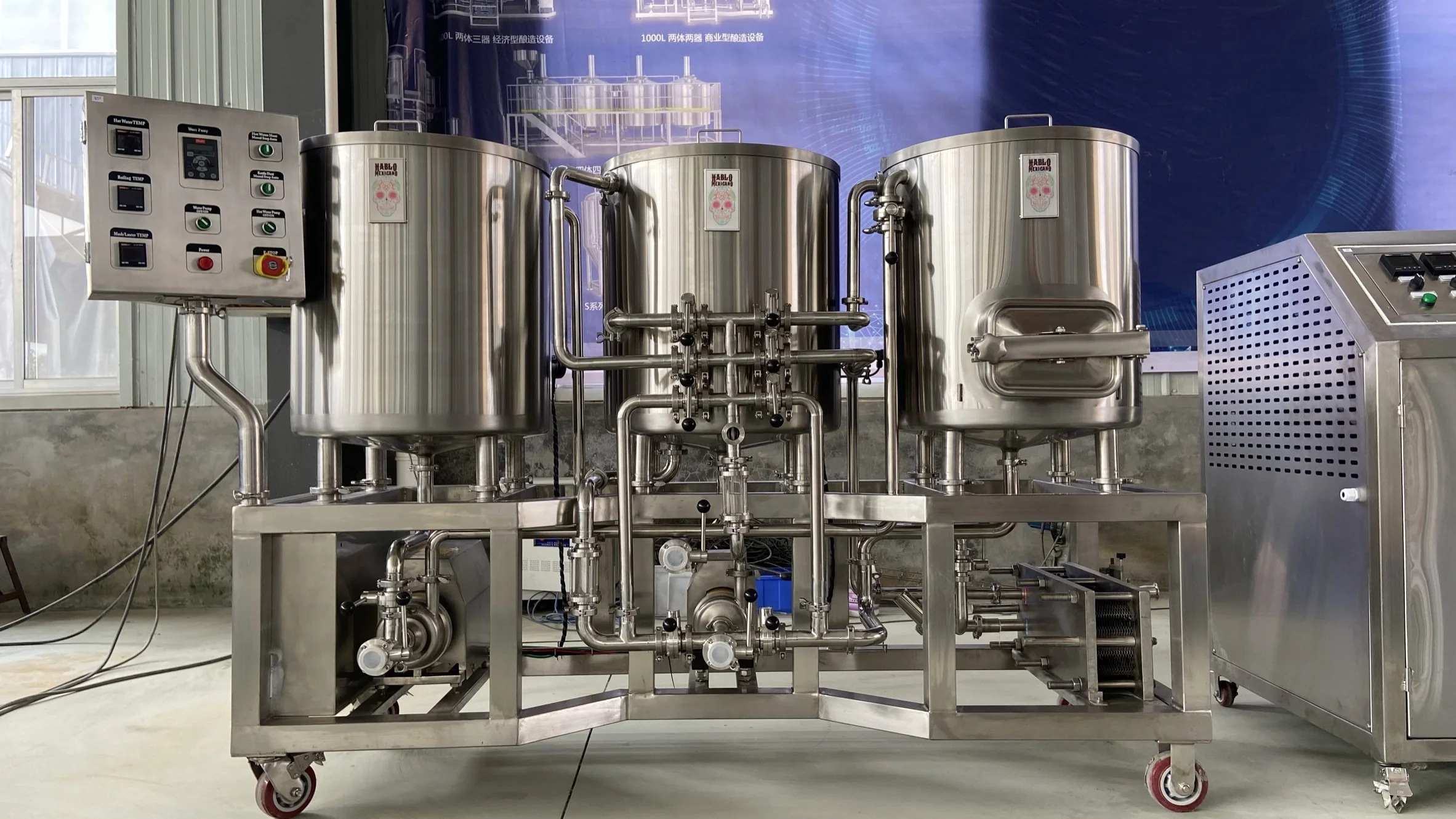

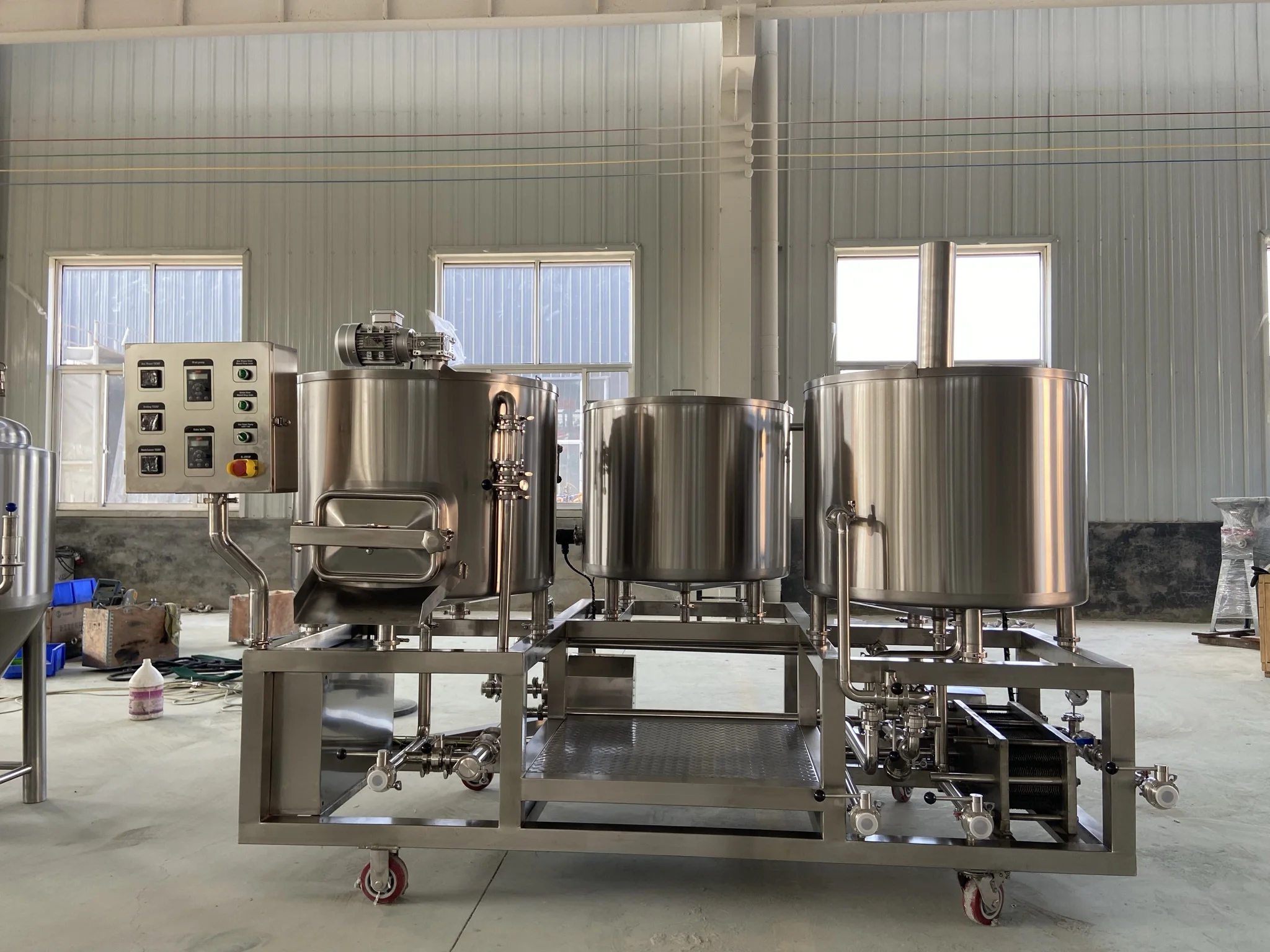

* 100L/200L Microbrewery System
Like the picture, it is the 100L/200L Brewhouse with PID Controller, Kettle/Whirlpool Tank, Hot Liquor Tank, Mash/Lauter Tank and other accessories &pipes
Beside Brewhouse, there are the whole set of 100L 200L Micro Brewery Equipment.
* Malt Miller (Optional)
The crushing progress is about 30 min by malt miller generally.
* 100L/200L Microbrewery System
Like the picture, it is the 100L/200L Brewhouse with PID Controller, Kettle/Whirlpool Tank, Hot Liquor Tank, Mash/Lauter Tank and other accessories &pipes
* 100L/200L Fermentation Tank
It is made from fully polished 304 stainless steel, has all entry level sanitary welded tri-clamp fittings and CIP arm. There are some more advanced add-on features, it will be able to support your brewing needs as you expected.
* Glycol Cooling System
Including glycol water tank, glycol water pump, chiller and other accessories.
It can provide glycol water for cooling fermentation tank so that FV can be kept the range of suitable fermenting temperature.
It is made from fully polished 304 stainless steel, has all entry level sanitary welded tri-clamp fittings and CIP arm. There are some more advanced add-on features, it will be able to support your brewing needs as you expected.
* Glycol Cooling System
Including glycol water tank, glycol water pump, chiller and other accessories.
It can provide glycol water for cooling fermentation tank so that FV can be kept the range of suitable fermenting temperature.
Malt Miller
There are advantages of malt miller:
a.Double roller, easy for malt to access to the grinding area, and disassembly and maintenance easy.
b. Roller's distance can be adjusted easily and it is easy to operate, and the handle is convenient.
c.High-quality steel shaft, alloy steel roller in dynamic balance, so with smooth operation and long service life.
d.Smooth operation, low noise.
a.Double roller, easy for malt to access to the grinding area, and disassembly and maintenance easy.
b. Roller's distance can be adjusted easily and it is easy to operate, and the handle is convenient.
c.High-quality steel shaft, alloy steel roller in dynamic balance, so with smooth operation and long service life.
d.Smooth operation, low noise.
100L/200L Fermentation Tank
The fermenter with top manhole are our most popular product for home brew hobbies. It’s designed for those brewers looking to step up their fermentation games from limited volume to 100L~400L
* Effective volume: Customized (from 100L to 500L)
* 100% high accuracy TIG welding
* Insulation layer: PU-thickness: 80mm
* 60° conical degree
* Design pressure 0.3MPa;
* Working pressure 0.15Mpa
* 100% high accuracy TIG welding
* Insulation layer: PU-thickness: 80mm
* 60° conical degree
* Design pressure 0.3MPa;
* Working pressure 0.15Mpa
New type glycol cooling cabinet
a.Glycol Water Tank
1.Effective Volume =120L, max volume = 150L
2.Build-in Cooper Chilling pipes
Temperature Probe&PT-100
b.Glycol Water Pump
1.Flow=1m³/h Lift =8m
2.0.55kw
c.Industrial Chiller
1.Cooling Capacity = 2HP
2.Power=1.95kw
1.Effective Volume =120L, max volume = 150L
2.Build-in Cooper Chilling pipes
Temperature Probe&PT-100
b.Glycol Water Pump
1.Flow=1m³/h Lift =8m
2.0.55kw
c.Industrial Chiller
1.Cooling Capacity = 2HP
2.Power=1.95kw
Customer Show
Packaging & Shipping
Inner stretching membrane and PE paper and outer steel frame, and other packaging for shipping.500L Commercial Beer Brewing Equipment SUS 304 Stainless Steel Conical Fermenter
1. Main beer brewing tanks, fermenting vessels and turnkey brewhouse system will be packaged with plastic film firstly, then with reinforced steel frames.
2. All beer brewing spare parts, accessories and fittings will be packaged with carton box and crated.
3. All items wrapped with soft package for protection.
4. Each parts of whole brewing system will be labeled.
1. Main beer brewing tanks, fermenting vessels and turnkey brewhouse system will be packaged with plastic film firstly, then with reinforced steel frames.
2. All beer brewing spare parts, accessories and fittings will be packaged with carton box and crated.
3. All items wrapped with soft package for protection.
4. Each parts of whole brewing system will be labeled.
Company Information
Shandong Carry Equipment Co., Ltd 5 00 litres micro beer brewing equipment brewery conical fermenter 500L for sale
Carry Equipment is a professional brewing equipment supplier in China. We have own factory and technology team. The staff has more than 10 years brewing experience and manufacturing experience.
With the concept of "pioneering and enterprising", CARRY strives to consistently deliver high-quality products and the best service for our customer. Fully committed to the brewing industry, we always take customer’s requirement and satisfaction as our aim.
Our company combines the world’s most sophisticated brewing technology with economical prices in order to provide our customers with the best equipment at affordable price. Our product line caters to every possible customer in the market: including Crushing System, Brewing Systems, Fermentation Tanks, Cooling System, CIP and Bottling/Canning Machine. Our products range from individual pieces of equipment to complete brewery systems.
