excellent performance wall concrete truck sprayer

Категория: Shotcrete Machine >>>
Поставщик: Henan,Yugong,Machinery,Co.,Ltd.

Цена:1 900,00 $ - 3 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	2261.77 $*	2374.12 $*
Aug-15-2025	2242.83 $*	2354.39 $*
Jul-15-2025	1881.61 $*	1975.58 $*
Jun-15-2025	2204.26 $*	2314.31 $*
May-15-2025	1919.58 $*	2015.90 $*
Apr-15-2025	2166.95 $*	2274.88 $*
Mar-15-2025	2147.84 $*	2254.61 $*
Feb-15-2025	2128.93 $*	2234.14 $*
Jan-15-2025	2109.69 $*	2214.26 $*

Характеристики

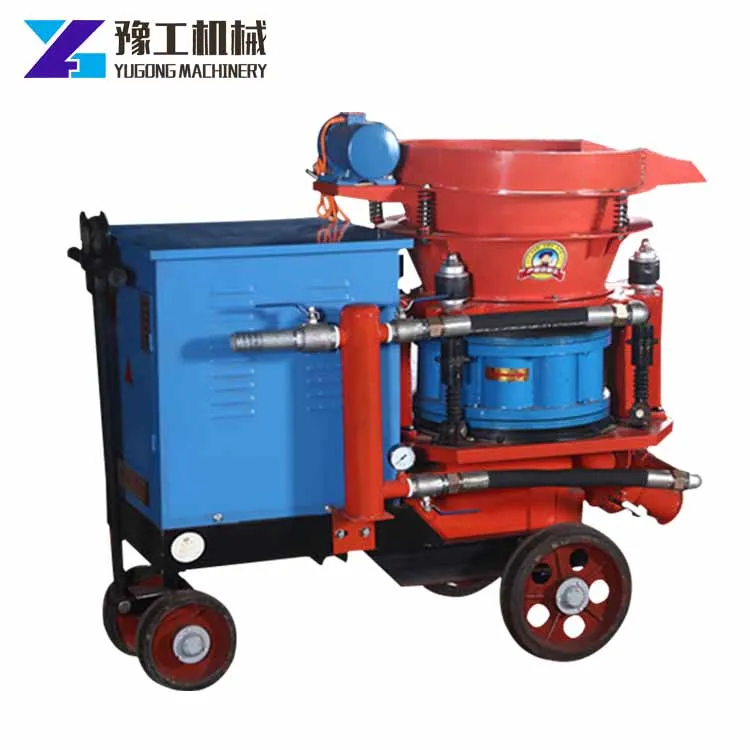

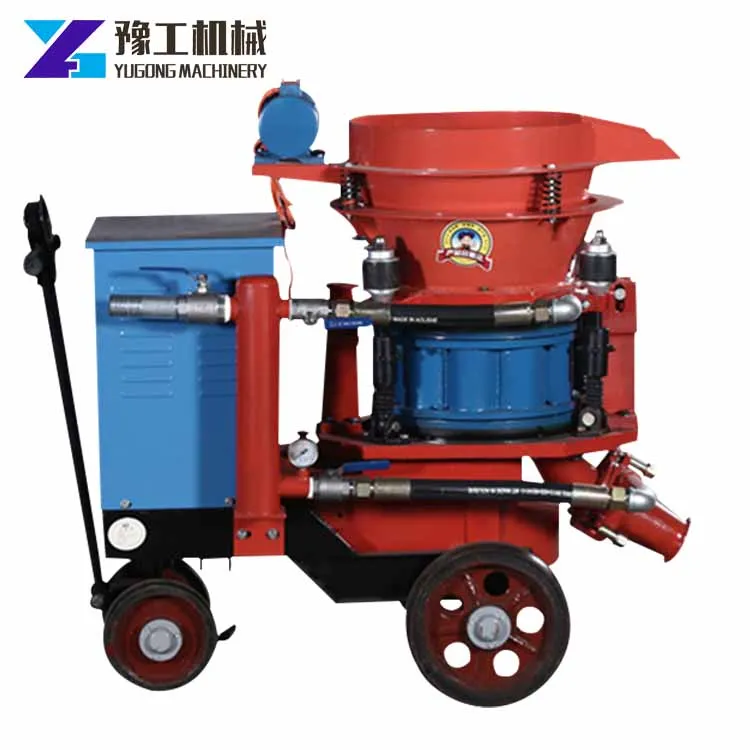

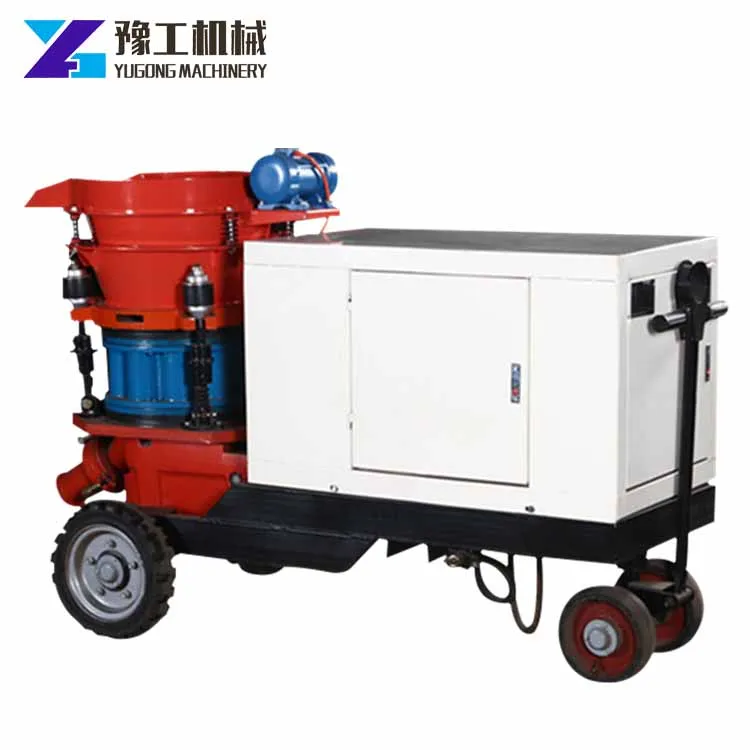

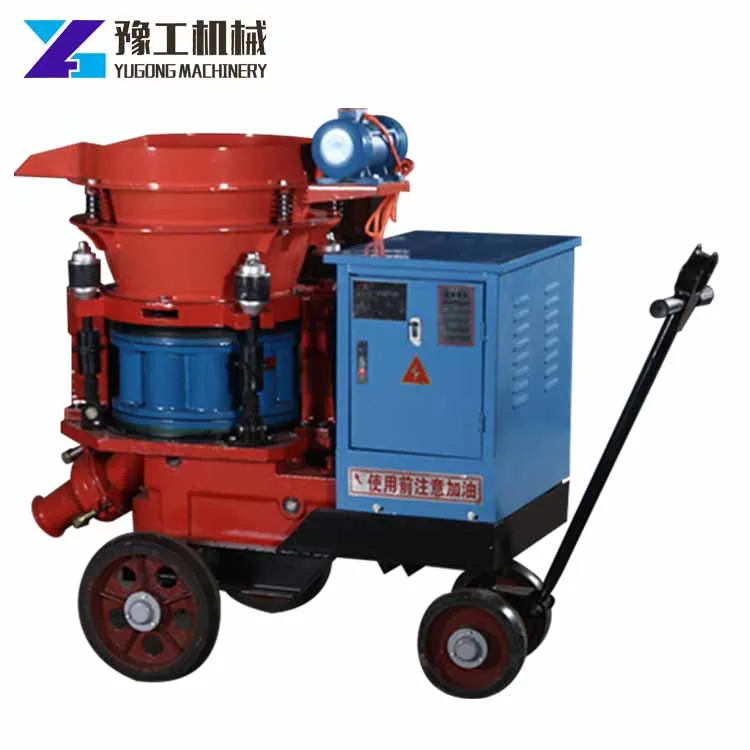

Product Description

Shotcrete machine also called concrete spraying machine. It is widely used in building wall spraying slopes, slope protection,tunnel construction and other places where there is no harmful gas and concrete spraying is required. It is mainly used for slope protection and anchoring, foundation pit reinforcement, tunnel spraying and anchoring.
Dry shotcrete machine can also be used for tide spraying, so it is also called tide shotcrete machine.

Technical Parameters

Dry Shotcrete Machine
Model	YGD-3	YGD-6	YGD-7
Production capacity	3 m³/h	6 m³/h	7 m³/h
Maximum conveying distance	200m	200m	200m
Applicable material water-cement ratio	<0.4	<0.4	<0.4
Maximum bone fire particle size	20mm	20mm	20mm
Rotor body diameter	350mm	440mm	480mm
Working pressure	0.4-0.6Mpa	0.4-0.6Mpa	0.6-0.8Mpa
Air consumption	3-4m³/h	6-8m³/h	7-8m³/h
Motor Power	3kw	5.5kw	7.5kw
Dimension	1040550950mm	1040550950mm	16007501200mm
Weight	260kg	600kg	700kg

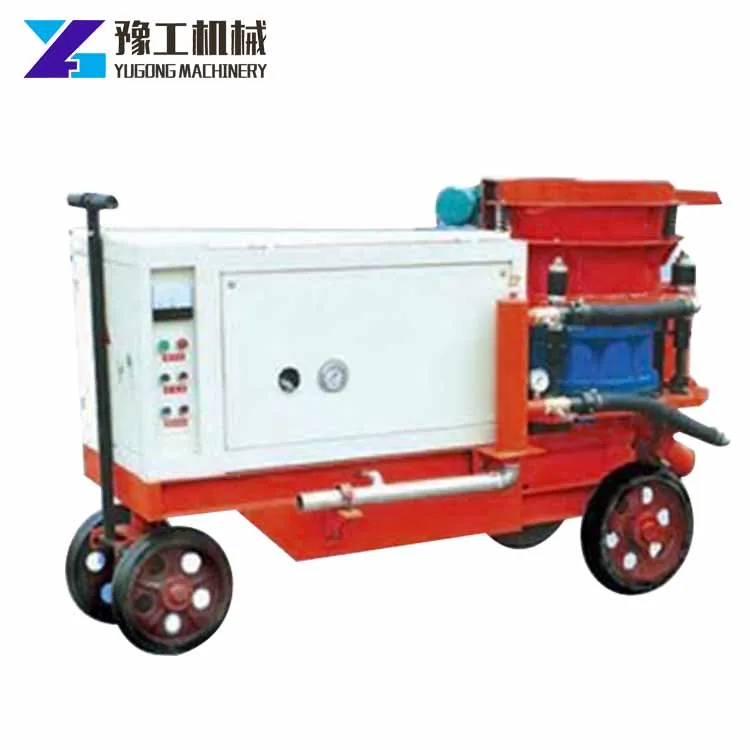

Wet Shotcrete Machine
Model	YGW-5	YGW-7
Production capacity	5m³/h	7m³/h
Lift	Horizontal 30m Vertical 20m	Horizontal 30m Vertical 20m
Maximum particle diameter	15mm	15mm
Motor Power	5.5kw	7.5kw
Dimension	12807001280mm	20008001300mm
Weight	700kg	800kg

Principle

1. The mixed materials are fed into the jet hopper through the vibrating screen through the discharging port of the batching mixer (or manual mixing and feeding).
2. The feeder is moved by the feeder to inject into the straight-through cavity of the rotor, and swirl along with the rotor to the outlet.
3. Compressed air is introduced from the air chamber here, the material is blown into the discharge elbow, and another pressure air is introduced by the cyclone, which is in a multi-head wind spiral state to blow the material, accelerate, and make it swirl and float. Enter the feeding pipe.
4. After reaching the nozzle, add a small amount of supplementary water (when wet spray) or liquid quick-setting agent (when wet spray) and spray it out.

Features

1. Straight-through rotor type non-adhesive material cavity, smooth discharge, high efficiency and time saving.
2. Four-point elastic compensation and compression, good sealing effect, less dust around the machine, and long service life of wearing parts.
3. Adopt low-pressure and high-speed vortex air flow to overcome adhesion, pipe blockage and pulse in material transportation problems such as flushing, breaking, etc., uniform material flow, continuous and stable
4. New sprinkler head, discharge elbow device, improve spraying effect, less rebound, and high spray layer quality.

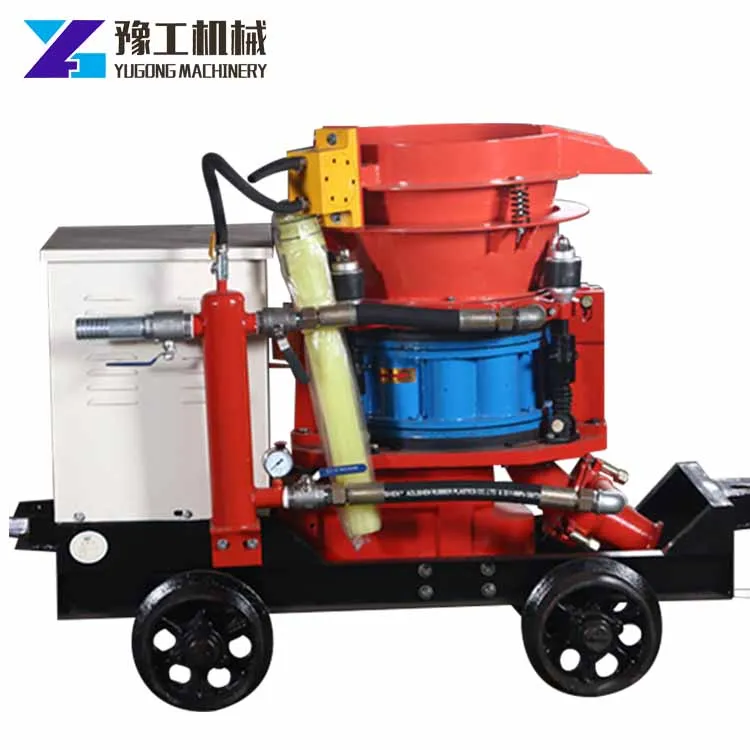

5. The chassis of the machine can be assembled into tire type, skid type and rail wheel type with various gauges

Composition

1. Driving device (main motor, reducer, etc.)
2. Rotor assembly (rotor body, material cavity, rotor liner, etc.)
3. Wind road system
4. Injection system
5. Electrical control system
6. Walking system.
