Высокотемпературная двойная головка DONGBAO промышленная красящая машина для окрашивания
- Категория: Textile Finishing Machines >>>
- Поставщик: Dongbao,International,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.77 $* | 0.48 $* |
| Aug-15-2025 | 0.83 $* | 0.46 $* |
| Jul-15-2025 | 0.75 $* | 0.53 $* |
| Jun-15-2025 | 0.1 $* | 0.54 $* |
| May-15-2025 | 0.38 $* | 0.64 $* |
| Apr-15-2025 | 0.87 $* | 0.28 $* |
| Mar-15-2025 | 0.27 $* | 0.91 $* |
| Feb-15-2025 | 0.30 $* | 0.54 $* |
| Jan-15-2025 | 0.40 $* | 0.0 $* |
Характеристики
Specification
Product Name: | High Temperature Double Head Soft flow Dyeing Machine |
Machine capacity: | 250kg-1000kg |
Liquor ratio starts at: | 1:7-8 |
Max temperature: | 140℃ |
Material: | Stainless Steel |
Heating mode | Steam |
Product Description

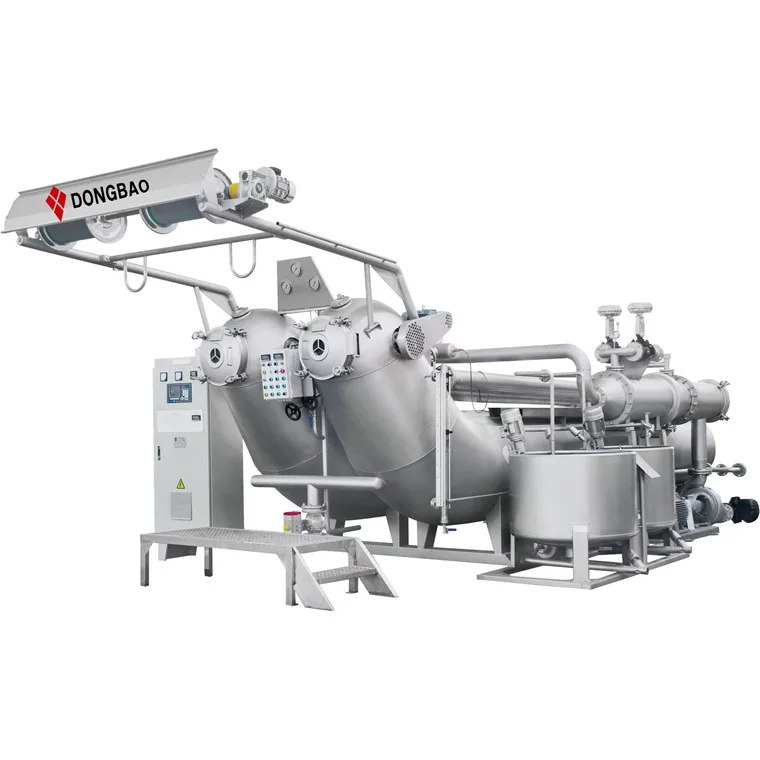

High Temperature Double Head Soft flow Dyeing Machine
Product Description
High Temperature Double Head Soft flow Dyeing Machine adopts the hydrodynamic principle, the special design can save energy, dyes, chemicals, time, space and labor cost. It can achieve the best dyeing and bleaching effects for various kinds of thin and thick fabrics.
Special Features
- Rapid dyeing system with low liquor ratio and high running speed
The fabric floats in the guide tube which full of dying liquor without contacting the inner walls of the tube. The fabric running speed is up to 650m/min without pilling. Specially designed corrugated board (W-type) of fabric store tank reduces the friction coefficient between the fabric and the inner walls, and reduces the water consumption, so the fabric is running smoothly in the tank, the liquor ratio can also be adjusted to 1:7~8 accordingly.
- No crease mark and rolling selvedge
The fabric extending device extends the fabric after beating, the fabric changes position frequently in to dyeing liquor, avoid the rolling selvedge and crease marks.
- Low tension, Large flow-quantity
The low spray pressure and large flow-quantity nozzle can reduce the fabric tension, fuzzy and yarn sliding in dyeing process, so the fabric is running smoothly and has good dyeing quality.
Technical Details
- Main tank & liquor carrying parts are made of stainless steels 316L
- Available with up to 4 chambers per machine
- Liquor ratio starts at 1:7~8
- Fabric winch drive max. 600m/min, depending on fabric properties
- Adjustable winch speed
- Maximum operating temperature 140℃
- Touch screen controller
- Electro-pneumatic operated valves
- Frequency controlled pump motor & winch
- Control cabinet in stainless steel
- Adjustable nozzle pressure
- Adjustable round nozzle
- Automatic seam detector
- Rope circulation control
- Water meter Fully automatic dosing
- Unloading winch & plaiter
Optional
- Second preparation tank
- 100% Hot water stock tank, preparation of the complete process bath
- Auto self-cleaning filter
- Fast dosing system, bypass function
Product Description
High Temperature Double Head Soft flow Dyeing Machine adopts the hydrodynamic principle, the special design can save energy, dyes, chemicals, time, space and labor cost. It can achieve the best dyeing and bleaching effects for various kinds of thin and thick fabrics.
Special Features
- Rapid dyeing system with low liquor ratio and high running speed
The fabric floats in the guide tube which full of dying liquor without contacting the inner walls of the tube. The fabric running speed is up to 650m/min without pilling. Specially designed corrugated board (W-type) of fabric store tank reduces the friction coefficient between the fabric and the inner walls, and reduces the water consumption, so the fabric is running smoothly in the tank, the liquor ratio can also be adjusted to 1:7~8 accordingly.
- No crease mark and rolling selvedge
The fabric extending device extends the fabric after beating, the fabric changes position frequently in to dyeing liquor, avoid the rolling selvedge and crease marks.
- Low tension, Large flow-quantity
The low spray pressure and large flow-quantity nozzle can reduce the fabric tension, fuzzy and yarn sliding in dyeing process, so the fabric is running smoothly and has good dyeing quality.
Technical Details
- Main tank & liquor carrying parts are made of stainless steels 316L
- Available with up to 4 chambers per machine
- Liquor ratio starts at 1:7~8
- Fabric winch drive max. 600m/min, depending on fabric properties
- Adjustable winch speed
- Maximum operating temperature 140℃
- Touch screen controller
- Electro-pneumatic operated valves
- Frequency controlled pump motor & winch
- Control cabinet in stainless steel
- Adjustable nozzle pressure
- Adjustable round nozzle
- Automatic seam detector
- Rope circulation control
- Water meter Fully automatic dosing
- Unloading winch & plaiter
Optional
- Second preparation tank
- 100% Hot water stock tank, preparation of the complete process bath
- Auto self-cleaning filter
- Fast dosing system, bypass function
Technical Specifications
Model | 1-Chamber | 2-Chambers | 4-Chambers | Blower Power(kw) | ||||||
Capacity (kg) | 200-250 | 400-500 | 800-1000 | |||||||
Max temperature | 140℃ | 140℃ | 140℃ | 15 | ||||||
Max pressure (kg/cm²) | 4 | 4 | 4 | 18.5 | ||||||
Main pump power | 18 | 36 | 63.5 | 45 | ||||||
Heating rate | 20℃-135℃ 35min | 75 | ||||||||
Cooling rate | 135℃-70℃ 35min | |||||||||
Max Fabric speed (m/min) | 600 | 600 | 600 | |||||||
Dimension | L (mm) | 9040 | 9310 | 9310 | ||||||
W (mm) | 1560 | 1810 | 3050 | |||||||
H (mm) | 2670 | 2960 | 2960 | |||||||
Note: Specifications of above machines are only for reference. The company reserves the right of alteration.
Company Profile
DONGBAO INTERNATIONAL LIMITED was established in 2019. It is a company integrating industry and foreign trade. We have rich experience in foreign trade, and dedicated to provide customers with high-quality dyeing and finishing machinery and supporting facilities with professional services.
We trade globally. At present, we have exported to more than 100 countries, such as Bangladesh, Uzbekistan, Russia, Vietnam, Colombia, Egypt and so on. Meanwhile, our manufacturing workshop is also one of the leading leaders in the global industry. It has been deeply engaged in the dyeing machine manufacturing industry for more than 20 years and has rich manufacturing experience.
While paying attention to product quality, we also focus on after-sales service. We have established the strong after-sales network, and our professional after-sales service team is able to help customers deal with all kinds of problems and emergencies promptly.
Select Dongbao means choose higher quality, advanced technology and better service.
We trade globally. At present, we have exported to more than 100 countries, such as Bangladesh, Uzbekistan, Russia, Vietnam, Colombia, Egypt and so on. Meanwhile, our manufacturing workshop is also one of the leading leaders in the global industry. It has been deeply engaged in the dyeing machine manufacturing industry for more than 20 years and has rich manufacturing experience.
While paying attention to product quality, we also focus on after-sales service. We have established the strong after-sales network, and our professional after-sales service team is able to help customers deal with all kinds of problems and emergencies promptly.
Select Dongbao means choose higher quality, advanced technology and better service.
Why Choose Us
1.Professional team and professional production line
2.High quality products & Factory price
3.Advanced technology
4.Professional after-sales service team
EXHIBITION
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery.
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery.
