Базовая система GNSS RTK и Rover Station Alpha T Series GPS

Описание и отзывы

Трекер стоимости

Характеристики

GNSS RTK System Base And Rover Station Alpha GNSS GPS Price



GNSS	channels	936
	tracking	GPS: L1C/A, L1C, LIP, L2C, L2P, L5
		BDS: Bll, B2I, B3I, BIC, B2a, B2b, ACEBOC
		GLONASS: Gl, G2, G3
		Galileo: El, E5a, E5b, ALTBOC, E6
		QZSS: L1C/A, L1C, L2C, L5, LEX
		SBAS
	static accuracy	H:± (2.5+0.5X10-6D)mm
		V:± (5 + 0.5X 10-6D) mm
	RTK accuracy	H:±(8 + lX10-6D)mm
		V:± (15+lX10-6D)mm ± (8+0.3TILT)mm
IMU	compensation degree	0-70°
configuration	update rate, system	400Hz A7, Linux
	storage	8G
	blue tooth	BT 5.0 Compatible
	WIFI	802.11 b/g/n
	communication	GSM:900/1800MHz
		CDMAlx/EVDO: BC0
		WCDMA: Bl
		4GTD-SCDMA: B34/B39
		FDDLTE: B1/B3/B8
		TDDLTE: B38/B39/B40/B41
radio	Global Communication Protocol	TRIMTALK, TRIMMARKIII, SOUTH, TRANSEOT(PCC-GMSK), GEOTALK, GEOMARKIII,SATEL, HI-TARGET, HZSZ
	working mode	1W transmit-receive
	TNC	connect the built-in radio antenna
data port	5 pin port	connect external power and external radio
	Type-C port	For charging and data transfer
	SIM card	eSIM
physical	voice	Intelligent Voice

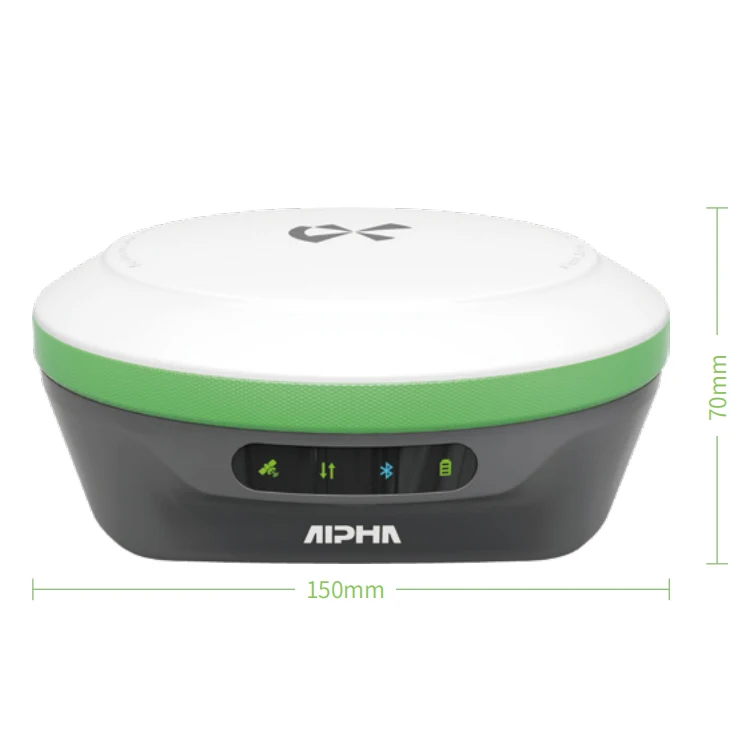

	size	150mm*70mm
	weight	896g
environmental performance	working temperature	-30°C /+70°C
	storage temperature	-40°C /+80°C
	water&dust proof	IP67
	fall down	Resistant to 2 m fall with rod (hardwood floor), 1.2 m free fall
	humidity	100% condensation resistance
