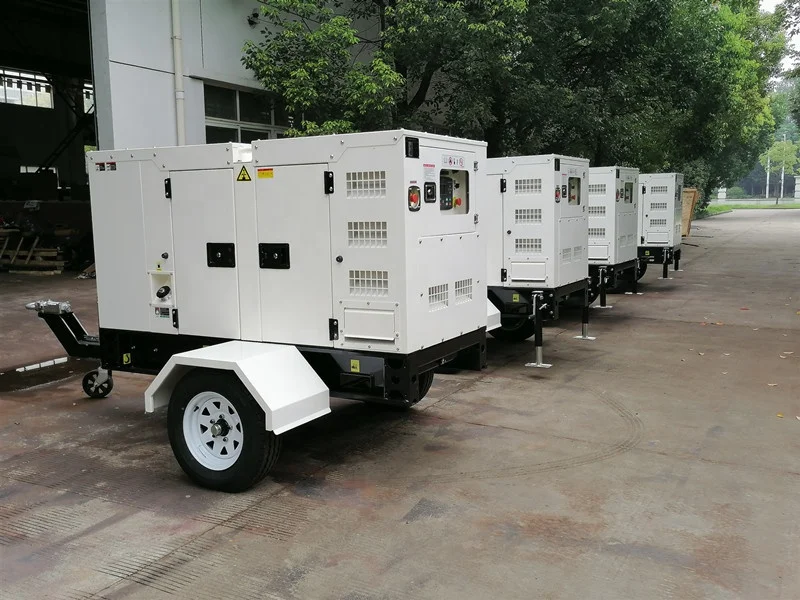

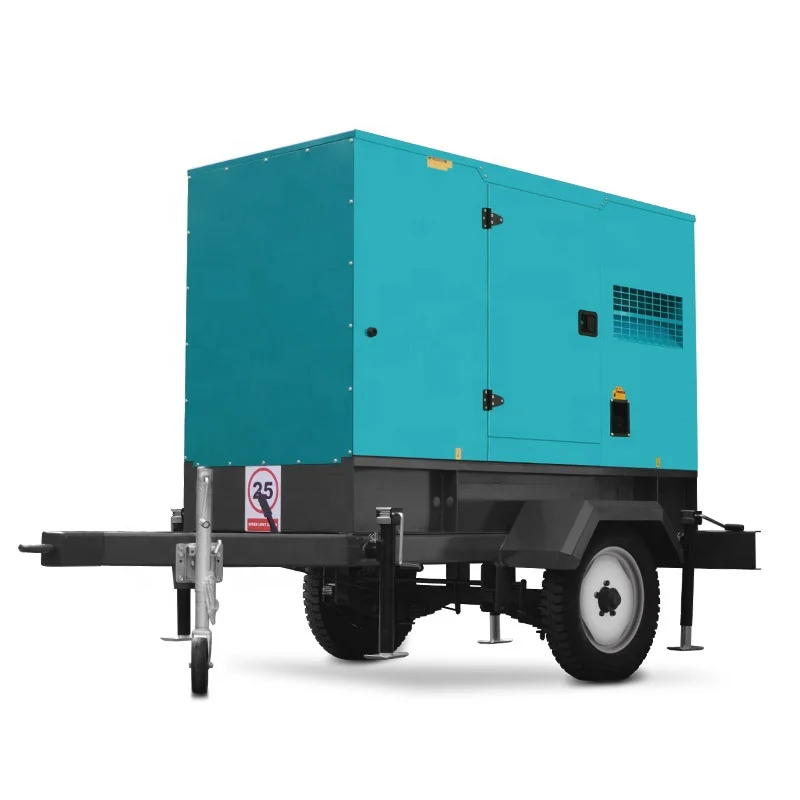

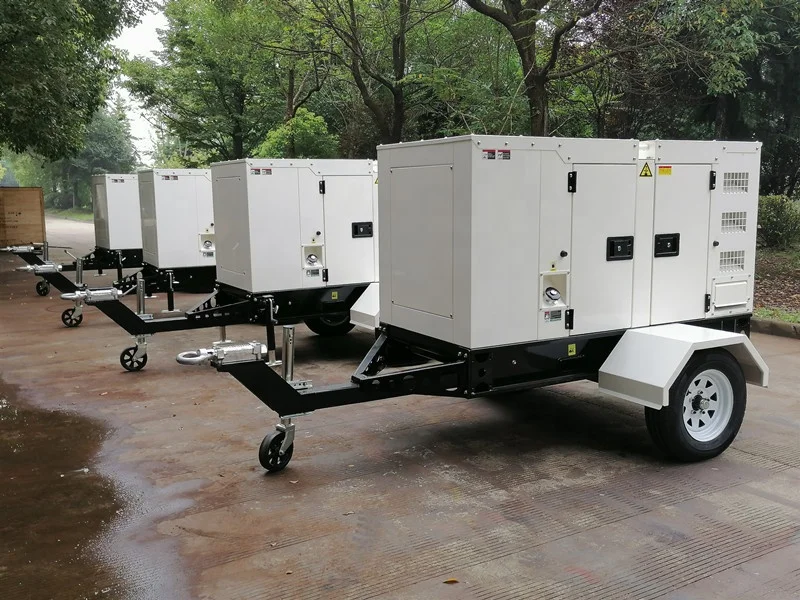

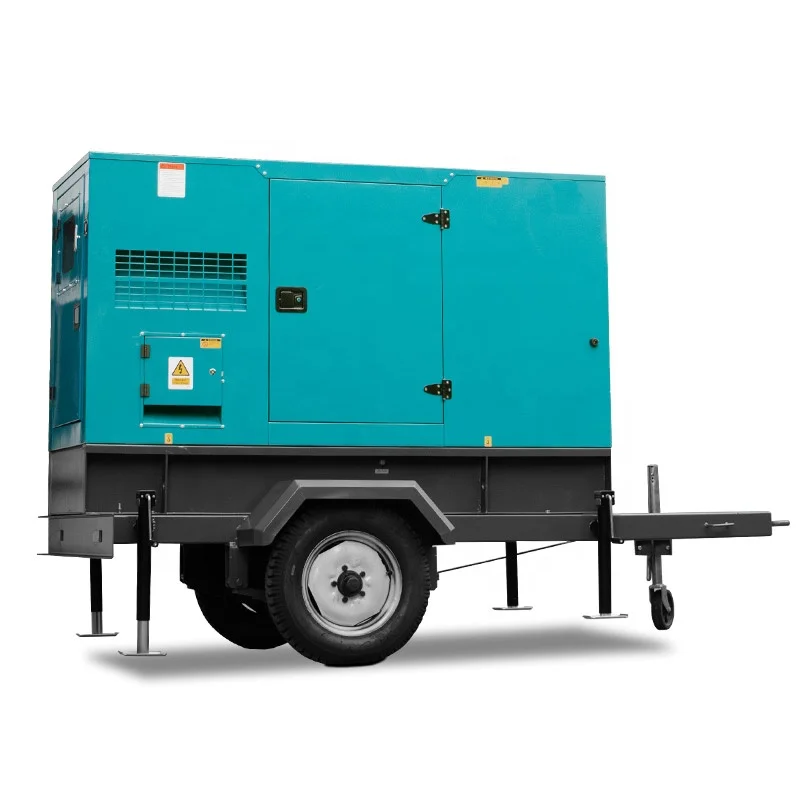

Новая фабричная распродажа дизельный генератор мобильного типа 30 кВА с двигателем YangDong Y4100D для резервного

Описание и отзывы

Трекер стоимости

Характеристики

Product Description



Technical Specification

Model	Voltage	HZ	P.F (COS)	Standby power	Prime power	Net Weight
WP-YD22GF	400V/230V-3P	50	0.8	24 KW	22 KW	800 kg

Prime power

This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.

Standby power

This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.

General features:

n Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

n 24V DC start motor;

n Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;

n Equipped with industrial silencer and flexible exhaust hose;

n Designed to Comply with ISO8528/GB2820;

n Powered by YangDong engine, Wellpower alternator and DeepSea/ComAp/SmartGen control panel

Engine Spec

Engine model	Y4100D
Engine manufacturer	YangDong
Number of Cylinders	4 cylinders in line
Aspiration	Natural
Bore×Stroke	100mm×118mm
Displacement	3.707 L
Compression ratio	18 : 1
Prime power	30 KW
Standby power	33 KW
Steady speed droop	≤1%
Coolant capacity(engine only)	7.2 L
Fuel Consumption	243 g/kw.h
Starter Motor	DC24V,
Alternator	DC24V

Alternator Spec

Alternator model	WP184F
Prime power	22 KW
Frequency/speed	50HZ/1500rpm
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23
Phase	Three phases

Control Panel

Model	HGM6110N
The control module gives digital readouts of:	Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run.
The control module has indicators for failure information:	Over speed / under speed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure
Automatic shutdown occurs under:	Low engine oil pressure; High engine water temperature; Over speed/ under speed; Failure to start after three attempts



Part Description
