Профессиональный Вакуумный погрузчик вакуумная машина для производства
- Категория: >>>
- Поставщик: Max,Innovate,Technology,(Shenzhen),Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.66 $* | 0.54 $* |
| Aug-17-2025 | 0.30 $* | 0.17 $* |
| Jul-17-2025 | 0.12 $* | 0.47 $* |
| Jun-17-2025 | 0.51 $* | 0.13 $* |
| May-17-2025 | 0.50 $* | 0.4 $* |
| Apr-17-2025 | 0.55 $* | 0.18 $* |
| Mar-17-2025 | 0.79 $* | 0.44 $* |
| Feb-17-2025 | 0.70 $* | 0.10 $* |
| Jan-17-2025 | 0.67 $* | 0.16 $* |
Характеристики
Features:
1.PLC+touch screen control, easy to operate.
2.Adjust the position of the suction nozzle to ensure the clamping of the PCB.
3.Smooth and accurate translation (stepping motor).
4.The upper and lower air clamps ensure the location of the material box accurately.
5.Special gas path design ensures the PCB won't break.
6.With SMEMA signal.
3.Smooth and accurate translation (stepping motor).
4.The upper and lower air clamps ensure the location of the material box accurately.
5.Special gas path design ensures the PCB won't break.
6.With SMEMA signal.
Specifications
Model | VSLD-250T-H | VSLD-330T-H | VSLD-390T-H | VSLD-460T-H | |||
Dimensions | 1640*865*1250mm | 1950*945*1250mm | 2005*1110*1250mm | 2005*1250*1250mm | |||
Magazine size | 355*320*563mm | 460*400*563mm | 535*460*563mm | 535*530*563mm | |||
PCB size | 535*530*563mm | 50*50-445*330mm | 50*50-530*390mm | 50*50-530*460mm | |||
Magazine qty | Up 1, Down 1 | ||||||
Pitch | 10/20/30/40mm | ||||||
Max. PCB qty | 400pcs | ||||||
PCB loading time | About 12s | ||||||
Power source | AC 1P 110V/220V 50/60HZ Max.300VA | ||||||
Air pressure | 4-6bar, Max.300L/min | ||||||
Conveyor height | 900±20mm | ||||||
Conveyor direction | L-R or R-L (optional) | ||||||
Weight | Approx.200Kgs | Approx.240Kgs | Approx.280Kgs | Approx.320Kgs | |||
Products Description

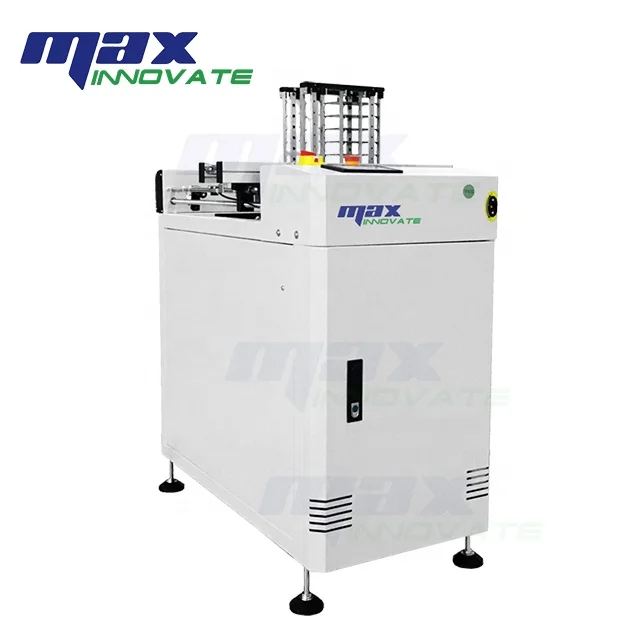

Related Products
Packing&Shipping
After the completion of the machine, the fuselage shall be protected andwrapped with plastic film to avoid damage caused by collision of goods during export transportation.We will measure the size of the machine customized by the customer, thencustomize a wooden box.After the customization of wooden boxes, we use wooden boxes for export, wooden boxes are strong, suitable for export machinery and other heavy objects, to protect them.
Company Profile
Max Innovate Technology(Shenzhen) Ltd is the leading PCB factory solution provider inChina,offering professional machine and assembly line accessories as the DIP welding equipment series, SMT welding equipment series and SMT&DIP whole line series over 20 years.We sincerely hope to work together with every client, to build the long-term business and friendship.
Ours products are exported to more than 40 countries and regions in the world
