Горячая Распродажа от производителя Тепловизионная инфракрасная камера с длинным радиусом действия треногой для общественных
- Категория: Test Instruments >>>
- Поставщик: Junhong,Electronic,&,Technology,(Dongguan),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 547.10 $* | 574.17 $* |
| Aug-15-2025 | 543.63 $* | 570.42 $* |
| Jul-15-2025 | 455.8 $* | 478.89 $* |
| Jun-15-2025 | 534.4 $* | 561.36 $* |
| May-15-2025 | 465.32 $* | 488.93 $* |
| Apr-15-2025 | 524.71 $* | 550.28 $* |
| Mar-15-2025 | 520.52 $* | 546.16 $* |
| Feb-15-2025 | 515.32 $* | 541.89 $* |
| Jan-15-2025 | 511.54 $* | 537.14 $* |
Характеристики
Product Description

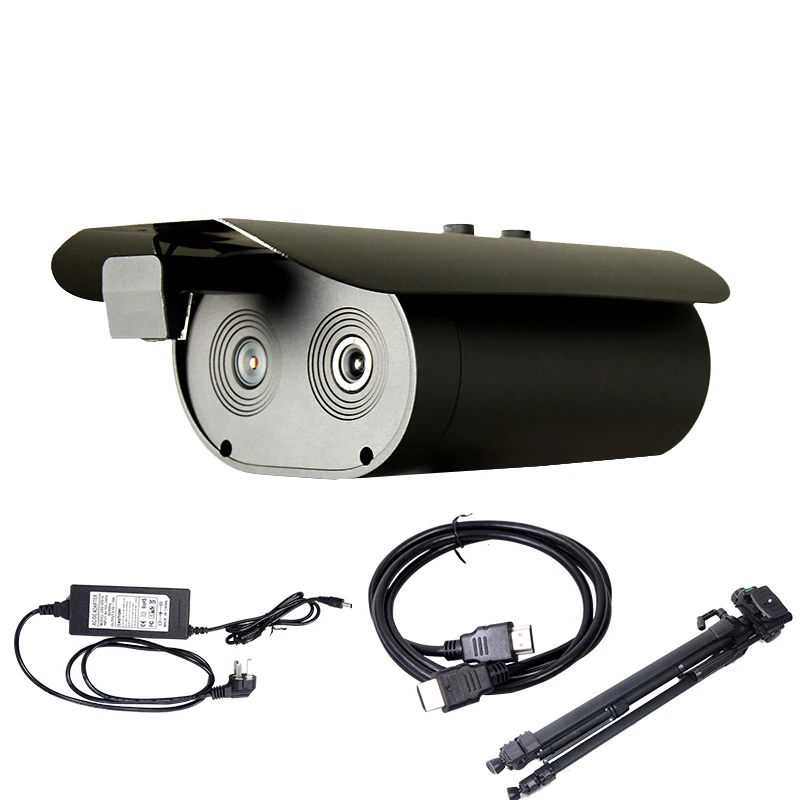

Tip: this infrared thermal imaging camera does not have a display screen, only a tripod.
Product features:

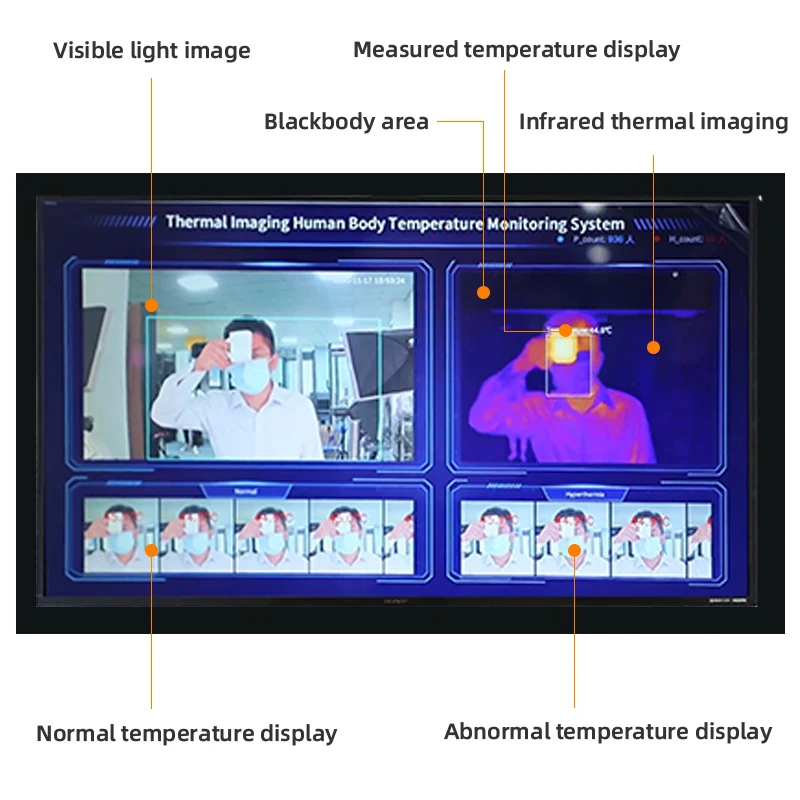

1.AI facial recognition: the system provides real-time dynamic thermal image, which can accurate and automatic measuring the multi-objective.
2.Automatic correction: the system is intelligent temperature measurement, which can realize the automatic correction of body surface temperature.
3.HD face acquisition: high-definition face image is collected by high-definition 200W pixel network camera.
4.Automatic face matching: visible light face photo and infrared face automatic matching, convenient for human eye recognition and traceability
5.Real time recording: real time recording of passing personnel and body temperature, automatic warning of suspected fever personnel
6.Face retrieval: can connect with the superior platform to realize face retrieval, face database and snapshot database, track the moving track of personnel, especially the activity track of suspected fever personnel, and quickly locate.
Technical specifications
Visible camera | |
resolution | 2 megapixel |
Camera focal length | 6mm |
imaging device | CMOS |
Minimum illumination | 0.01LUX (color mode) - 0.001lux (black and white mode) |
SNR | > 56dB |
Voltage | 5V access |
Infrared camera | |
Detector type | uncooled infrared array sensor |
Resolution | 160 * 120 output (384 * 288) |
Pixel spacing | 17um |
The working band | 8-14 um |
Detector NETD | ≤ 60mk (F / 1300k, 50Hz) |
Frame rate | 15 Hz |
Temperature measurement data output | full range temperature output |
The temperature measurement range | 20 ℃ ~ 50 ℃ |
Field of view angle (calculated value) | 40 °× 30 ° |
Number of people inspected per minute | 150-200 |

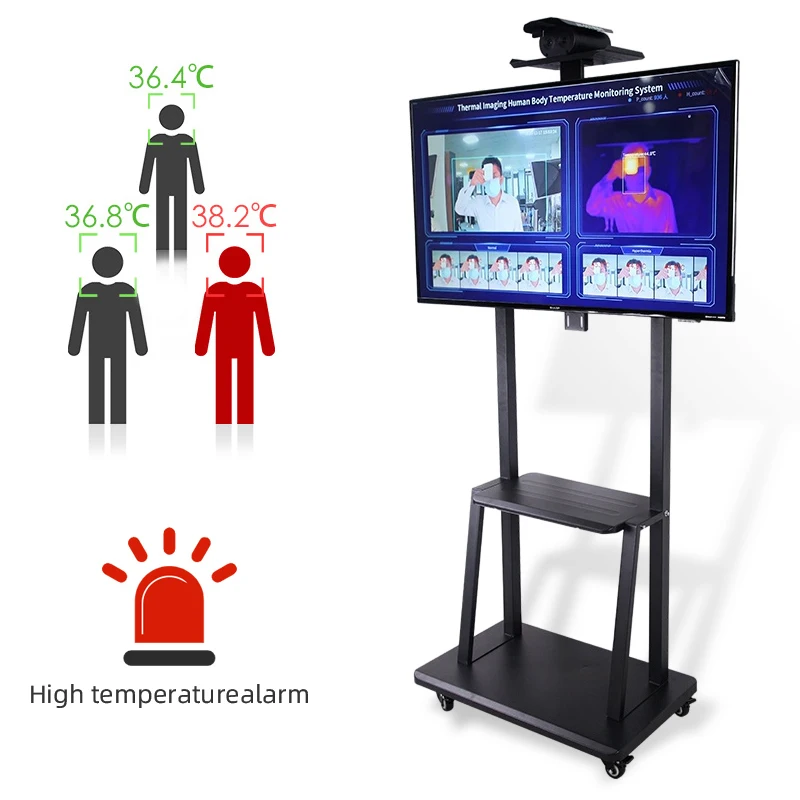

Installation site photos:
Packaging & Shipping
Company Information
Junhong Electronic and Technology (Dongguan) Co., Ltd. established in 2 0 0 5, who has been specialized in research and development of measurement instruments for 15 years. Supplying various of products range: Body Temperature Measurement System, Walk through metal detector, hand held metal detector, industrial metal detector, check weigher, underground metal detector, X-ray inspection machine, etc. All products are conform to U S and E U standard.
