Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
Машина для выдувного формования минеральной воды 5
- Категория: Stretch Blow Moulding Machines >>>
- Поставщик: Taizhou,Waton,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.74 $* | 0.66 $* |
| Aug-17-2025 | 0.84 $* | 0.48 $* |
| Jul-17-2025 | 0.68 $* | 0.30 $* |
| Jun-17-2025 | 0.39 $* | 0.43 $* |
| May-17-2025 | 0.60 $* | 0.31 $* |
| Apr-17-2025 | 0.54 $* | 0.40 $* |
| Mar-17-2025 | 0.92 $* | 0.32 $* |
| Feb-17-2025 | 0.73 $* | 0.16 $* |
| Jan-17-2025 | 0.88 $* | 0.2 $* |
Характеристики
Product Description
Models | MS-2L |
Theoretical Capacity | 800-1000 BPH |
Mold Cavities | 2 |
Neck Size | 18-38mm |
Max. Volume | 2000ml |
Advantages | 1.Pre-blow Function improve bottle quality 2.Affordable price |

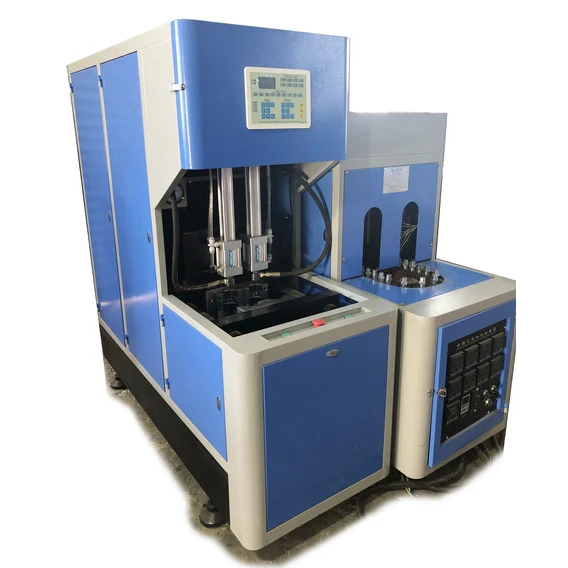

MS-2L 2 cavities linear Semi-auto stretch blow molding machine, is an hand feeding PET blow molding machine made by WATON Machinery. It can produce all kinds of bottles below 2000ml, including food packaging bottles, edible oil bottles, soda and mineral water bottles, fruit juice bottles, wine bottles, cosmetics bottles and so on.
Economical , Simple to operate.
Direction for use
1.We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
2.We will send the instruction book to you to let you install the machine. You can talk with our engineer by video chat or we will send the engineers overseas to help you.
WATON Machinery designs the most suitable machine models according to the special requirements of customers, suitable for PET containers from 200ml~20L, including package for water, Carbonated Soft Drink, juice, milk, edible oil, beer, solid food, cosmetics, pharmaceuticals, etc.
Detailed Images

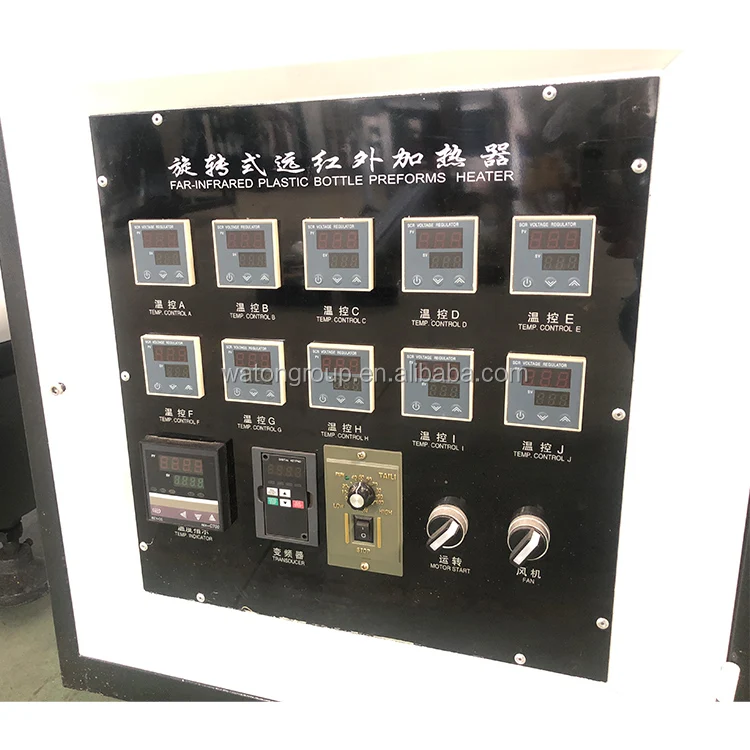

Infrared Preform Oven:

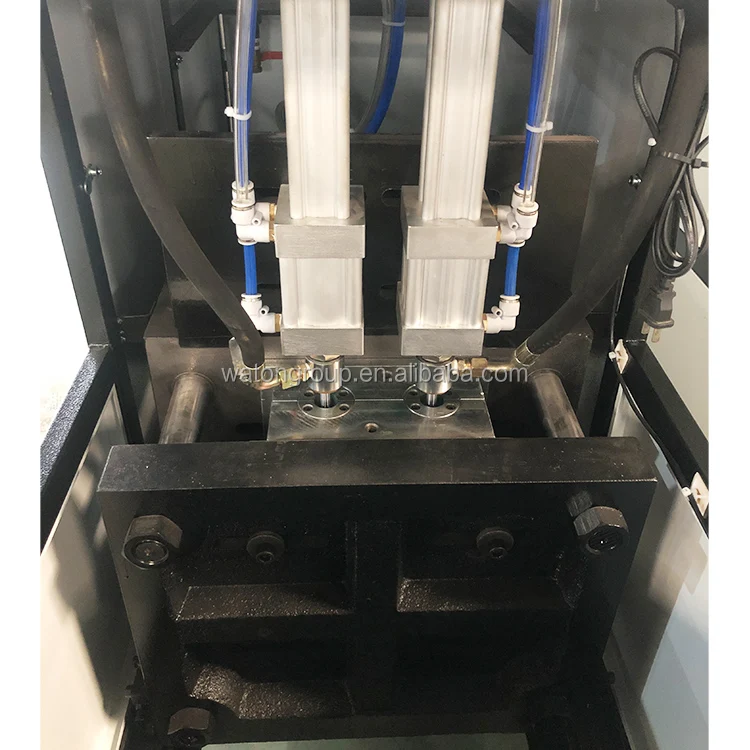

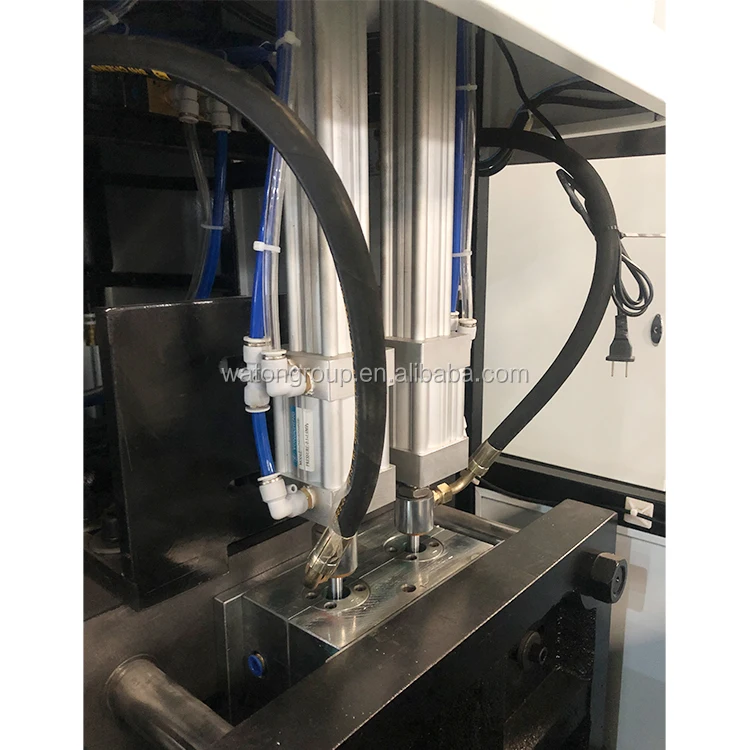

Heat the PET preform to suitable soft condition for blowing; Blower: do the whole bottle blowing process,including sealing,
stretching, blowing, exhausting and blow mold’s moving, which is controlled by advanced PLC control system.
stretching, blowing, exhausting and blow mold’s moving, which is controlled by advanced PLC control system.
Patent Blow Air Heating System & Pre-blow Function
Plays important role for producing high quality bottles, eliminate bottle whiten appearance.
Size Information
Models | MS-2L | MS-2L4 | MS-5L-1 | MS-5L-2 | MS-20L | ||
Theoretical Capacity(BPH) | 800-1,000 | 1,400-2,000 | 350-400 | 700-800 | 60-240 | ||
Mold Cavities | 2 | 4 | 1 | 2 | 1 | ||
Bottle | Max.Neck Size | 100mm | 100mm | 100mm | 100mm | 100mm | |
Max.Volume | 2000ml | 2000ml | 5000ml | 5000ml | 20000ml | ||
Max.Diameter | 105mm | 105mm | 180mm | 180mm | 280mm | ||
Max.Height | 330mm | 330mm | 350mm | 350mm | 500mm | ||
Main Machine Size | 1680*950*1980mm | 1 main machine | 1900*650*1580mm | 1900*800*1580mm | 2500*800*1900mm | ||
Heater Size | 1650*700*1700mm | 1 heater | 2100*600*1350mm | 2100*600*1350mm | 2600*700*1580mm | ||
Main Machine Weight | 1500KGS | 2500KGS | 1700KGS | 1700KGS | 2400KGS | ||
Certifications
Packing&Shipping
Standard package is foam film and wrap film, which is safe for export transportation, without worry about fumigation.
After Sales Service
after-sales service we offer
1.Your inquiry related to our product & price will be replied within 72 hours.
2.Well-trained & experienced staff will answer all your inquiries in English and Chinese.
3.Working time: 8:30am ~5:30pm, Monday to Saturday.
4.Your business relationship with us will be confidential to any third party.
5.Good after-sales service offered, please get back to us if you got any questions.
2.Well-trained & experienced staff will answer all your inquiries in English and Chinese.
3.Working time: 8:30am ~5:30pm, Monday to Saturday.
4.Your business relationship with us will be confidential to any third party.
5.Good after-sales service offered, please get back to us if you got any questions.
Company Introduction
WATON Machinery is a professional manufacturer of two-step linear full-electric high-speed automatic PET bottle blow molding machine, located in Taizhou City, Zhejiang Province. Our team has 20-years experience in PET stretch Blow Molding Machine manufacturing. Since establishment, we have been committed to be a trustworthy and reliable partner, providing customers with high efficiency, low energy consumption, stable operation of equipment and excellent services. Our offer service in:
√Automatic/Semi-auto Electric PET Blow Molding Machine
√Turnkey solution for PET bottle production line
√In-line service for PET bottle production line & Filling line.
√Automatic/Semi-auto Electric PET Blow Molding Machine
√Turnkey solution for PET bottle production line
√In-line service for PET bottle production line & Filling line.
Our Services & Strength
1.Two years warranty, lifetime maintenance.
2.As for installation, we will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines.
3.send you two years easy broken spare parts for free together with machines, shipping together.
FAQ
Q1: Where is your factory located? How can I visit there?
A1: Our factory is located in Shangnian Industrial Area, Huang Yan, Taizhou City, Zhejiang Province, China. All our clients, from home or abroad, are warmly welcome to visit us! From Shanghai to our city, it takes 3.5hrs by train, 45mins by air.
Q2: How long is the warranty period?
A2: All of products have two years warranty.
Q3: How can I install my machine when it arrives?
A3: We will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines.
Q4: How long is the delivery time?
A4: Under normal conditions, products are delivered within 45 working days.
Q5: Where is the Shipping departure port?
A5: Ningbo or shanghai port.
Q6: What’s the payment
A6: T/T, L/C,Western Union, paypal.
Q7: What are your main brand of electrical components?
A7: Main parts in the products come from world famous manufacturers such as Mitsubishi, Schneider, Omron etc.
Q8: Which country do you export your machines already?
A8: We have exported Blow Molding Machine to USA, Canada, Australia, Mexico, Russia, Thailand, Indonesia, Vietam, Africa, the Middle Eastarea etc.
Q9. What products does your company offer by yourself?
A9: We are specialized in PET Blow Molding Machine, PET Blow Mold, hot-runner PET Preform Mold.
Q10: How about the quality of machine?
A10: WATON have been focusing on quality issues,quality control from beginning to the end ,and we will test machine strictly before packing and delivery.
A1: Our factory is located in Shangnian Industrial Area, Huang Yan, Taizhou City, Zhejiang Province, China. All our clients, from home or abroad, are warmly welcome to visit us! From Shanghai to our city, it takes 3.5hrs by train, 45mins by air.
Q2: How long is the warranty period?
A2: All of products have two years warranty.
Q3: How can I install my machine when it arrives?
A3: We will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines.
Q4: How long is the delivery time?
A4: Under normal conditions, products are delivered within 45 working days.
Q5: Where is the Shipping departure port?
A5: Ningbo or shanghai port.
Q6: What’s the payment
A6: T/T, L/C,Western Union, paypal.
Q7: What are your main brand of electrical components?
A7: Main parts in the products come from world famous manufacturers such as Mitsubishi, Schneider, Omron etc.
Q8: Which country do you export your machines already?
A8: We have exported Blow Molding Machine to USA, Canada, Australia, Mexico, Russia, Thailand, Indonesia, Vietam, Africa, the Middle Eastarea etc.
Q9. What products does your company offer by yourself?
A9: We are specialized in PET Blow Molding Machine, PET Blow Mold, hot-runner PET Preform Mold.
Q10: How about the quality of machine?
A10: WATON have been focusing on quality issues,quality control from beginning to the end ,and we will test machine strictly before packing and delivery.
