Carrier tape forming machine for SMD packaging
US $8000-$8500
Полностью автоматические биоразлагаемые одноразовые пластиковые термоформовочные машины для
- Категория: >>>
- Поставщик: Zhejiang,Xinyue,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 38080.21 $* | 39984.61 $* |
| Aug-16-2025 | 37760.37 $* | 39648.56 $* |
| Jul-16-2025 | 31680.22 $* | 33264.58 $* |
| Jun-16-2025 | 37120.16 $* | 38976.75 $* |
| May-16-2025 | 32320.85 $* | 33936.72 $* |
| Apr-16-2025 | 36480.32 $* | 38304.33 $* |
| Mar-16-2025 | 36160.51 $* | 37968.6 $* |
| Feb-16-2025 | 35840.43 $* | 37632.74 $* |
| Jan-16-2025 | 35520.48 $* | 37296.64 $* |
Характеристики

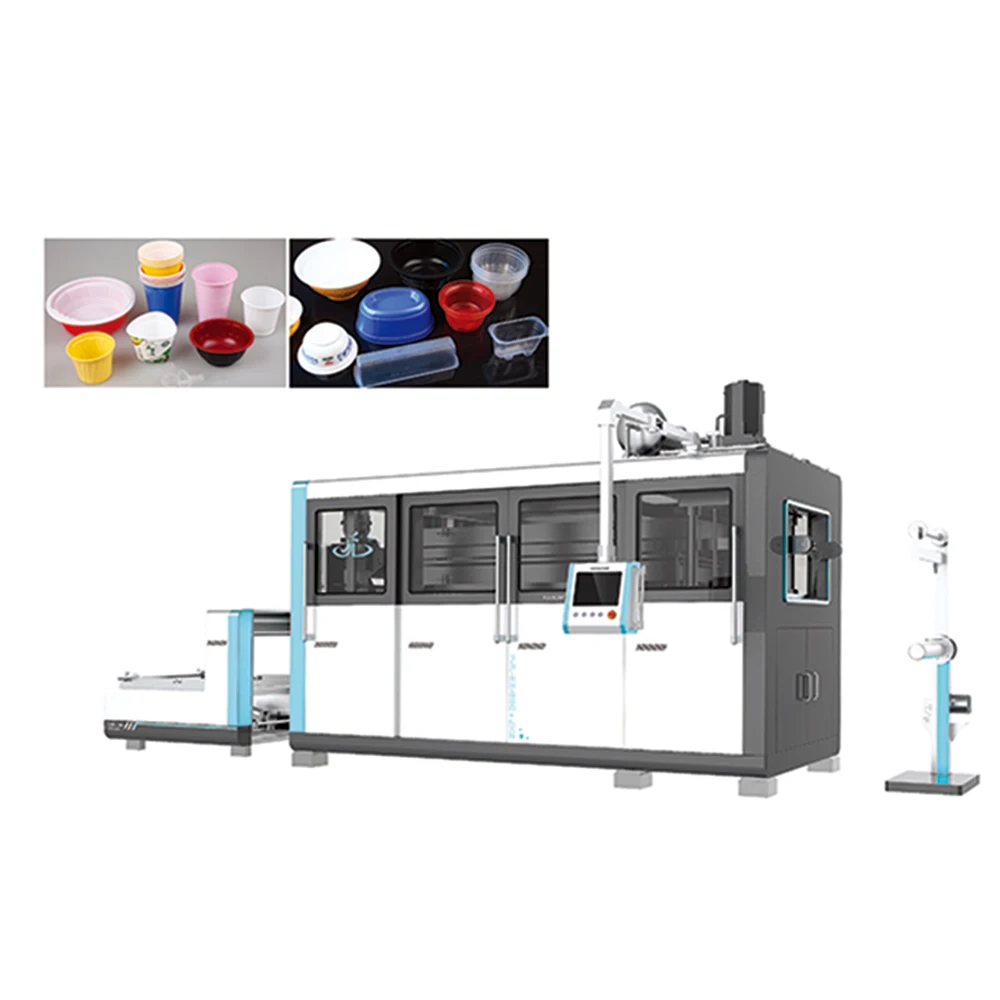

Full-automatic biodegradable disposable cup plastic thermoforming machines
Banner
Product Description
| Model | FJL-SZ-750 I | FJL-SZ-750 II | ||
| Max.Forming Area | 750×420mm | |||
| Max.No-Load Speed | 35 Cycles/min | |||
| Running Pattern | Hydraulic | |||
| Oil Pump Motor Power | 15KW(Double Pump) | |||
| Cutting Pattern | In mould automatic | |||
| Feeding Pattern | Motor With Encode | Servomotor | ||
| Stretching Pattern | Air Cylinder | Servomotor | ||
| Sheet Material | PP.PS.HIPS.PET.PVC | |||
| Sheet Thickness Range | 0.2-2mm | |||
| Max.forming Depth,Sample Height | 150mm | |||
| Max.Sheet Roll Dia | 800mm | |||
| Heater Arrangement | (152Pieces,650W)Top+Bottom Heating With IR Cerami cHeater | |||
| Temperature Controller&Thermocouple | PID K-Type | |||
| Electrical Consumption | 50KW/h | 55KW/h | ||
| Overall Power | 120KW | 130KW | ||
| Air Consumption | 2-2.5m3/min,0.6-0.8Mpa | |||
| Dimension | L4000×W1730×H2600mm | |||
| Weight(T) | 4.8T | 5T | ||
| Power Supply | 380V/50HZ Three Phase Four Wires | |||
Hot Products
Company Information
Exhibition&Customers
Packaging & Shipping
Q1:Are you a factory or trading company?
A1:We are factory.
Q2:How does your factory do regarding quality control?
A2:We have a special QC department in charge of products'quality.
Q3: How long is the warranty period?
A3: All of our machine have one year warranty.
Q4: What's the main market of your company?
A4:We have customers all over the world.Now our products have been widely used in 62 countries.
Q5:Can we visit your machine operation in your factory?
A5:Yes, we have many customers near our factory .we can take you to see the machine operation.
Q6: Where is your factory located? How can we visit there?
A6:Our factory is located in Ruian City, Zhejiang Province, China, by high speed train to Ruian station,then 20 minutes by car.or by airplane to Wenzhou airport,then 1 hour by car.we provide free pick-up service from train station and airport.
Q7: Which payment can offer?
A7: We accept 30% payment in advance, the balance payment before shipping.We also accept UC according to the order amount.We can accept the payment by TIT, Western Union, Paypal, Private Account, Escrow,Cash,and others.
Q8:How&When can I get the price?
A8: Email us your inquiry or communicate online, state your specifications(product, material, size, quantity,output etc).
We usually quote within 24 hours. Please call us or inform in your email when it is urgent, we will regard your inquiry priority.our service number is 0086-577-65572988
