Машина для производства пластин из пенополистирола
US $80000-$290000
Термоплавкий ПЭ Пенополистирол блок коробка дробилка переработка машина eps термоплавкий станок пластиковый плавкий
- Категория: Foam Machinery >>>
- Поставщик: Henan,Kellen,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.6 $* | 0.61 $* |
| Aug-17-2025 | 0.18 $* | 0.46 $* |
| Jul-17-2025 | 0.12 $* | 0.49 $* |
| Jun-17-2025 | 0.21 $* | 0.18 $* |
| May-17-2025 | 0.53 $* | 0.83 $* |
| Apr-17-2025 | 0.41 $* | 0.95 $* |
| Mar-17-2025 | 0.52 $* | 0.5 $* |
| Feb-17-2025 | 0.6 $* | 0.94 $* |
| Jan-17-2025 | 0.30 $* | 0.95 $* |
Характеристики
EPS foam cutting machine hot melt foam recycling machine
Machine introduction
Our EPS melting machine mainly for Change EPS craps into GPPS lumps, The machine Combine EPS crusher and hot heat extruder together.
This waste foam plastic hot melting machine was specifically designed to melt and extrude beads of expanded polystyrene (EPS) for waste removal purposes.
There is a hopper made of stainless steel on top of this foam plastic melting machine ,feeds the beads from a collection bag into a set of horizontally mounted heated rolls, which are used to melt the beads. By incorporating a vacuum system, the beads may be deposited directly into this foam melt machine from a foam trim, route or groove operation.
As the heated rolls revolve, the beads melt and then are scraped from each roll while in the liquid state. As this liquid foam falls into a container located under the rolls, it cools and solidifies. The transformation of EPS waste from beads to extruded sheets saves tremendous plant space and disposal costs.
Machine parameters
Model | Power | Capacity | Weight | Demension |
KLPM-220 | 15kw | 300kg/h | 250kg | 1385*480*1350mm |
KLPM-245 | 18.5kw | 400kg/h | 350kg | 1450*480*1420mm |
KLPM-320 | 22kw | 500kg/h | 450kg | 1480*500*1480mm |
KLPM-350 | 30kw | 600kg/h | 600kg | 1520*550*1550mm |
Deatails pictures
NO.1 Crescent knife crushing room
The crushing efficiency is improved, and the large pieces of foam fall directly into the main shaft barrel after crushing.
NO.2 Double heater
Two heaters are heated at the same time, the melting temperature can reach 200°C, and the melting efficiency is improved.
NO.3 Outlet head die
The machine is equipped with single-hole die head and multi-empty die head, which has fast discharge speed and high efficiency.
NO.4 Wear-resistant screw bearing
The material of the screw rod is made of high-carbon chromium bearing steel to improve the wear resistance and rust resistance of the screw, and at the same time increase the life of the screw.
NO.5 Brand pure copper motor
The motor adopts overload protection device and power protection system.

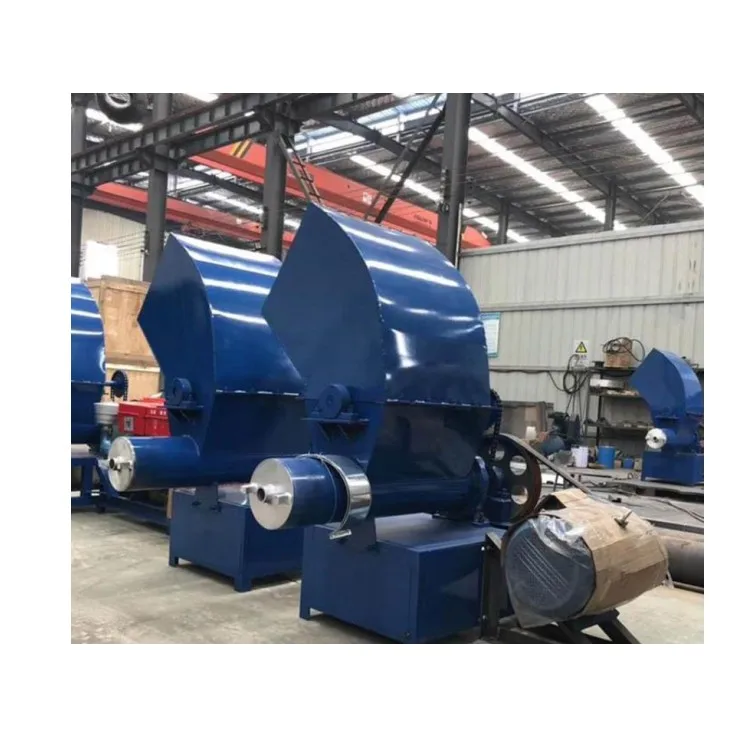

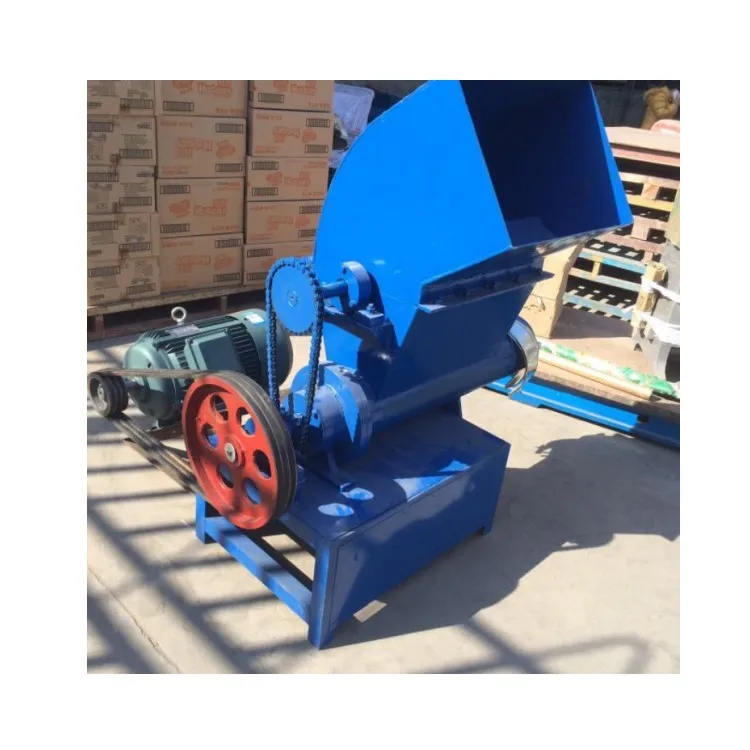

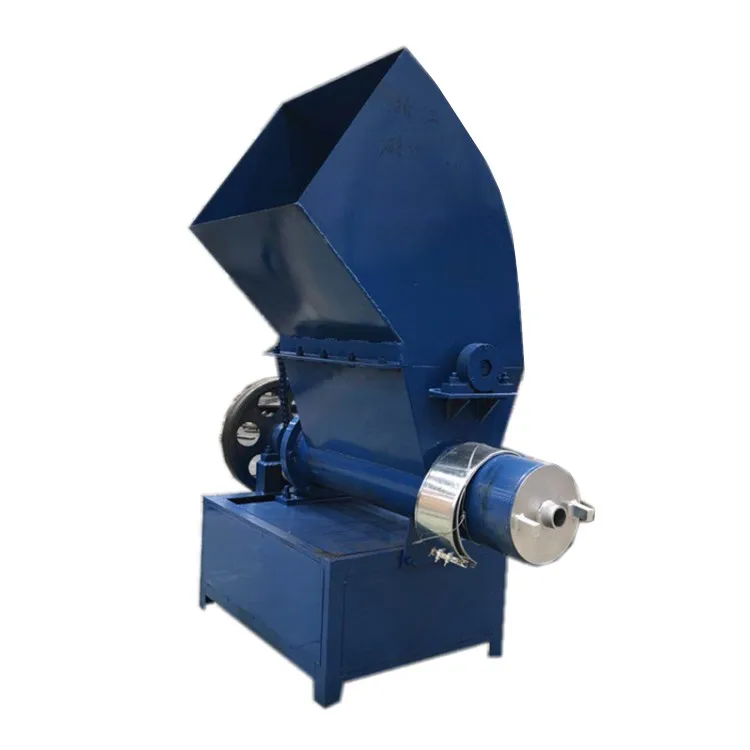

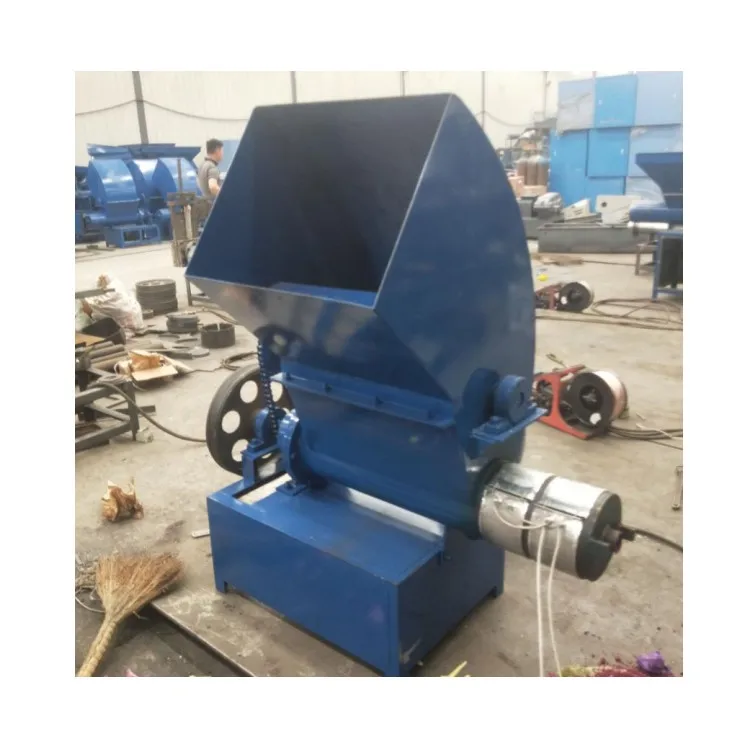

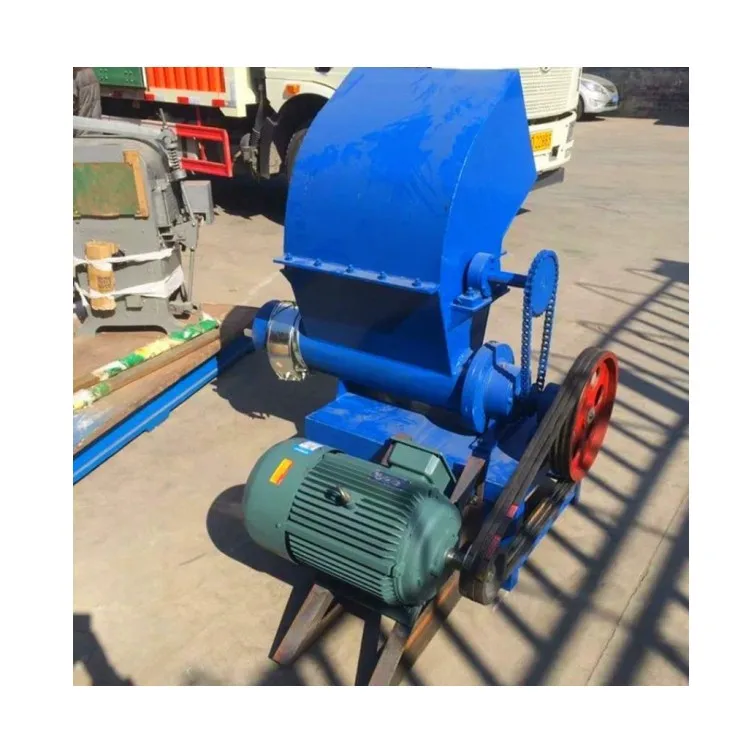

Product Display
Also can use with Gasoline or diesel engines:
We also have:

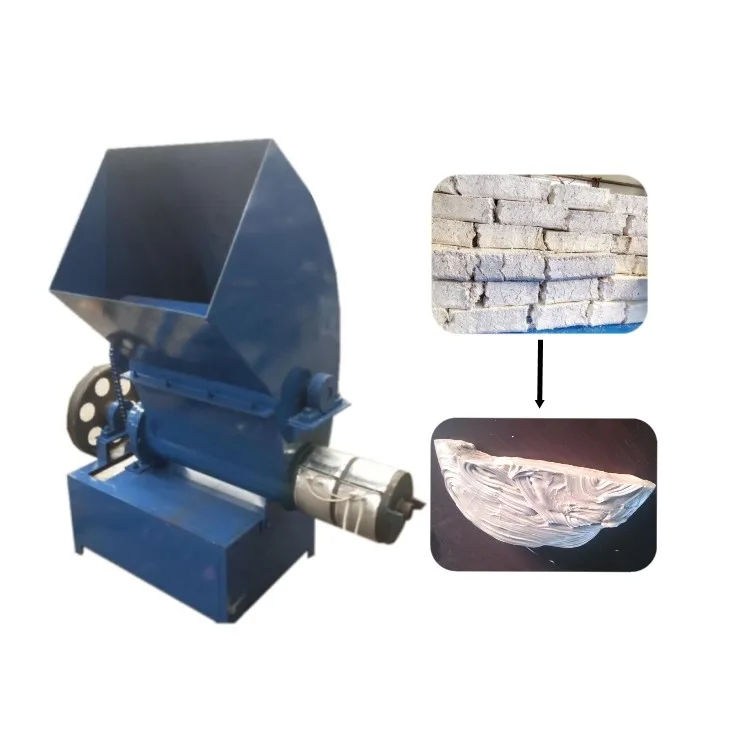

Final products:
Best Selling
Company Introduction
Why choose us?
♦ Project Design
Assist you to choose equipment, design production process flow According to the customer actual production environment and production requirements.
♦ Installation Training
Provide telephone guidance for equipment installation and debugging; or send technician to install and debug machine and trainyour workers if needed.Provide free relevant training as customer required.Long-term technical support.
♦ After-sale service
One year warranty, life-long maintenance;24 hours online for technical consulting service;Once Problems on equipment, provide phone or on-site troubleshooting fault response plan.
♦ One year warranty time
From the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be paid by buyer.
♦ Oversea service
Engineers available to service machinery overseas.
♦ Response with 24hour
We value every inquiry sent to us, ensure quick competitive offer within 24 hour.
♦ Full document
All necessary document will be provide .
♦ Payment way
We accept multiple terms of payment, such as L/C, T/T, western Union, Money Gram, AlibabaTade Asurance.
Assist you to choose equipment, design production process flow According to the customer actual production environment and production requirements.
♦ Installation Training
Provide telephone guidance for equipment installation and debugging; or send technician to install and debug machine and trainyour workers if needed.Provide free relevant training as customer required.Long-term technical support.
♦ After-sale service
One year warranty, life-long maintenance;24 hours online for technical consulting service;Once Problems on equipment, provide phone or on-site troubleshooting fault response plan.
♦ One year warranty time
From the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be paid by buyer.
♦ Oversea service
Engineers available to service machinery overseas.
♦ Response with 24hour
We value every inquiry sent to us, ensure quick competitive offer within 24 hour.
♦ Full document
All necessary document will be provide .
♦ Payment way
We accept multiple terms of payment, such as L/C, T/T, western Union, Money Gram, AlibabaTade Asurance.
