Автоматический Одноцветный Термопринтер для печати на
- Категория: Flexographic Printers >>>
- Поставщик: Suzhou,Deedo,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 19992.19 $* | 20992.62 $* |
| Aug-16-2025 | 19824.99 $* | 20815.2 $* |
| Jul-16-2025 | 16632.93 $* | 17464.82 $* |
| Jun-16-2025 | 19488.17 $* | 20462.59 $* |
| May-16-2025 | 16968.53 $* | 17816.78 $* |
| Apr-16-2025 | 19152.91 $* | 20110.31 $* |
| Mar-16-2025 | 18984.28 $* | 19933.1 $* |
| Feb-16-2025 | 18816.19 $* | 19757.20 $* |
| Jan-16-2025 | 18648.34 $* | 19580.17 $* |
Характеристики
Products Description
1.The main motor adopts imported converter to govern in a steep less way .
2.Feeding and discharging are controlled through magnetic powder brake and clutch.
3.Unhindered system is controlled by auto rectify sensor.
4.Adopt ceramic mesh distributor roller, which is characterized by durability , wear resistance, and corrosion resistance, The doctors can be Used, which is more efficient for reducing the times for changing in order to increase the production efficiency.
2.Feeding and discharging are controlled through magnetic powder brake and clutch.
3.Unhindered system is controlled by auto rectify sensor.
4.Adopt ceramic mesh distributor roller, which is characterized by durability , wear resistance, and corrosion resistance, The doctors can be Used, which is more efficient for reducing the times for changing in order to increase the production efficiency.
5.The printing unit can register in 360degrees. Each printing unit can indepen deftly gear and loosen to have the units continue printing.
6.The printing units are all equipped with a group of infrared dryers respectively .
7.Each IR dryer device of printing unit can interchange of UV dryer device.
8.The roofing device is adopted with a group of infrared dryers respectively.
9.The inking roller can automatically fall off at stoppage and transfer at low speed in order to keep the ink from being bry and solid.
10.The roll feeding, printing, auto infrared drying. Laminating and rolling can be processed in one processing.
It is characterized by wide application, non-population of printing ink and fast drying, quick printing. So it is an ideal
printing machine for the commercial bill to print high Graded free adhesive trademark.
6.The printing units are all equipped with a group of infrared dryers respectively .
7.Each IR dryer device of printing unit can interchange of UV dryer device.
8.The roofing device is adopted with a group of infrared dryers respectively.
9.The inking roller can automatically fall off at stoppage and transfer at low speed in order to keep the ink from being bry and solid.
10.The roll feeding, printing, auto infrared drying. Laminating and rolling can be processed in one processing.
It is characterized by wide application, non-population of printing ink and fast drying, quick printing. So it is an ideal
printing machine for the commercial bill to print high Graded free adhesive trademark.
Product Paramenters
1 | Web width | 320-1600mm |
2 | 3Print width | 340-1650mm |
3 | Unwind Diameter max | 800mm |
4 | Rewind Diameter max | 550mm |
5 | Press Speed max (Production speed depending on process, job etc.) | 80-110m/min |
6 | Gear Pitch | 1/8” (3.175mm) |
7 | Flexo Print Units (IR dryer): | 4 |
8 | Min.Max repeat Print Cylinder | 7” - 13.5” (56T-108T) |
9 | Web Guiding: number | 1 |
10 | Voltage | 3 phase 380V, 50HZ |
11 | Diameter of air shafts | 76mm |
12 | Thickness of printing plate | 1.7mm |
13 | Thickness of plate mounting tape | 0.38mm |
14 | Ceramic anilox roller: number | 4 pcs, customized (200LPI-1000LPI) |
15 | Printing cylinder: number | 96T*4, varnishing roller*2, seamless cylinder*2 |
16 | Simple plate mounting machine | One |
17 | Unwinding tension controller | ZXTEC |
18 | Rewinding tension controller | ZXTEC |
19 | Temperature controller | Yuyao , Zhejiang |
20 | Main motor | Lichao, Shanghai |
21 | Converter | Yaskawa, Japan |
22 | Button | Schneider , France |
23 | All low-tension electrical | CHINT, Wenzhou |
24 | Web guiding | 1 |

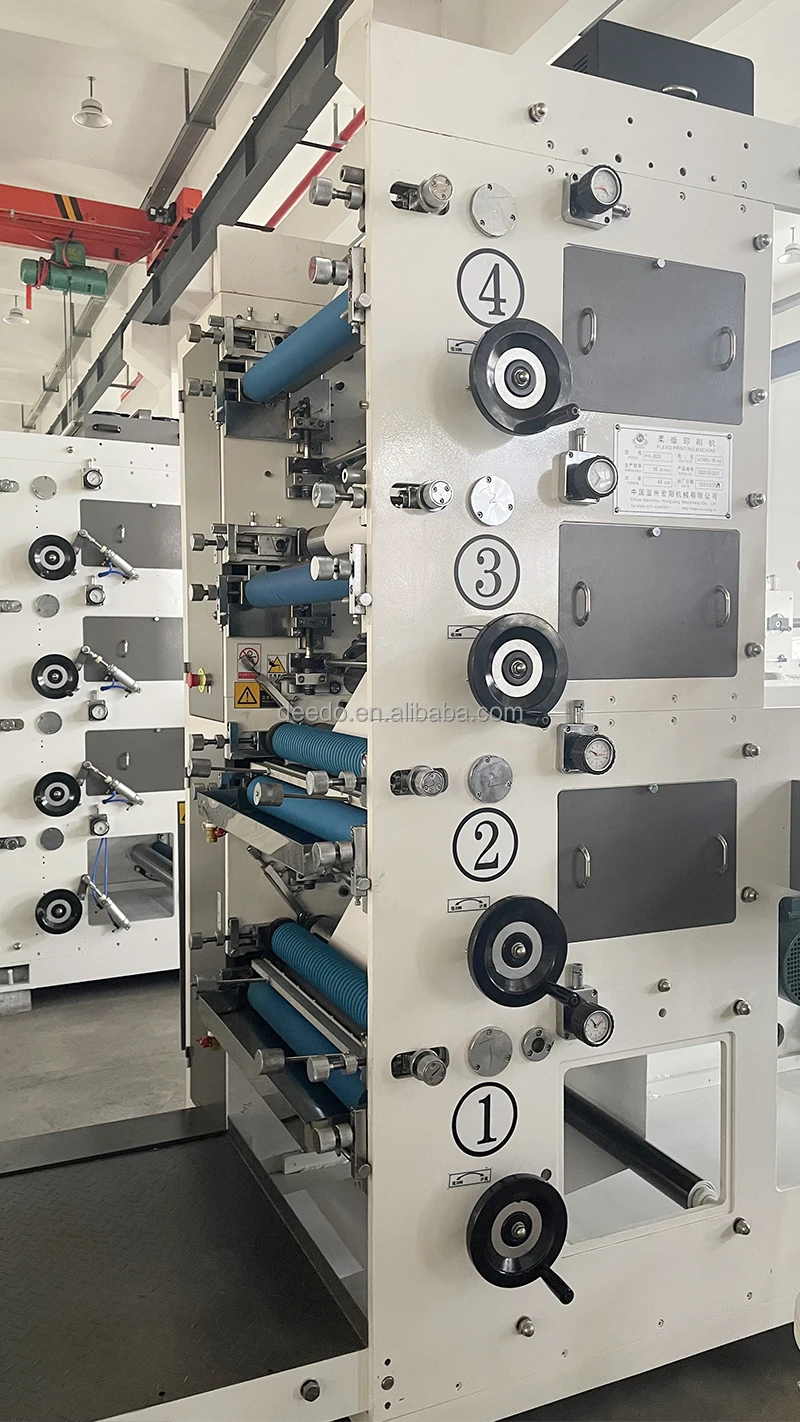

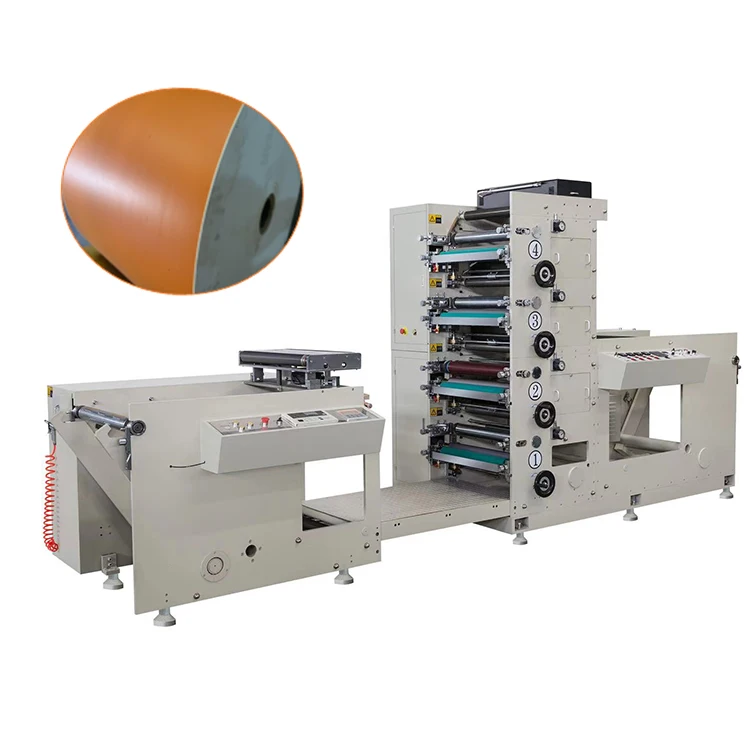

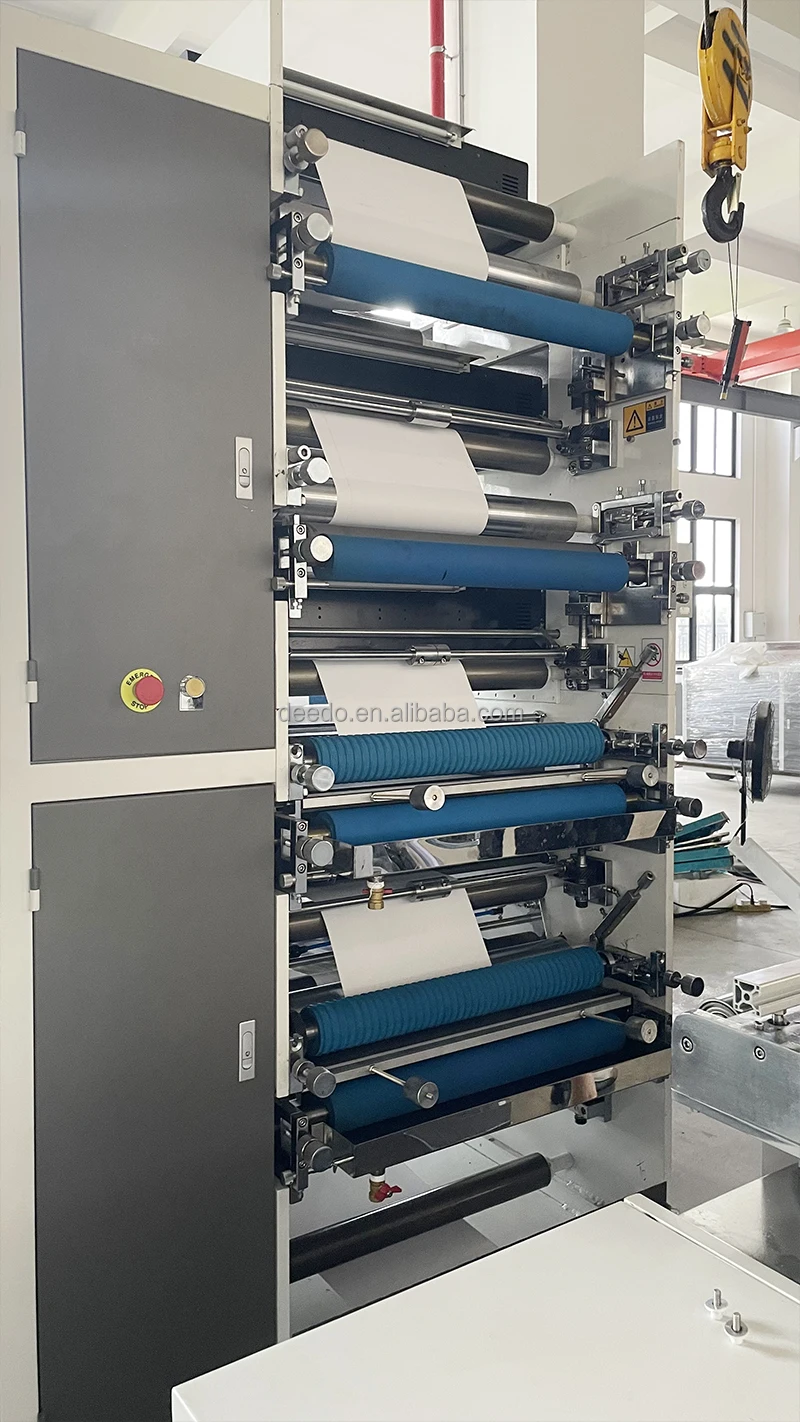

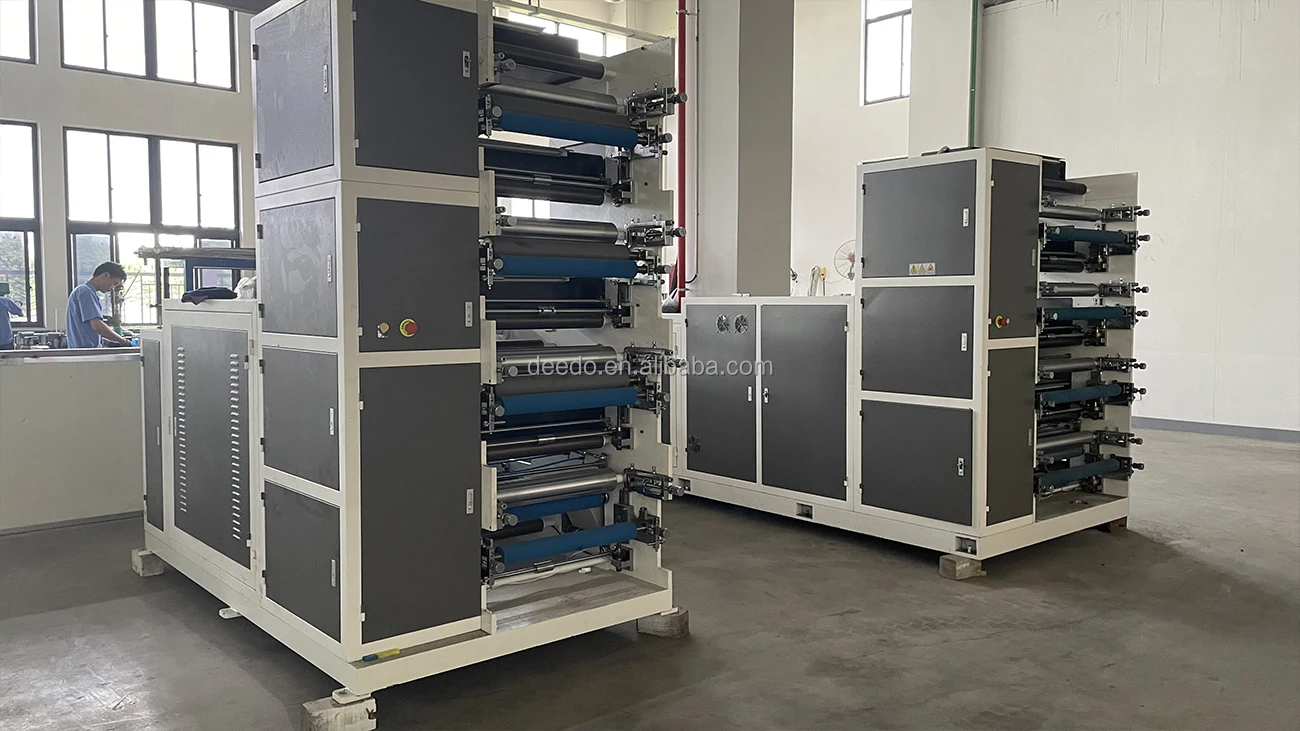

Details Images
Main Features
1. The machine can be remotely linked later, and the system software program can be updated online
2. The minimum pipe diameter can reach 3 mm.
3. Full servo control. Adopt Taiwan TECO full servo motor.
4. The cylinder is SMC. The frequency converter is from ABB, Switzerland, and the display is from Siemens, Germany.
5. Automatic paper change. It will be more simple, faster and easier to operate.
6.all motors are deployed inside the machine, easy to clean external sanitation.
7. with the simplest transmission principle, to minimize the user maintenance frequency.
8. We have two alarm system, one jem paper, the other paper broken, or other machine problem, machine will stop automatic.
9. Automatic straw machine, we have our own patented technology.
2. The minimum pipe diameter can reach 3 mm.
3. Full servo control. Adopt Taiwan TECO full servo motor.
4. The cylinder is SMC. The frequency converter is from ABB, Switzerland, and the display is from Siemens, Germany.
5. Automatic paper change. It will be more simple, faster and easier to operate.
6.all motors are deployed inside the machine, easy to clean external sanitation.
7. with the simplest transmission principle, to minimize the user maintenance frequency.
8. We have two alarm system, one jem paper, the other paper broken, or other machine problem, machine will stop automatic.
9. Automatic straw machine, we have our own patented technology.
10.The best thing we do is after-sales service. Pre-sales and after-sales personnel can be contacted at any time, and we will reply as soon as possible.
Certifications
Software patent certificate
patent certificate
Company other certificates
Final Product
Company Profile
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2014,sell to . There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Paper Straw Production Line,Slitter Machine,Packing Machine: Extrusion Machine,Recycling Machine,Packing Machine,Extrusion Machine
4. why should you buy from us not from other suppliers?
Our machines have been exported to USA, UK, Bulgaria, Turkey, Croatia, Vietnam, India, Indonesia, Mexico, Ecuador, Lithuania,Ukraine, Brazil, Poland, Egypt, Sweden, Taiwan area. We have our experienced R&D team, strict quality control system and excellen.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Korean
We are based in Jiangsu, China, start from 2014,sell to . There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Paper Straw Production Line,Slitter Machine,Packing Machine: Extrusion Machine,Recycling Machine,Packing Machine,Extrusion Machine
4. why should you buy from us not from other suppliers?
Our machines have been exported to USA, UK, Bulgaria, Turkey, Croatia, Vietnam, India, Indonesia, Mexico, Ecuador, Lithuania,Ukraine, Brazil, Poland, Egypt, Sweden, Taiwan area. We have our experienced R&D team, strict quality control system and excellen.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Korean
