EPS foam cutting machine hot melt foam recycling machine

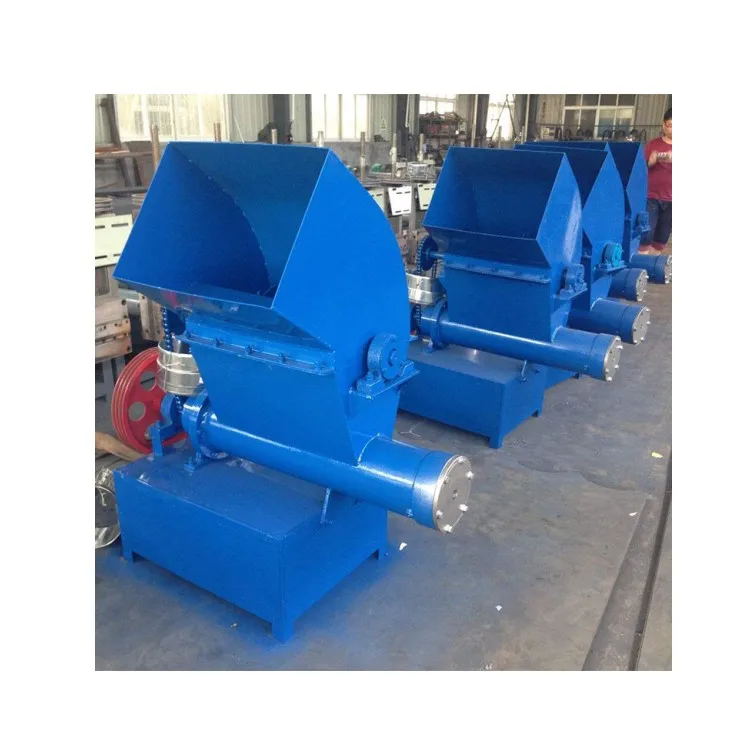

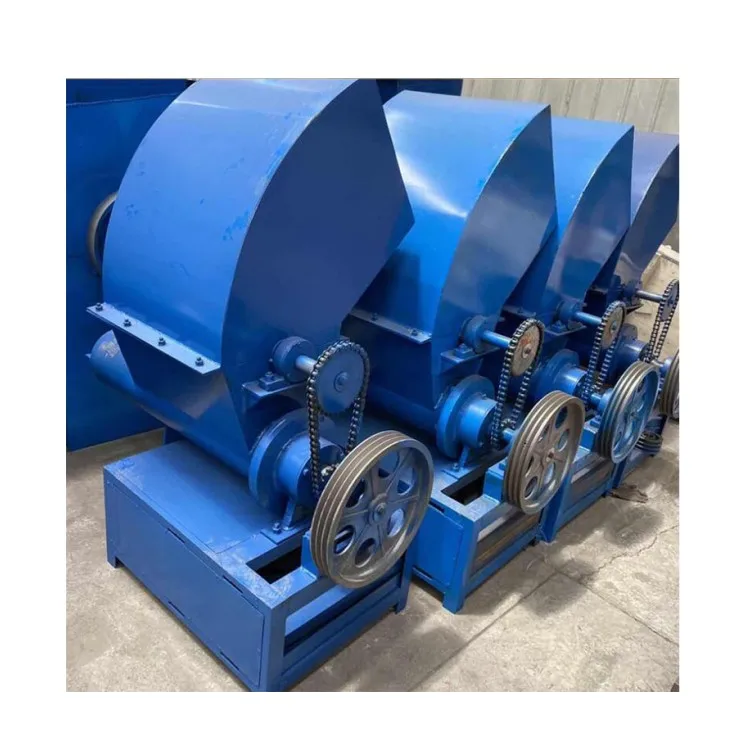

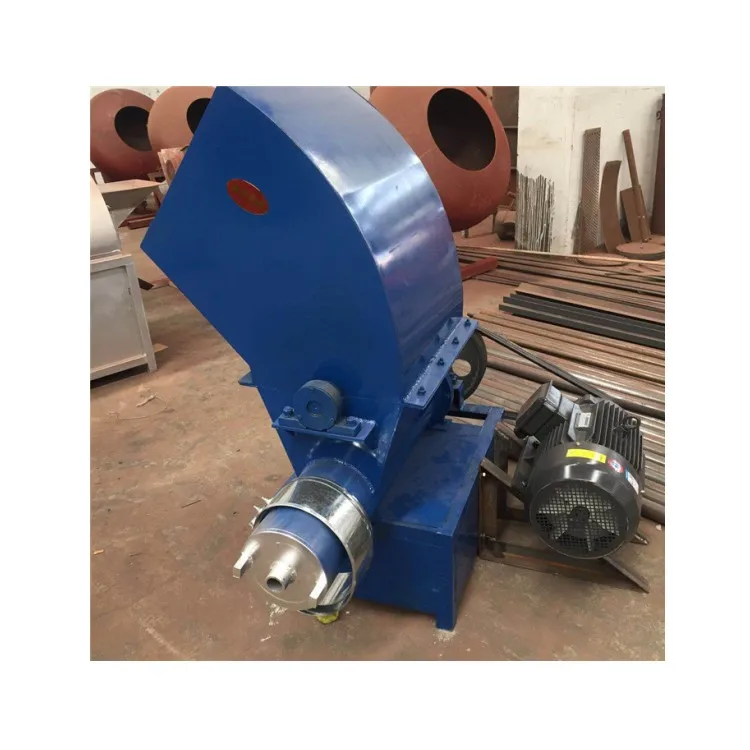

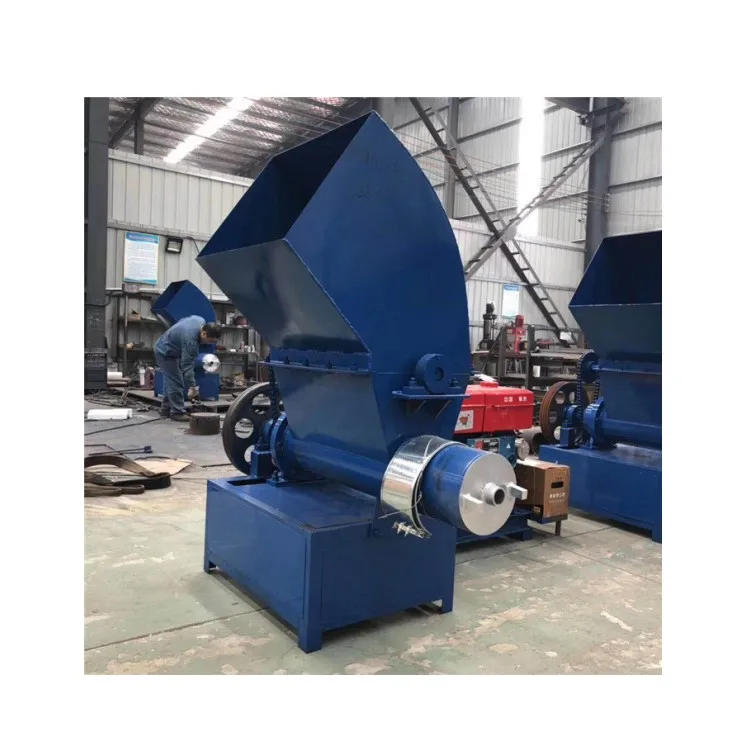

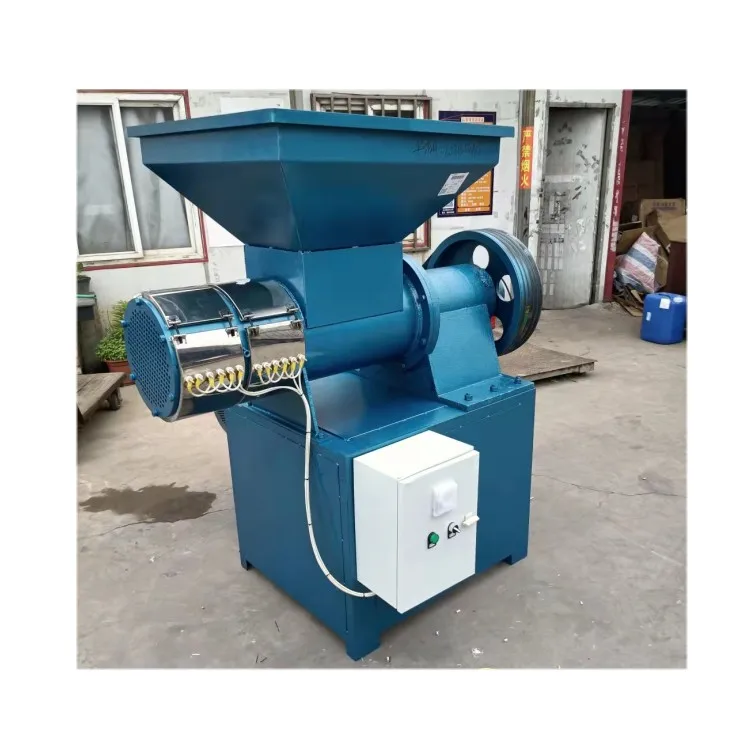

Machine introduction

Our EPS melting machine mainly for Change EPS craps into GPPS lumps, The machine Combine EPS crusher and hot heat extruder together.

This waste foam plastic hot melting machine was specifically designed to melt and extrude beads of expanded polystyrene (EPS) for waste removal purposes.

There is a hopper made of stainless steel on top of this foam plastic melting machine ,feeds the beads from a collection bag into a set of horizontally mounted heated rolls, which are used to melt the beads. By incorporating a vacuum system, the beads may be deposited directly into this foam melt machine from a foam trim, route or groove operation.

As the heated rolls revolve, the beads melt and then are scraped from each roll while in the liquid state. As this liquid foam falls into a container located under the rolls, it cools and solidifies. The transformation of EPS waste from beads to extruded sheets saves tremendous plant space and disposal costs.

Machine parameters

Model	Power	Capacity	Weight	Demension
KLPM-220	15kw	300kg/h	250kg	13854801350mm
KLPM-245	18.5kw	400kg/h	350kg	14504801420mm
KLPM-320	22kw	500kg/h	450kg	14805001480mm
KLPM-350	30kw	600kg/h	600kg	15205501550mm

Deatails pictures

NO.1 Crescent knife crushing room

The crushing efficiency is improved, and the large pieces of foam fall directly into the main shaft barrel after crushing.

NO.2 Double heater

Two heaters are heated at the same time, the melting temperature can reach 200°C, and the melting efficiency is improved.

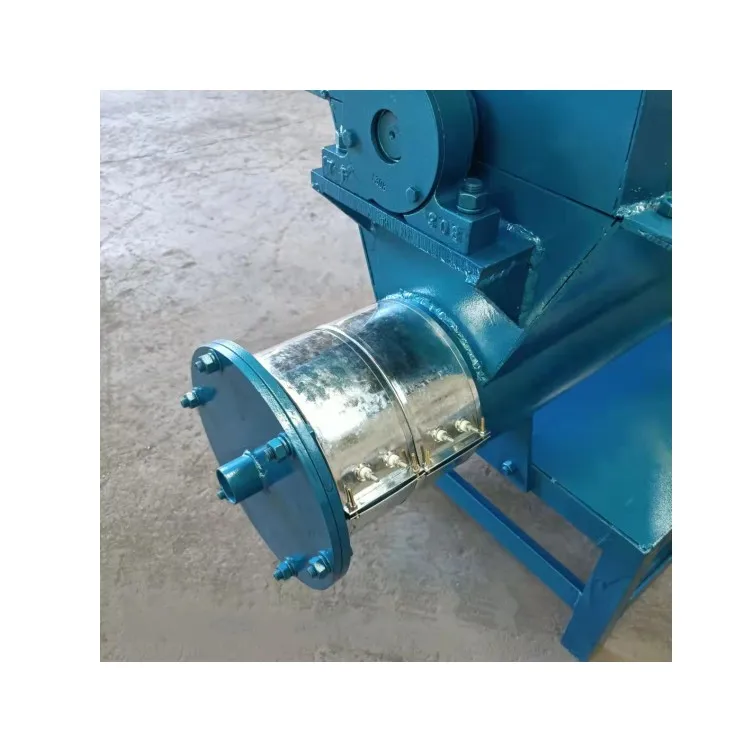

NO.3 Outlet head die

The machine is equipped with single-hole die head and multi-empty die head, which has fast discharge speed and high efficiency.

NO.4 Wear-resistant screw bearing

The material of the screw rod is made of high-carbon chromium bearing steel to improve the wear resistance and rust resistance of the screw, and at the same time increase the life of the screw.

NO.5 Brand pure copper motor

The motor adopts overload protection device and power protection system.

Product Display

Also can use with Gasoline or diesel engines:

We also have:

Final products:
