3m 3/h 5m 7m 9m бетонная машина для сухого дробовика
- Категория: Shotcrete Machine >>>
- Поставщик: Jiaxing,Long,Ray,Apparel,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.32 $* | 0.38 $* |
| Aug-17-2025 | 0.93 $* | 0.24 $* |
| Jul-17-2025 | 0.70 $* | 0.30 $* |
| Jun-17-2025 | 0.47 $* | 0.33 $* |
| May-17-2025 | 0.95 $* | 0.65 $* |
| Apr-17-2025 | 0.40 $* | 0.30 $* |
| Mar-17-2025 | 0.87 $* | 0.56 $* |
| Feb-17-2025 | 0.61 $* | 0.31 $* |
| Jan-17-2025 | 0.52 $* | 0.59 $* |
Характеристики
3/h 5m3/h 7m3/h 9m3/h concrete dry shotcrete machine for sale First-hand Factory resources, specializing in the production of factory equipment for 20 years, quality assurance, welcome factory site visit
Product Description

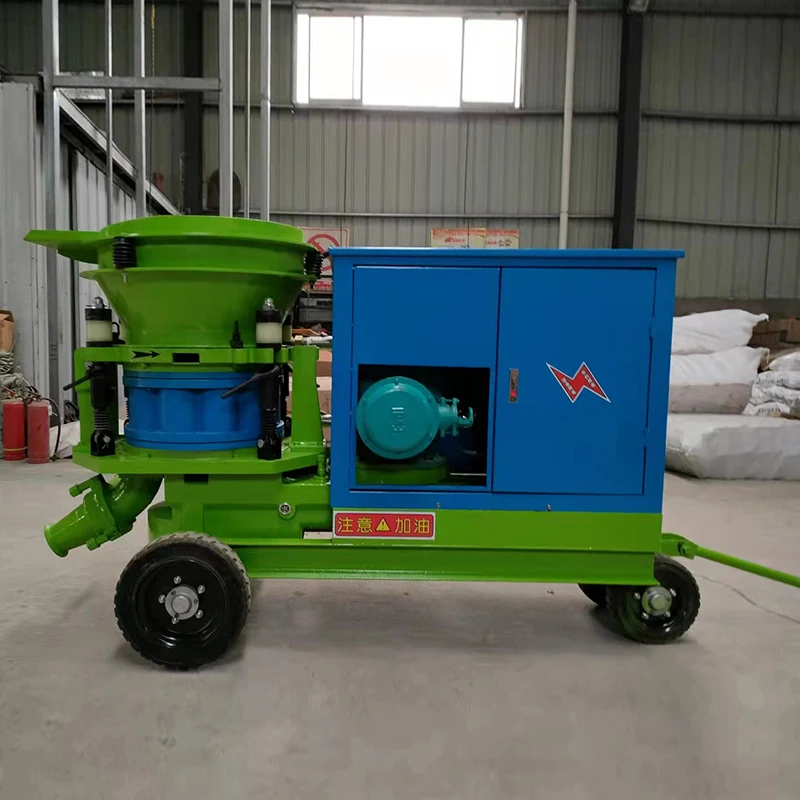

engine dry shotcrete gunning machine:
dry type shotcrete machine is dry shotcrete machine for the spraying process.
Dry shotcrete machine can be used for large-section tunnel building, mine, etc.
The dry type shotcrete machine is available in following versions:
Basic: electric drive can be combined with tyre chassis.
Extended (optional): Air motor drive or drive combined with Skid or Rail-wheel.
Technical data
engine dry shotcrete gunning machine technical data:
GZ-9D | GZ-5D | GZ-3D | |
Output Capacity | 6-9m3/h | 3-5m3/h | 2-3m3/h |
Max. Horizontal Conveying Distance | 200m | 200m | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 | ≤1:4~5 | ≤ 1:3~5 |
Max. Aggregate Size | Dia.20 mm | Dia.15 mm | Φ 10 mm |
Conveying Hose Inner Diameter | Dia.64 mm | Dia.51 mm | 38/51mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) | 0.2-0.4MPa(29-58PSI) | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 10~12m3/min(357-430CFM) | 9m3/min(325CFM) | 5~6m3/min(180-215CFM) |
Material Charging Height | 1.1m | 1.1m | 0.9m |
Rotor Speed | 7.5-11r/min | 11r/min | 9-13r/min |
Power | 20hp,2200rpm | 13kw/18hp | 10hp,2200rpm |
Overall Dimension(L× W× H) | 2.66×1.11×1.50m | 2.2×0.96×1.2m | 1.8×0.8×1.2m |
Net Weight | 950kg | 850kg | 480kg |
Product Details:
Accessories
Packaging & Shipping
Application
The shotcrete gunning machine is widely used in:
- Dry-mix shotcrete for tunnel building, hydropower engineering, mines, underground engineering, civil engineering and slope stabilization, ect
- Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface
Contact Us
In order to recommend you more suitable models shotcrete machine, please let us know clearly about your requirements:
What's the project you will use the machine do, for slope protect, or other?
Do you need dry-mix shotcrete machine or wet-mix shotcrete machine?
What's the output you need, 3m3/h, 5m3/h, 7m3/h, 9m3/h, or other?
What's the maximum particle size of the material, less than 10mm, 15mm, or 20mm?
About the engine, do you need air motor, electric motor or engine, if you like the electric motor, voltage 3 phase, 380 V, 50 HZ is ok for you?
