Working voltage

DC 24V

Working environment

－25℃－60℃

Storage temperature

－30℃－70℃

Working humidity

＜95％RH

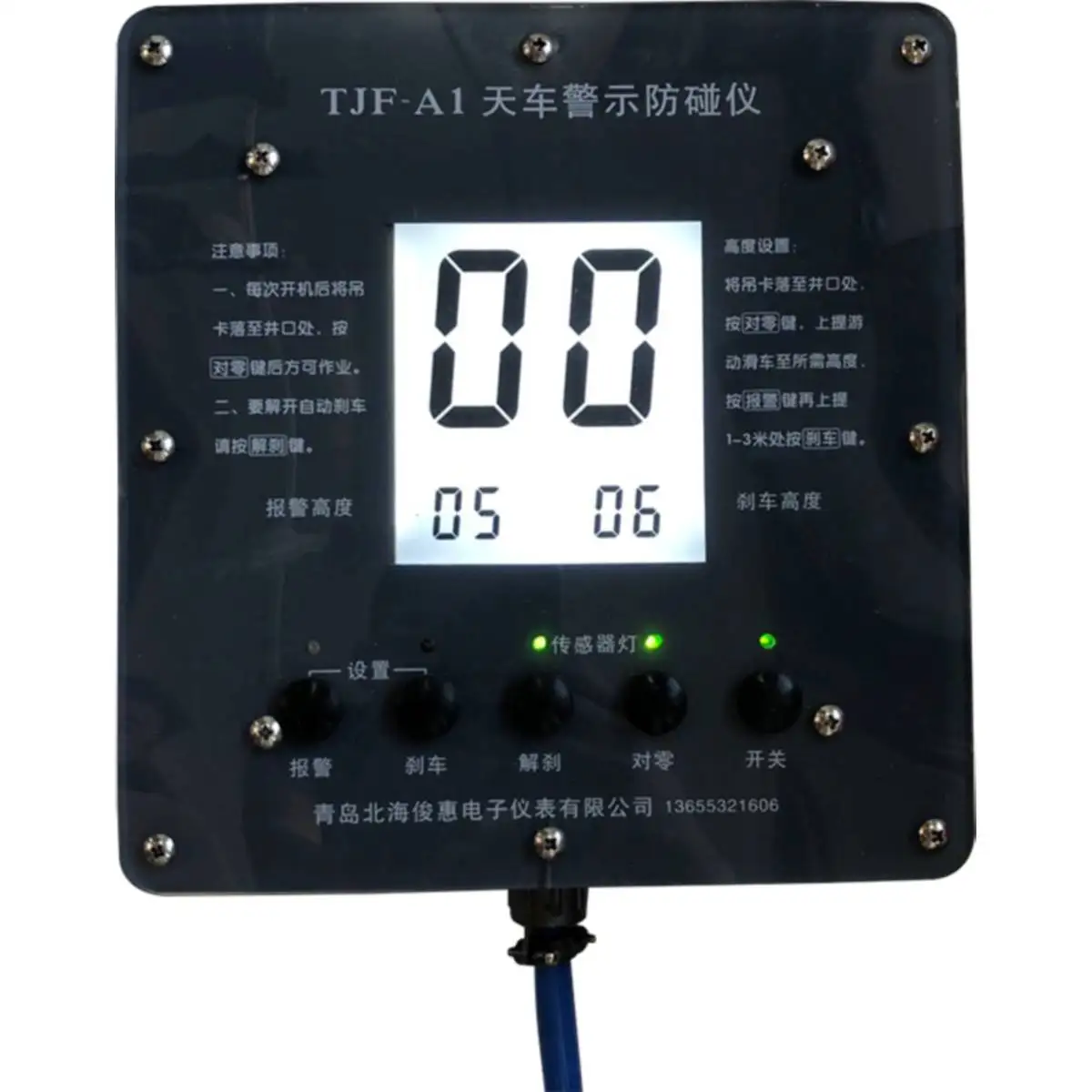

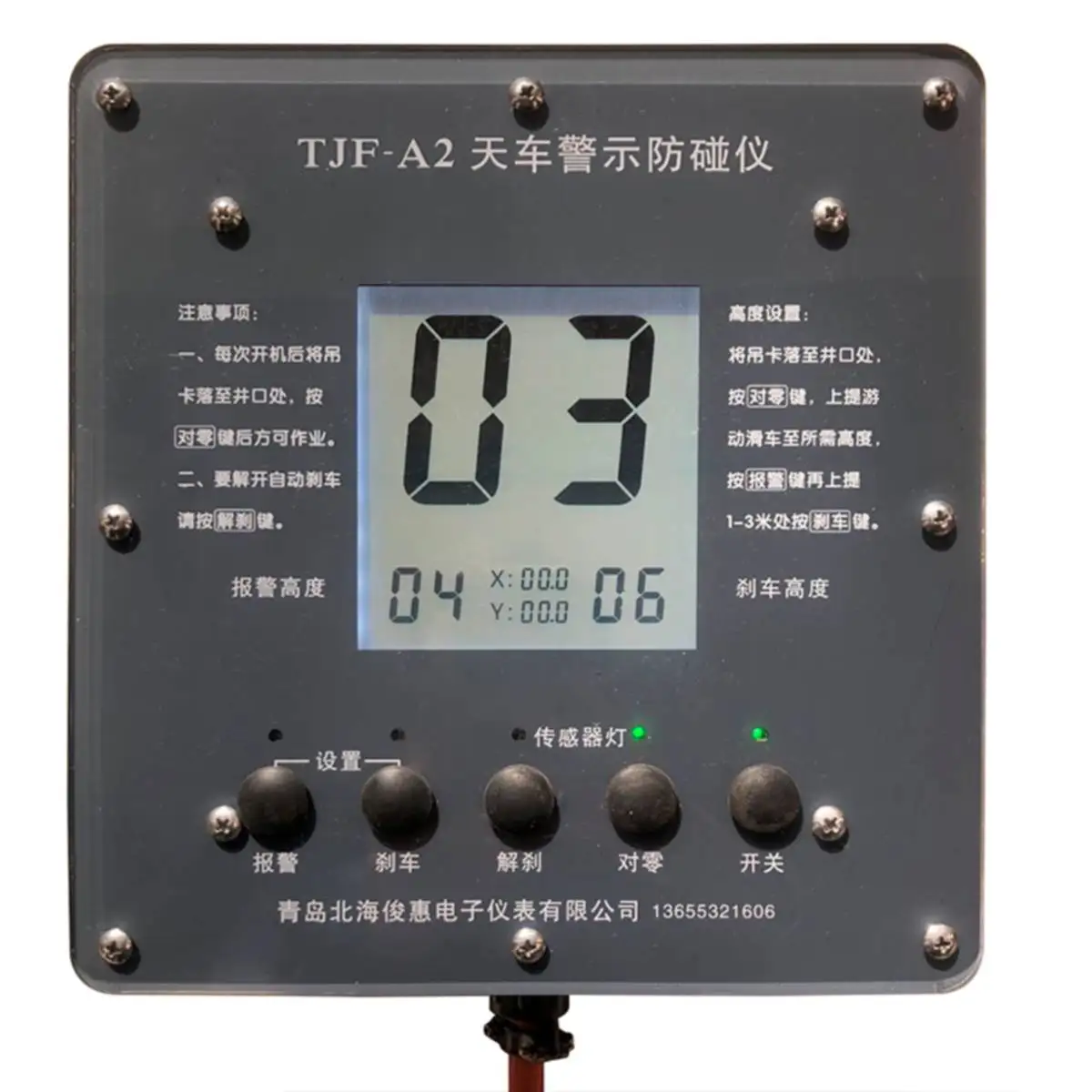

Display mode

Digital LCD

Height measurement accuracy of traveling block

0.1M

Control accuracy of traveling block

0.1M

Display range of traveling block height

-99～99M

Adjustment range of alarm and brake control points

0～99M

Alarm volume

＞110dB

Alarm error

≤0.1M

Power consumption

≤5W

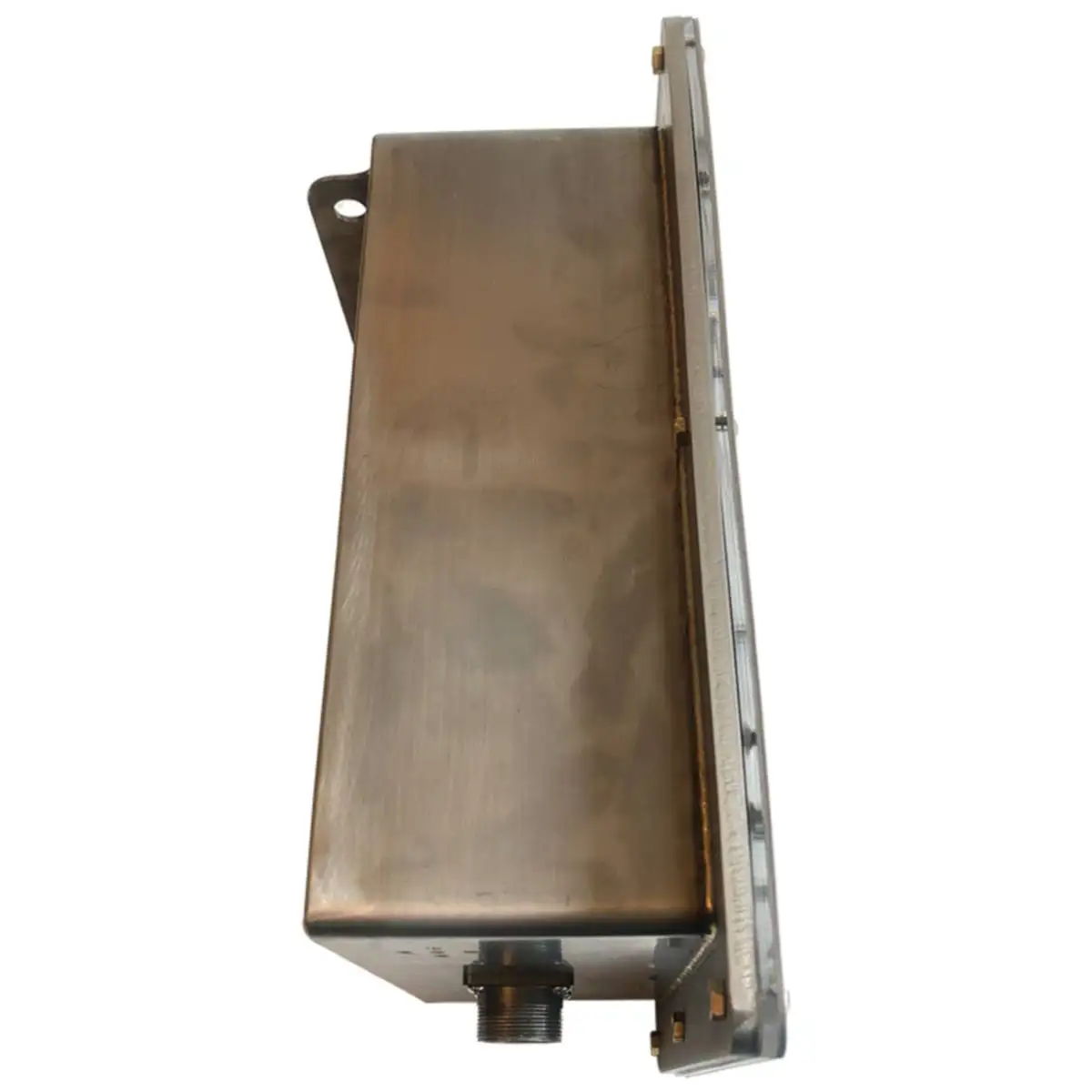

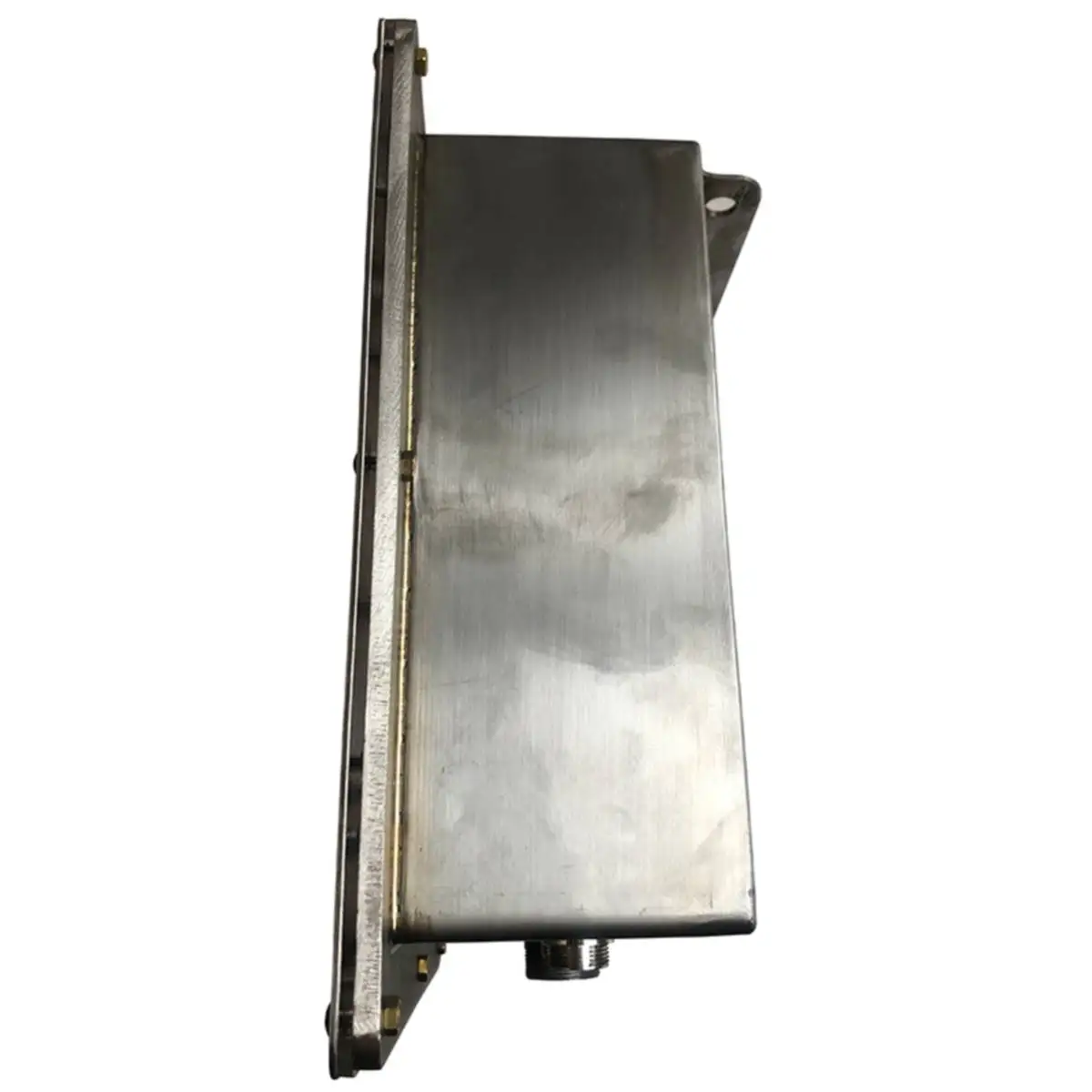

External dimensions（L×W×H）

≤270×240×120mm

Explosion proof grade

Exd Ⅱ B T4 GB class IIA, IIB, zone 1, zone 2 hazardous area, T1-T4 explosive gas environment

Protection level

IP54

Model

Functions

Application

TJF-AZ

1.Display: display real-time height, speed, load, inclination, wind speed, oil pressure and other key parameters of traveling
block and rig system.
2.Alarm: when the traveling block exceeds the alarm setting height and speed, load, inclination, wind speed, oil pressure exceeds
the settings, the Device sends out continuous sound and light alarm signals.

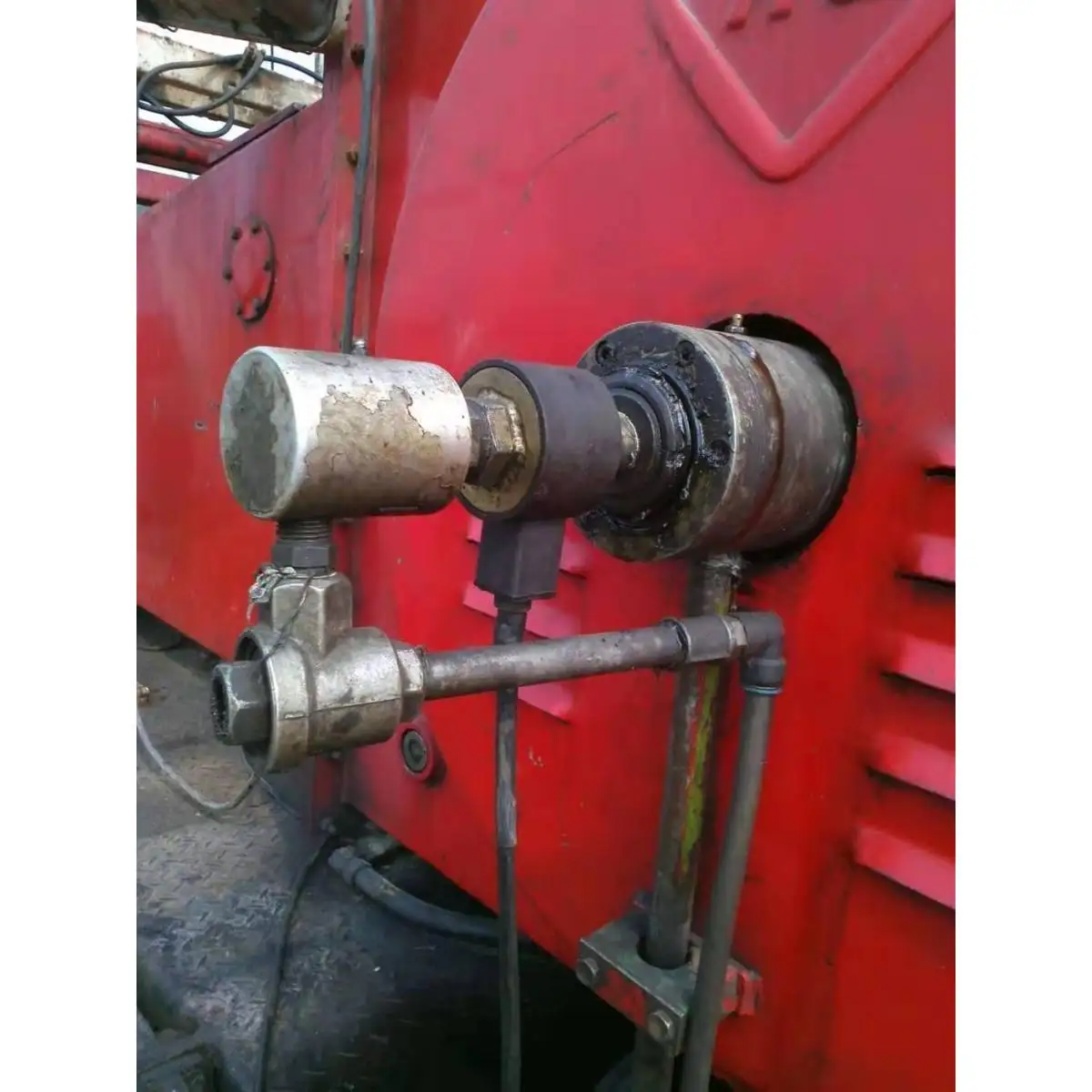

3.Automatic brake: when the traveling block exceeds the brake setting height, the solenoid valve acts to cut off the accelerator
and the cylinder clutch, the brake works, and the roller stops rotating immediately.
4.Anti smashing: when the lowering of the traveling block elevator exceeds zero point, the solenoid valve acts to cut off the
accelerator and the cylinder clutch, the brake works, and the roller stops rotating immediately to prevent smashing.
5.Deceleration and speed limit: when the traveling block goes up or down beyond the speed limit point and exceeds the set maximum
speed, the Device automatically slows it down and gives an alarm.
6.Maintenance free power storage (optional): the Device can work normally for more than 5 hours after power failure.
7.Soft landing: when the traveling block is lowered to 4 meters away from the wellhead, the Device automatically slows it down
gradually and gives an alarm, so that the elevator can fall steadily to the wellhead.
8.Automatic memory: only need to set the alarm height and brake height once, no need to reset after power failure. 9.Anti
overturning function of derrick / vehicle: display the inclination of derrick / vehicle in real time, and alarm immediately when
the inclination exceeds the set angle. The auxiliary screen can also be equipped to assist the operator in leveling.
10.Overload protection of hydraulic system: in case of overpressure of hydraulic system, the Device automatically alarms,
overflows and protects the hydraulic system and actuator.
11.Manual brake judgment: automatically judges whether manual brake is applied, and then determines the intervention time of
automatic brake.

For drilling and workover

TJF-AT

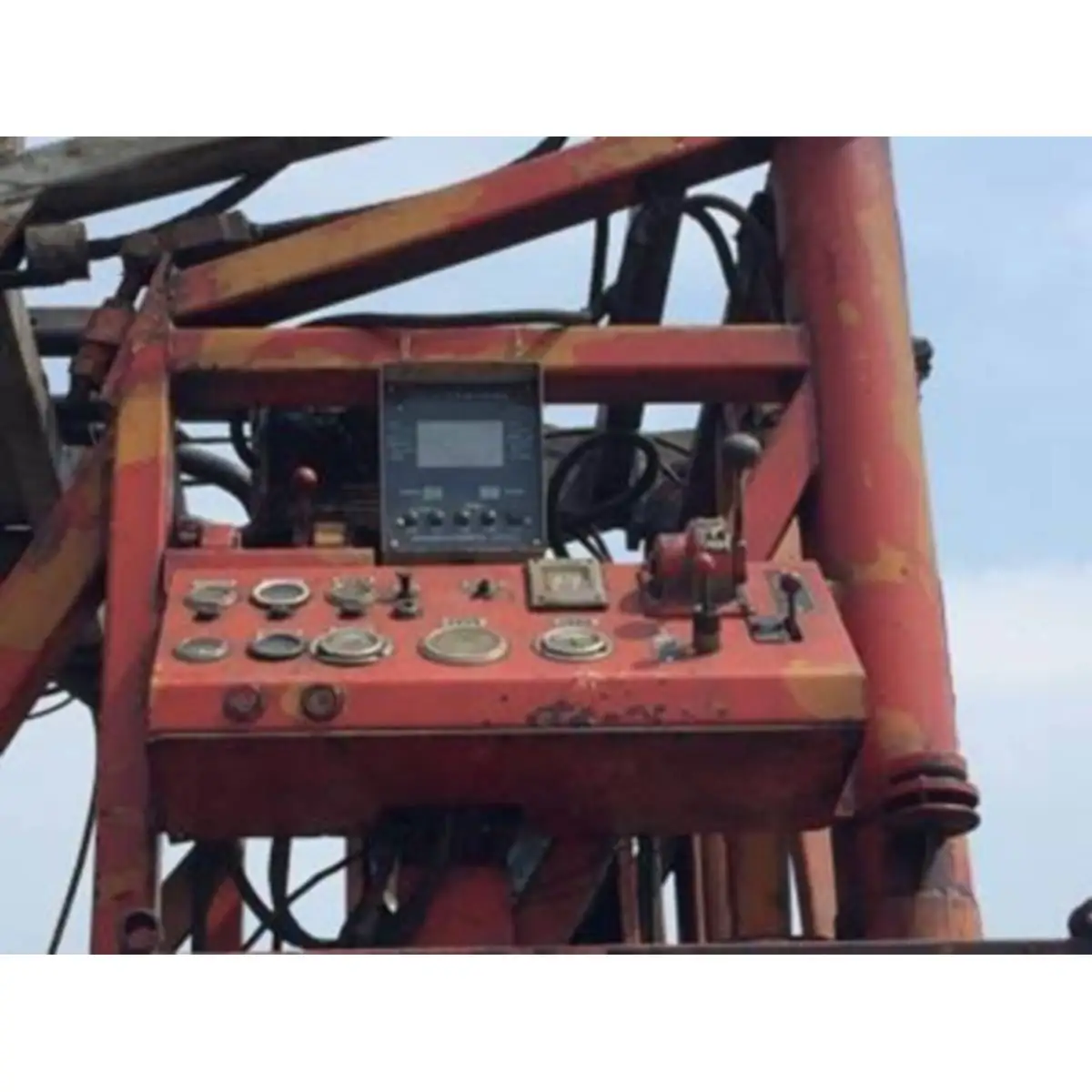

1.Display: It comprehensively displays the real-time height of traveling block, alarm setting height, brake setting height, front,
rear, left and right leveling angles, working status, alarm information, etc. the main and auxiliary displays are respectively
located on both sides of the workover rig, so as to facilitate the workover personnel to observe the leveling situation at any
time.
2.Alarm: When the traveling block exceeds the alarm setting height, and the horizontal inclination exceeds the limit, a continuous
audible and visual alarm signal will be sent out.
3.Automatic brake: when the traveling block exceeds the brake setting height, the solenoid valve acts to cut off the accelerator
and the cylinder clutch, the brake works, and the roller stops rotating immediately.
4. Real time feedback and data recording function of working status and alarm information.
All parameters and functions can be adjusted, and password permission can be set; functions can be extended, which is an important
auxiliary system to realize the safety and intelligence of workover, oil fishing, swabbing and other operation vehicles.

For drilling and workover

TJF-AF

1.Display: It comprehensively displays the real-time wind speed, height of traveling block, alarm setting height, brake setting
height, front, rear, left and right angles, working status, alarm information, etc. the main and auxiliary displays are
respectively located on both sides of the workover rig, so as to facilitate the workover personnel to observe the leveling
situation at any time.
2.Alarm: When the traveling block exceeds the alarm setting height, the wind speed exceeds the set limit, and the horizontal
inclination exceeds the limit, a continuous audible and visual alarm signal will be sent out.
3.Automatic brake: when the traveling block exceeds the brake setting height, the solenoid valve acts to cut off the accelerator
and the cylinder clutch, the brake works, and the roller stops rotating immediately.
4. Real time feedback and data recording function of working status and alarm information.
All parameters and functions can be adjusted, and password permission can be set; functions can be extended, which is an important
auxiliary system to realize the safety and intelligence of workover, oil fishing, swabbing and other operation vehicles.

For drilling and workover

TJF-AE1

1.Display: display the real-time height of traveling block, alarm setting height and brake setting height.
2.Alarm: When the alarm setting height is exceeded, a continuous audible and visual alarm signal will be sent.
3.Automatic brake: when the traveling block exceeds the brake setting height, the solenoid valve acts to cut off the accelerator
and the cylinder clutch, the brake works, and the roller stops rotating immediately.
4.Anti smashing: when the lowering of the traveling block elevator exceeds zero point, the solenoid valve acts to cut off the
accelerator and the cylinder clutch, the brake works, and the roller stops rotating immediately to prevent smashing.

For drilling and workover

TJF-AE2

1.Display: display the derrick angle, real-time height of traveling block, alarm setting height and brake setting height.
2.Anti overturning: when the derrick inclination exceeds the set angle, alarm and brake immediately.
3.Alarm of anti-collision: When the alarm setting height is exceeded, a continuous audible and visual alarm signal will be sent
out.
4.Automatic brake: when the traveling block exceeds the brake setting height, the solenoid valve acts to cut off the accelerator
and the cylinder clutch, the brake works, and the roller stops rotating immediately.
5.Deceleration: when the traveling block is lowered beyond the speed limit point and exceeds the set maximum speed, the Device
will automatically brake to decelerate and give an alarm.
6.Soft landing: when the traveling block is lowered to 4 meters away from the wellhead, the Device automatically slows it down
gradually and gives an alarm, so that the elevator can fall steadily to the wellhead.

For drilling and workover

TJF-AE3

1.Display: display the real-time height of traveling block, alarm setting height and brake setting height.
2.Alarm: When the alarm setting height is exceeded, a continuous audible and visual alarm signal will be sent.
3.Automatic brake: when the traveling block exceeds the brake setting height, the solenoid valve acts to cut off the accelerator
and the cylinder clutch, the brake works, and the roller stops rotating immediately.
4.Deceleration: when the traveling block is lowered beyond the speed limit point and exceeds the set maximum speed, the Device
will automatically brake to decelerate and give an alarm.
5.Soft landing: when the traveling block is lowered to 4 meters away from the wellhead, the Device automatically slows it down
gradually and gives an alarm, so that the elevator can fall steadily to the wellhead.

For drilling and workover

TJF-AE6

1.Display: display the real-time height of traveling block, alarm setting height and brake setting height.
2.Alarm: When the alarm setting height is exceeded, a continuous audible and visual alarm signal will be sent.
3.Automatic brake: when the traveling block exceeds the brake setting height, the solenoid valve acts to cut off the accelerator
and the cylinder clutch, the brake works, and the roller stops rotating immediately.

For tractor hoist

TJF-AE7

1.Display: display the real-time height of traveling block, alarm setting height and brake setting height.
2.Alarm: When the alarm setting height is exceeded, a continuous audible and visual alarm signal will be sent.
3.Automatic brake: when the traveling block exceeds the brake setting height, the solenoid valve acts to cut off the accelerator
and the cylinder clutch, the brake works, and the roller stops rotating immediately.

For drilling and workover

TJF-A8Z

1. Display: display the real-time height and load of swabbing rod travel, alarm setting height and brake setting height. 2.Alarm:
When the swabbing rod is lifted higher than the alarm setting height, the instrument will send out continuous sound and light
alarm signals.
3. Automatic brake: when the swabbing rod is lifted higher than the brake setting height, the solenoid valve acts to cut off the
clutch of the drum, the brake works, and the roller stops rotating immediately.

For swabbing and oil fishing

Others

TJF series comprehensive safety system of our company can also be equipped with remote transmission and monitoring, GPS
positioning, engine parameter display and alarm, hook load display of drilling rig and workover rig, hook overload protection,
hydraulic disc brake / Eaton brake / water brake / motor brake protection, load and depth display of swabbing oil truck, vehicle
leveling display, overturning accident prediction, automatic leveling and dynamic compensation of vehicle body, and other
functions according to customer's requirements. It can also be integrated with workover automation control system.
