CE CB Утвержденная 0-10V dali Затемняющая розетка NEMA 7 контактный разъем для умного
- Категория: Other Lighting Accessories >>>
- Поставщик: Wenzhou,Weituo,Precision,Mould,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 2.62 $* | 2.29 $* |
| Aug-17-2025 | 2.67 $* | 2.98 $* |
| Jul-17-2025 | 2.20 $* | 2.20 $* |
| Jun-17-2025 | 2.44 $* | 2.33 $* |
| May-17-2025 | 2.7 $* | 2.54 $* |
| Apr-17-2025 | 2.11 $* | 2.87 $* |
| Mar-17-2025 | 2.96 $* | 2.0 $* |
| Feb-17-2025 | 2.65 $* | 2.14 $* |
| Jan-17-2025 | 2.50 $* | 2.44 $* |
Характеристики
Products Description

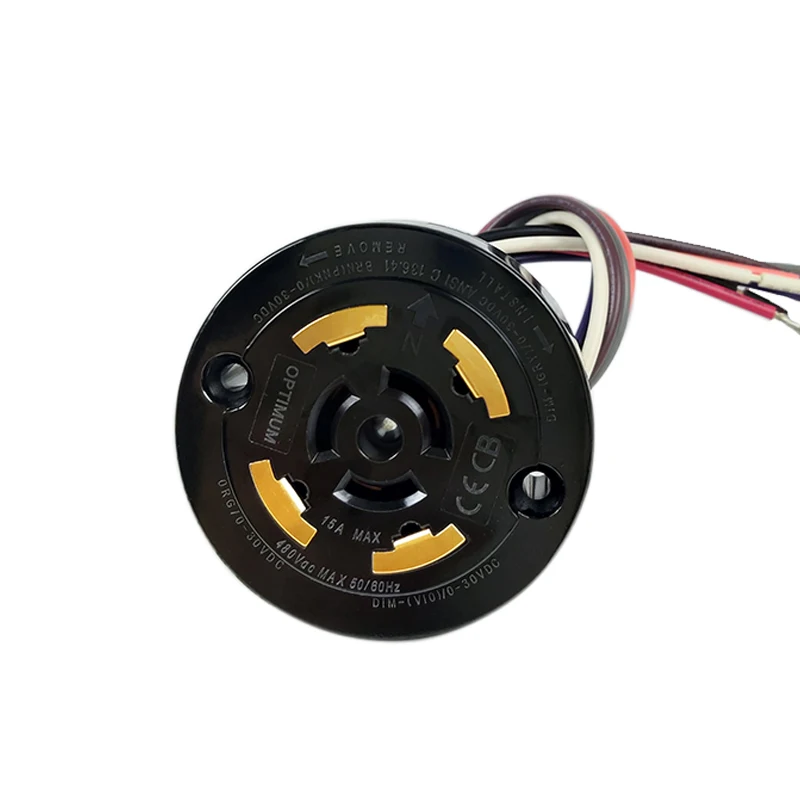

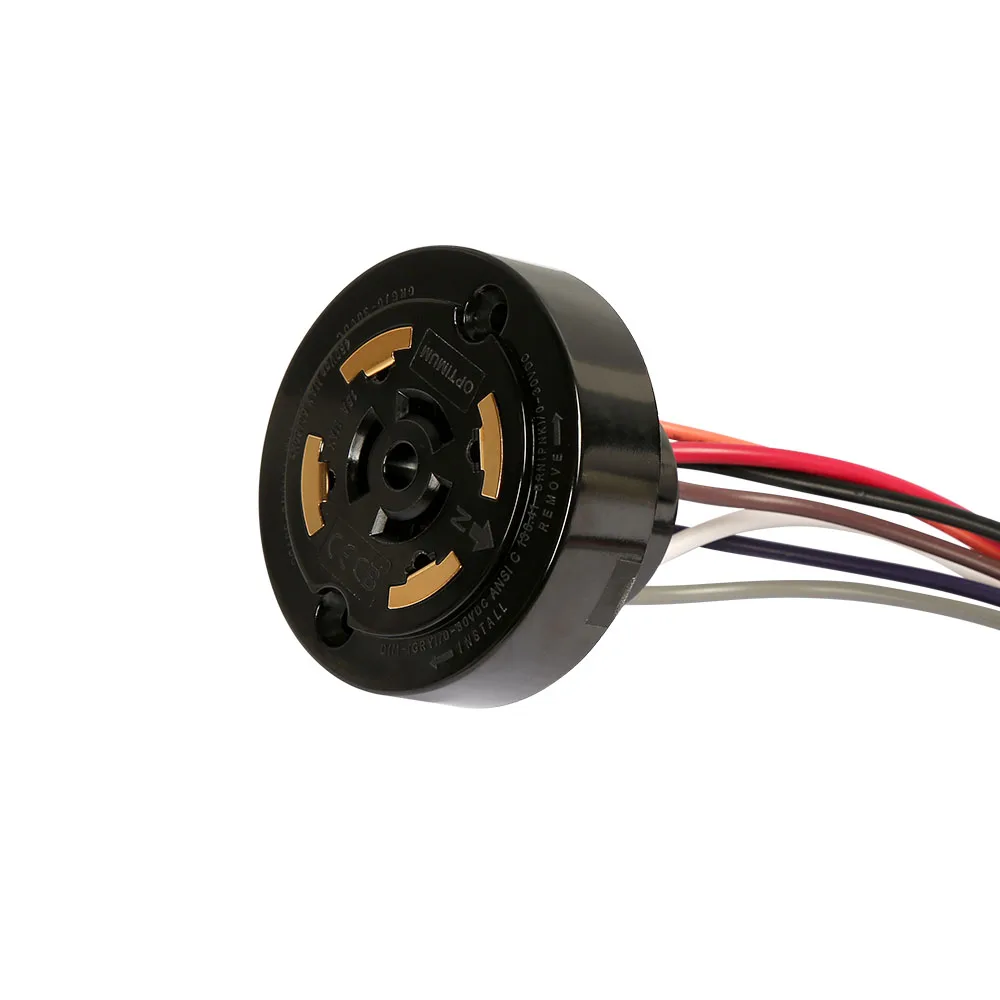

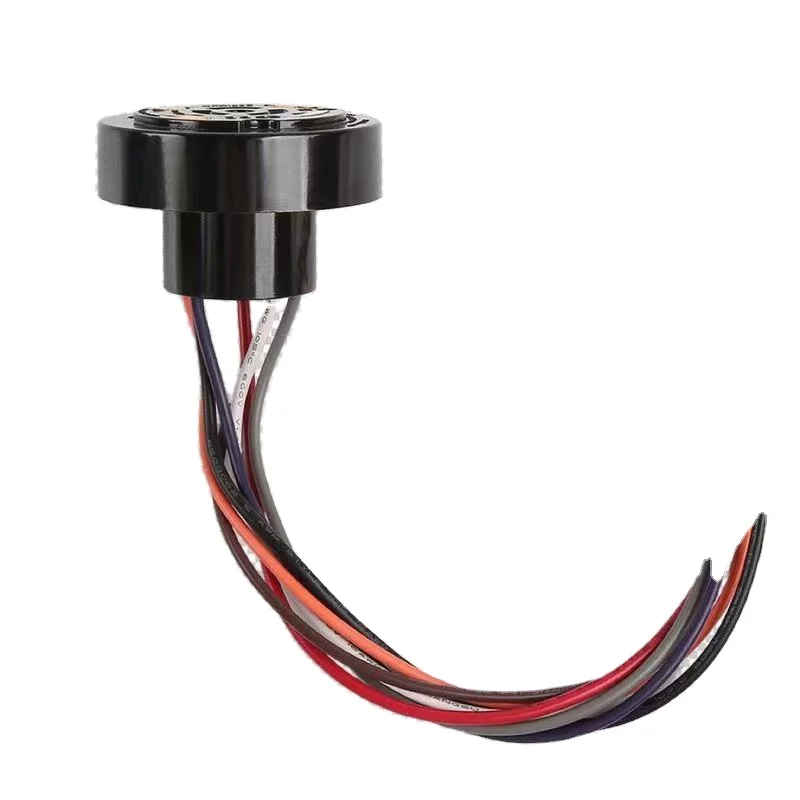

NEMA socket 7 PIN locking type Dimming receptacle
Conform to ANSI C136.41 and NEMA standard, long service life
Conform to ANSI C136.41 and NEMA standard, long service life
The ANSI C136.41 compliant dimming receptacle and spring leaf contacts provides an electrical andmechanical interconnection between an ANSIC136.41-2013 photo control cell and luminaire.Ideal for outdoor commercial and utility lighting,the ANSI C136.41 compliant dimming receptacleis available with two or four dimming contactsto support either 0-30 VDC dimming methodsor Digital Addressable Lighting Interface (DALI),while providing a reliable power interconnectwith three robust twist lock contacts.
Product Pictures
Product Specification
Standard | ANSI C136.41 & UL773 |
Frequency | 50-60 Hz |
Voltage Rating | Power Contacts: 480V Dimming Contacts: 30V |
Current Rating | Power Contacts: 15A Dimming Contacts: 0.25A |
Operating Temperature | -40℃ -70℃ |
Related Humidity | 99% |
Insulation | 2500V/60Hz/1Min |
5 Position | 3 Power contacts 4 dimming /signal contacts |
Cable | Power Line: UL1015 14AWG*30cm or 16AWG*30cm Signal Line:UL1015 18AWG*30cm |
Accessory | Silicon Gasket |
Related Products
NEMA 5 PIN dimming receptacle
The dimming receptacle consist of 2 or 4 dimming contacts
Standard: ANSI C136.41 & UL773
Standard: ANSI C136.41 & UL773
Good quality, competitive price

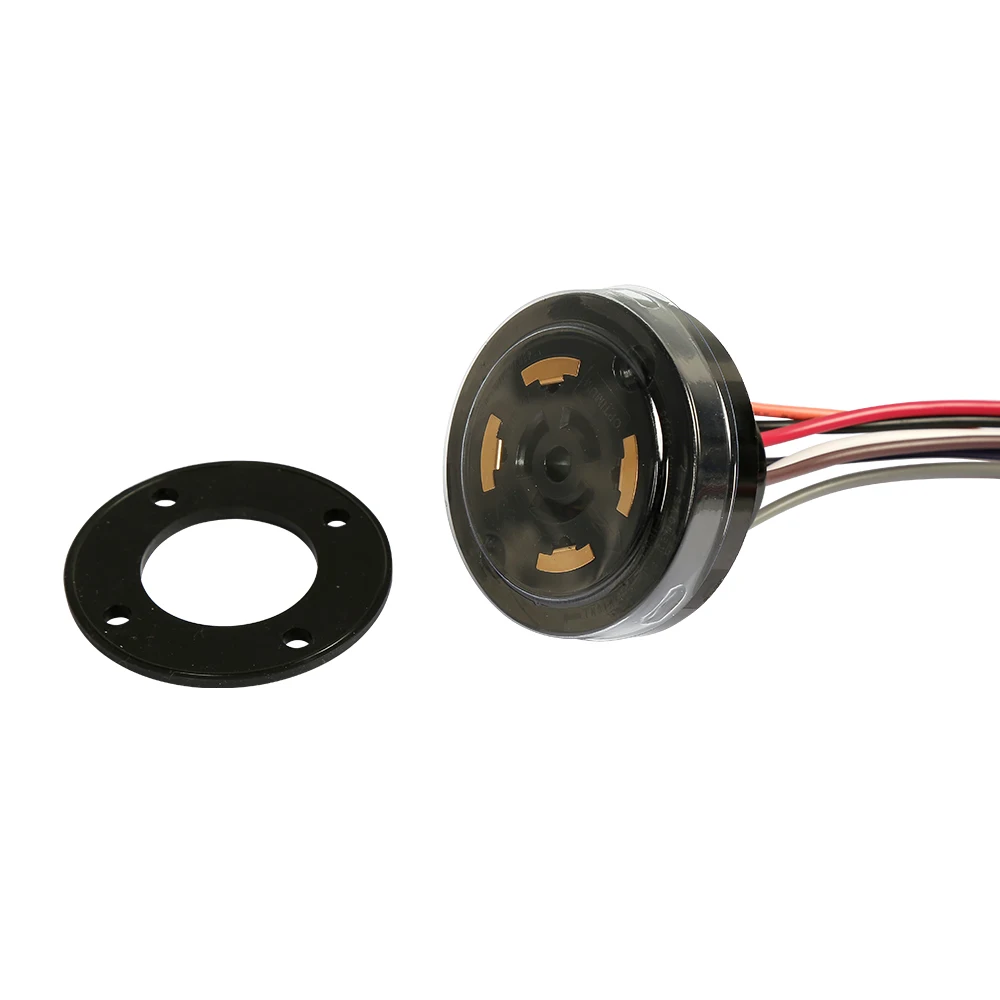

NEMA 7 PIN dimming receptacle waterproof type with bracket
Sealing sealant filled at the bottom of socket, Suitable for external installation of lamps

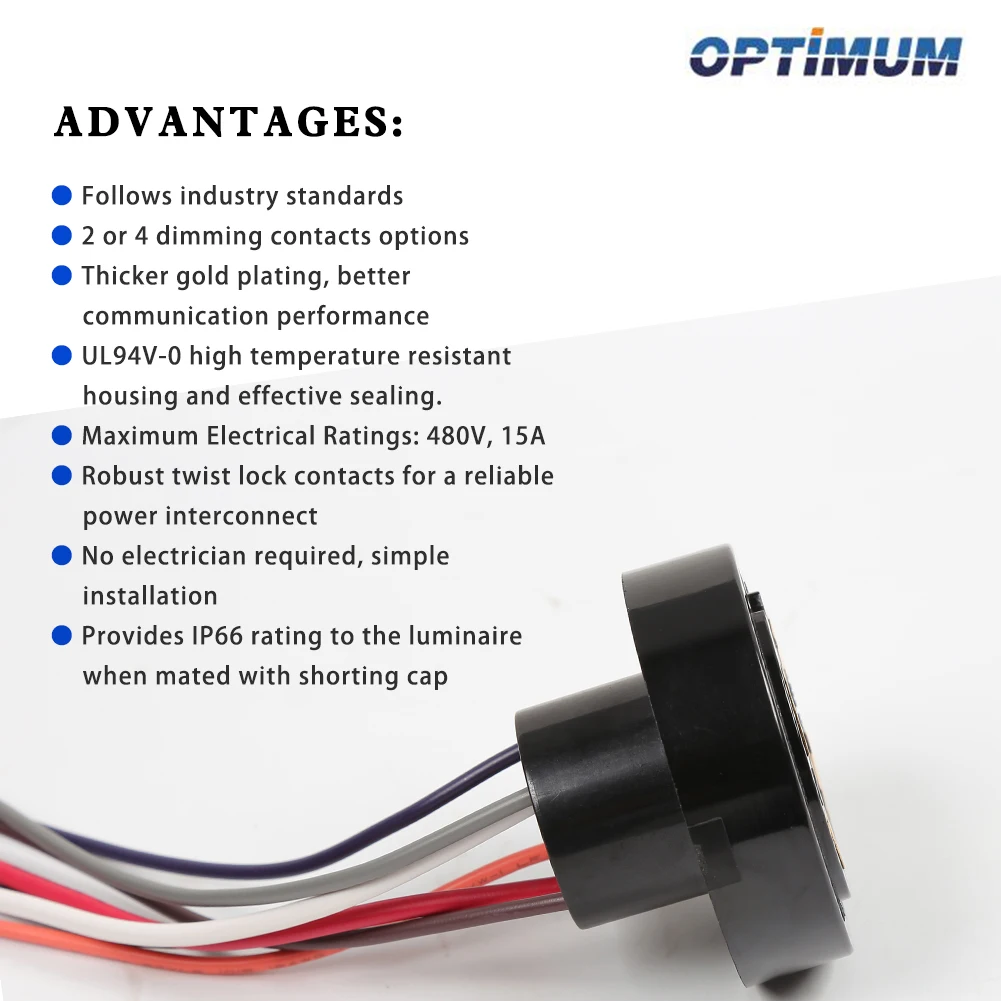

Our Advantages
