86HS11860A4 двухфазный шаговый двигатель Nema 34 cnc kit high 8.5N.m
- Категория: Stepper Motor >>>
- Поставщик: Changzhou,Jkongmotor,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 50.60 $* | 53.81 $* |
| Aug-20-2025 | 50.67 $* | 53.96 $* |
| Jul-20-2025 | 42.46 $* | 44.47 $* |
| Jun-20-2025 | 49.2 $* | 51.25 $* |
| May-20-2025 | 42.59 $* | 44.99 $* |
| Apr-20-2025 | 48.1 $* | 50.97 $* |
| Mar-20-2025 | 47.16 $* | 49.47 $* |
| Feb-20-2025 | 47.88 $* | 49.62 $* |
| Jan-20-2025 | 47.63 $* | 49.14 $* |
Характеристики

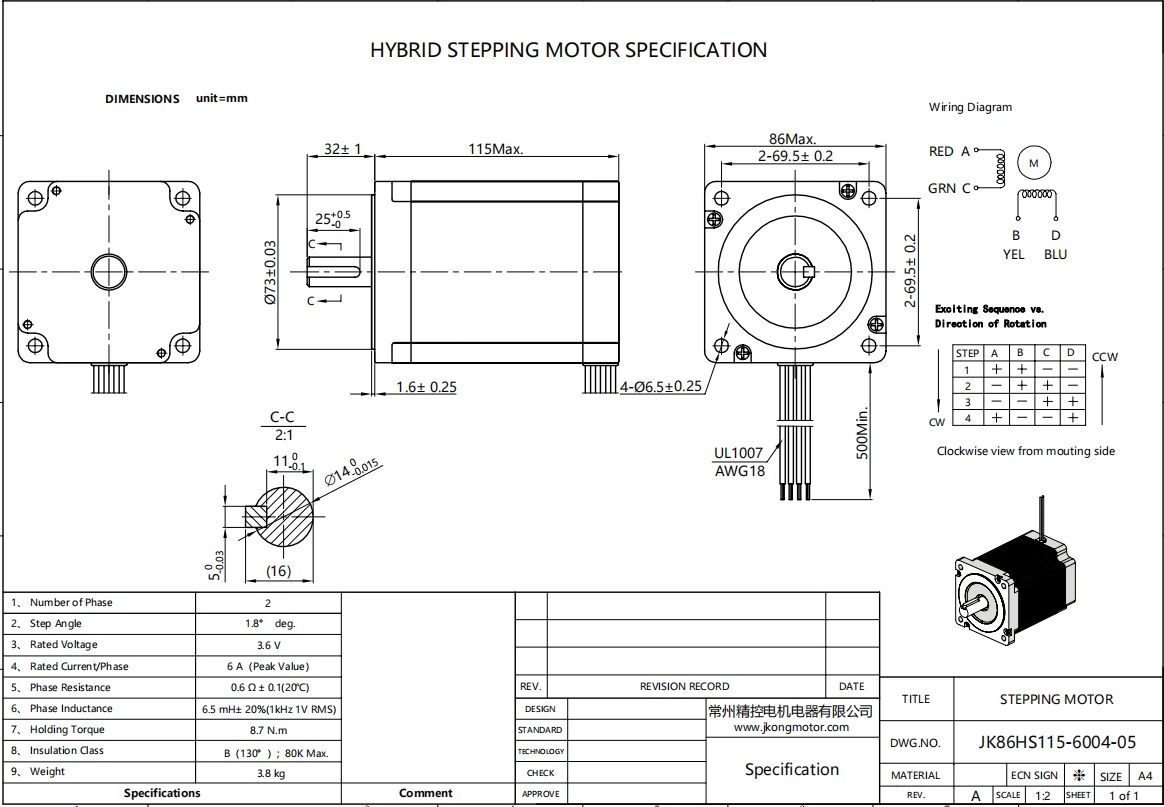

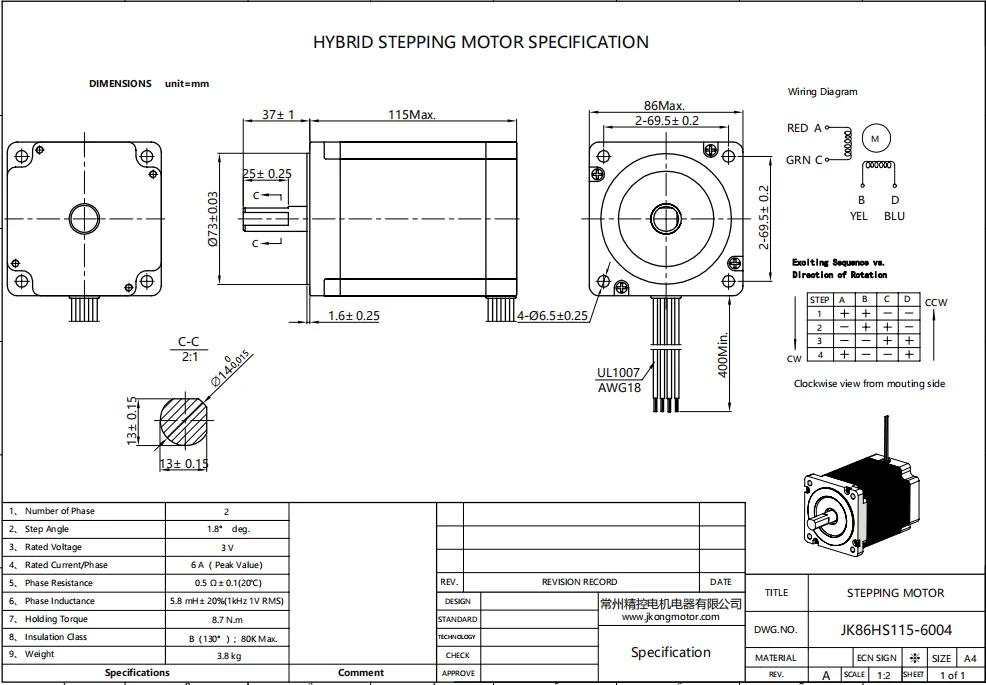

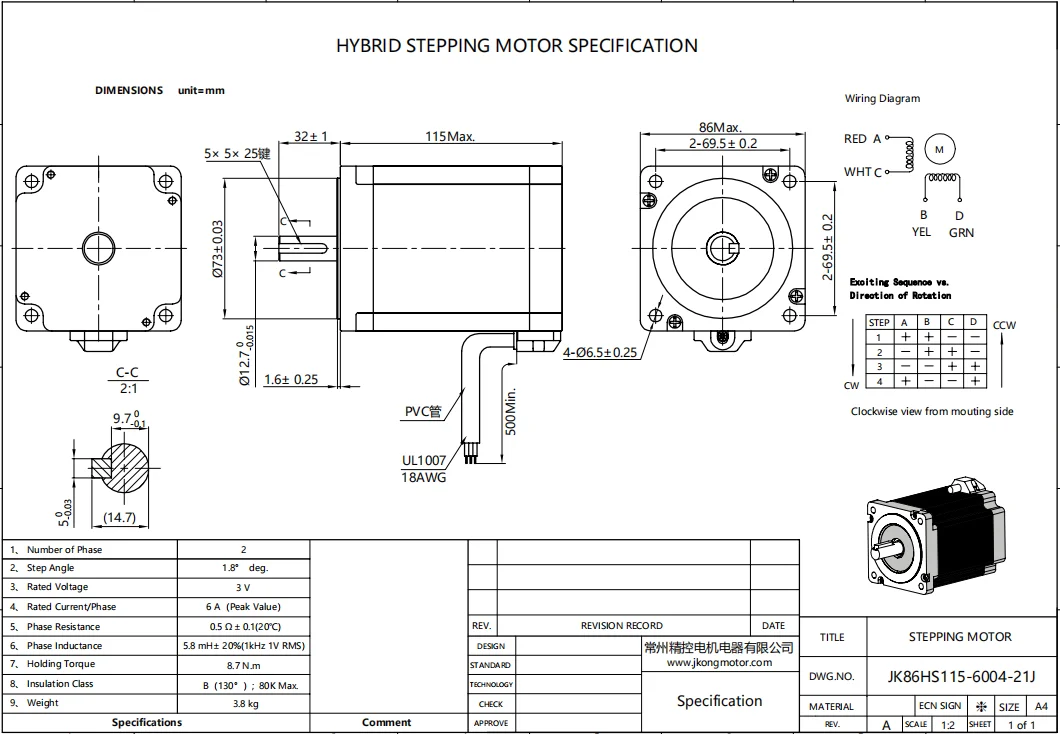

Specification
型号 Model No. | 步距角 Step Angle （°） | 长度 Motor Length（mm） | 电流 Current /Phase（A） | 静转矩 Holding Torque （kg.cm | 引线数 # of Leads (NO.) | 重量 Weight （KG） |
JK86HS68-5904 | 1.8 | 68 | 5.9 | 3.4 | 4 | 1.7 |
JK86HS68-2808 | 1.8 | 68 | 2.8 | 3.4 | 8 | 1.7 |
JK86HS78-5504 | 1.8 | 78 | 5.5 | 4.6 | 4 | 2.3 |
JK86HS78-4204 | 1.8 | 78 | 4.2 | 4.6 | 4 | 2.3 |
JK86HS97-4504 | 1.8 | 97 | 4.5 | 5.8 | 4 | 3.0 |
JK86HS97-4008 | 1.8 | 97 | 4.0 | 4.7 | 8 | 3.0 |
JK86HS100-6004 | 1.8 | 100 | 100 | 7.0 | 4 | 3.1 |
JK86HS115-6004 | 1.8 | 115 | 115 | 8.7 | 4 | 3.8 |
JK86HS115-4208 | 1.8 | 115 | 115 | 8.7 | 8 | 3.8 |
JK86HS126-6004 | 1.8 | 126 | 126 | 6.3 | 4 | 4.5 |
JK86HS155-6004 | 1.8 | 155 | 155 | 13 | 4 | 5.4 |
JK86HS155-4208 | 1.8 | 155 | 155 | 12.2 | 8 | 5.4 |
