Advantages of YX71-305-915 Boltless roof panel forming  machine

1. This machine is easy to manipulate with minimal start-up time

2. It is specially designed to provide superior fastening strength between steel plate and concrete.

3. The closed deck sheet is thicker than the ordinary ones, which allows them to be more resistant to harsh conditions

4. Since plates are wholly covered by concrete, they are very resistant to fire



1.Electric cutting device

Equipped with electric pre-cutting device, easily cut off and easier operating than manual cutting device.

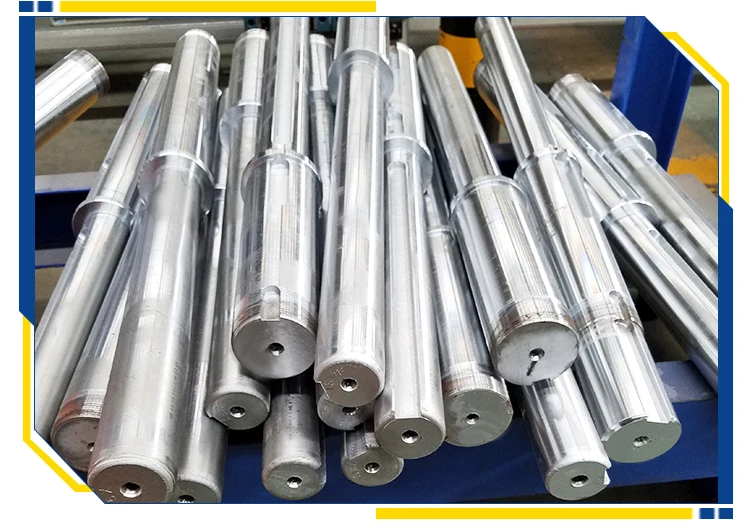

2.Rollers and Shafts



Rollers manufactured from #45 steel, precision machined, Hard Chrome Coated;

       Shafts manufactured from #45 steel, Main Shaft Diameter=φ95/85mm, quenching and Hard Chrome Coated;    tempering treated

3.Main Machine

Machine frame made from H450 type steel by welding; Side wall thickness: 18mm

Hydraulic Driving, Gear chain transmission,26 forming stations

Main Motor=37KW , Frequency speed control

Forming speed approx.15 m/min

Manufacturing process: spray painting for frame and wallboard;

          baking finishing/chroming/galvanizing/blackening for spare parts

4.Embossing Device

Manufactured from #45 steel, precision machined, tempering treated

and Hard Chrome Coated;

5.post-cutting system

Hydraulic cutting system. Easily operating and incision flattening.

Cutting blades made by high quality mold steel Cr12 with heat treatment

Cutter frame made from high quality 30mm steel plate by welding

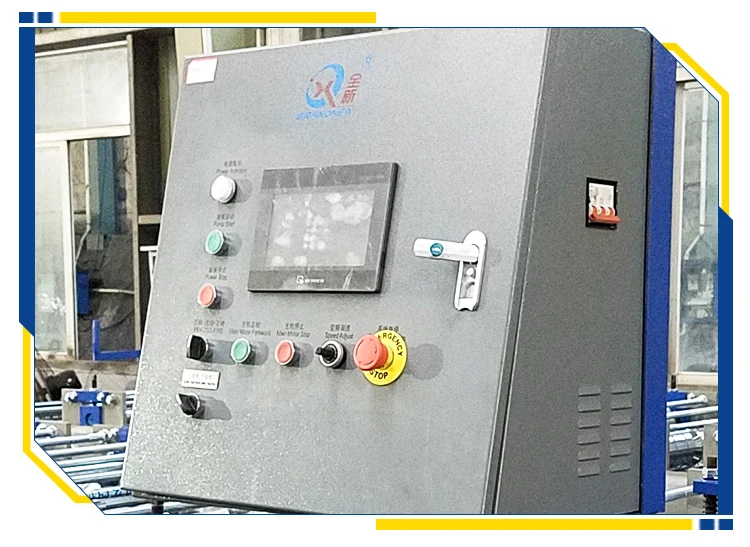

6.Control System

C purlin machine control box

(Touch screen brand: WEINVIEW, Inverter brand: Finland VOCAN/Taiwan DELTA/ALPHA,  Encoder brand: Japan Koyo/OMRON)

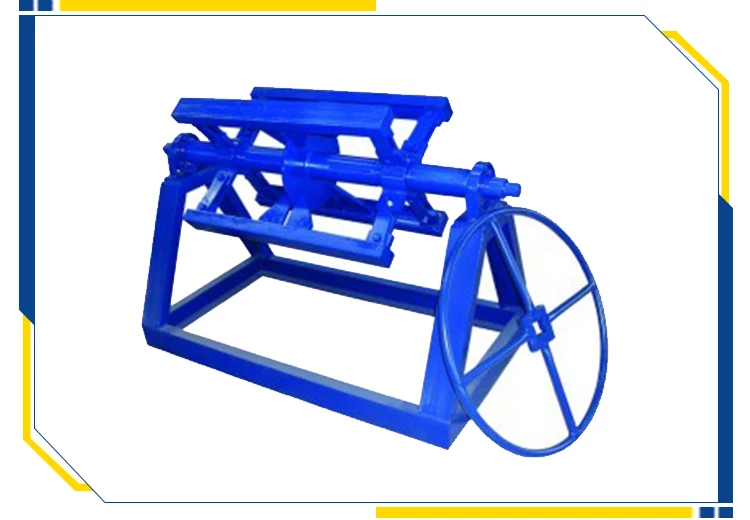

7.Decoiler

C purlin machine decoiler

One set manual decoiler, Un-powered, manually control steel coil inner bore shrinkage and stop

 Max. feeding width: 500mm, coil ID range 470mm±30mm

Capacity: Max. 3Ton



8.C purlin exit rack

Un-powered, three  units



After sales service

1.In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements (the spare parts stock are available for IMMDEIATELY SERVICE);

2.We offer technical support for the entire life of our machines. Our after-sale engineer is always online at 8:00-19:00 Chinese time on matter work time or holiday;

3. we will dispatch a technician to the factory abroad to install & regulate the machine also train workers at Clients’ place with extra cost.
