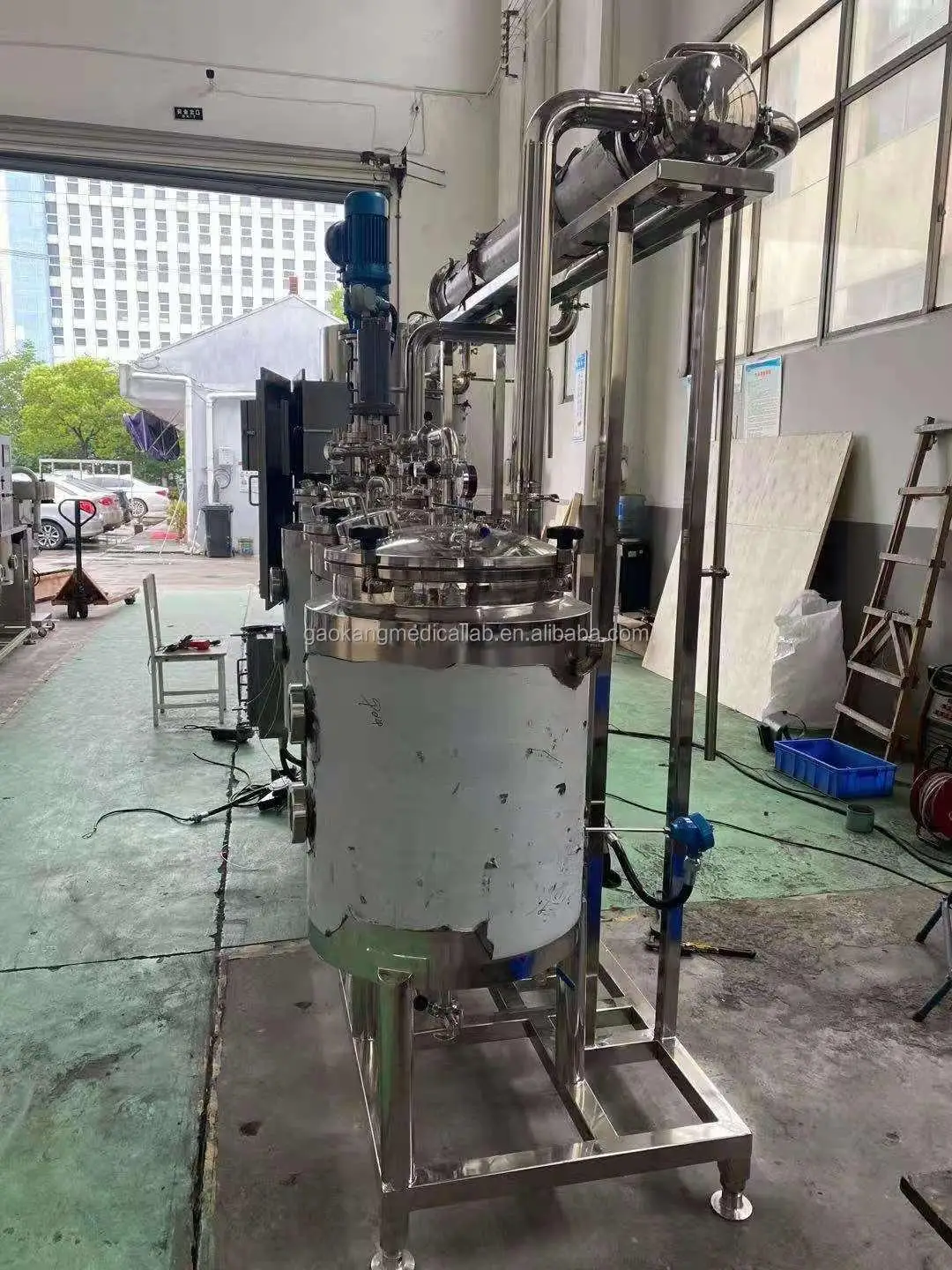

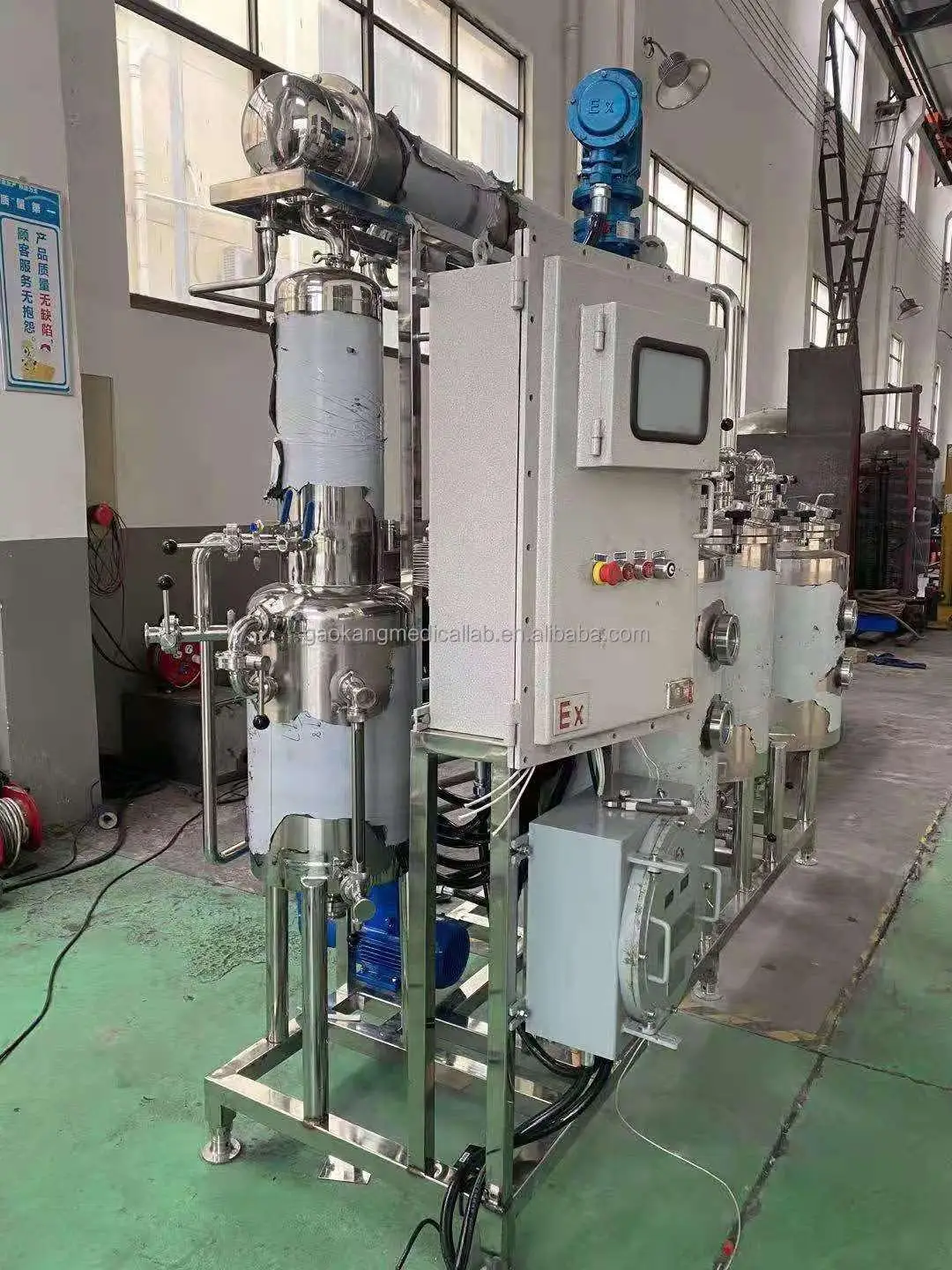

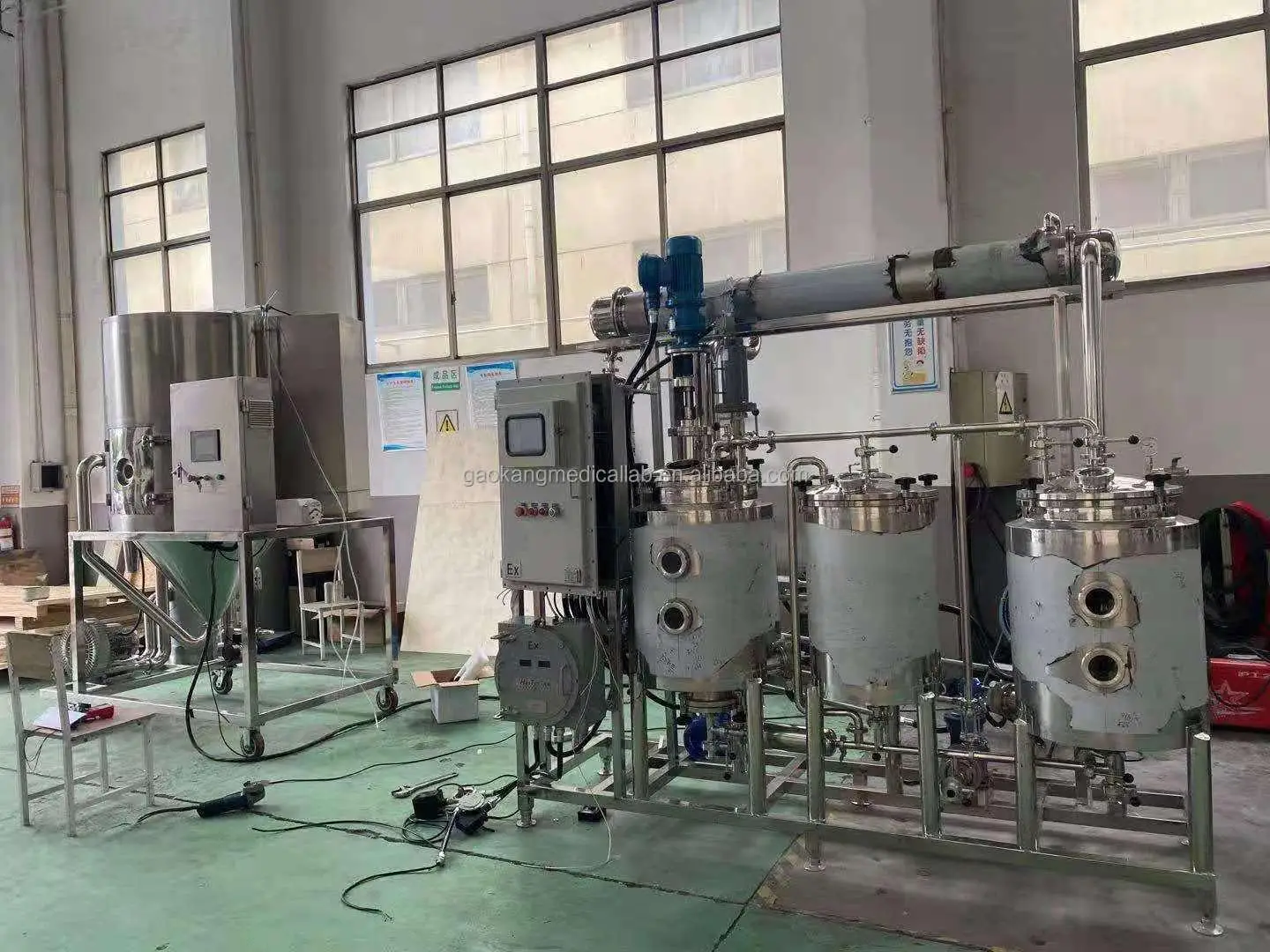

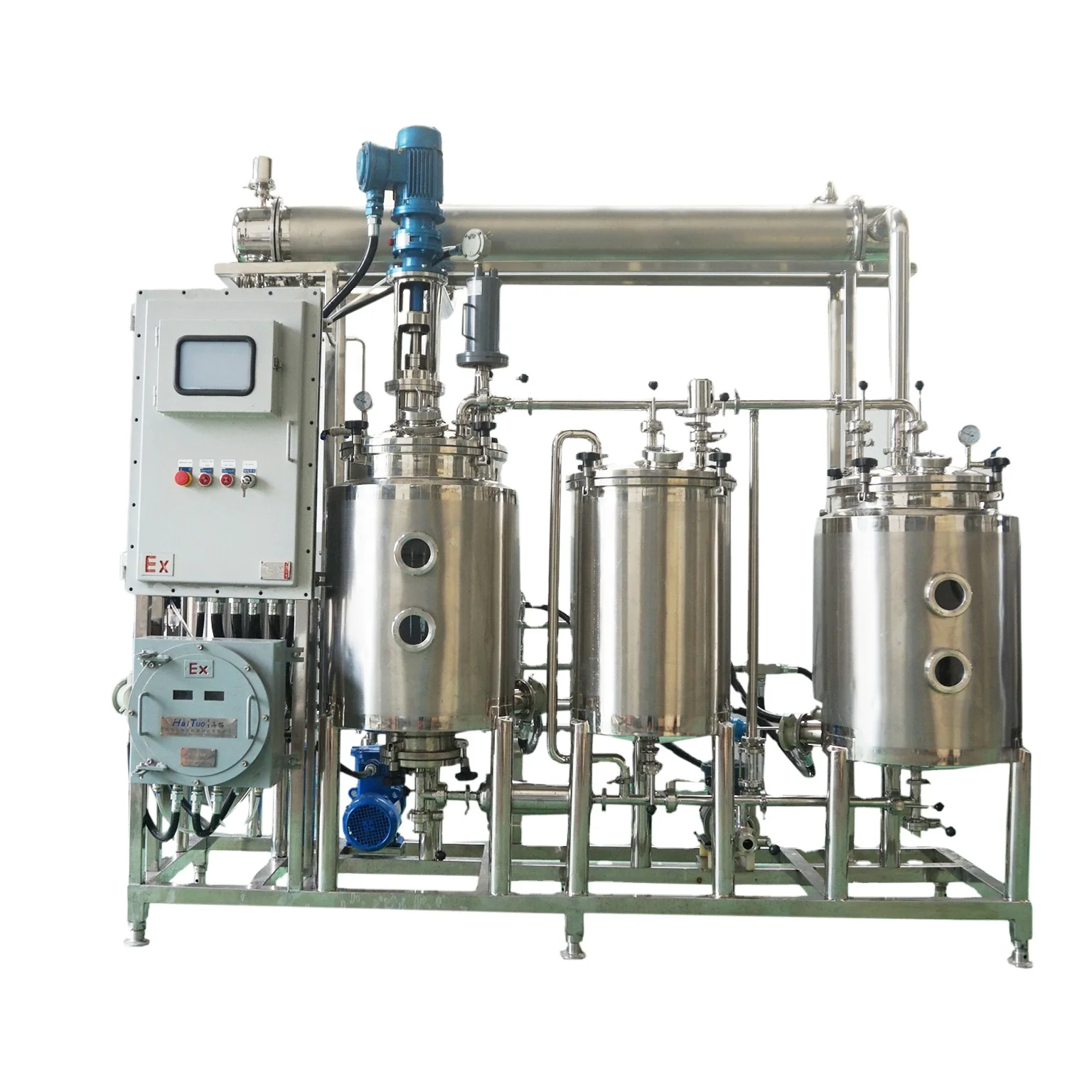

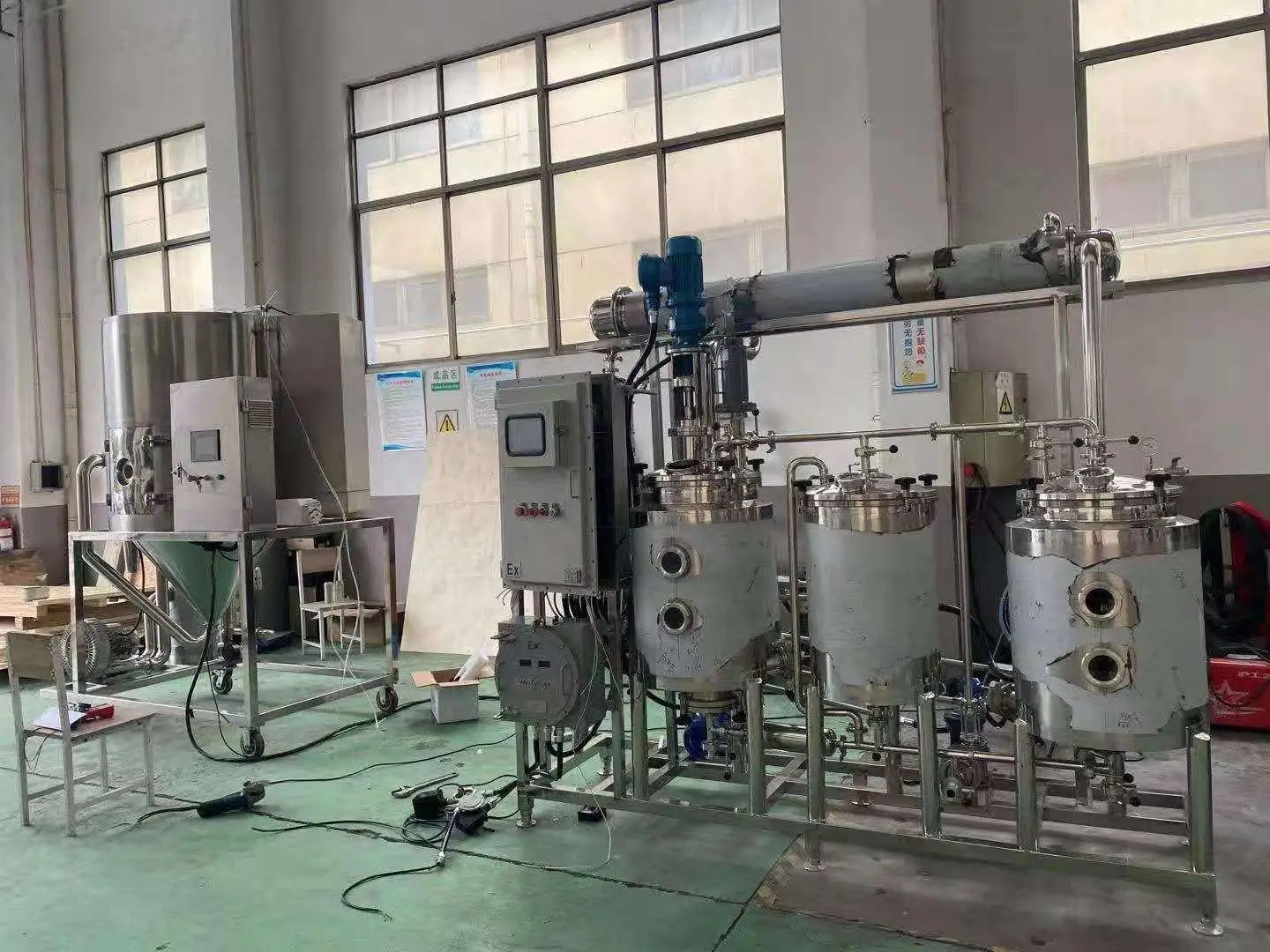

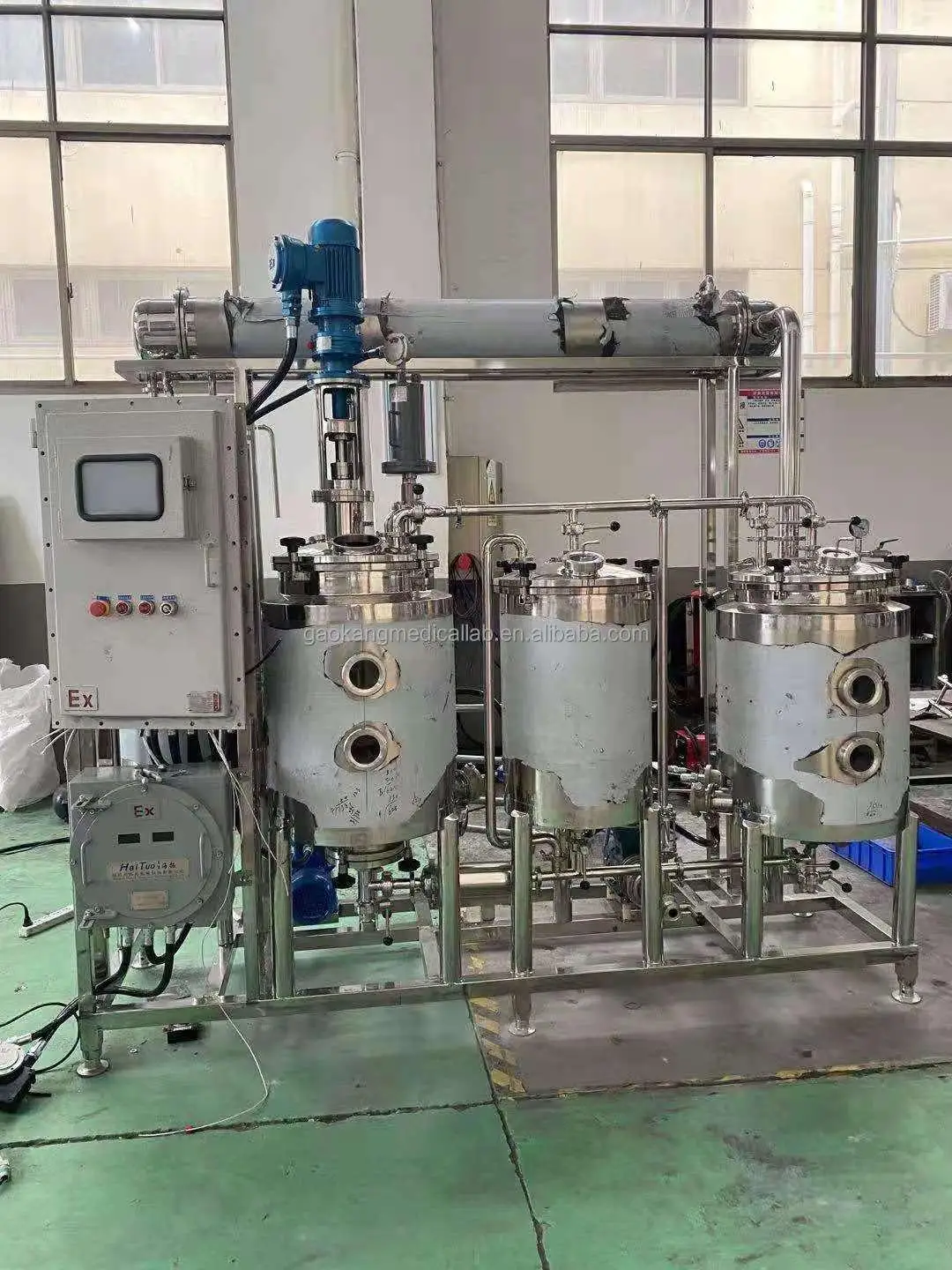

This equipment is suitable for various processes such as normal pressure, micro pressure, water decoction, warm immersion, hea reflux, permeation, extraction of aromatic oil components and recovery of organic solvents in the industries of traditional Chinese medicine, plants, animals, food, beverages, and chemical industries. It adopts countercurrent dynamic extraction,ultrasonic extraction, short time and high efficiency; this equipment adopts electric heating method with high degree of automation. The whole equipment is equipped with CIP cleaning device, which conforms to GMP medical standards. This equipment is mainly suitable for universities, research institutes, enterprises and institutions Experimental research and development and pilot production use.
herbs ultrasonic extracting and concentrating machine parameters (100L for reference):
1 Total power: 12.5KW.
2 vacuum pump: 1.75KW, with control valve.
3 mixing system: centrifugal pump liquid circulation mixing system
4 Scraper Motor: 1.5kw (also done CIP cleaning)
5. extraction tank heating area: 0.95M2
6 condenser condensing area: 1.63 M2
7 scraper concentrated heating area: 0.95 M2
8 sandwich working pressure: 0.3MPa;
9 water extraction temperature: room temperature to 100 degrees;
10 alcohol extraction temperature: room temperature to 85 degrees
11 Vacuum degree: -0.05 ~ -0.08MPa;
12 scraper concentrated distillation temperature: 45 to 80 degrees
13 Extraction tank effective volume: 100L
14. scraper concentrate tank volume: 100L, three heat preservation heating structure, scraper agitator, 360 degree CIP cleaning components.
15 Material: machine uses the high quality SUS304 2B, liner 3mm, jacket 3mm, shell body 3mm.
16 Equipment surface treatment: tank inter surface mirror polishing , outer surface drawing inferior smooth processing.
17 Equipment size: 1850x850x2370, customized according to customer demand.
