1. Product Description



•


  The KRRASS’s V groove cutting machine is composed of 3+1 axis CNC servo control, hydraulic clamping system, electrical control system, and main steel frame.




  1.CNC servo drive system




  The CNC V grooving machine is 4 axes control, the X-axis, Y1 axis, Y2 axis, Z-axis. high positioning accuracy, All motors are controlled by servo motors.




  X-axis system

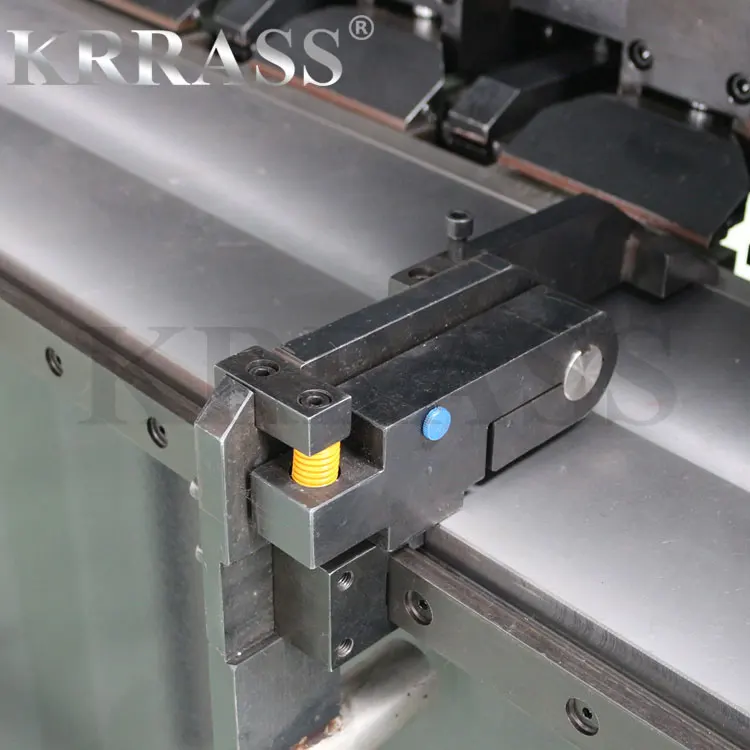

  The X-axis system is composed of E21320 servo motor, timing belt, timing wheel, ball screw, linear guide rail, back gauge rack, clamping tools, etc parts. The motor drives the ball screw and back gauge rack to make a rectilinear motion on the guide rail, and provide the accurate positioning power for the back gauge mechanism.


  Y-axis system
  The Y1, Y2 axis system of this equipment is composed of 1KW AC servo motor, timing belt, timing wheel, ball screw, mobile clamp, and other parts. Its function is that the motor moves linearly on the linear guide by driving the ball screw with the power to achieve accurate positioning of the V-groove.

• Z-axis system

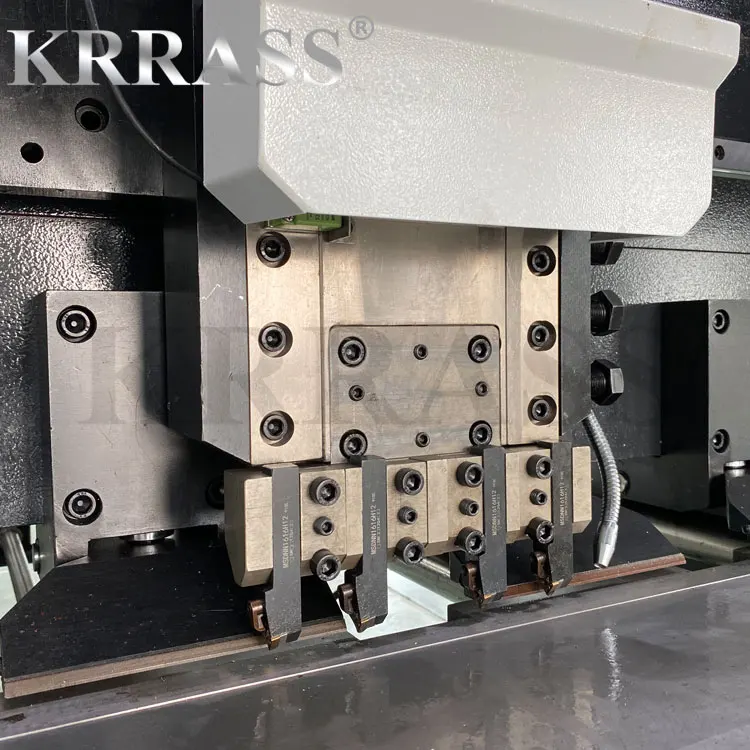

  The Z-axis system is composed of C20604 servo motor, timing belt, timing wheel, ball screw, cutter holder, and so on. Its function is to drive the ball screw and cutter seat makes rectilinear motion through timing belt and timing wheel and provides precise positioning power for the tool holder.







  2.Hydraulic clamping system

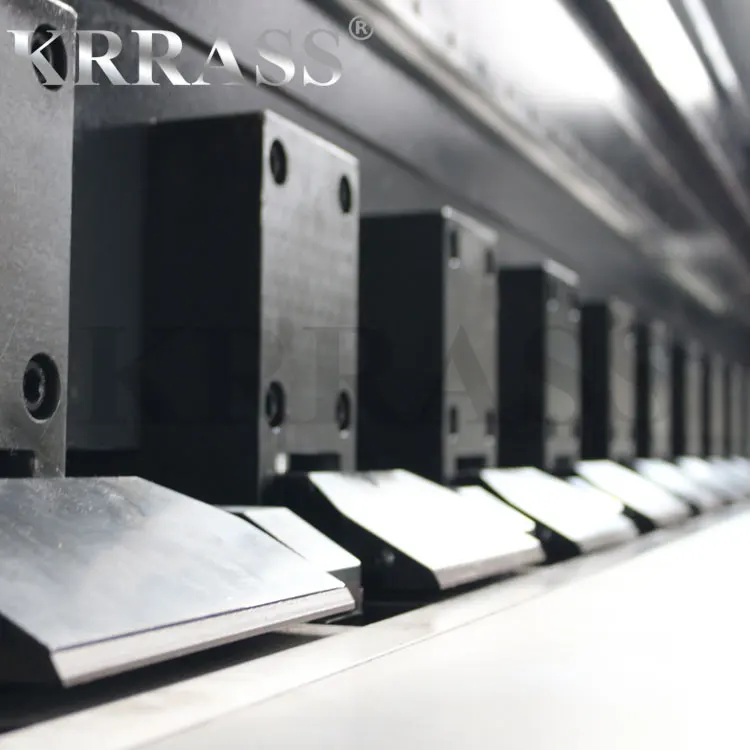

  The Hydraulic  system is divided into two groups, and the pneumatic system if part of the back gauge. Its function is to provide clamping force and tightly holding plate before grooving.




  3.Electrical control system

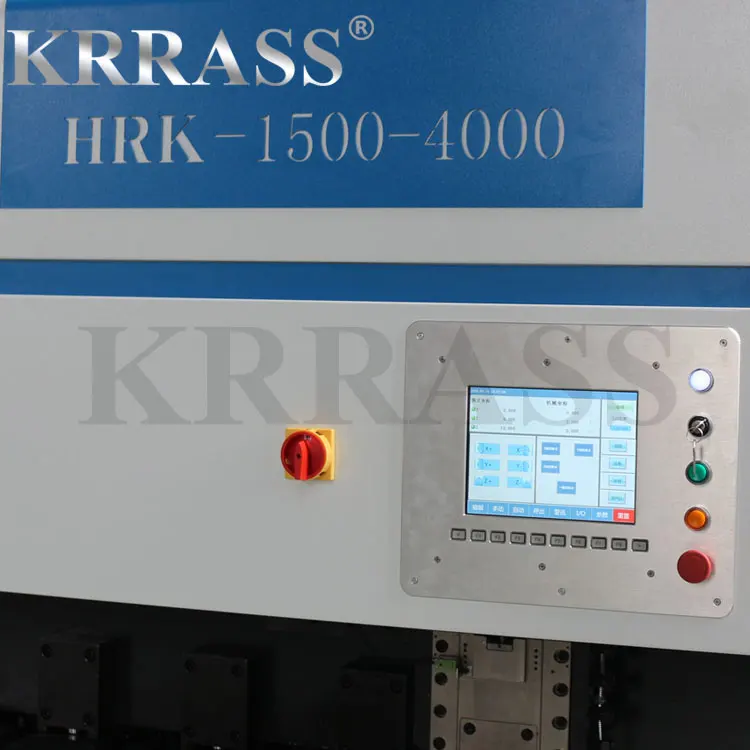

  The electrical control system is composed of PLC, actuator, touch screen, an electric control element, an electrical cabinet, etc. The electrical board is installed on the inside of the machine for easy maintenance and strong protection. Through the control of the system, all work of this equipment can be realized.




  4.Main steel frame
  KRRASS’s CNC V grooving machine is compact in structure, reliable in performance, easy operation, no deformation forever. It is wholly welded by steel to eliminate internal stress by vibration aging so that our machine is better in strength, rigidity, and stability than the same products at home and abroad.






2.Main functions



•


  V Groove machining is primarily used to facilitate the bending or folding of various materials and creates a V-shaped cut or channel along the surface of a material. This cut along the fold line acts as a hinge, allowing the product to achieve 90-degree bends with relatively small bending radii. The V-grooving is also known as score-folding, V-cutting, and back-scoring.








Elevator entry areas	Wall cladding systems	Retail fixtures
Elevator interiors	Exterior cladding detail	Hotel and restaurant detailing



•

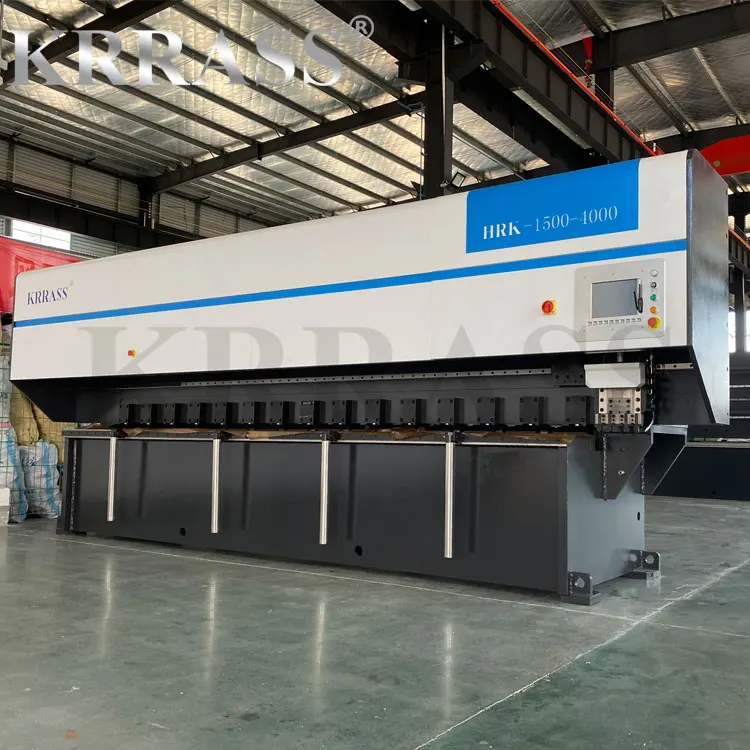

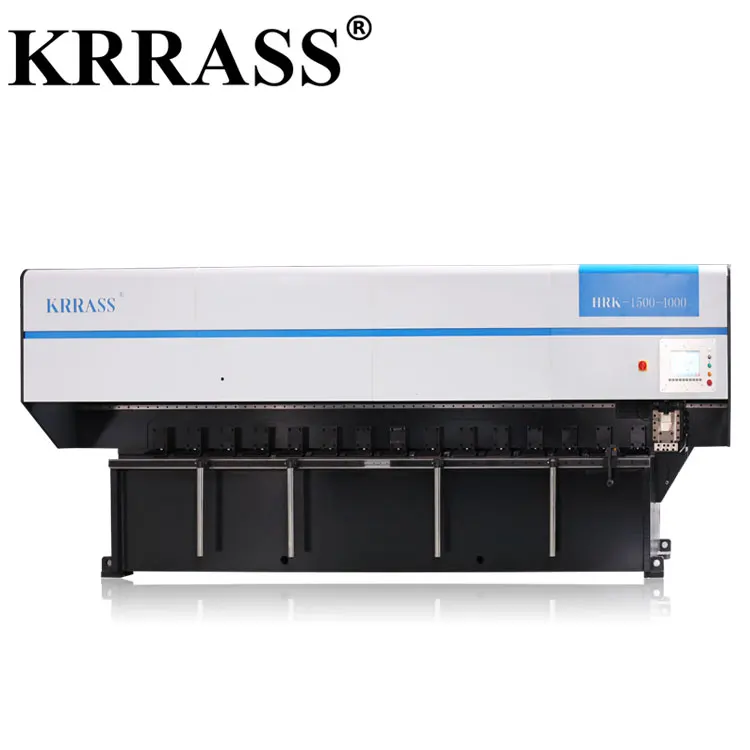

  HRK V Grooving Machine is specially used in top-grade architectural decoration industry, which consists of worktable, beam and sliding framework. Back gauge (Y-axis) is equipped with servo motor, ball screw and liner guide. Hydraulic clamp will hold plate move forward/backward with high accuracy. V-groove cutting along the top beam (X – axis) is driven by inverter gear motor, cutting speed adjustable. The blade holder up and down (Z-axis), depth of V-groove, is controlled by servo motor, can reach high accuracy. Hydraulic front clamping system and spray cutting cooling system can make the cutting slot even and smooth.





•


  HRK-type v groove machine is an upgrade of the traditional V groover, the machine has all the advantages of conventional models, but also combines the latest international V cutting machine technology, meet the actual needs of customers.





•


  HRK-type V groove machine with automatic back gauge feeding structure, beams fixed and working table can be replaced, completely solve the problem of the worktable surface deformation, ensuring the table surface flatness of ± 0.03mm. the .cutting accuracy is improved.





•


  Extend the life of the V groover. Owing to the adoption of carbon tool steel table, hardness after quenching is up to HRC55-60, surface hardness is greater than the hardness of stainless steel plate. so table wear is less, and there are two faces can change. It completely solved the table deformation because of low hardness surface.





•


  Improve work efficiency. Using powerful gear motor on V cutting, two high speed Four alloy cutter, max groove depth can be up to 1.2mm thickness. Cutting efficiency than conventional models increased by 5 times. It’s the most developed V grooving machine.






3.Standard Components



•


  CNC system – HUST , Taiwan





•


  Servo motor – Panasonic , Japan





•


  Hight-Precise Ball Screw-HINWIN ,Taiwan





•


  Hight-Precise Linear Guide Rail-HINWIN ,Taiwan





•


  Gear-rack drive-YYC,Taiwan





•


  Touching Ball Bearing -NSK-Japan





•


  Grooving Cutter-KORLOY,Korea





•


  Electrical Element-AIRTAC-Taiwan





•


  Air Cylinder-AIRTAC-Taiwan





•


  Power Cable-IGUS,Germany




4. Machine Model



Content	Required Parameter
Model	HRK1250-3200	HRK1250-4000	HRK1500-3200	HRK1500-4000
Plate Thickness	0 .4-6mm
Plate Length X Width	1250x3200mm	1250x4000mm	1500x3200mm	1500x4000mm
Grooving Speed	5M
Speed is changable or not	70M per min   Speed changable
Feeding Speed	0 . 5-20M/min
Min . Setting Unit in Y-axis	0 . 01mm
Positioning Precision in Y-axis	±0 . 05mm
Min . Setting Unit in X-axis	0 . 01mm
Positioning Precision in X-axis	±0 . 05mm
Min . Setting Unit in Z-axis	0 . 01mm
Positioning Precision in Z-axis	±0 . 02mm
Y-axis Motor Power	4 . 5KW
X1-axis Motor Power	0 . 75KW
X2-axis Motor Power	0 . 75KW
Z-axis Motor Power	0 .4KW
Workbench Planeness	±0 . 01mm
Feeding Way	Back feeding
Workbench is replaceable or not	Replaceable ( Exchangeable as well )
Workbench is quenched or not	Yes
Number of Cutter	4 PCS
Max . Depth for one-time   Grooving	1 . 0mm
Max . Grooving Depth	3 . 0mm
Outline Dimension	5000*2500*2100mm	5800*2500*2100mm	5000*2750*2100mm	5800*2750*2100mm
Weight	9500kg	10500kg	10200kg	11200kg
