И формирующая листы для кровли 4 м автоматическая v пазовальный станок KCV-1250X4000 листового
- Категория: CNC Grooving Machine >>>
- Поставщик: Nanjing,Jinqiu,CNC,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 25585.45 $* | 26864.34 $* |
| Aug-19-2025 | 25370.2 $* | 26639.68 $* |
| Jul-19-2025 | 21285.22 $* | 22349.39 $* |
| Jun-19-2025 | 24940.38 $* | 26187.44 $* |
| May-19-2025 | 21715.40 $* | 22801.73 $* |
| Apr-19-2025 | 24510.73 $* | 25736.23 $* |
| Mar-19-2025 | 24295.3 $* | 25510.65 $* |
| Feb-19-2025 | 24080.91 $* | 25284.29 $* |
| Jan-19-2025 | 23865.60 $* | 25058.8 $* |
Характеристики
Product Description

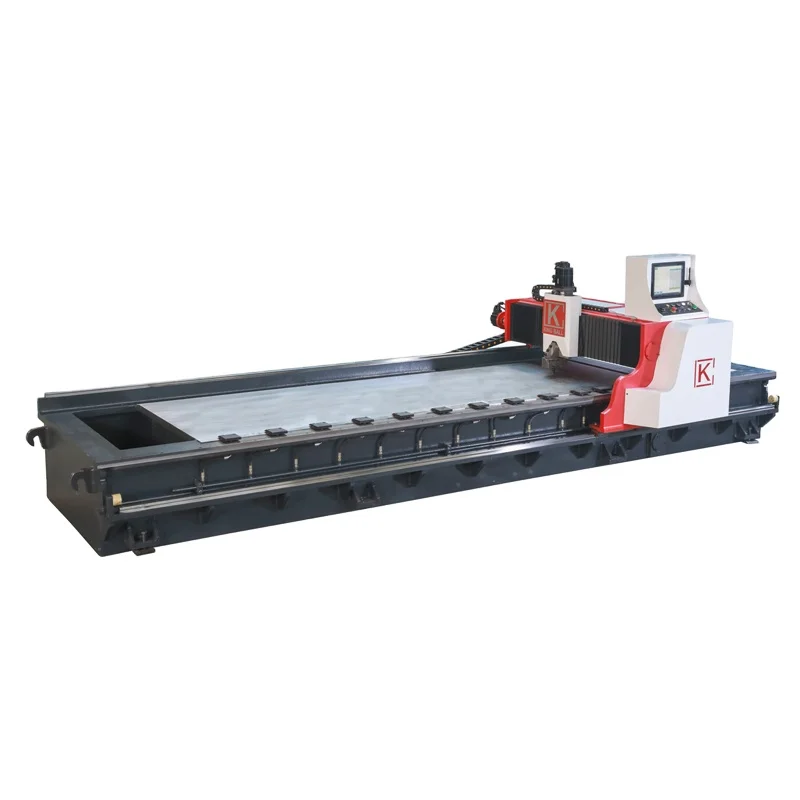

KCV Type CNC Gantry Type Metal Sheet Grooving Machine
Model:KCV-1250X3200
Model:KCV-1250X3200
1.Function intruction
This equipment is full CNC gantry grooving machine, it adopts advanced CNC system with novel design.It has the characteristics of
high processing accuracy, simple operation, no noise and no vibration. This machine tool is used to process V-grooves, U-grooves
and other irregular grooves on sheet metal parts, and is especially suitable for V-groove processing before sheet metal parts are
bent,Including stainless steel plates, aluminum plates, aluminum-plastic plates, copper plates, iron plates, bakelite boards,
acrylic plates and other special plates.
high processing accuracy, simple operation, no noise and no vibration. This machine tool is used to process V-grooves, U-grooves
and other irregular grooves on sheet metal parts, and is especially suitable for V-groove processing before sheet metal parts are
bent,Including stainless steel plates, aluminum plates, aluminum-plastic plates, copper plates, iron plates, bakelite boards,
acrylic plates and other special plates.
2. Performance and characteristics
1)KCV type CNC gantry type metal sheet grooving machine is an upgraded product researched and developed by our company's researchers based on South Korea's gantry type metal sheet grooving This machine has all the performance of traditional gantry models, which fully solves a series of problems encountered by customers in the actual operation process. This equipment is a 4-axis full-servo design, which has made an essential breakthrough on the basis of all domestic and foreign gantry grooving products.
2)The equipment is welded with steel plates, which has strong shock resistance, eliminates internal stress through vibration aging, has good stability, and is rusted by sandblasting on the machine, and sprayed with anti-rust paint. The whole machine is processed on a CNC floor-type boring and milling machine, which ensures the parallelism and perpendicularity of each mounting surface.
3) The equipment adopts a platform-type double guide rail structure, the beam runs more smoothly, and the blade holder processes the plate by moving left and right, back and forth, which can ensure the accuracy of each part of the groove depth.
4)The equipment adopts the processing technology of three forming knives, which greatly reduces the iron scraps generated during processing, and greatly improves the accuracy of processing compared with the traditional five knives. Because the bottom of the groove processed by the five knives may produce multiple bottom lines.
5)The equipment adopts full pneumatic clamping and pressing, and the work is fast, so that the processed product has no clamping marks, creasing marks, and the entire process is followed by cooling spray.
6)The equipment uses high-speed and precise gear racks, ball screws with large pitches, and high-precision, linear guides. The main shaft system is driven by a high torque servo motor and an imported star reducer. Makes the tool holder more stable and fast when processing the workpiece. The gantry of this equipment uses 5 mute slides.
7)The equipment workbench uses a high-strength 45 # plate as the base surface, so that the workbench is not easily worn when processing the workpiece.This equipment has a self-planing function.
8)The equipment adopts CNC numerical control. The operator is easy to learn and understand, and the positioning is accurate.
9)Equipment clamping and pressing are all pneumatically controlled, making the machine more energy-saving and environmentally
friendly.
The overall shape of the equipment is simple, generous and nice. It adopts the frame structure setting, which is in line with the operating habits of various technical personnel, so that the operators can fully meet the production and technical requirements during work.
2)The equipment is welded with steel plates, which has strong shock resistance, eliminates internal stress through vibration aging, has good stability, and is rusted by sandblasting on the machine, and sprayed with anti-rust paint. The whole machine is processed on a CNC floor-type boring and milling machine, which ensures the parallelism and perpendicularity of each mounting surface.
3) The equipment adopts a platform-type double guide rail structure, the beam runs more smoothly, and the blade holder processes the plate by moving left and right, back and forth, which can ensure the accuracy of each part of the groove depth.
4)The equipment adopts the processing technology of three forming knives, which greatly reduces the iron scraps generated during processing, and greatly improves the accuracy of processing compared with the traditional five knives. Because the bottom of the groove processed by the five knives may produce multiple bottom lines.
5)The equipment adopts full pneumatic clamping and pressing, and the work is fast, so that the processed product has no clamping marks, creasing marks, and the entire process is followed by cooling spray.
6)The equipment uses high-speed and precise gear racks, ball screws with large pitches, and high-precision, linear guides. The main shaft system is driven by a high torque servo motor and an imported star reducer. Makes the tool holder more stable and fast when processing the workpiece. The gantry of this equipment uses 5 mute slides.
7)The equipment workbench uses a high-strength 45 # plate as the base surface, so that the workbench is not easily worn when processing the workpiece.This equipment has a self-planing function.
8)The equipment adopts CNC numerical control. The operator is easy to learn and understand, and the positioning is accurate.
9)Equipment clamping and pressing are all pneumatically controlled, making the machine more energy-saving and environmentally
friendly.
The overall shape of the equipment is simple, generous and nice. It adopts the frame structure setting, which is in line with the operating habits of various technical personnel, so that the operators can fully meet the production and technical requirements during work.
Product Paramenters
3.Main technical parameters of the equipment
ITEM | KCV-1250X4000 |
Cutting length | 4000mm |
Cutting width | 1250mm |
Sheet thickness | 0.6-4mm |
X axis Forward-Cutting speed | 60m/ min |
X axis Backward speed | 80m/min |
Y axis moving speed | 30 m/min |
Z axis moving speed | 25 m/min |
Y1 axis accuracy | ±0.03 |
Z axis accuracy | ±0.02 |
X axis control | AC frequency driver control, Brand Delta |
Y,Z axis control | Servo driver control, Brand Mitsubishi |
Linear guide and ball screw | Taiwan HIWIN |
Bearing | SKF |
X axis motor power | 5.5KW |
Y/Y1/Z axis motor power | 1.0/ 1.0 /1.0 KW |
Oil pump | 4KW |
Control system | Mitsubishi PLC |
Clamping device | Hydraulic |
Cable | Main Cable : Germany IGUS |
Machine dimension | 6200x2150x1580(mm) |
Machine weight | 8.1 TON |
Remark：X axis→ Controlling Beam Movement
Y1 axis→Control the blade holder forward and backward movement
Y2 axis→Control the mobile clamp forward and backward movement
Y1 axis→Control the blade holder forward and backward movement
Y2 axis→Control the mobile clamp forward and backward movement
Z axis→Control blade holder up and down movement
4.Equipment main configuration
No. | item | brand |
1 | CNC system | Mitsubishi |
2 | Pneumatic solenoid valve | AirTAC |
3 | Pneumatic two-piece | AirTAC |
4 | servo driver | Mitsubishi |
5 | Servo motor | Mitsubishi |
6 | Star reducer | AMDSK |
7 | PLC | Mitsubishi ,Japan |
8 | Single / bipolar air switch | Schneider |
9 | AC contactor, thermal relay | Schneider |
10 | Circuit breaker, button | Schneider |
11 | Miniature relay | Schneider |
12 | Machine tool flexible power cable | Igus |
13 | Proximity switch | OMRON |
14 | Alloy knife | TaeguTec |
15 | Linear Guide | HIWIN |
16 | High-precision ball screw | HIWIN |
17 | Precision gear rack | Fengmao |
18 | Angular contact ball bearings | NSK |
19 | Double diaphragm coupling | KS |
5. Structure Introduction
KCV gantry series CNC metal grooving machine adopts frame structure, the whole machine has compact structure, reliable performance
and convenient operation,And the processing control uses all hydraulic devices, customers will greatly reduce the use cost and
maintenance cost. Its structure is mainly composed of four groups of servo motor drive system, hydraulic clamp system and main
body steel frame.
1) Beam axis system

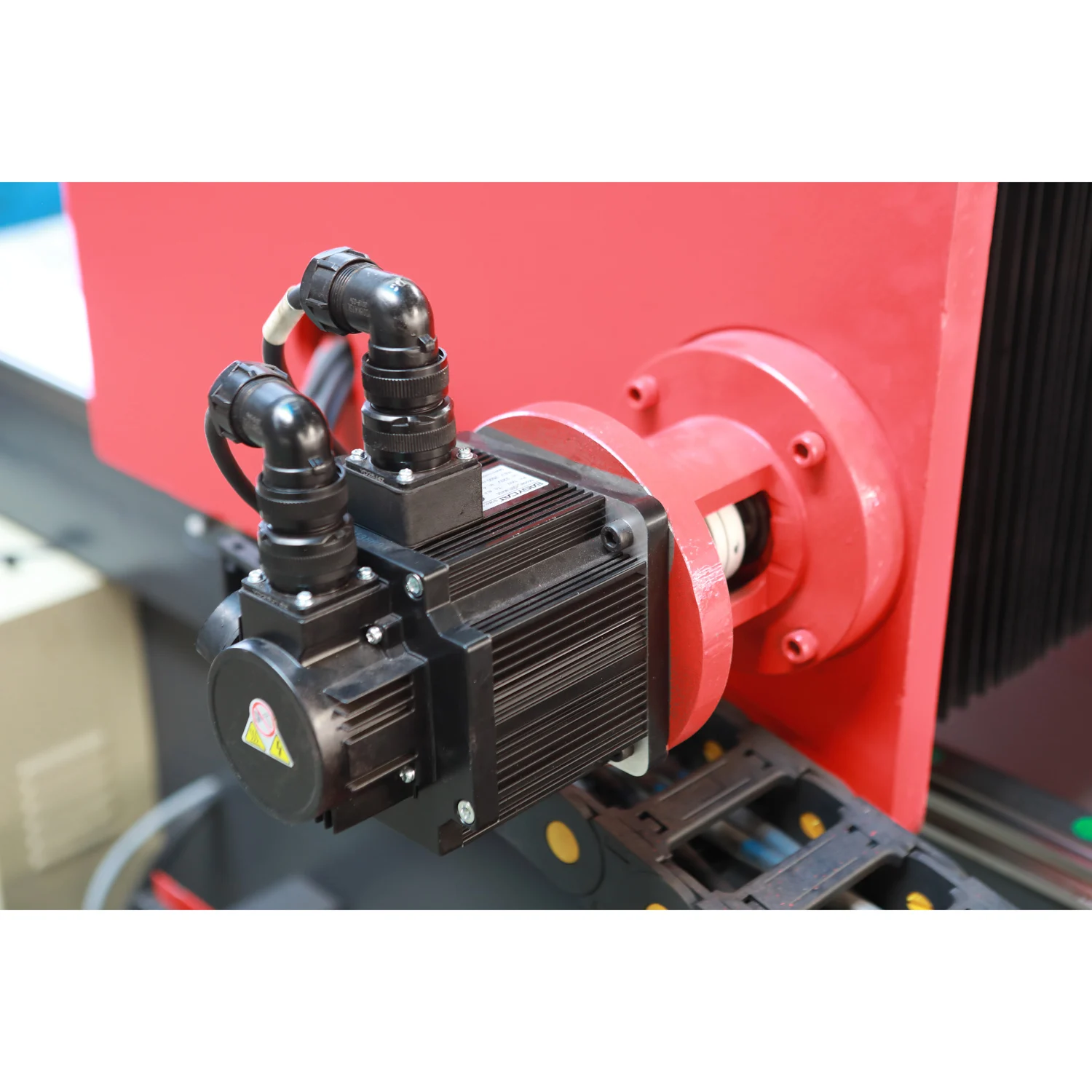

The beam axis system of this equipment is composed of main motor 5.5KW spindle servo motor, 1: 7 star reducer timing belt,
synchronous wheel, high-precision rack and pinion, linear guide and other components.
Its function is that the servo motor drives the precision gear through the star reducer to drive the tool holder to move linearly
on the linear guide to provide the cutting power.
2) Y1, Y2 axis system
The Y1, Y2 axis system of this equipment is composed of 1KW AC servo motor, timing belt, timing wheel, ball screw, mobile clamp
and other parts. Its function is that the motor moves linearly on the linear guide by driving the ball screw with power to achieve
accurate positioning of the V-groove.

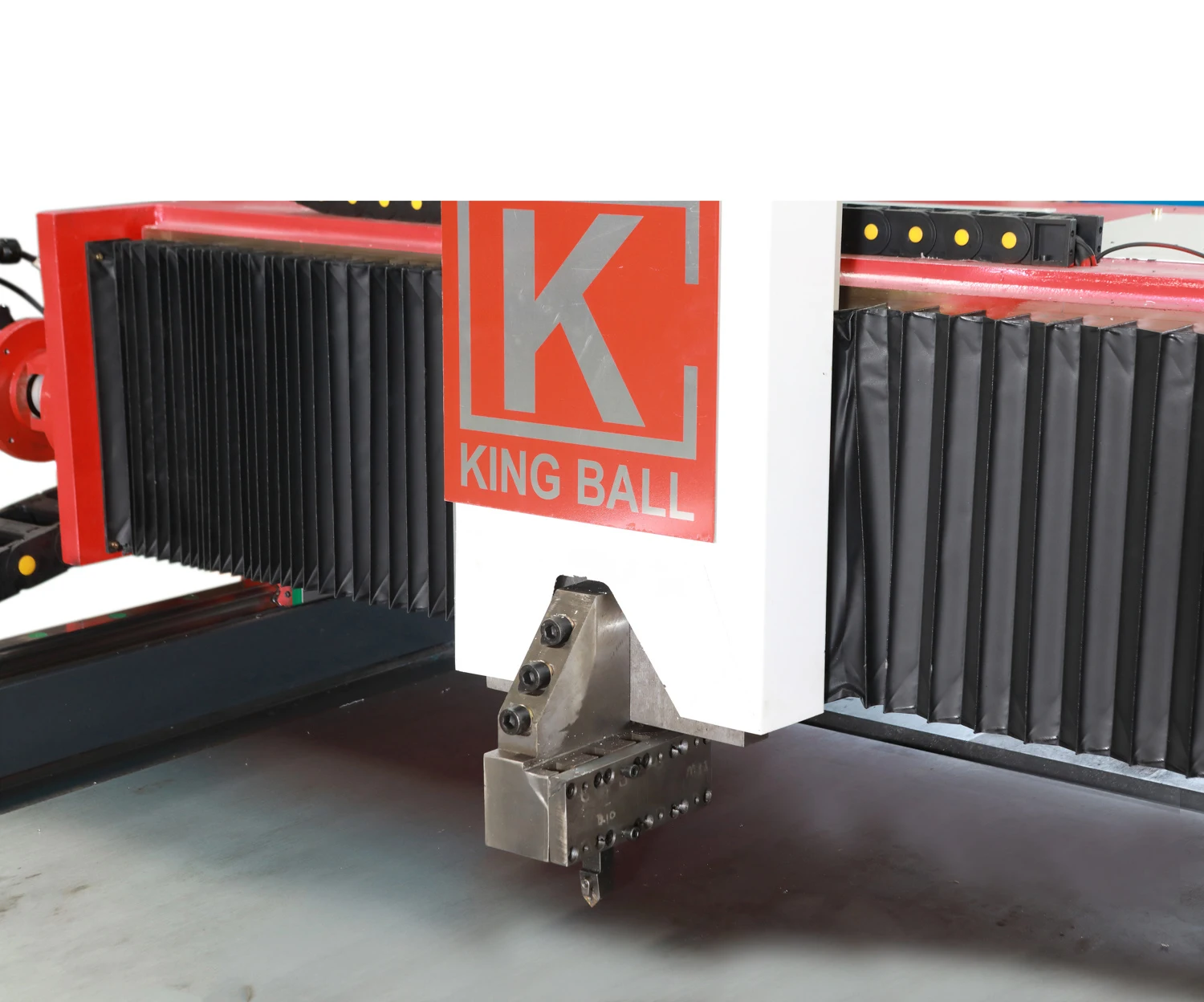

3) Z axis system
The Z-axis system of this equipment is composed of 1KW AC servo motor, precision coupling, ball screw, tool holder and other
parts. Its function is that the motor drives the tool post for linear motion by driving the ball screw to provide precise
positioning of the tool post mechanism.

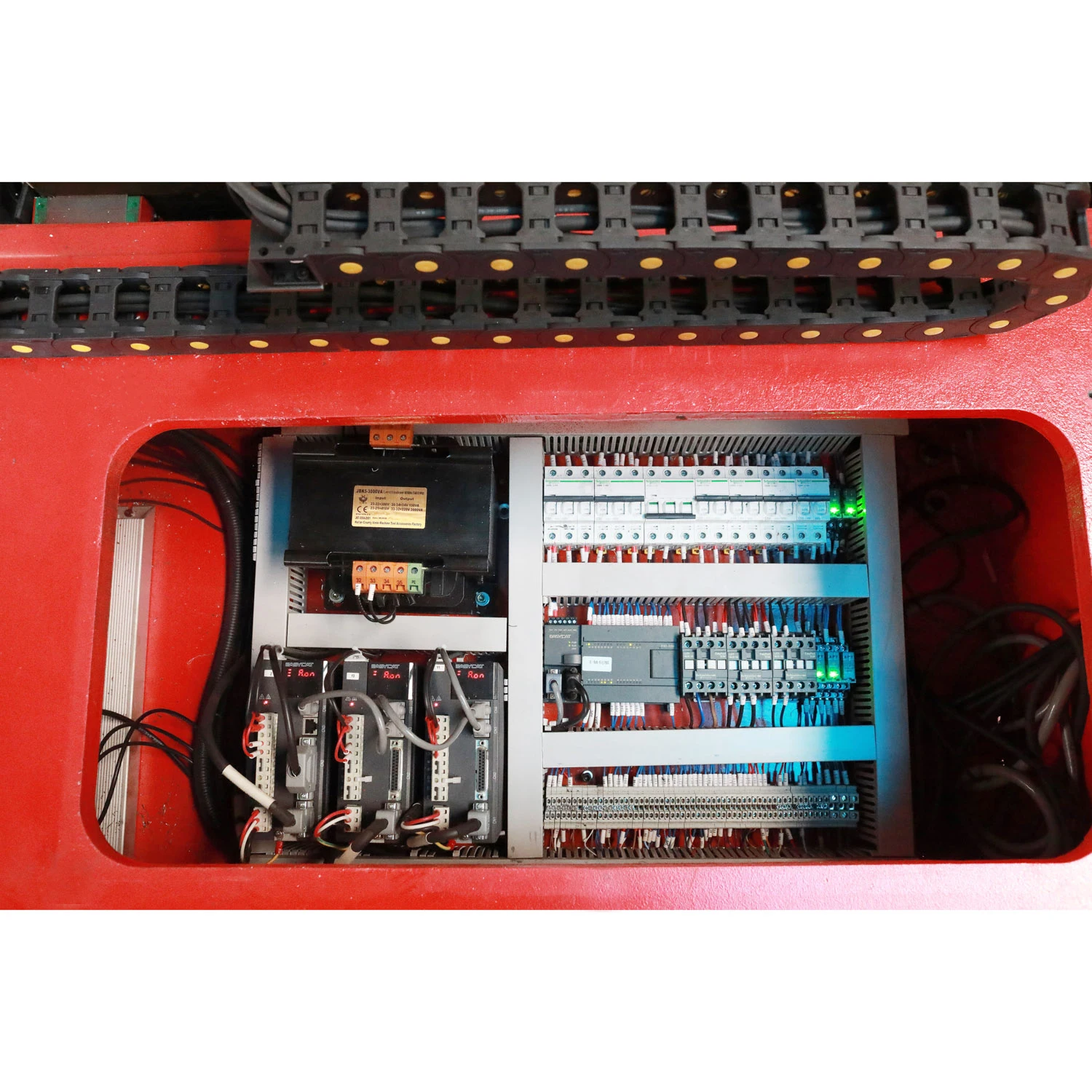

4) Electrical control system
The electrical control system of this equipment is composed of HUST special grooving machine system, driver, electric control
element, electrical board and other accessories. The electrical board is installed on the inside of the machine for easy
maintenance and strong protection. Through the control of the system, all work of this equipment can be realized.
and convenient operation,And the processing control uses all hydraulic devices, customers will greatly reduce the use cost and
maintenance cost. Its structure is mainly composed of four groups of servo motor drive system, hydraulic clamp system and main
body steel frame.
1) Beam axis system
The beam axis system of this equipment is composed of main motor 5.5KW spindle servo motor, 1: 7 star reducer timing belt,
synchronous wheel, high-precision rack and pinion, linear guide and other components.
Its function is that the servo motor drives the precision gear through the star reducer to drive the tool holder to move linearly
on the linear guide to provide the cutting power.
2) Y1, Y2 axis system
The Y1, Y2 axis system of this equipment is composed of 1KW AC servo motor, timing belt, timing wheel, ball screw, mobile clamp
and other parts. Its function is that the motor moves linearly on the linear guide by driving the ball screw with power to achieve
accurate positioning of the V-groove.
3) Z axis system
The Z-axis system of this equipment is composed of 1KW AC servo motor, precision coupling, ball screw, tool holder and other
parts. Its function is that the motor drives the tool post for linear motion by driving the ball screw to provide precise
positioning of the tool post mechanism.
4) Electrical control system
The electrical control system of this equipment is composed of HUST special grooving machine system, driver, electric control
element, electrical board and other accessories. The electrical board is installed on the inside of the machine for easy
maintenance and strong protection. Through the control of the system, all work of this equipment can be realized.

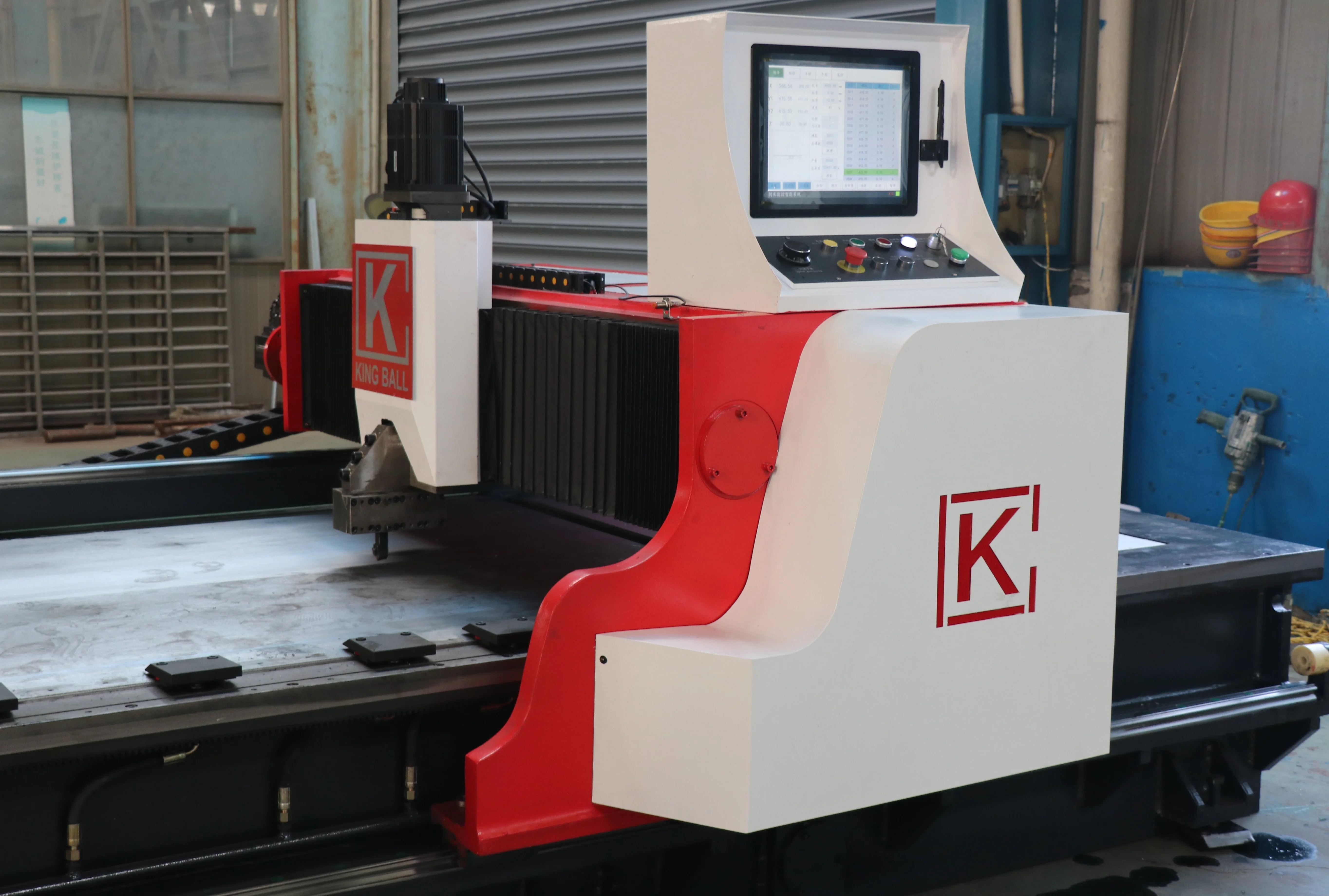

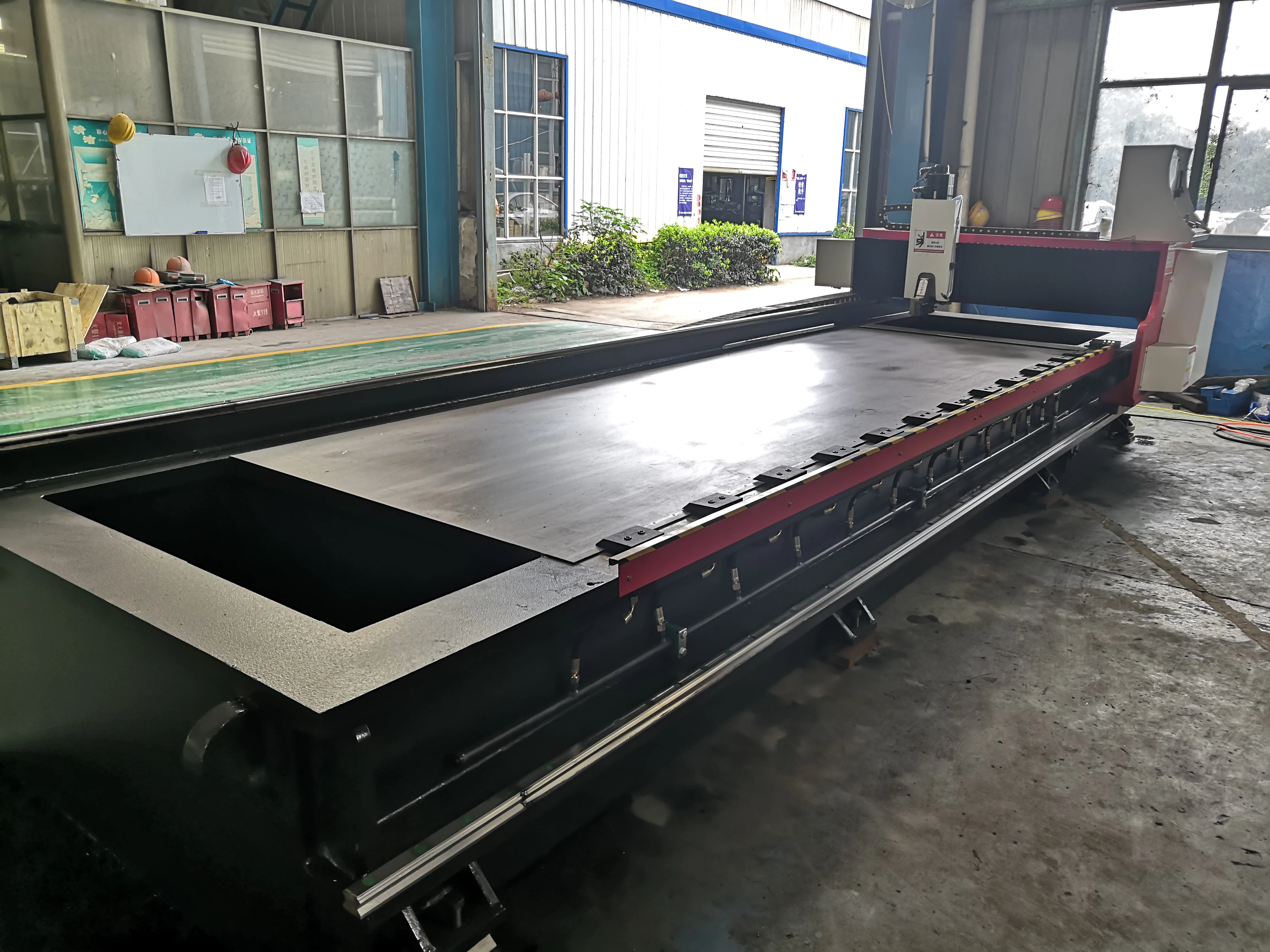

Detailed Pictures
Specifications
Our service
Pre-sales services:
1. inquiry and consulting support
2. sample testing support
3. visit our factory
2. sample testing support
3. visit our factory
After-sales services:
1. 2 years warranty period
2. training how to install and use the brake press machine
3. engineers available to service machinery overseas
2. training how to install and use the brake press machine
3. engineers available to service machinery overseas
