Optical Mark Reader(OMR) is a high-tech data input device which is integrated with optical and electrical technique. OMR solves entirely the bottleneck problem of data input. It is a powerful tool for speedy automatic data capture. The speed is several hundreds of times faster than that of manpower; especially the machine can work for a long time without break. So nothing else can instead OMR so far. It can be used in all kinds of standard examination and students’ information statistics





CONTACT US GOT MORE DISCOUNT



Email: reginasong AT yahoo.com    Skype: reginaomr     Tel: +8613623379001

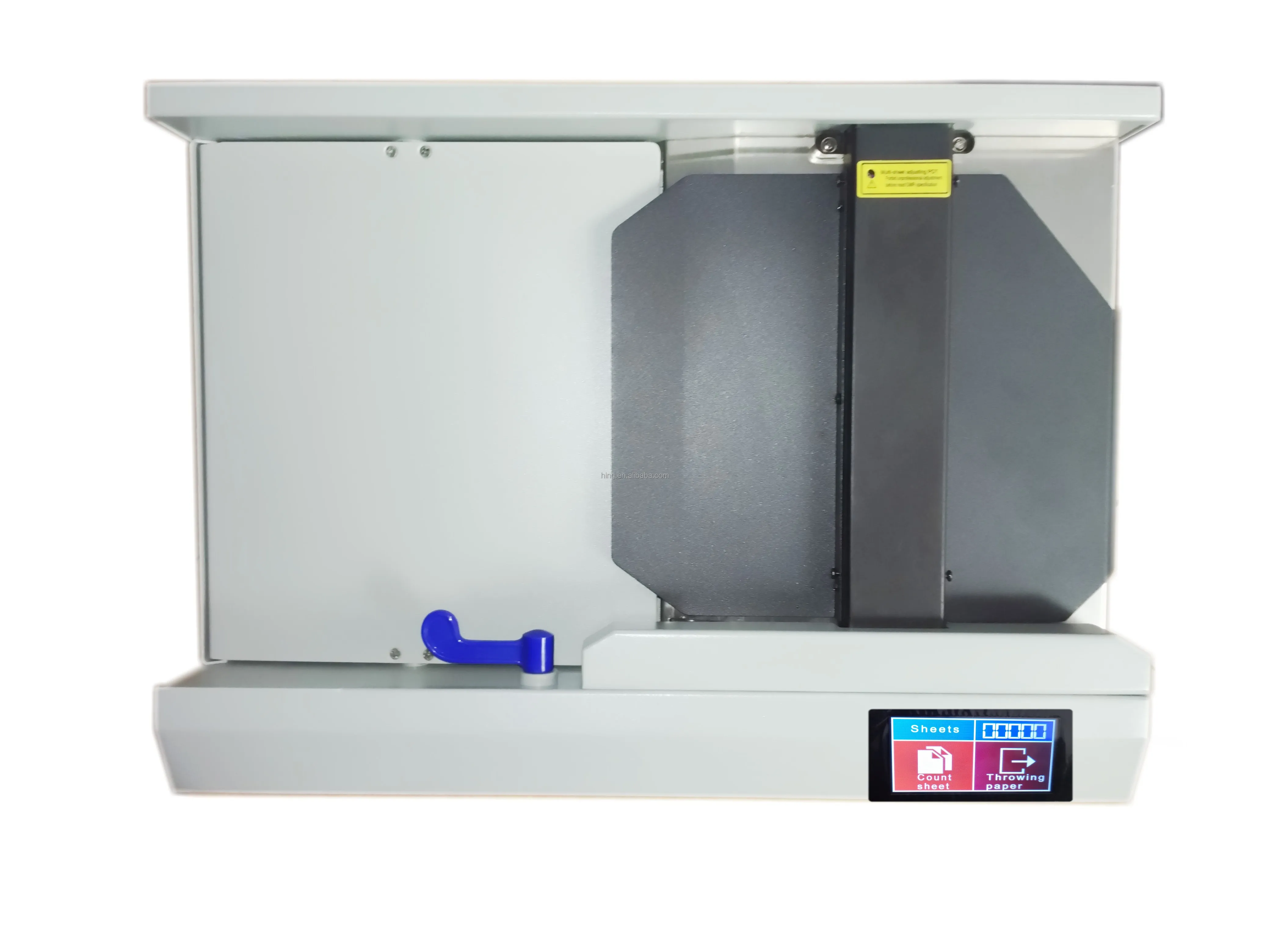

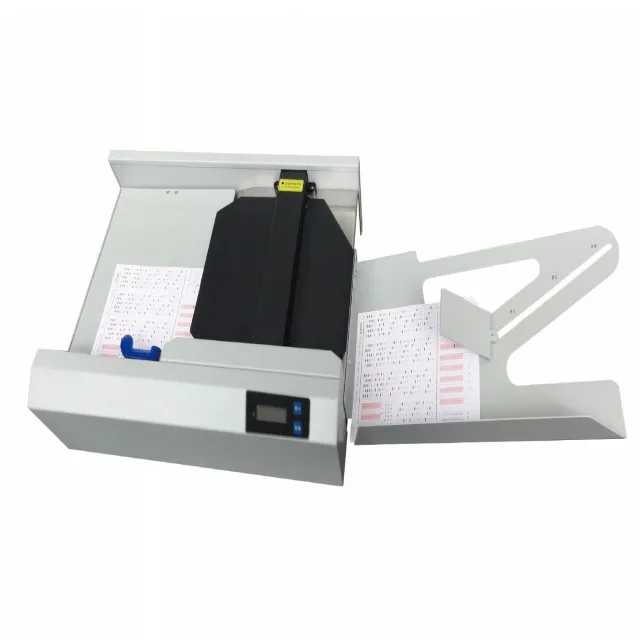

Model: OMRH86FSA

Reading mode: Single-face and read one time

Feeding mode: Automatic

Speed: 8000PCS/hour (based on A4)

Form size: 130mm× 50mm-300mm× 210mm

Form weight: 70-150G/M2

Track spacing: 4.23mm

Marking tools: No. 2 or softer pencils, carbon pens

Mark shapes: Rectangles, ovals and circles

Error rate: ≤ 1× 10-7

Mark choice: Single choice, multiple choice and BCD code

Format: 26 kinds, each has 255 commands at most

Interface: RS232, USB

Host: PC, Laptop

Weight: 8kg

Operating system: Win2000, Win2003, Win XP

Power supply: AC100-240V, 50-60Hz

Dimensions: 560mm× 170mm× 400mm

Operating condition: Temperature 0-40° C, humidity≤ 90%, no erosive gas
