Однолучевой мостовой кран
US $5000-$20000
Мастерская сталелитейного завода использовать кабины управления qd модель 80/20 тонн мостовой кран с электрической тележкой
- Категория: Bridge Cranes >>>
- Поставщик: Henan,Chongpeng,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.16 $* | 0.23 $* |
| Aug-20-2025 | 0.95 $* | 0.40 $* |
| Jul-20-2025 | 0.57 $* | 0.2 $* |
| Jun-20-2025 | 0.86 $* | 0.8 $* |
| May-20-2025 | 0.21 $* | 0.19 $* |
| Apr-20-2025 | 0.86 $* | 0.22 $* |
| Mar-20-2025 | 0.29 $* | 0.55 $* |
| Feb-20-2025 | 0.86 $* | 0.89 $* |
| Jan-20-2025 | 0.68 $* | 0.88 $* |
Характеристики
Workshop steel plant Use cabin control qd model 80/20tons overhead crane with electric trolley price
Product Description
QD double girder overhead crane is composed of box type bridge frame, lifting trolley, crane traveling mechanism, and electrical system. It is an excellent choice where high speeds and heavy service are required.It is capable of such works as transfer, assembly, check and repair as well as load and unload at mechanic procesing workshop, subsidiary workshop of metallurgical mills, warehouse, goods yard and power station.

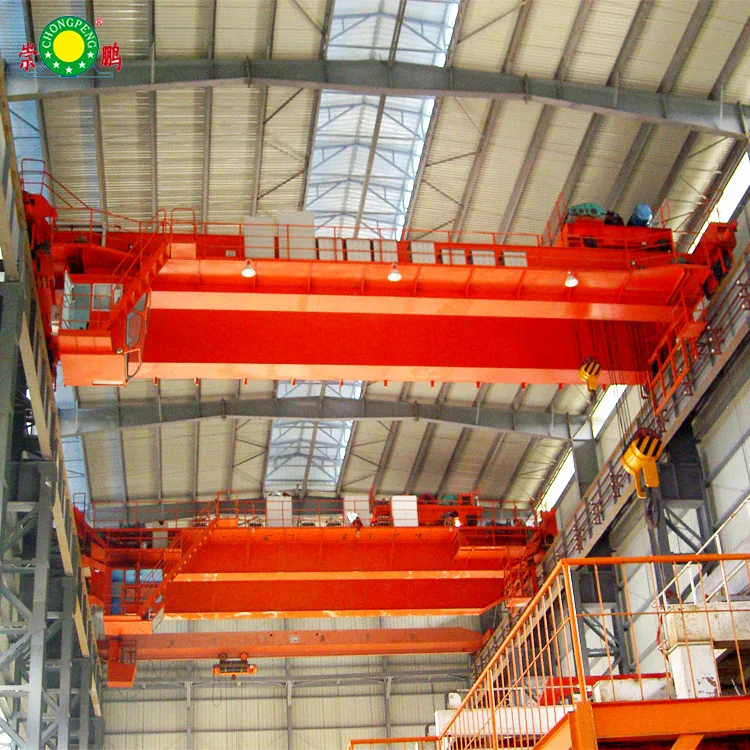

It is rely on the bridge frame along the workshop orbital direction moving longitudinal, the trolley along the main beam direction moving transverse and the hook lifting movement to work.![Workshop steel plant Use cabin control qd model 80/20tons overhead crane with electric trolley price]()

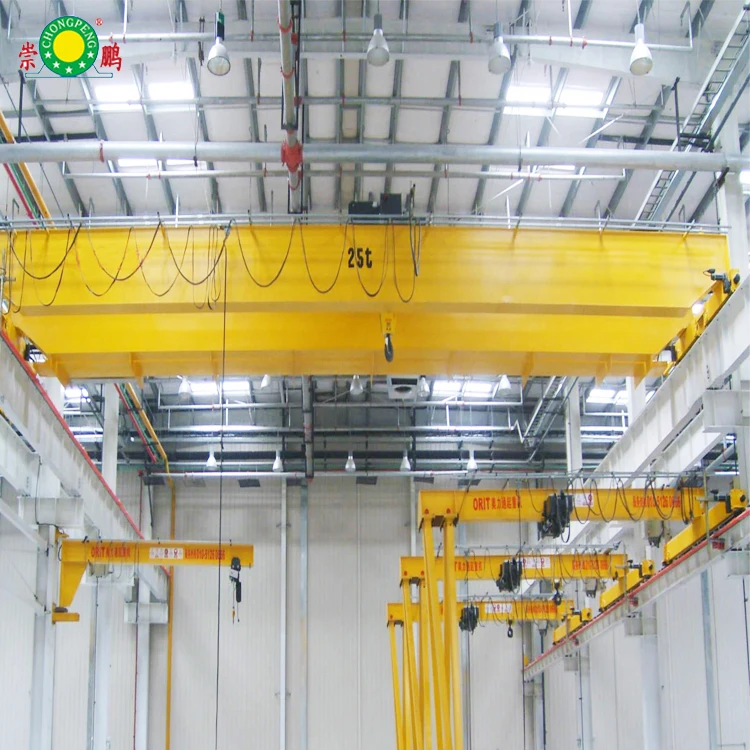

![Workshop steel plant Use cabin control qd model 80/20tons overhead crane with electric trolley price]()
![]()
It is rely on the bridge frame along the workshop orbital direction moving longitudinal, the trolley along the main beam direction moving transverse and the hook lifting movement to work.
Main Features:
1.Heavy duty, high efficient .Easy for Installation and maintenance
2. Control method is cabin control
3. crane can be equipped with hanging beam magnet or Grab or hook
4. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe
5.The cab can be either fixed at the left end or at the right end.
Technical Parameter
QD double beam overhead crane | |||||||||||
Lifting Capacity T | 5 | 10 | 16/3.2 | 20/5 | 25/5 | 32/5 | 50/10 | 400/80 | |||
Span M | 10.5-31.5 | 28 | |||||||||
Lifting height M | Main Hook | 16 | 16 | 16 | 12 | 12/11.0 | 16 | 12 | 22 | ||
| Aux Hook |
|
| 18 | 11 | 14/13 | 18 | 16 | 24 | ||
Speed M/min | hoist | Main hook | A5 | 12.5 | 8.5 | 7.9 | 7.2 | 7.3 | 7.8 | 5.9 | 2.92 |
|
|
| A6 | 15.5 | 13.3 | 13 | 9.7 | 9.8 | 9.5 | 7.8 |
|
|
| Aux hook |
|
|
| 14.5 | 12.7 | 12.7 | 19.5 | 13.2 | 9.24 |
| Trolley travelling | 37.2 | 43.8 | 44.6 | 44.6 | 37 | 42.4 | 38.5 | 37.2 | ||
| Bridge travelling | A5 | 89.8 /92.3 | 89.8-91.9 | 84.7-87.6 | 84.7/ 87.6 | 85.5/88 | 74.2-87.6 | 74.6 | 25.9 | |
|
| A6 | 116.2/ 117.4 | 112.5-116.8 | 112.5 | 112.5/ 101.4 | 112/ 101.4 | 86.8-101.4 | 87.3 |
| |
Weight Kg | Trolley | A5 | 2126 | 3424 | 6227 | 6856 | 7185 | 10877 | 15425 | 142.3 | |
|
| A6 | 2224 | 3562 | 6427 | 7180 | 7856 | 11652 | 15765 |
| |
| Total Weight | A5 | 12715-31405 | 14270-34405 | 19128-39428 | 19947-41497 | 20795-42796 | 26901-52748 | 35317-64880 | 359000 | |
|
| A6 | 12991-31596 | 14719-34699 | 20045-41315 | 20984-44225 | 22632-16324 | 28061-55272 | 36075-67242 |
| |
Max Wheel Load KN | A5 | 74-125 | 102-160 | 141-205 | 163-231 | 185-255 | 237-327 | 333-450 | 7500 | ||
| A6 | 75-126 | 104-162 | 145-211 | 167-239 | 189-263 | 242-335 | 336-457 |
| ||
Rail recommended | Trolley | 15kg/m | 43kg/m | ||||||||
| Bridge | 43kg/m | QU70 | QU80 | QU120 | ||||||
Power Source | According to your demand | ||||||||||
We can design and manufacture all kinds of non-standard product according to your requirement | |||||||||||
Application
Company Information
Henan Chongpeng Machinery Co., Ltd.
Henan Chongpeng Machinery Co., Ltd. mainly engaged in the research and development, design, manufacturing, installation, import and export business of various non-standard winches,kinds of industrial cranes and hoists.
To provide innovative, intelligent, green and environmentally friendly systemic complete equipment solutions as the starting point, take responsibility for the society, create profits for customers.
Certifications
Main Products
Packaging & Shipping
Our Services:
1.We can discuss details and solutions with you according to your needs, and produce high-quality products suitable for you.
2.The company has professional business staff to answer your questions online 24 hours a day.
3.Perfect after-sales service, solve problems for you in time
4.have a dedicated engineer to provide you with overseas guidance installation services.
FAQ
1.Q:What’s your MOQ?
A: 1 Set;
2. Q: What’s your delivery period?
A: Within 20-25 days after your prepayment received;
A: Within 20-25 days after your prepayment received;
3. Q: What’s your warranty period?
A: 12 months from cranes accepted;
A: 12 months from cranes accepted;
4. Q: Do you have engineer oversea installation service?
A: Yes; We have;
A: Yes; We have;
5. Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is Siemens or Schneider brand; it’s very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
A: Our main electrical parts brand is Siemens or Schneider brand; it’s very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
6. Q: What kinds of products do you have?
A: General Industrial material handing equipment,such as : Overhead Crane; Gantry Crane;Jib Crane; Electric Hoist; etc.
A: General Industrial material handing equipment,such as : Overhead Crane; Gantry Crane;Jib Crane; Electric Hoist; etc.
