Новый китайский производитель 60120 универсальный шлифовальный станок для металлических
- Категория: Surface Grinding Machines >>>
- Поставщик: Tengzhou,Beta,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 42840.43 $* | 44982.39 $* |
| Aug-15-2025 | 42480.27 $* | 44604.98 $* |
| Jul-15-2025 | 35640.0 $* | 37422.8 $* |
| Jun-15-2025 | 41760.66 $* | 43848.34 $* |
| May-15-2025 | 36360.82 $* | 38178.9 $* |
| Apr-15-2025 | 41040.4 $* | 43092.32 $* |
| Mar-15-2025 | 40680.34 $* | 42714.52 $* |
| Feb-15-2025 | 40320.67 $* | 42336.19 $* |
| Jan-15-2025 | 39960.38 $* | 41958.48 $* |
Характеристики
Products Description
Table Size 600x1200mm Metal Surface Grinding 3 Axis Automatic Grinding Machine
Product Parameters
Model | Unit | SG60120NC | SG60160NC | SG60220NC |
Table size | mm | 630*1250 | 630*1600 | 630*2200 |
Max.grinding size | mm | 600*1250 | 600*1600 | 600*2200 |
Max.distance from table to spindle center | mm | 600 | 600 | 600 |
Magnetic chuck size (optional) | mm | 600*1000*1pc | 600*800*2pcs | 600*1000*2pcs |
Speed of table longitudinal move | m/min | 5-25 | 5-25 | 5-25 |
Wheel head cross move | ||||
Auto intermittent feed | mm/t | 0-30 | 0-30 | 0-30 |
Rapid speed | mm/min | 0-600 | 0-600 | 0-600 |
Feed of MPG | mm/div | 0.005 | 0.005 | 0.005 |
Wheel head vertical move | ||||
Auto feed | mm/t | 0.005, 0.01, 0.02, 0.03, 0.04 | 0.005, 0.01, 0.02, 0.03, 0.04 | 0.005, 0.01, 0.02, 0.03, 0.04 |
Rapid speed | mm/min | 0-300 | 0-300 | 0-300 |
Feed of MPG | mm/div | 0.005 | 0.005 | 0.005 |
Grinding wheel size | mm | 355*(20-50)*127 | 355*(20-50)*127 | 355*(20-50)*127 |
Motor of spindle | kw | 7.5 | 7.5 | 7.5 |
Packing size | mm | 4340*2300*2500 | 5100*2300*2500 | 6580*2300*2500 |
Gross weight | kg | 6500 | 7000 | 8000 |
Details Images

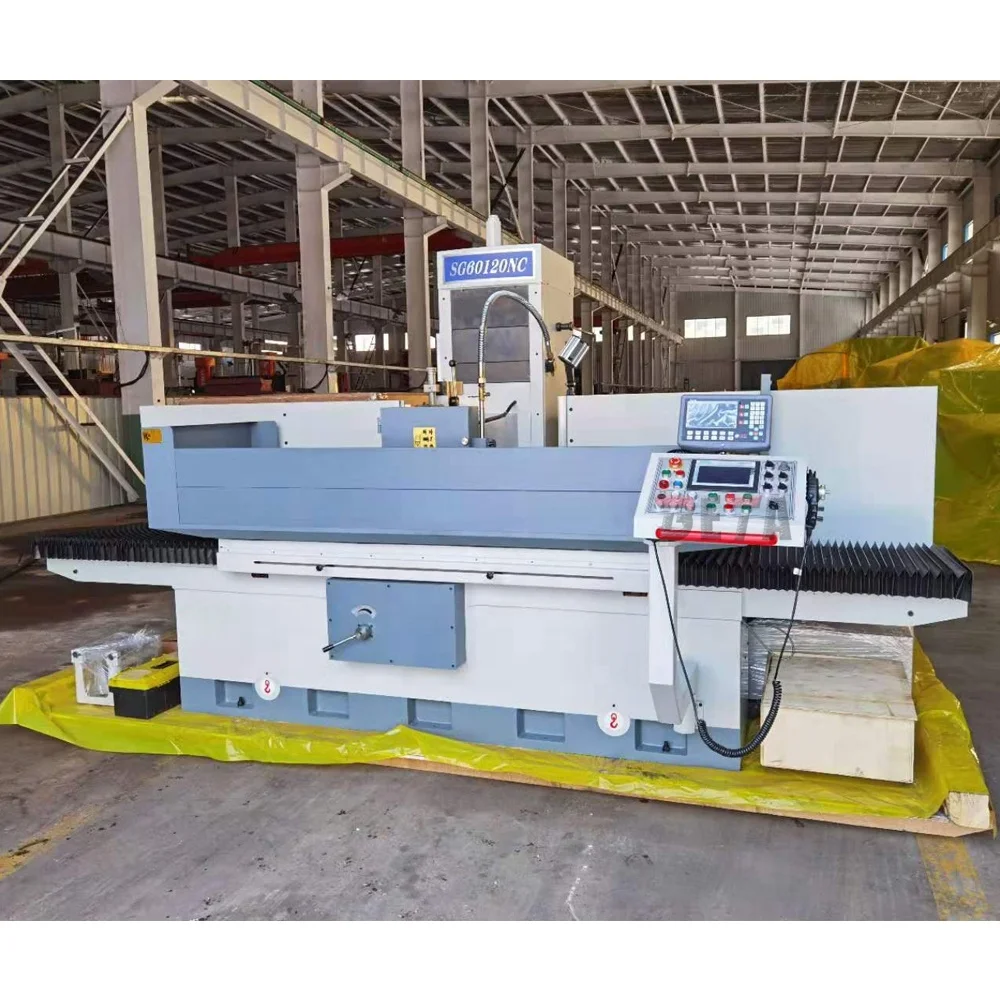

Three axis auto motion:
X-axis: driven by hydraulic
Y-axis: driven by AC servo motor
Z-axis: driven by AC servo motor
X-axis: driven by hydraulic
Y-axis: driven by AC servo motor
Z-axis: driven by AC servo motor

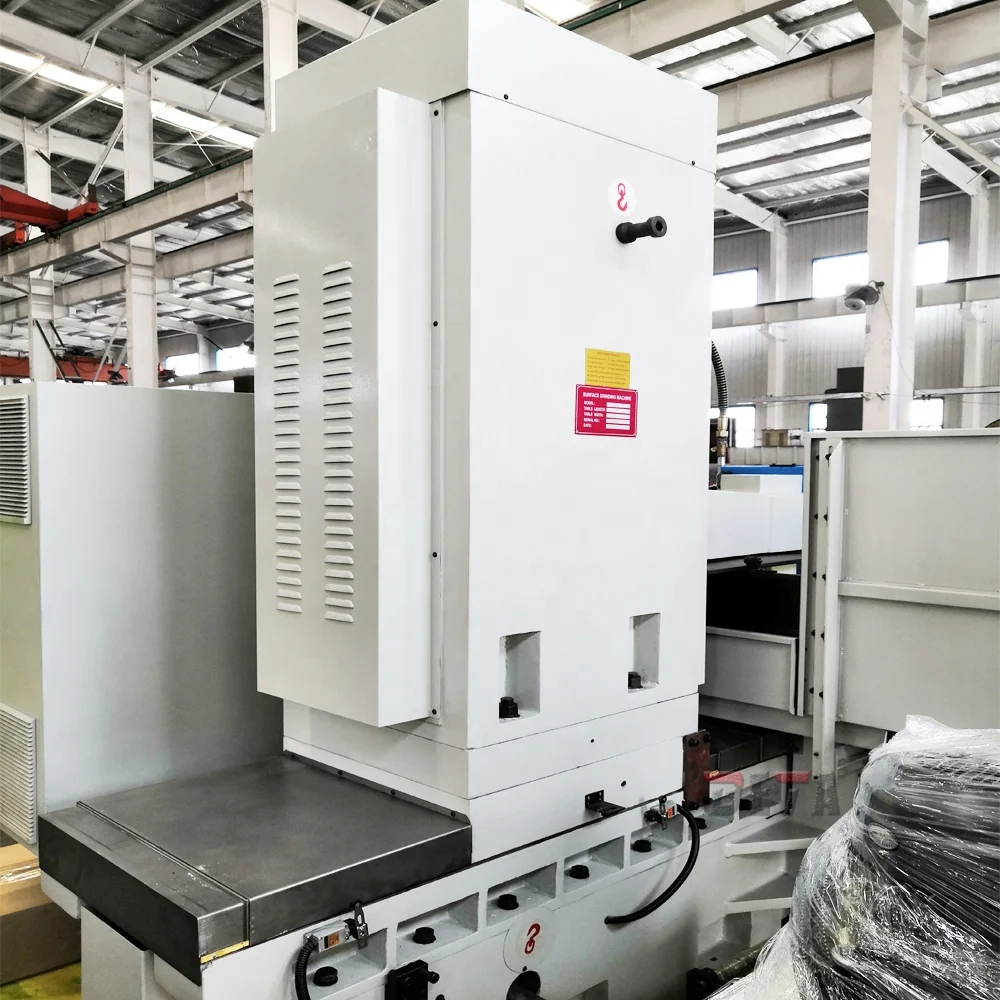

High rigidity rectangular guideway is designed on vertical motion, and coat with TURCITE-B belt, to get low fricion coefficien.

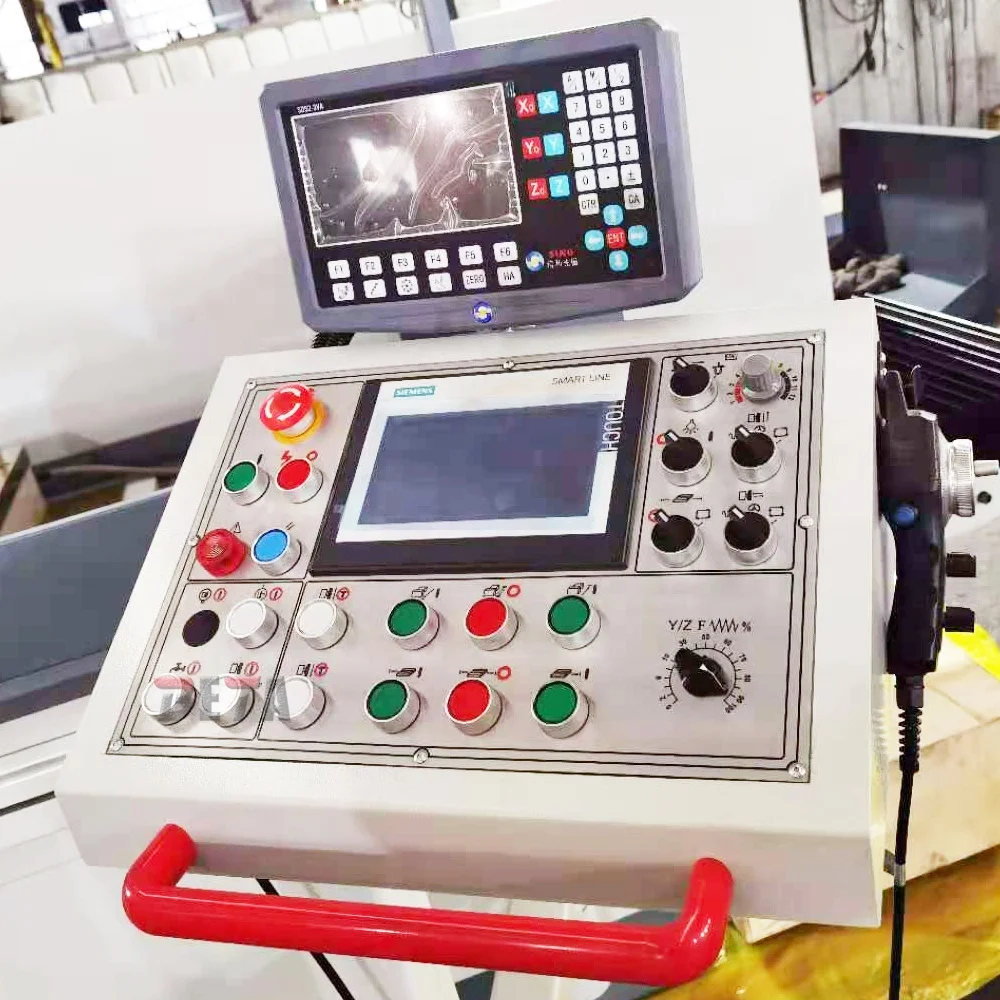

Adopts Siemens 7 inch LCD-TFT colorful touch screen, built in program of engineer's genius designation to make the operation very simple and convenient for the users.

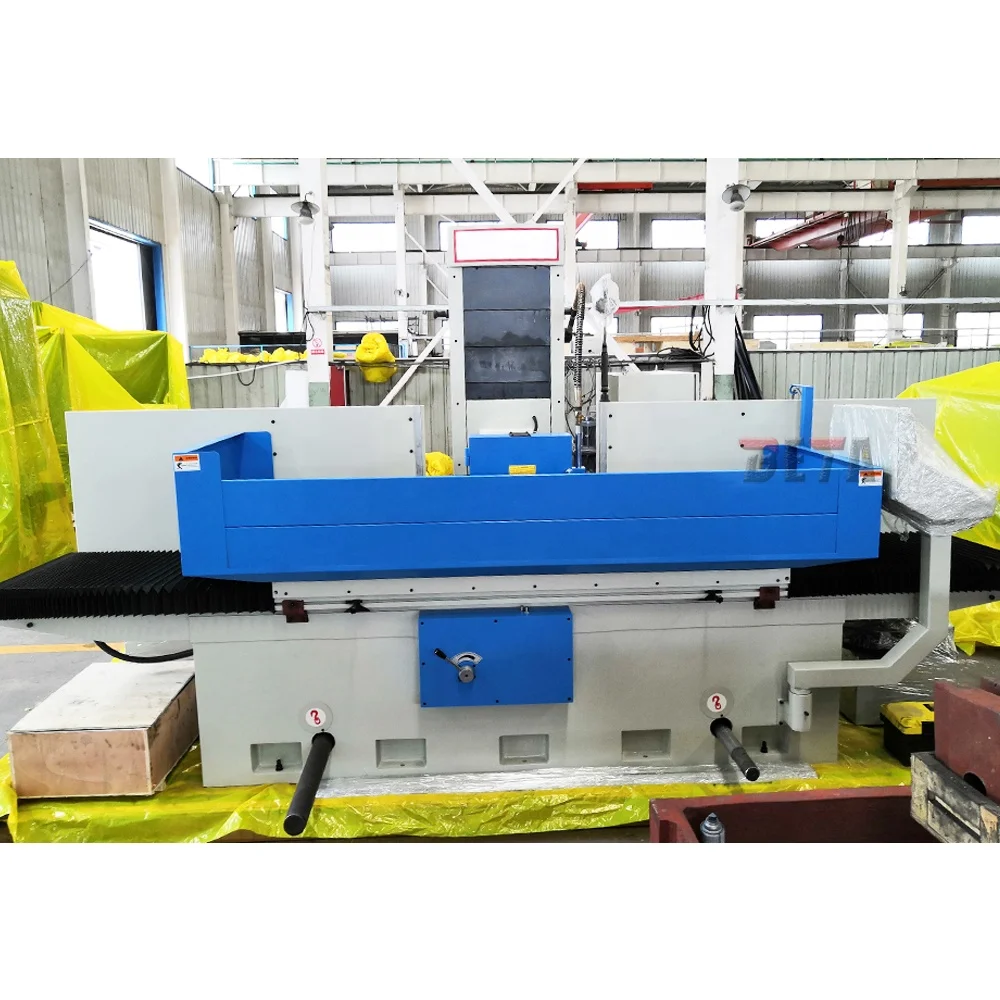

Big worktable size with electro-magnetic chuck

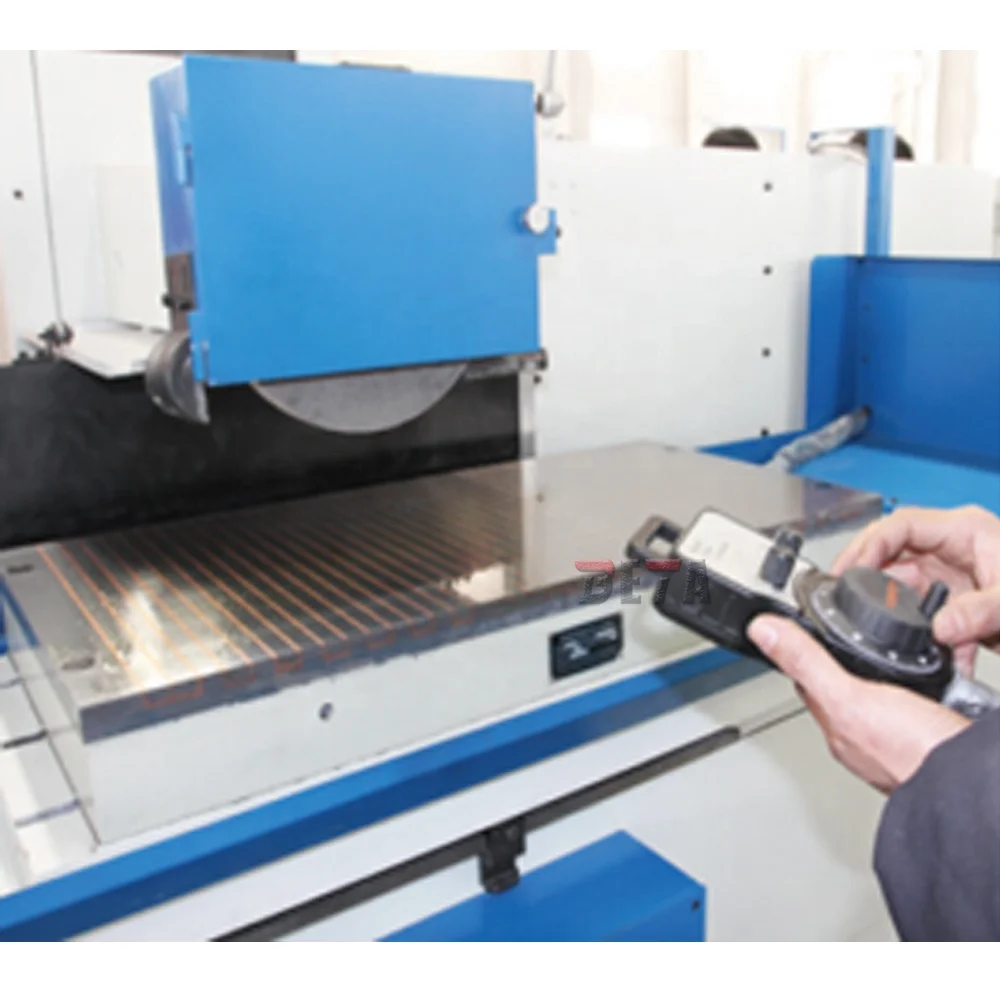

AC motor drives on cross and vertical motion. MPG replace the tradition mechanical hand wheel, which can realize higher accuracy and easy operation.
AC motor drives on cross and vertical motion. MPG replace the tradition mechanical hand wheel, which can realize higher accuracy and easy operation.
Independent, large capacity integrated hydraulic tank, standard equipped with air cooling and pressurizer, isolate heat and vibroseis, to provide excellent power for precision grinding.

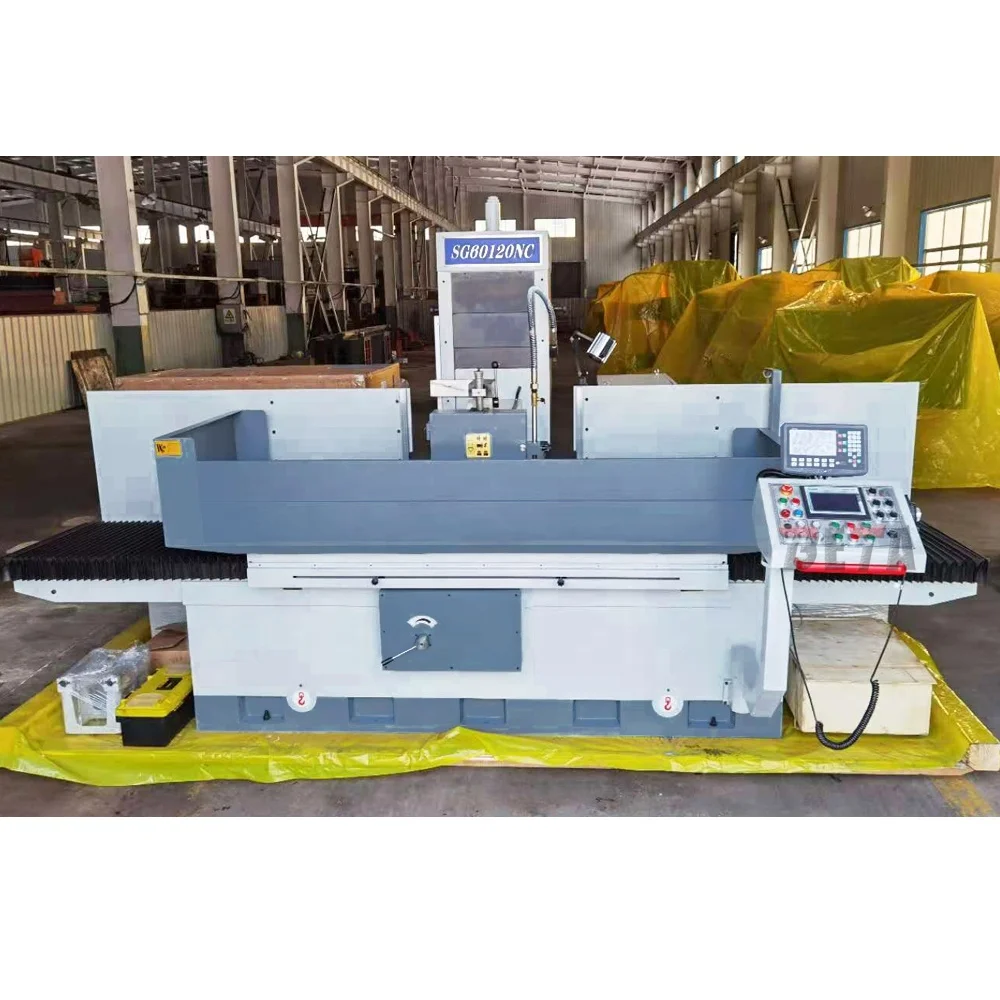

High quality casting machine frame with good rigidity.
Beta - Suitable for LCL and FCL container shipping by sea.
Beta - We are the key guy who want to let your grinder and ours getting better!
