Характеристики



Brief introduction

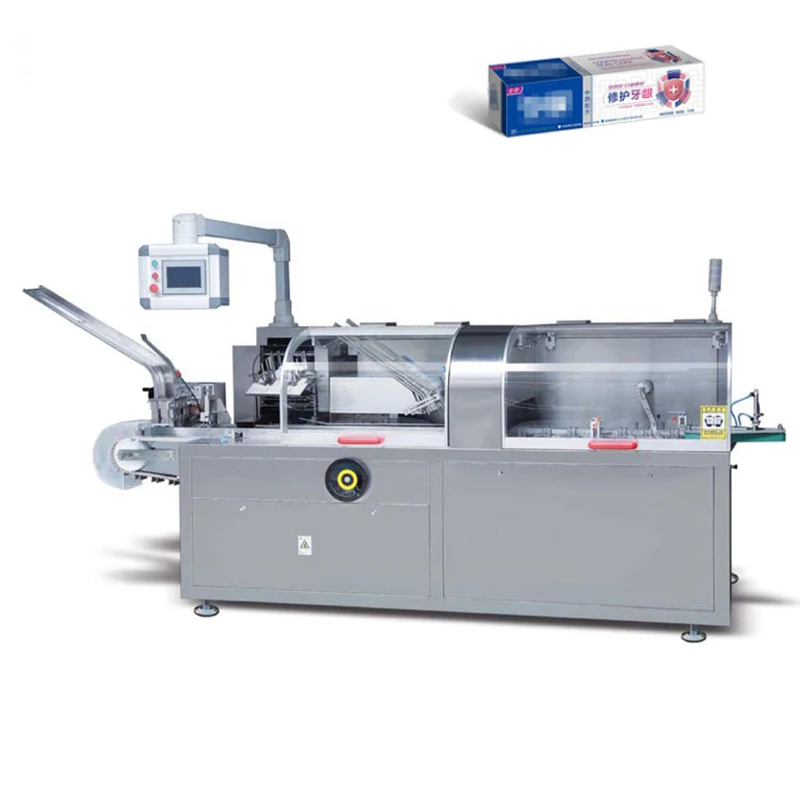

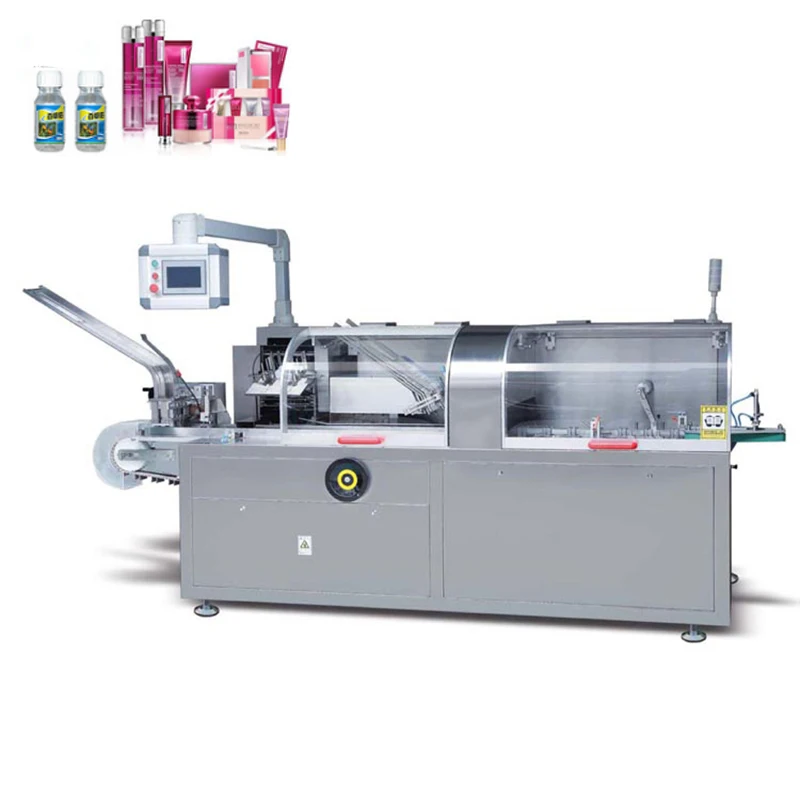

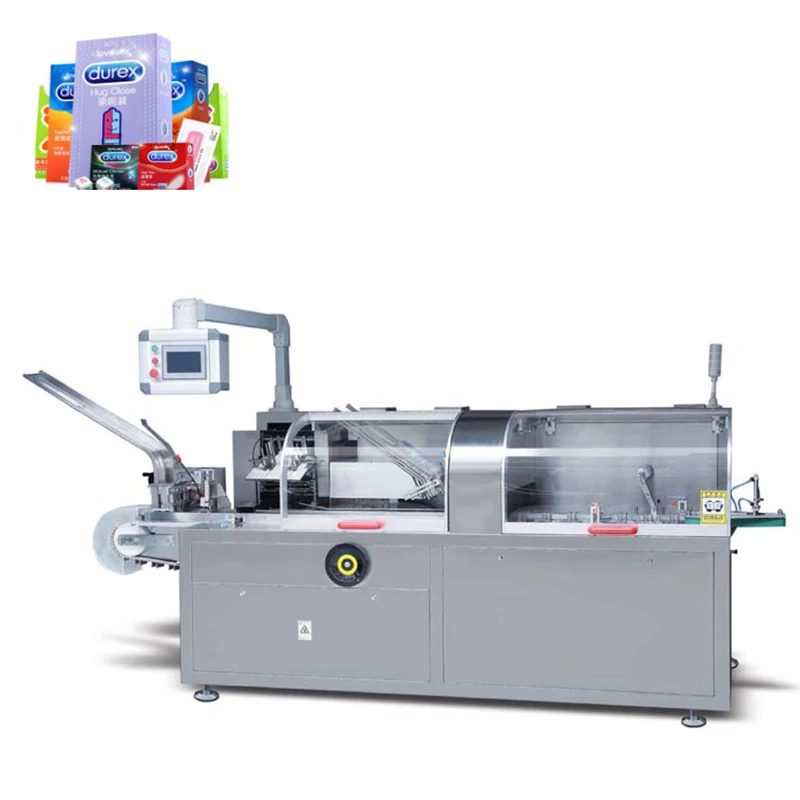

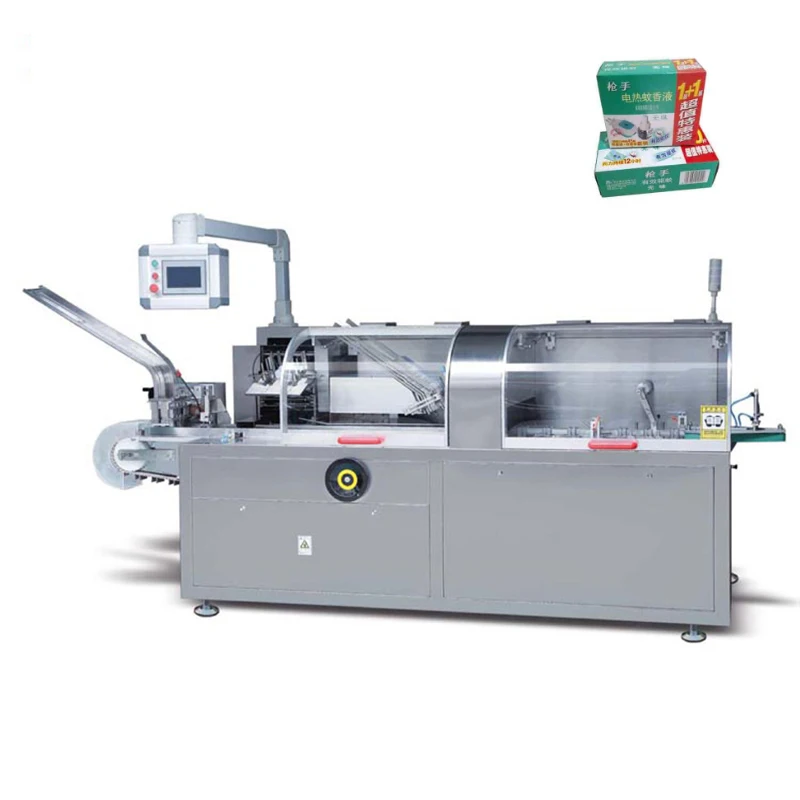

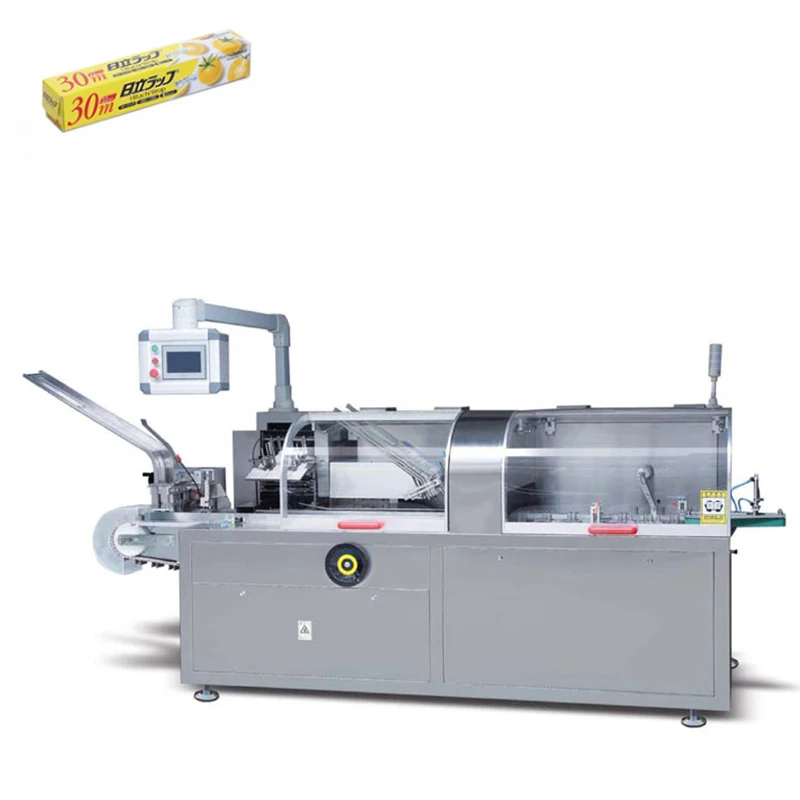

SINO-260 continuous-type high-speed cartonning machine is newly designed by our company, and meets the GMP standard. There are features of high efficiency, stable properties and high capacity, etc. Many technologies, including the leaflet’s automatic folding & conveying, boxes forming and the post pushing unit, etc. meet the European & American standards. With the tidy appearance and the post continuous pushing structure, it’s convenient to operate and maintain. With the 4-indexing double-planet-wheel’s external-loop rotation, boxes can be opened, and there are twice pre-forming devices, so it’s ensures that boxes can be supported completely. The machine integrates the mechanism-optical-electric- pneumatic in one, and when it’s connected with other matched machines, it’s a complete packing line.






Features:

a.Electric appliances, including the PLC, the touch screen and the frequency convertors are from well-known international brands.

b.There is the HMI.

c.Errors, working speed and the final-product counting can be automatically displayed.

d.When the box’s feeding position is not correct, or there is no box, or there is no leaflet’s feeding, the machine will be stopped automatically.

e.When there is no content, there is no leaflet’s taking. When there is no leaflet feeding, there will be no cartonning.

f.There is the protecting if it’s overloaded.

g.Stable properties & convenient operation.




model
SINO-260( horizontal)
Items
Specification
Cartonning speed
260boxess/min

Box
Quality
250-350g/m2 (It’s decided by the box size.)
Size, L×W×H
(70-180) × (35-85) × (14-50), mm


Leaflet
Quality
60-70g/m2
Size when it’s unfolded, L×W
(80-250) × (90-170), mm
Folding
1-4folds

Compressed air
Working pressure
Not less than 0.6Mpa
Consumption
About 160 ~ 200L/min
Power supply
380V, 50Hz
Main power
5Kw
Overall dimension, L×W×H
4800 × 1600 × 1860, mm
Net weight
3000Kg


Detailed Images








Working principle:
